CS52 quality advanced famous fashion brands china pump, china famous brand best famous used petrol station fuel dispenser

Product Overview

Description

CS52 quality advanced famous fashion brands china pump, china famous brand best famous used petrol station fuel dispenser

Censtar, top brand in Chinese greaser industry, pioneered a number of "FIRSTS" in Chinese fuel-servicing equipment industry, won 14 national patents in the R&D of fuel-servicing equipments.

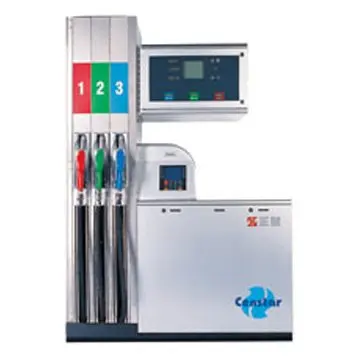

Censtar Fuel Pump Dispenser, CS52 series is close structure, convenient maintenance, stable operation and high cost-performance ratio.



It is available as suction pump fuel dispenser or remote fuel dispenser in a single or dual product/hose configuration. Nozzle is island oriented.



Product configuration option

1. CS***G

G series is LLG05 flow meter +GP03 gear pump



2. CS***F

F series is LLG05 +Combined Vane Pump



Suction Dispenser	model	Nozzle/Flow meter	Product	Pump/Engine	Display each side	Main board number	Flow rate
	CS52J4221G	4	2	2	1	2	50L
	CS52J6321G	6	3	3	1	2	50L
	CS52J8421G	8	4	4	1	2	50L
	CS52J4221F	4	2	2	1	2	50L
	CS52J6321F	6	3	3	1	2	50L
	CS52J8421F	8	4	4	1	2	50L
Remote Dispenser	CS52D4221F	4	2	0	1	2	50L
	CS52D6321F	6	3	0	1	2	50L
	CS52D8421F	8	4	0	1	2	50L



 Inner Structure



Transportation



Net size:1480*690*2150/ 1889*690*2150mm



Package size: 1650*840*2270/ 2059*840*2270mm



Gross weight: from 505KG to 790KG



6 units can be loaded in one 20” container



Technical Parameters

Accuracy: ±0.25%

Flow rate range: 5 to 50 liter per minute

Noise: ≤80dB(A)

Intake vacuum: ≥54kPa

Display: Sales 0.00 to 9999999

Volume: 0.00 to 99999.99

Unit price : 0.00 to 99999

Decimal point position can be chosen

Electrical totalizer: Volume 0 to 42949672.95L

                                    Money 0 to 42949672.95

Power supply: AC380V or AC220V with a changing range from -15% to +10%

Motor's output power: 750W

Working environmental temperature: -40oC to +55 oC

Relative humidity: 30% to 90%



Advantage

1) This is the most popular model in our whole range, high performance-price ratio.

2) Fit for 20’ container,22 units can be loaded in one 20” container.

3) More option to choose



Option

Vapor recovery system, low temperature solution, printing customer’s logo, international solenoid valve, breakaway valve and swivel, international brand nozzle, receipt printer, IC card payment terminal, stainless steel arm-side and canopy, Mechanical totalizer.

Censtar fuel dispensers, stand from the coldest Siberia to the hottest and wettest Sri Lanka.
