Digital o3 ozone meter,ozone monitor in air

Product Overview

Description

Digital o3 ozone meter,ozone monitor in air

Product outline

ZA-XM-E-O3 Pump-priming Portable Ozone (O3)

Gas Detector is a continuous monitoring of a variety of single gas detection

equipment.This product is suitable for environmental monitoring including the cold

storage,industrial production process and other harmful gases working environment,

which can effectively protect the health and safety of staff is not compromised.



Features

1.Smart probe design, calibration easy;

2.Maintenance more convenient in the future;

3.Fault, Warning, operator error, alarm will be smart tips;

4.Built-in CF calibration coefficients (VOC measurements only valid);

5.With audible alarm, visual alarm function, the status bar also displays alarm status;

6.Full-color 3.5-inch TFT screen, color LCD display and intuitive;

7.Can be both digital and curve display of gas concentration in two ways;

8.With USB communication port, you can speed 9600 bytes to communicate directly

with the computer;

9.With test record function, can store a month's measurement data and instrument

or computer can view the data;

10.With alarm recording function, you can record the last four times the alarm time

and type;

11.With calibration record; can record the last four times the size of the calibration

time span;

12.High-capacity lithium battery-powered, rechargeable, low battery automatic

shutdown;

13.Can be set high reported, underreporting, TWA, STEL, shutdown time, pump

speed, etc.;

14.Indicate way: LCD display real-time concentration, LED, buzzer alarm.



Product Technic Data

1. Testing range:0-20ppm

2. Resolution:0.001ppm

3. Power supply: Lithium battery (4.2V/3000mAh)

4. Operating Current: normal current: ≤150mA; Alarm current: ≤200mA

5. Operating environment:

Temperature: -40OC-70OC; Relative Humidity: 15%-95%, non-condensing

6. Storage environment:

Temperature: -20OC-60OC; Relative humidity: ≤90%, no condensation

7. Housing material: PC

8. Dimensions: 228*84*50.5mm

9. Installation: Handheld/Stand-in

10. Weight: 0.55kg

11. Response time: T90<10S



Applications

They are widely used in petroleum chemical industry, power industry, water

treatment industry, the tobacco industry,pharmaceutical industry, food industry,

coal, metallurgy, municipal gas, environmental monitoring and other occasions

on-site testing.

Can be measured gas species:CH2O,TVOC,CO,H2S,NO2,NO,SO2,CL2,NH3,H2,PH3,

O3,F2,HF,HCL,HBR,C2H4O,COCL2, SIH4, CLO2, HCN, C2H4, SF6 and combustible

gases.



Other ozone monitor models

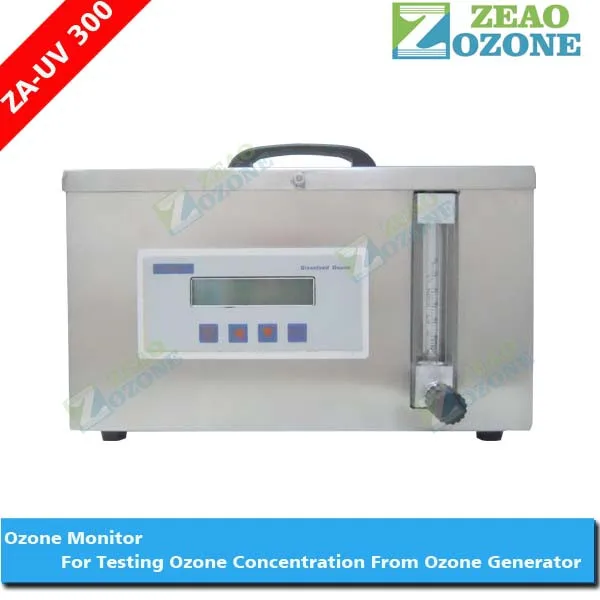

 1. ZA-UV 300 ozone monitor for testing ozone concentration

from ozone generator

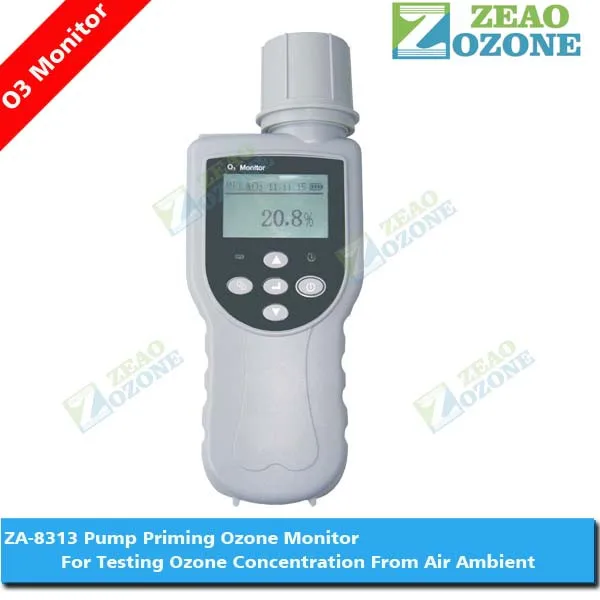

2. ZA-8313 ozone monitor for testing ozone concentration

from ambient air

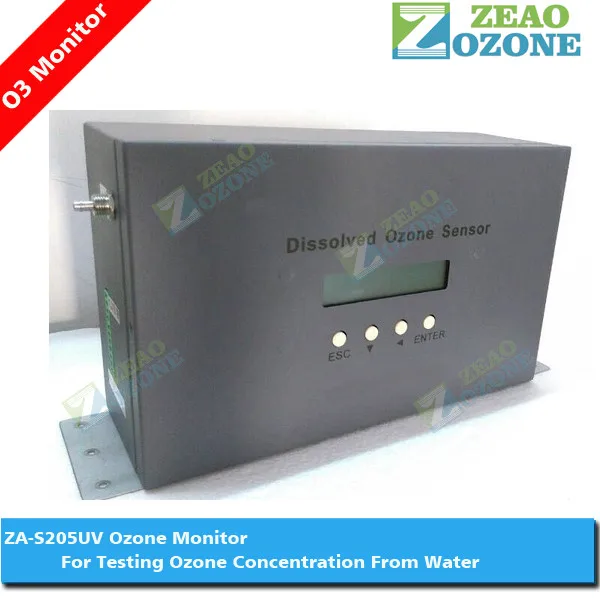

3. ZA-S205UV ozone monitor for testing ozone concentration

from water

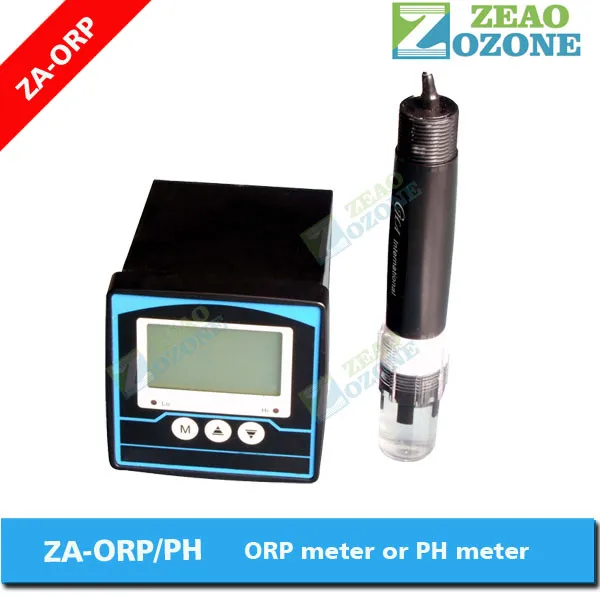

ORP meter for your reference

Oxygen monitor for your reference

We can supply you with below ozone generator

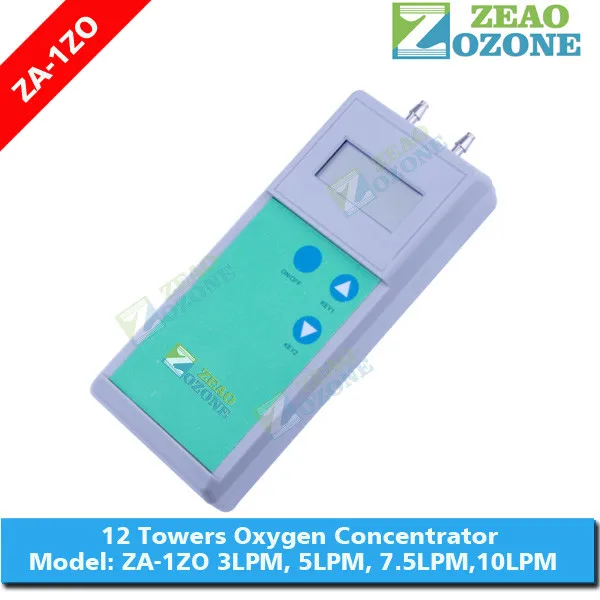

We can also supply you with below oxygen concentrator

Inspection before shipment



Team work



Trade terms

Payment method

Paypal,T/T,WU,etc



Packaging

1.Inner layer: plastic bag

2.Middle layer: EPE(Expand aple poly ephylene)

3.Outer Layer: carton/composite wooden cases



Prompt delivery

1. Shipping way:by sea,by air or by express(DHL,FedEx,UPS,TNT etc)

2. 3-7 days for sample order;

3. 10-30 days for mass production order.



About us

For Zeao Ozone,we can supply to you not only ozone generator,but also the high purity of Oxygen generator and UV water sterilizer.

For the oxygen,we can supply to you not only the 3LPM, 5LPM, 8LPM,10LPM PSA oxygen generator spare parts,but also the complete oxygen machine for home and industrial from 3LPM to 70LPM etc.

All of our products are favored and trusted by customers with contemporary design

(simplicity,innovation,practicability,multifunction and fashion),convenient operate,

durable and its competitive price.



Excellent after-sales service

1.One year warranty again the manufacture defect,offer life time consultation on problems occurred.

2.Report on the making process.

3.Marketing feedbacks tracing.



Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
