winner 311XP Spray laser particle size analyzer
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (60441245921):
Product Overview
Description
Product Description
winner 311XP Spray Particle size analyzer
Winner311xp is desktop spray laser particle size analyzer, with a number of patented technology including lens protection device. It could test size of droplet in the air without touch. It’s mainly apply to droplet detection of small spray equipment, such as medical atomizer,atomizing drugs and aerosol.
( Such as Orally inhaled and nasal drug products.
Particle size is a key parameter in defining the deposition pattern and bioavailability of drug materials delivered using pump sprays and inhalers to the nasal mucosa and respiratory system.)
Main Specification:
Model | Winner 311XP |
Size Range | 0.1-100µm |
Detector channels | 40 |
Accuracy | <3% (Deviation of D50 on National standard samples) |
Repeatability | <3% (Deviation of D50 on National standard samples) |
Light source | Semiconductor λ= 650nm p>1mW |
Feeding | open |
Measurement area length | 6cm |
Dimension | L66*W26*H45cm |
N.W. | 19KG |

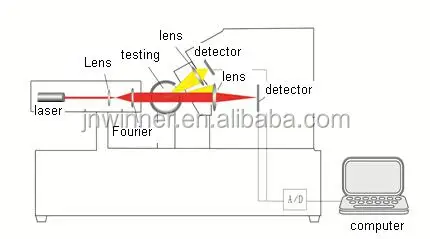

Working Principle:
Main Features:
1) Unique patented technology
Based on laser scattering principle, adopt a single beam of parallel light path and
the dual-lens, dual-array detector technology to ensure high collection of scattering light at different angles, extends the measurement limit, improve the resolution of the instrument.
2) Unique air flow protection device
Airflow protection system can effectively protect the lens to avoid droplet pollution of the lens in the testing process.
For the national pharmacopoeia of inhaled aerosols, sprays, size requirements and the development of inhalation and other desktop spray laser particle size analyzer, can be a variety of aerosols, sprays and other small spray device for testing, integration of micro-nano the company a variety of patented technology, is the best choice of small spray particle size testing
Packaging & Shipping
Wooden box package, G.W.:22KG.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Our Services
Warranty: we will offer you free spare parts within 1 year, and technology support in all a life.
After warranty time, we will offer them at cost price, and shipping cost would be paid by customers.
Certifications
Company Information
Winner Particle Instrument Stock Co.,Ltd. have been specialized in laser particle size analyzer since 1985, as the leading manufacturer in China, winner undertake the national science and technology project for many times, get more than 30 patents technology, Strongly recommended by 500 Universities in China!
1st Circulation test wet particle size analyzer
1st Dry particle size analyzer
1st Dynamic particle image instrument
1st Nano particle size analyzer
1st Image laser particle size analyzer
1st Inline particle size analyzer
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
FAQ
1. How about the package ? Is it safe during the delivery ?
All Particle size analyzer is packed by standard strong wooden carton with foam inside.
It is safe when shipping.
2. What is the delivery way ? How many days will the machine arrive us ?
We will ship the machine by DHL,FedEx, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
2 year warranty free for spare parts, Whole life technical support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our particle size analyzer is designed to use easily, computer control. Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.
We will provide the English user manual for free , and the operation video is available.
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: Bank transfer, Western union, Money gram, Paypal, etc.
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
