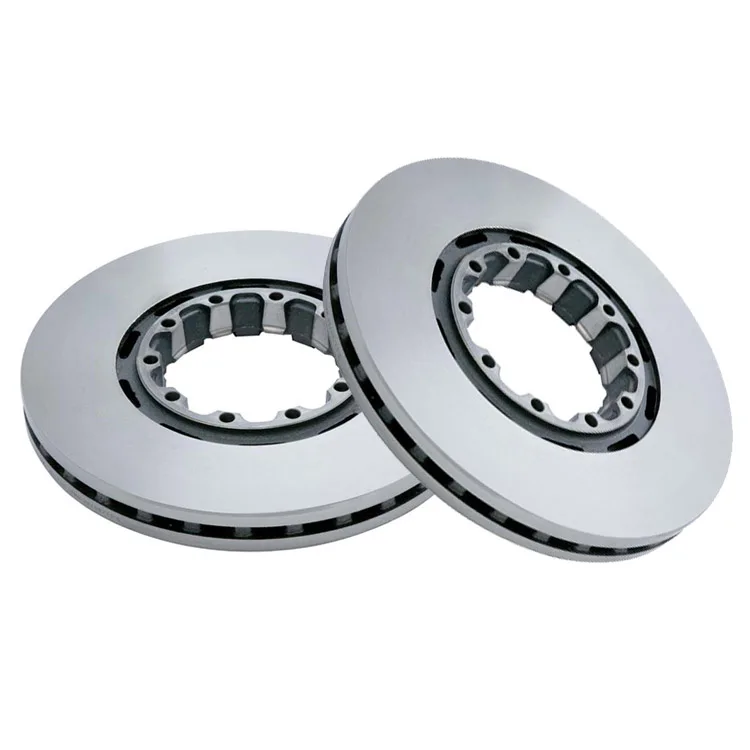

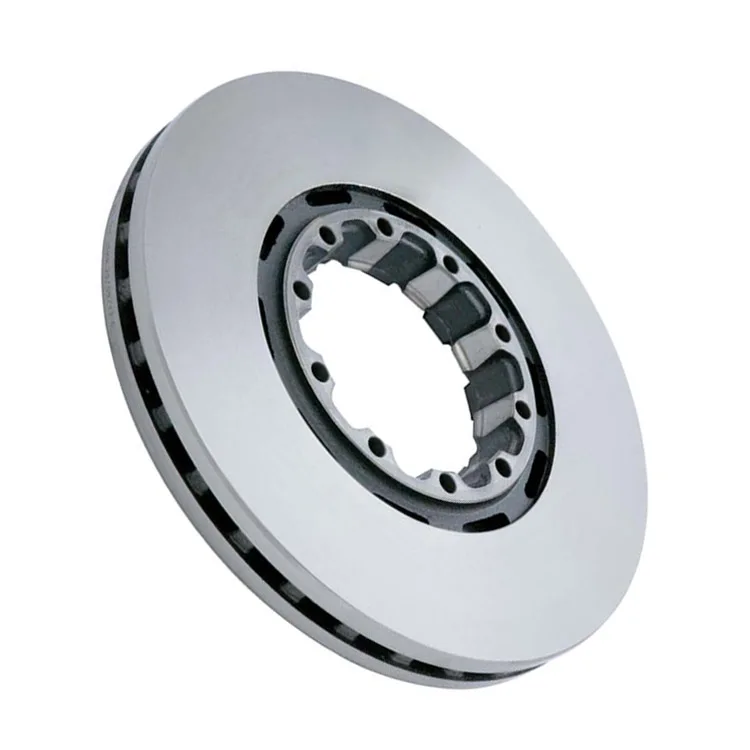

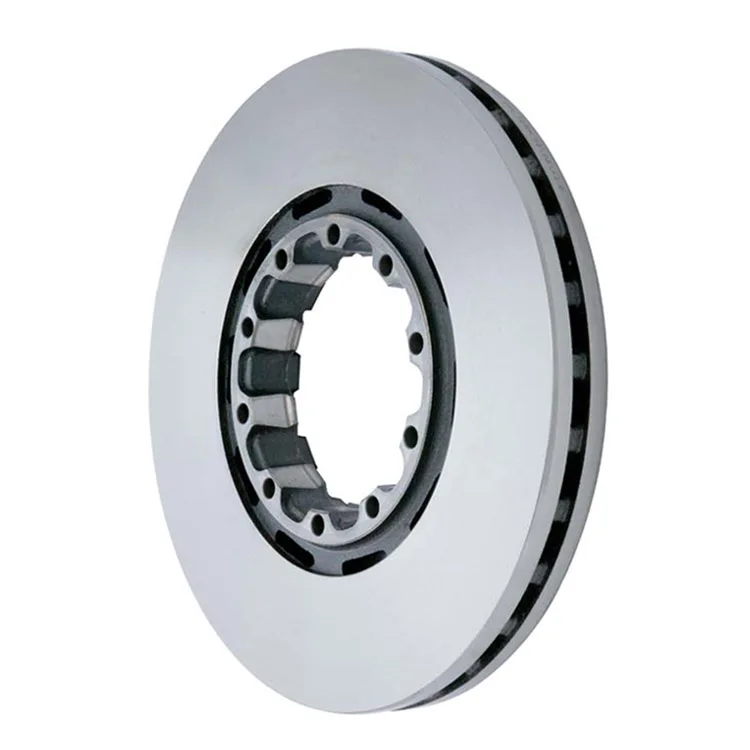

SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc
SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc
SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc
SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc
SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc

SAF Brake Disc 4079001300 4079001301 4079001302 ECE R90 approved Trailer Brake Disc

Share on (60441412708):


Price:$33.00 - $34.60

Quantity:


Product Overview

Description


Product Description
Type
A
B
C
D
E
HOLES
Vented
430
190
48
45
170
10
VEHICLE APPLICATION
SAF BI9, BIL9 [09->] - TRAILER
SAF SK RB INTEGRAL [04->] - TRAILER
Chemical Composition
Material
C
Si
Mn
S
P
Cr
HT250/G3000
3.10-3.55%
1.90-2.40%
0.50-0.90%
0.15% max.
0.15% max.
0.25% max.
Microstructure
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min.
Ferrite: 5% max.

Mechanical Property
Hardness: 187 - 241 HB
Tensile Strength: 220 Mpa (min.)

Machining Requirement
Runout: 0.05mm (max.)
DTV: 0.127mm (max.)
Roughness: Ra 1.6μm (max.)
Dynamic Balance: 100% Balanced

1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars
2) TS16949 Quality System Certification & ECE R90 Certified
3) Competitive Factory Price
4) 100% crucial dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.
CV Brake Discs
- Over 500 part numbers
- Basic material, as well as in high carbon
- Automatic production lines are used
Car Brake Discs/Drums
- Over 2600 part numbers
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available
High Carbon Brake Discs
- Increased noise damping capability
- Improved heat dissipation
- Better resistance to thermal cracking and distortion
Coated Brake Discs
- Environmentally friendly hexavalent chromiumfree
anti-corrosion coating
- Install the disc right out of box, no cleaning needed
- Provides a long lasting clean appearance
Drilled/Slotted Brake Discs
- Enhanced braking power
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator
Black Hat Brake Discs
- Black coating on the hat
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks
Casting finish
- Smooth
- Even
- Free of blow holes

Machined Area
- Sharp cutting tool


Vent configuration
- Correct design used as OE design
or better

Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant
controlled temperature to give
correct hardness
