20-29inch fat tire 72v 3000w hub motor ebike conversion kits
US $221.00-$255.00
E bike kit Bafang 36V 500W mid conversion kit
- Category: Electric Bicycle Motor >>>
- Supplier: Changzhou CNEBIKES Co. Ltd.
Share on (60441581716):
Product Overview
Description
E-bike kit Bafang 36V 500W mid conversion kit
♦ Warranty
Motor--->2 years(guarantee replacement in first year, guarantee repair in the next year)
Battery---->1years(guarantee replacement)
Other parts---->half an year
♦ Kit List
1. Bafang mid crank motor

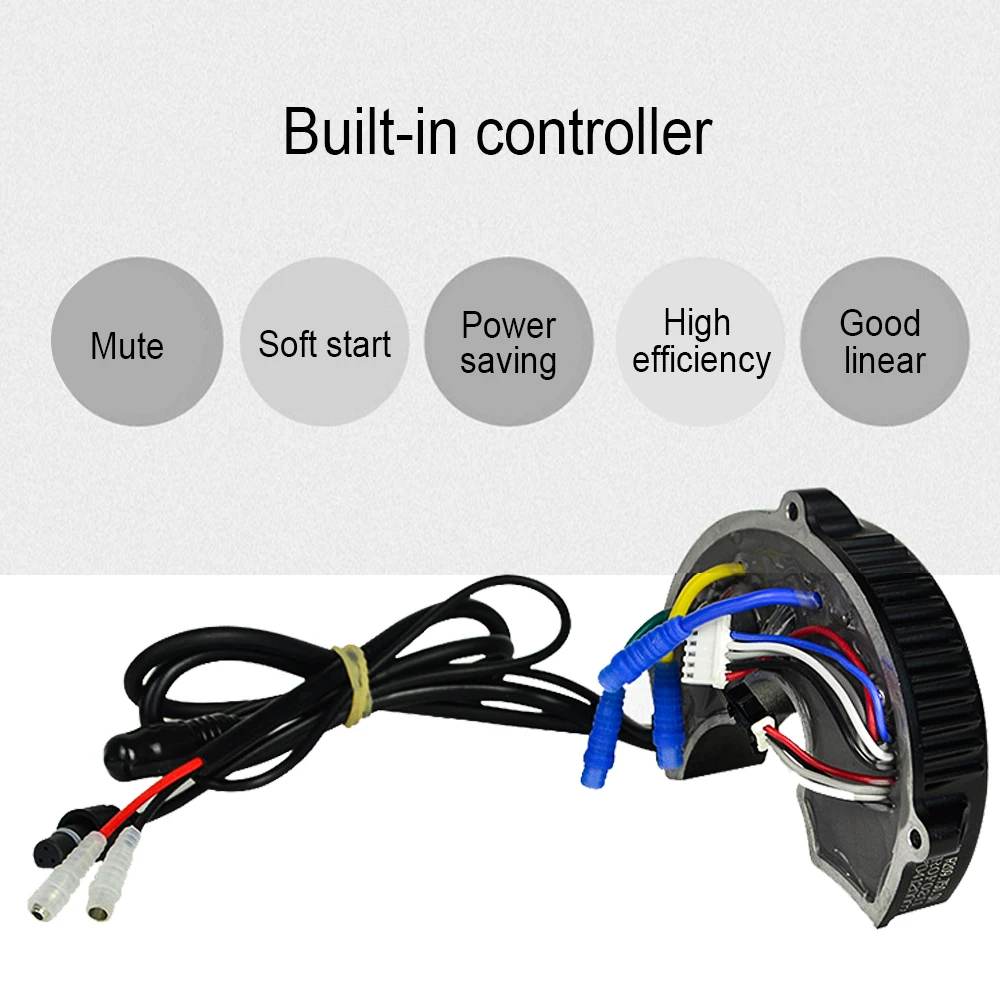

2. controller inside of motor

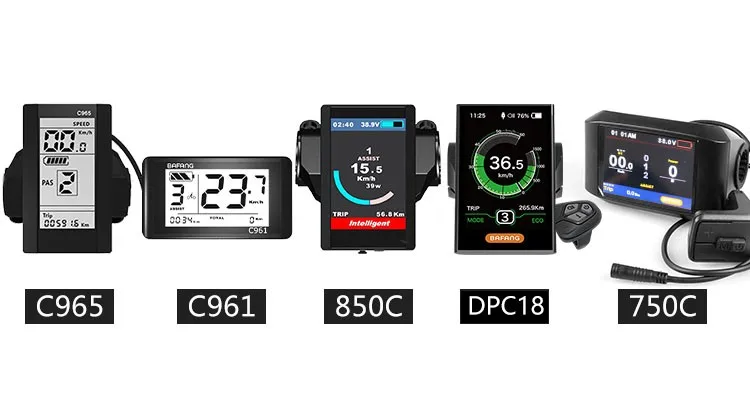

3. C965 LCD display
4. chain wheel and chain cover
5. crank
6. speed sensor and magnet
7. brake lever
8. thumb throttle
9. Nuts
♦ Technical Parameters
SPECIFICATIONS
Core Data
| Position | Mid Motor |
| Construction | Geared Motor |
| Nominal Voltage | 48V/36v |
| Rated Power | 500w |
| RPM | 110-130 |
| Max Torque | 100 N.m |
| Efficiency | ≥ 80% |
| PAS SENSOR | Speed sensor |
| Shaft Standard | JIS |
Mounting Parameters
| Weight | 4.3 kg |
Further Specifications
| Cadence (Pulses/Cycle) | N/A |
| Reduction Ratio | 1:21.9 |
| Magnet Poles | 8 |
| Noise | < 55 dB |
| Hall Sensor | optional |
| Connector | Waterproof |
Tests & Certifications
| IP-Code | IP 65 |
| Certifications | CE / ROHS/ EN 14764 |
DIMENSIONS
| Dimension A | 208mm |
| Dimension B | φ210mm(48T) |
| Dimension C | 111mm |
| Dimension D | 68 mm |
| Dimension E | 159mm |
| Dimension F | 50 mm |
| Dimension G | 88 mm |

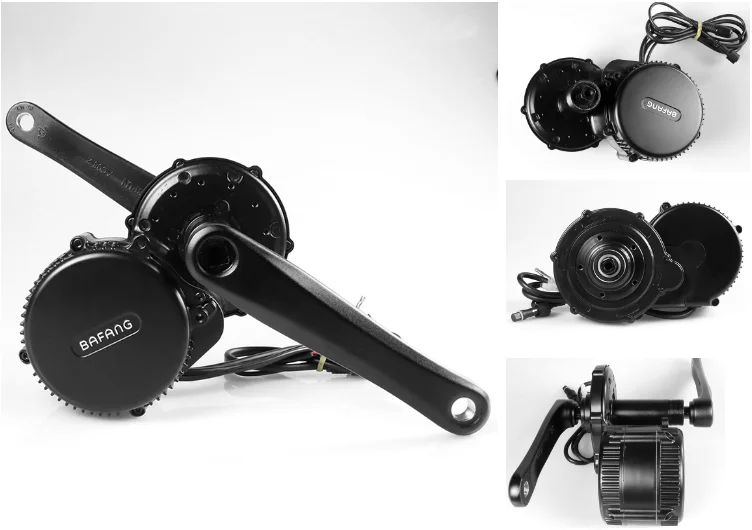

♦ Pics Of Motor Parts
♦ Contact Person: Cici Cheng
Whatsapp:+86-186-6110-9902
We-chat: ctt158
♦ Package
The Kit offers durability and performance in mind,packed as standard,with 7-floor export carton,main parts packed by EPE enviromentally friendly foam material,all parts are seperated in nylon bag.Strong package avoid damages from long-way shipping.
♦ CE Certification
