X444 air horn 200psi suspension compressor, air compressor for differential lock, air compressor for air suspension kits
- Category: Auto Suspension Systems >>>
- Supplier: Huizhou Cartee Electric & Machinery Co. Ltd.
Share on (60441606882):
Product Overview
Description
Features:

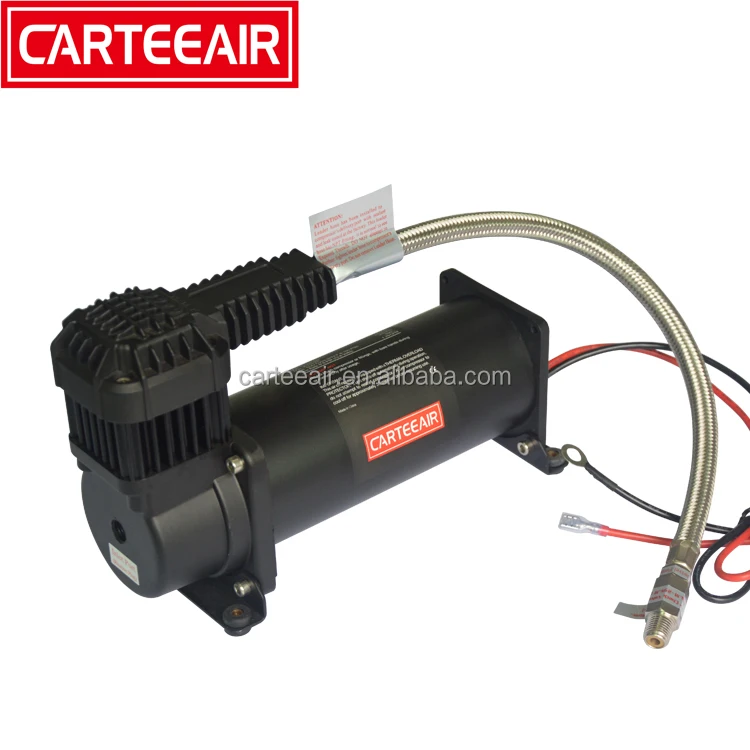

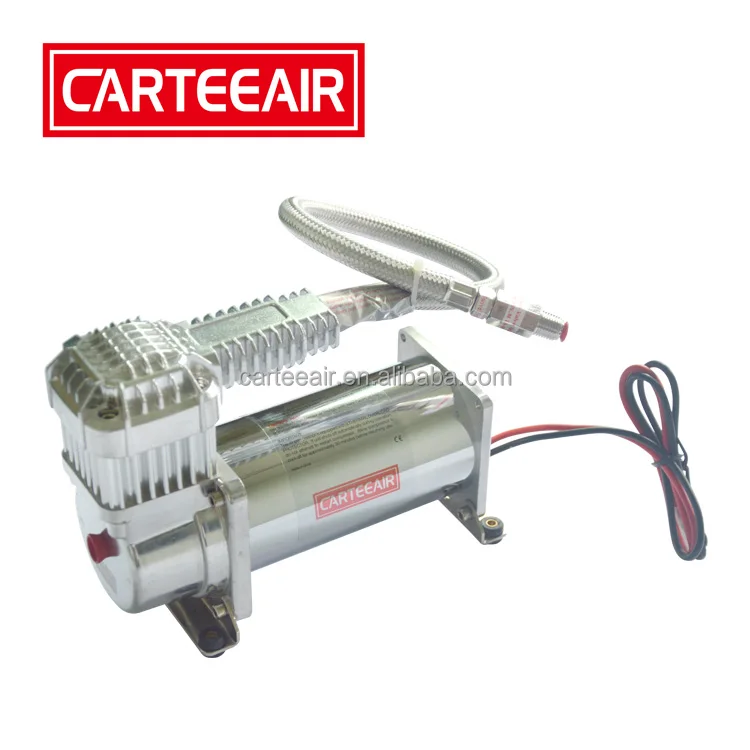

X444 is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

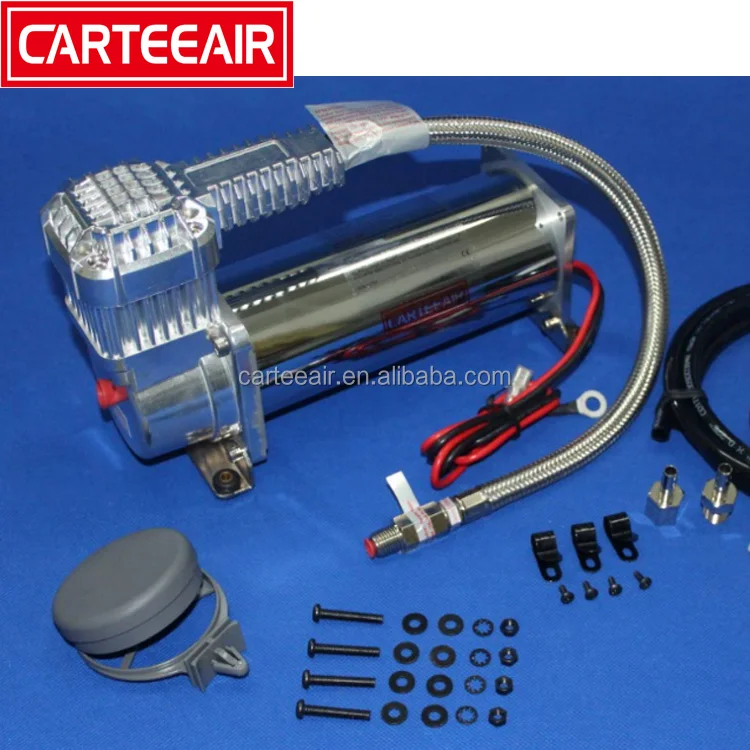

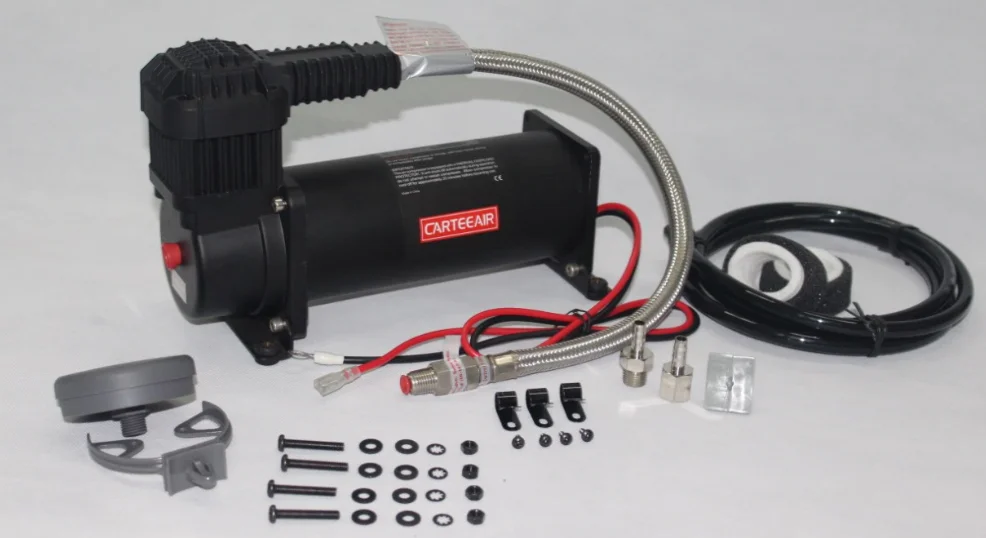

Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Dimensions: 10.6"L x 4"W x 6.87"H
- Net Weight: 10.80 lbs.
Included Parts: Check Valve,Vibration Isolators,Mounting Hardware,Stainless Steel Braided Leader Hose,Direct Air Filter Assembly,(2) Replacement Air Filter Elements,Installation Instructions
Specifications:
| The performance data | |||||
| PSI | CFM | A | BAR | LRM | A |
| 0 | 1.76 | 10 | 0 | 50 | 10 |
| 10 | 1.66 | 12 | 1 | 46 | 13 |
| 20 | 1.59 | 13 | 2 | 43 | 14 |
| 30 | 1.52 | 14 | 3 | 40.5 | 17 |
| 40 | 1.45 | 16 | 4 | 38.5 | 18 |
| 50 | 1.41 | 17 | 5 | 35.5 | 19 |
| 60 | 1.34 | 18 | 6 | 33 | 19 |
| 70 | 1.27 | 18 | 7 | 31.5 | 19 |
| 80 | 1.2 | 19 | 8 | 29.5 | 20 |
| 90 | 1.16 | 19 | 9 | 27 | 20 |
| 100 | 1.13 | 19 | 10 | 25 | 19 |
| 110 | 1.06 | 20 | 11 | 23 | 19 |
| 120 | 1.02 | 20 | 12 | 20.5 | 19 |
| 130 | 0.95 | 20 | 13 | 15 | 18 |
| 140 | 0.92 | 19 | 14 | 15.5 | 18 |
| 150 | 0.85 | 19 | |||
| 160 | 0.81 | 19 | |||
| 170 | 0.74 | 19 | |||
| 180 | 0.7 | 19 | |||
| 190 | 0.63 | 18 | |||
| 200 | 0.56 | 18 | Supply Voltage: 13.8 Volts | ||
| Fill Rates | |
| 2.5 Gallon Tank | Fill Rate |
| 0 To 145 PSI | 2 Min. 29 Sec. |
| 110 To 145 PSI | 57 Sec. |
| 0 to 200 PSI | 5 Min. 02 Sec. |
| 165 to 200 PSI | 1 Min. 23 Sec. |
| 5.0 Gallon Tank | Fill Rate |
| 0 To 145 PSI | 6 Min. 02 Sec. |
| 110 To 145 PSI | 1 Min. 55 Sec. |
| 0 to 200 PSI | 10 Min. 08 Sec. |
| 165 to 200 PSI | 2 Min. 20 Sec. |
Air compressor Application: Air Suspension, Air Horn, Sweeper, Air Vending Machine, Air Controlled Door, Air Chair, Air Brake Assist, Air Locker, Agricultural Machinery, Industrial and Medical Applications, etc.
