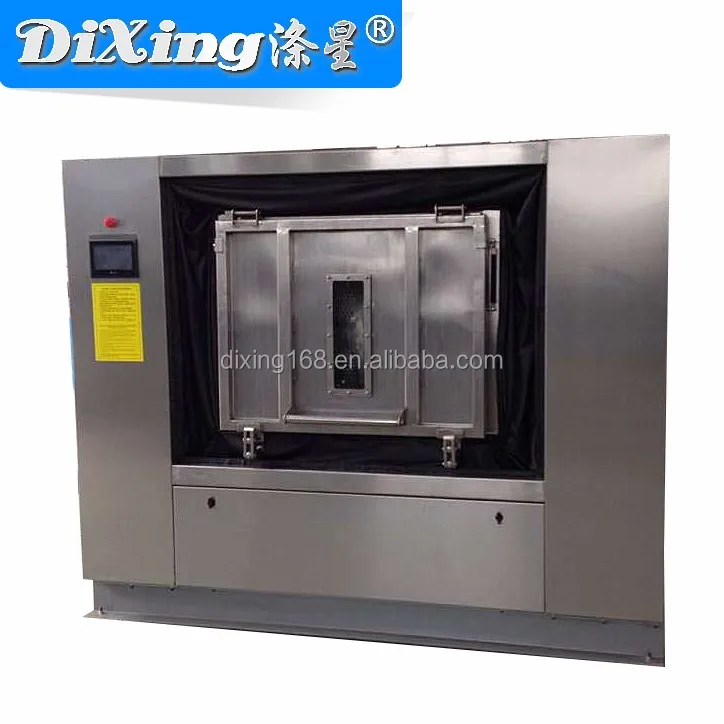

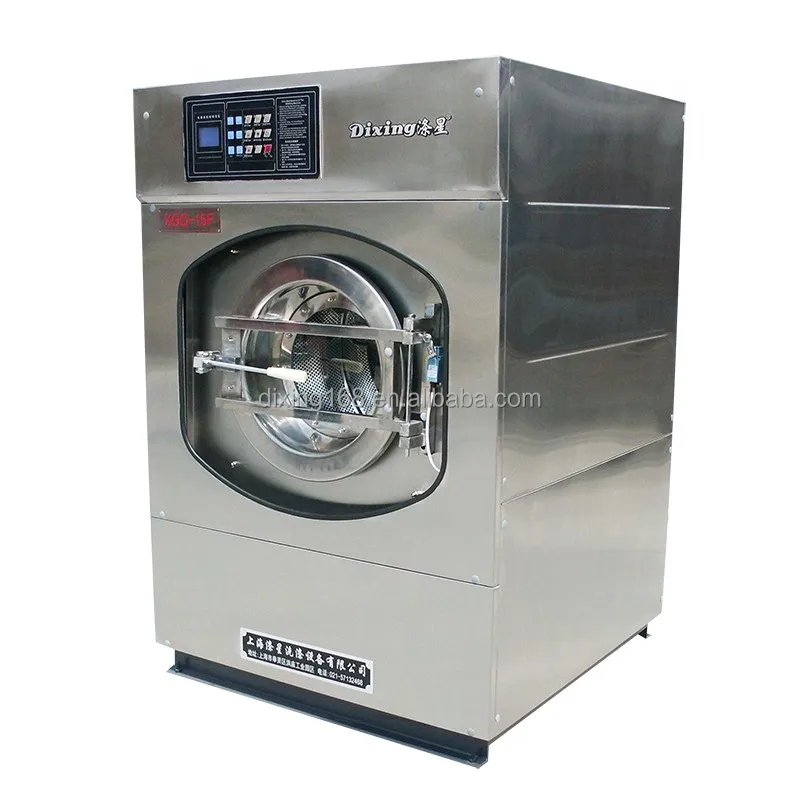

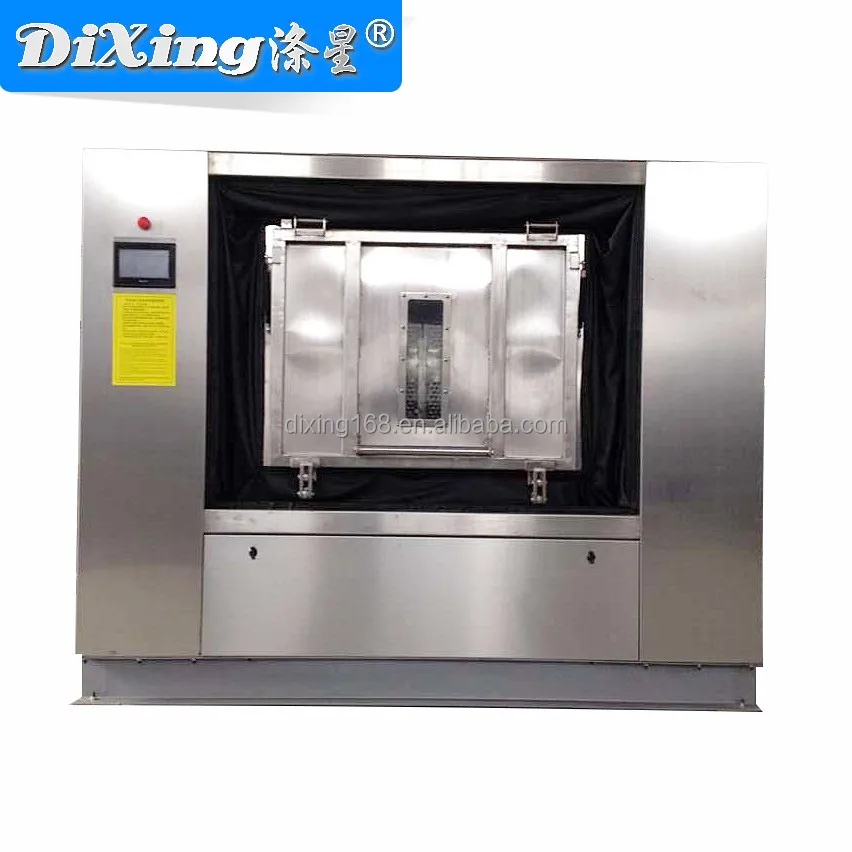

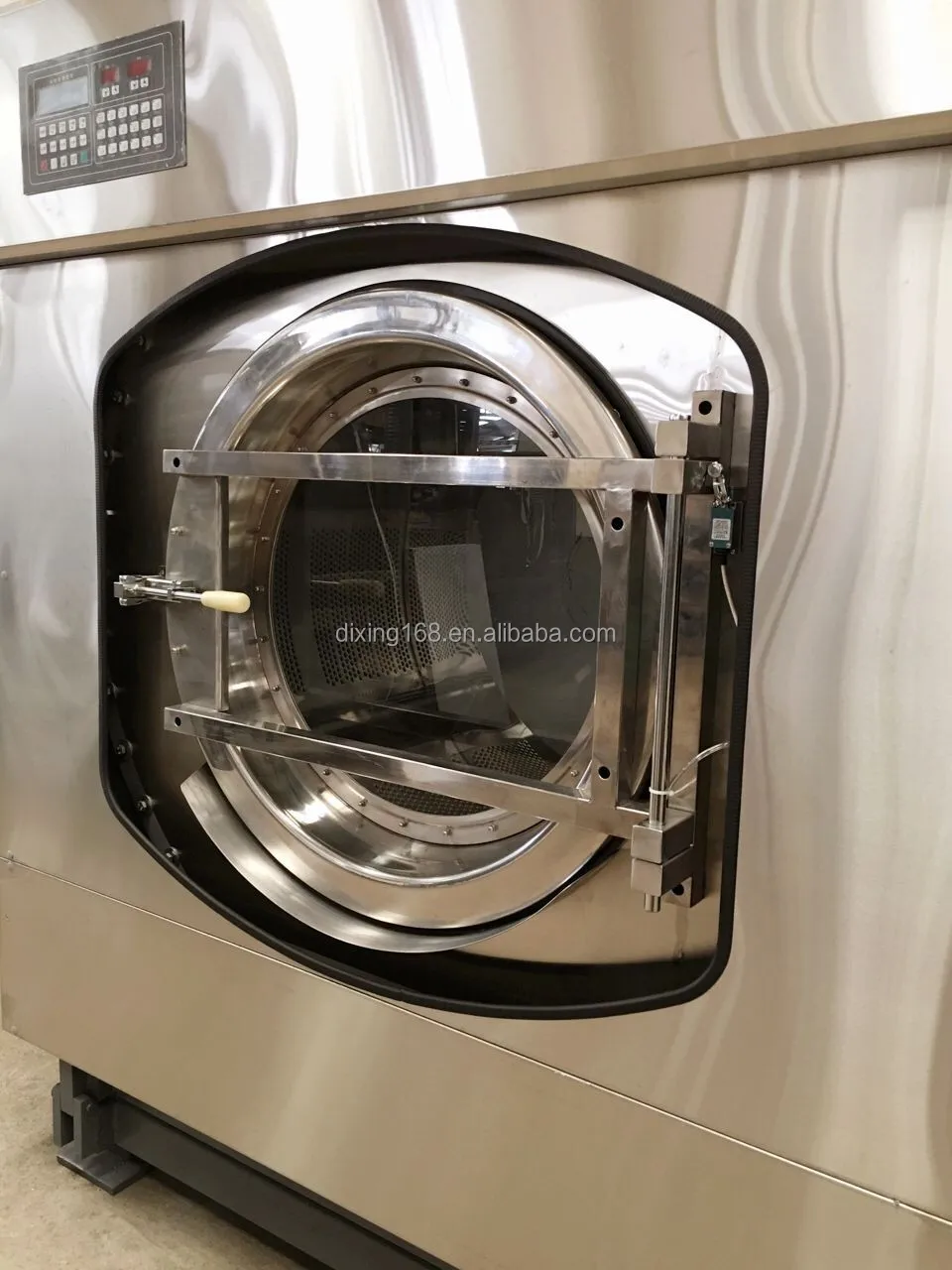

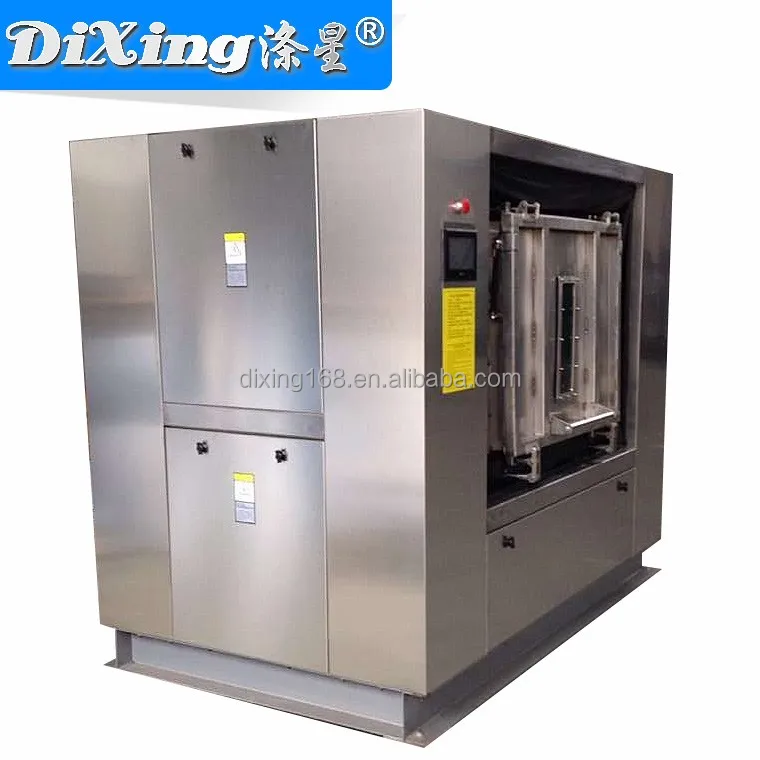

hospital washing machine 50 kg 100 kg 200kg
- Category: >>>
- Supplier: Shanghai Dixing Washing Equipment Co. Ltd. [Shanghai China]Shanghai
Share on (60441676580):
Product Overview
Description
Product Description
hospital washing machine 50 kg 100 kg 200kg
Outstanding features:
1. Compact design for space saving.
2. Suspension system with springs and shock absorbers.
3. Patented silicone door seal.
4. SS304 Stainless steel basket and outer drum.
5. Frequency inverter from Siemens, LG or LS.
6. High extraction speeds up to 900 rpm.
7. Programmable computer up to 30 wash programs.
8. Programmable water levels, temperatures and cool-down.
9. Direct steam injection heating.
10. Safety door interlock system.
11. Stainless steel panels.
12. Flushable five compartment dry supply injector.
13. Five liquid supply injection points.
14. Built-in bearing lubrication system.
15. High quality seal from Germany, guaranty no leakage for 5 years.
16. Automatic tilt for unloading textile for saving labor cost.
product data
Item | XGQ-100T | XGQ-150T | XGQ-200T |
Rated Capacity | 100kg | 150kg | 200kg |
Drum Volume | 1083L | 1525L | 2091L |
Drum Diameter * Depth | 1320mm * 791mm | 1320mm * 1114mm | 1626mm *1007mm |
Door Opening Diameter | 850mm | 850mm | 1016mm |
Motor Power | 11kw | 22kw | 30kw |
Inverter Power | 15kw | 22kw | 37kw |
G-Factor | 380G | 350G | 320G |
Water Inlet | DN40 | DN40 | DN50 |
Steam Inlet | DN40 | DN40 | DN40 |
Drain Connection | DN150 | DN150 | DN200 |
Compressed Air | 14mm | 14mm | 14mm |
Unloading Tilt Angle | 14 degree | 14 degree | 14 degree |
Loading Tilt Angle (Optional) | 14 degree | 14 degree | 14 degree |
Height (Tilt Range) | 2202mm (2620mm) | 2202mm (2690mm) | 2500mm (2890mm) |
Width x Depth | 2032mm x 2470mm | 2032mm x 2770mm | 2327mm x 2820mm |
Net Weight | 5600kg | 5900kg | 8300kg |
