Product Overview
Description
LASERPWR newest version laser source HY-C80 60W 80W CO2 Laser Power Supply for Yueming hans laser Factory direct wholesale Parts
Model:
C80-Y1
Product Features
1.compatibility：Can perfectly match vast most 50-150w CO2 Laser Machine at home and abroad.
2.Use DB9 Control Interface，European standard power plug in line with international standards.
3.It can be more effective and fast if used for cutting machine、has faster responce time and smooth ground if used for engraving marking machine;
4.Prolong the life of laser significantly：the accurate current control can prolong the life of laser machine significantly；
5.Simple control, current control：TTL signal controls the start and stop of the laser machine, WP enable switch is used to detect whether external water is accessible and ventilated;
6.Control the laser power is simple： can use 0~3.3V analog signal and 3.3V PWM signal to control power；
7.The power itself has detect feature：Can use power supplied detect switch and display tube to detect the reason why the machine does not produce light quickly, make it more convenient to maintenance on site.
2.Use DB9 Control Interface，European standard power plug in line with international standards.
3.It can be more effective and fast if used for cutting machine、has faster responce time and smooth ground if used for engraving marking machine;
4.Prolong the life of laser significantly：the accurate current control can prolong the life of laser machine significantly；
5.Simple control, current control：TTL signal controls the start and stop of the laser machine, WP enable switch is used to detect whether external water is accessible and ventilated;
6.Control the laser power is simple： can use 0~3.3V analog signal and 3.3V PWM signal to control power；
7.The power itself has detect feature：Can use power supplied detect switch and display tube to detect the reason why the machine does not produce light quickly, make it more convenient to maintenance on site.
Application Area:
It can be applied to DB9 interface CO2 lase engraving machine, laser cutting machine.

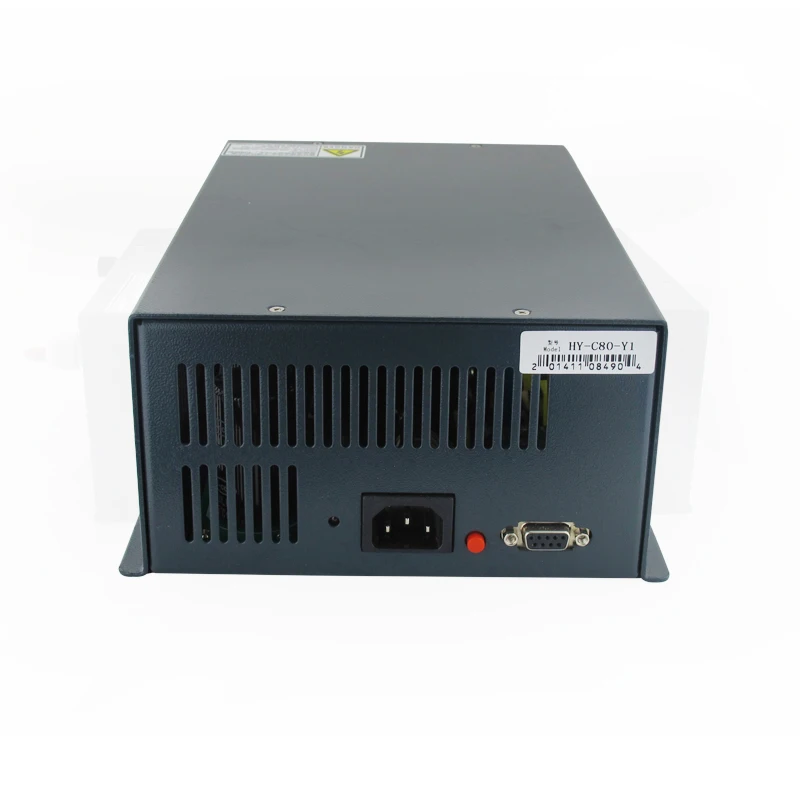

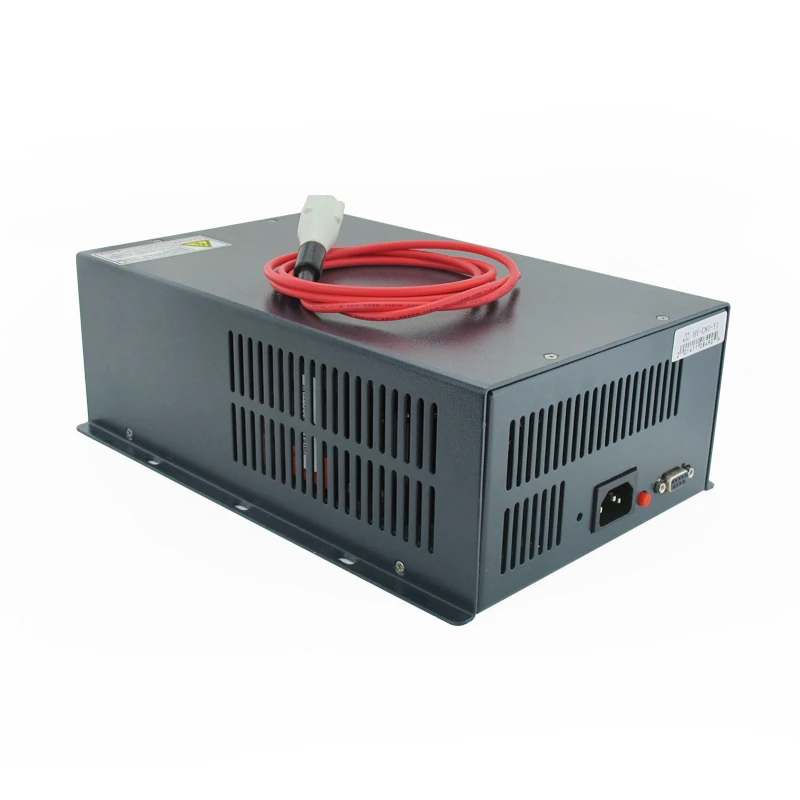

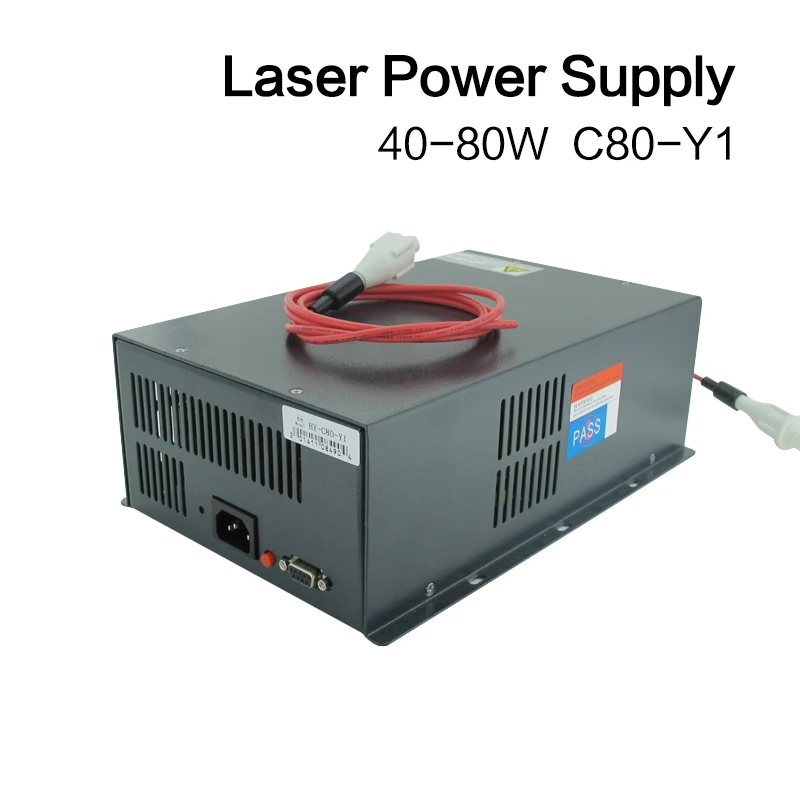

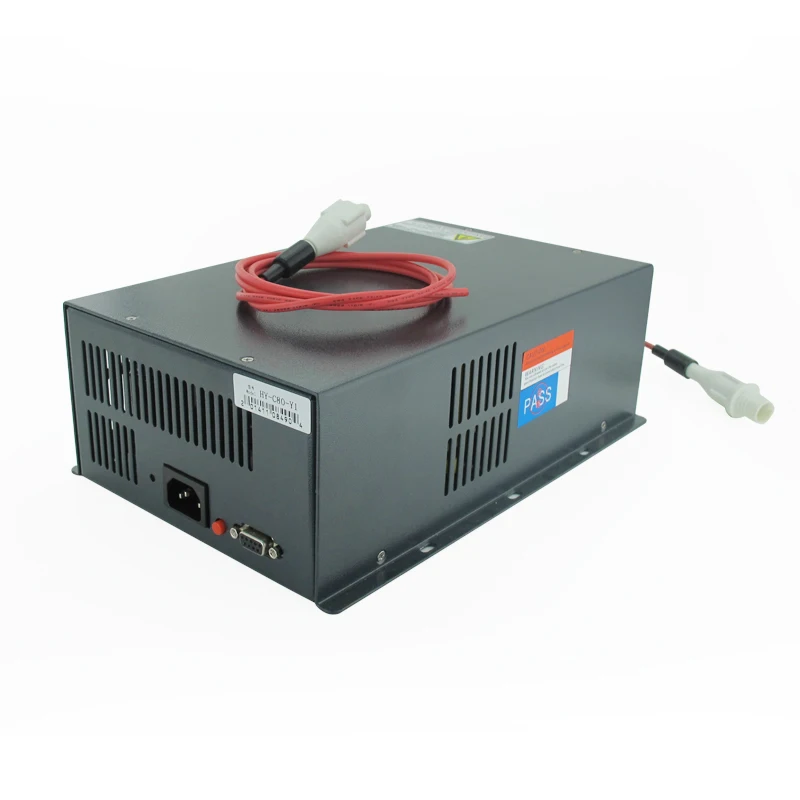

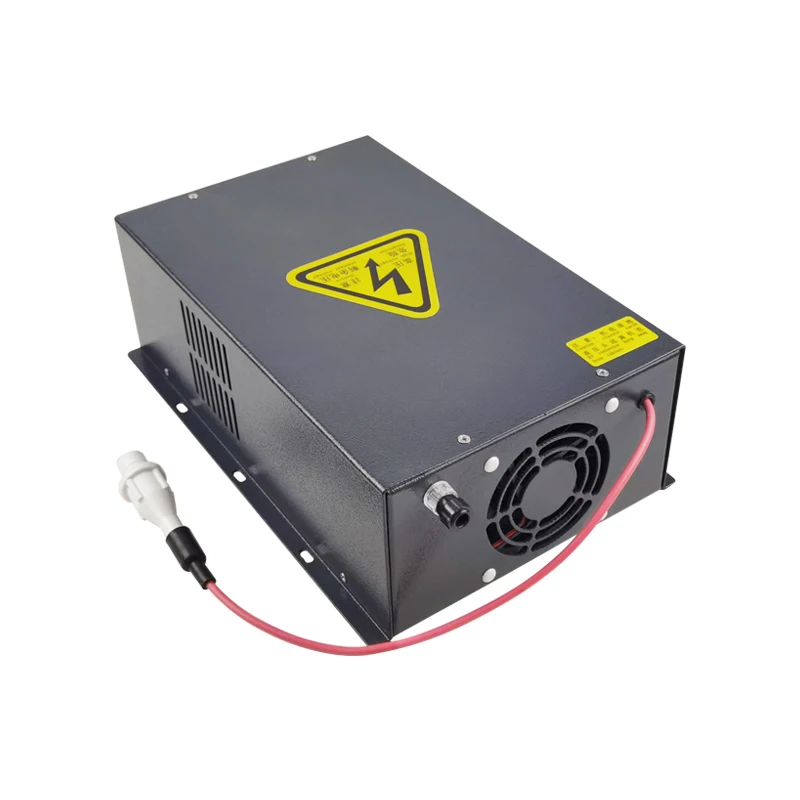

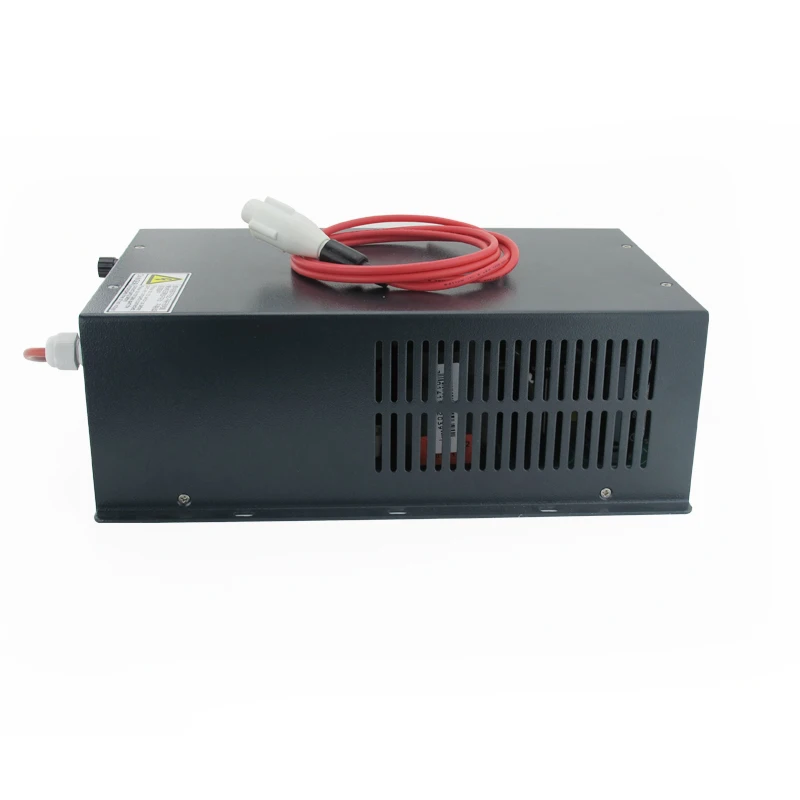

Product Pictures

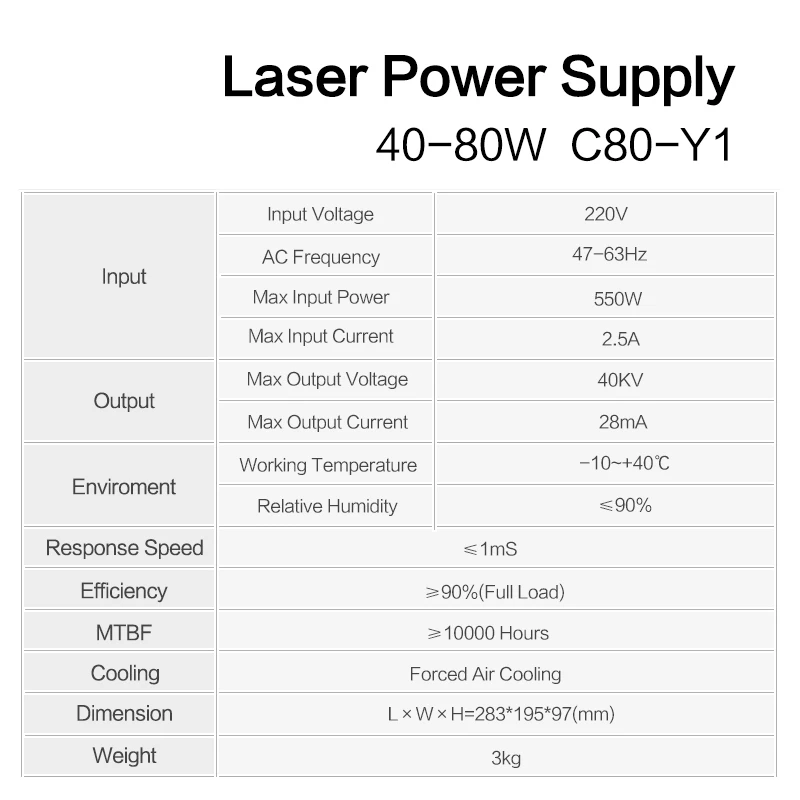

Product Parameter
Item | C80 | C120 | C150 | C180 | |||
AC Input | 220V | 90-264V | 220V | 90-264V | |||
AC Frequency | 47--63Hz | ||||||
Max Input Power | 550W | 650W | 750W | 900W | |||
Max Input Current | 2.5A | 6A | 3.5A | 8A | |||
Max Output Voltage | 40KV | 45KV | 50KV | 55KV | |||
Max Output Current | 28 mA | 32mA | 38 mA | 38mA | |||
Effenciency | ≥90%（Full Load） | ||||||
MTBF | ≥10000 hours | ||||||
Response Time | ≤1mS（The time from the switch signal given to the output current rising to 90% of the set current） | ||||||
Withstand Voltage | Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell. | ||||||
Operation Enviroment | Working Temperature（-10~40）℃ ，relative humidity：≤90% | ||||||
Cooling Method | Forced Cooling | ||||||
Matched Laser Tube Power | 40-80W | 100-120W | 120-150W | 130-180W | |||
Product Weight（kg） | 3kg | 3.7kg | 4.6kg | 5.75kg | |||
Overall Dimension L*W*H(mm) | 283*195*97 | 328*193*97 | 328*239*101 | 395*195*111 | |||
Shell Color | Black | ||||||

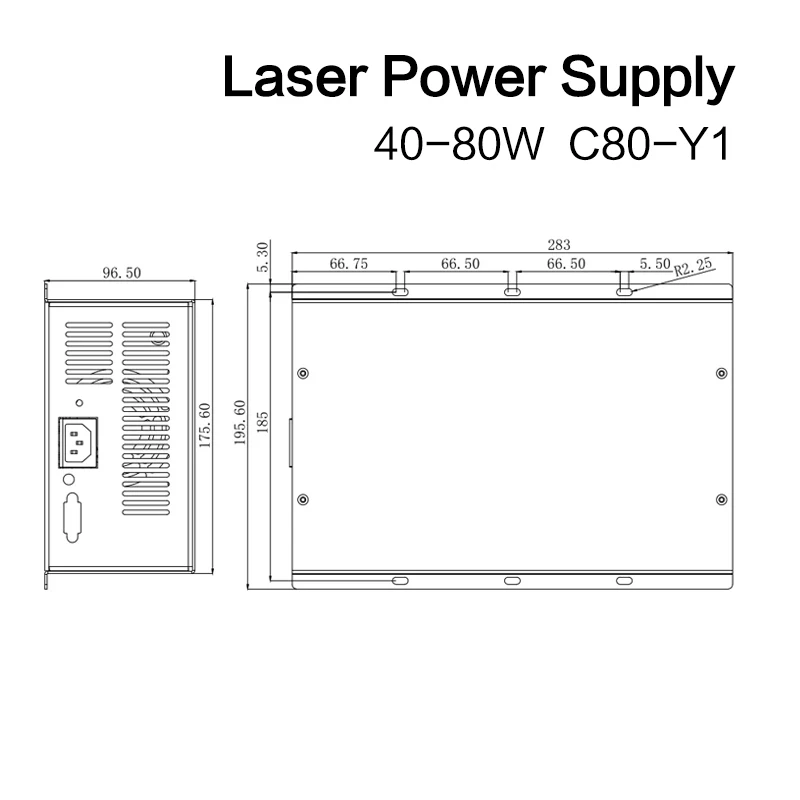

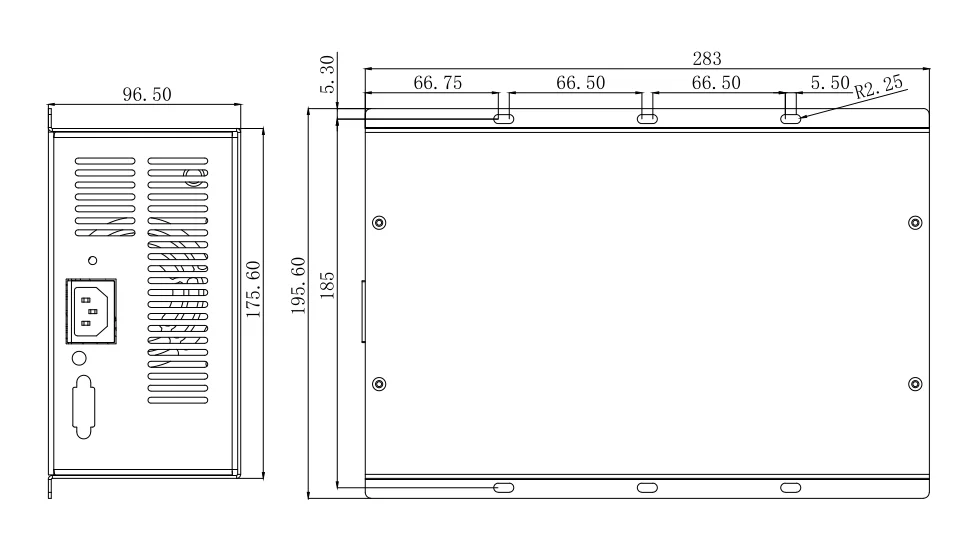

Outline Dimensional Drawing

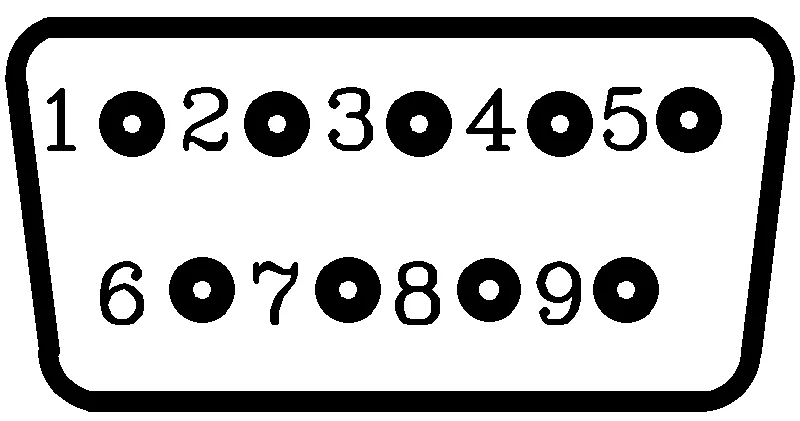

All C series power supplies are controlled by DB9 terminal
C80-Y1 Shell Dimension
Packing & Delivery

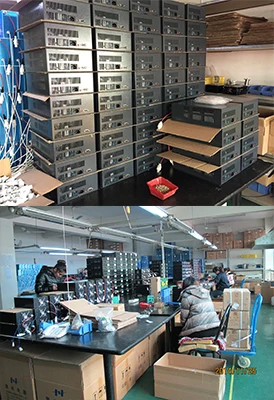

Company Profile
Shandong Laser Source Technology Co., Ltd., formerly known as Jinan Hongyuan Electric Co., Ltd., was established in Jinan in 2001. It is a high-tech enterprise specializing in the development, design, production and sales of power equipment, and provides customers with technical consultation, training, installation, maintenance and other pre-sales and after-sales services. The company has 3 wholly-owned subsidiaries and 1 branch, with total assets of nearly 100 million yuan, more than 70 employees, and an annual production of more than 70,000 sets of various laser power supplies and other system supporting power supplies. The company was listed on the National Equities Exchange and Quotations System for SMEs on September 30, 2015, with the stock code of 833611.
As a backup power supply and mobile power supply supporting the construction of industrial facilities, the company's products are mainly oriented to the fields of industrial manufacturing, communication, power industry, and medical industry, especially in industrial manufacturing, communication engineering and medical supporting facilities projects, and are widely used China Mobile, China Unicom, laser manufacturing, military and civilian telecommunications equipment, ships, instrumentation, metallurgy, electric power, railway locomotives and signals, electronic control machinery and equipment, industrial automation control systems, factory and mine assembly lines, safety protection systems, medical equipment, etc. Industry fields that require high power supply reliability.
With a complete and powerful marketing service system, high-quality and highly adaptable product features, and professional production and research and development technology, the company's current products have covered all parts of the country and accounted for more than half of the market share in the industry; in recent years, with the continuous international trade After launching, the company's products have been sold in North and South America, Europe, Australia, Africa, the Middle East, Southeast Asia and other parts of the world.
At the same time, the company has also won the "contract-honoring and trustworthy enterprise", "contract credit rating AAA", "high-tech enterprise", "technological enterprise", "implementing customer satisfaction enterprise", "brand enterprise", "AAA credit rating enterprise", "Star Enterprise" and many other honors have been widely recognized by all walks of life.
As a backup power supply and mobile power supply supporting the construction of industrial facilities, the company's products are mainly oriented to the fields of industrial manufacturing, communication, power industry, and medical industry, especially in industrial manufacturing, communication engineering and medical supporting facilities projects, and are widely used China Mobile, China Unicom, laser manufacturing, military and civilian telecommunications equipment, ships, instrumentation, metallurgy, electric power, railway locomotives and signals, electronic control machinery and equipment, industrial automation control systems, factory and mine assembly lines, safety protection systems, medical equipment, etc. Industry fields that require high power supply reliability.
With a complete and powerful marketing service system, high-quality and highly adaptable product features, and professional production and research and development technology, the company's current products have covered all parts of the country and accounted for more than half of the market share in the industry; in recent years, with the continuous international trade After launching, the company's products have been sold in North and South America, Europe, Australia, Africa, the Middle East, Southeast Asia and other parts of the world.
At the same time, the company has also won the "contract-honoring and trustworthy enterprise", "contract credit rating AAA", "high-tech enterprise", "technological enterprise", "implementing customer satisfaction enterprise", "brand enterprise", "AAA credit rating enterprise", "Star Enterprise" and many other honors have been widely recognized by all walks of life.
