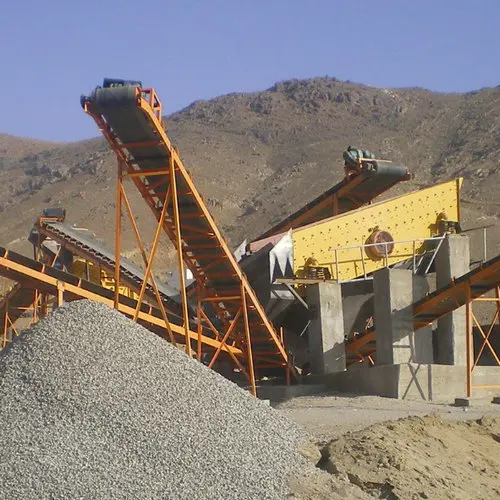

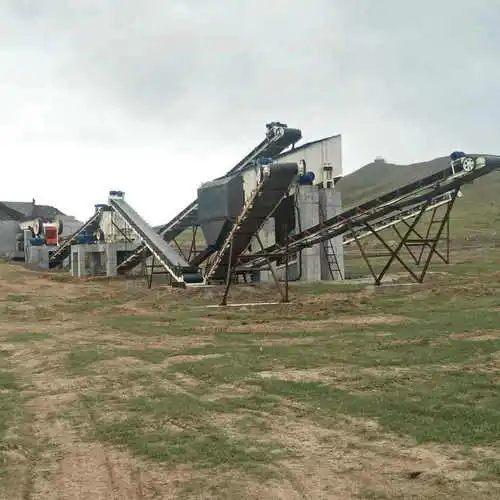

50TPH stone granite rock crushing plant for sale

Basic information

-Material, river sand and gravels, mostly 0-150mm

-Feeding capacity 80 tons per hour, half sand

-Mesh size, 5mm, 3/8'', 3/4'', 1’’, products sand, 3/8’’, 3/4’’, G1 and above

-Diesel generator set drive the whole plant

Screening & crushing in details

1. Raw materials loading and separation

All raw materials are loaded to a grizzly hopper, grizzly bar distance 150mm, large than 150mm will be separated. Under the hopper, a vibrating feeder is installed, it is heavy duty feeder, which requires little or no maintenance.

There is minimal risk of downtime and parts are simple to replace. It controls the materials flow rate, a stable and continuous feeding is always good for complete plant, also for the stable supply of electricity by diesel generator set.

2. Screening, crushing and washing

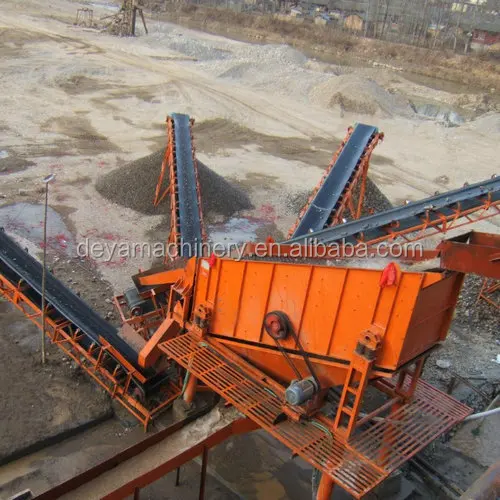

All the materials are sent to a 4 layer vibrating screen for separation, mesh size 5mm, 10mm, 19mm and 25mm.

Above the vibrating screen, high pressure water sprays are added. Washing is performed by applying water jets through spray nozzles directed as a water curtain and under pressure at the material being washed.

Larger than 25mm will be crushed by a secondary jaw crusher 10x47’’, with C.S.S. 30mm, it gets gravel less than 40mm. Mainly G1 to 40mm. The crushed gravel is sent to stockpile 1, this is product 1

19 to 25mm will be conveyed to stockpile 2, this is product 2

10 to 19mm will be conveyed to stockpile 3, this is product 3

5 to 10mm will be conveyed to stockpile 4

Less than 5mm, which accounts for about 60% of total materials are collected by a hopper and steel chute, by gravity and water slurry on the screen, they flow to the wheel sand washer. After washing, it gets clean sand and conveyed to stockpile 5.

Crushing plant main equipment as follows, Contact us to get more information whatsapp & wechat: +86 137 2141 9876

1. Vibrating feeder: to feed the jaw crusher evenly and smoothly

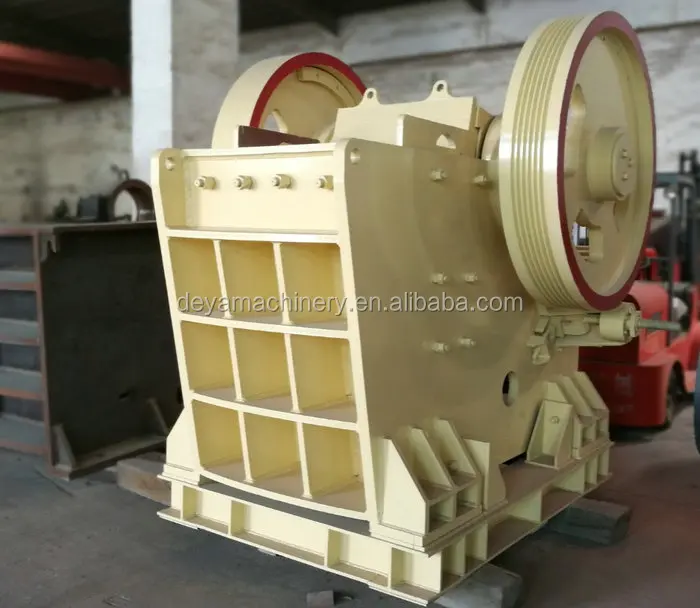

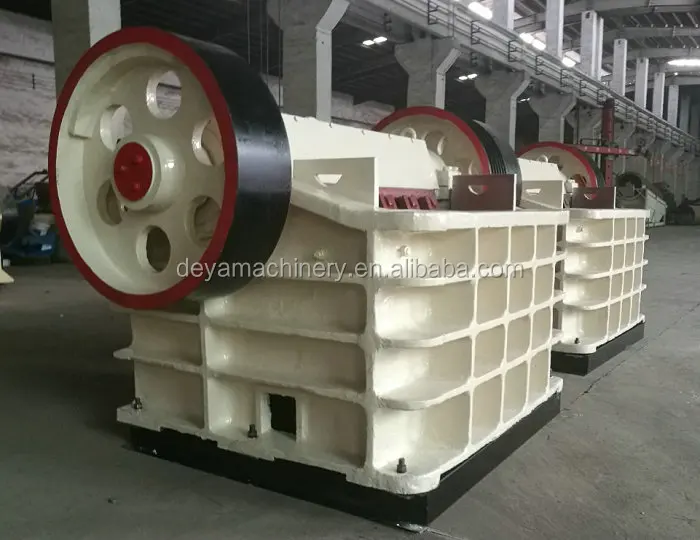

2. Primary jaw crusher, crush large stones to smaller one

3. Impact crusher or cone crusher or secondary jaw crusher, to crush stones from primary crusher to smaller gravels or sand

4. Circular Vibrating screen to classify the gravels to different groups.

5. Belt conveyor, for materials conveying and connect the equipment together

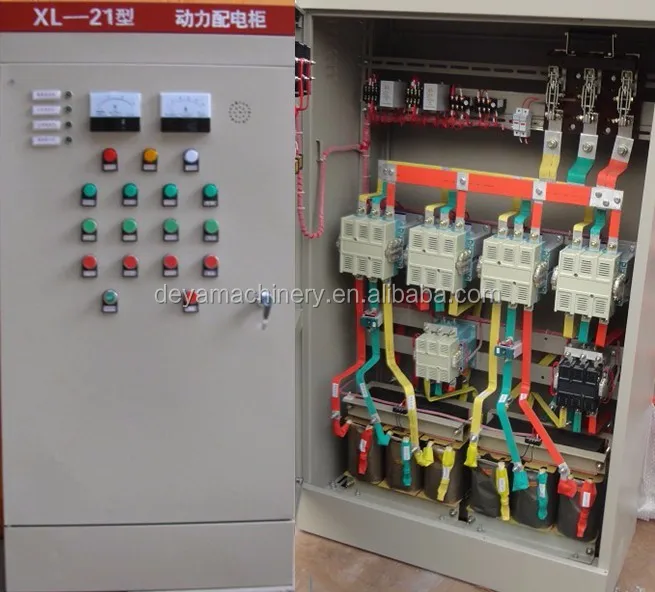

6. Control panel, to control the equipment motors.

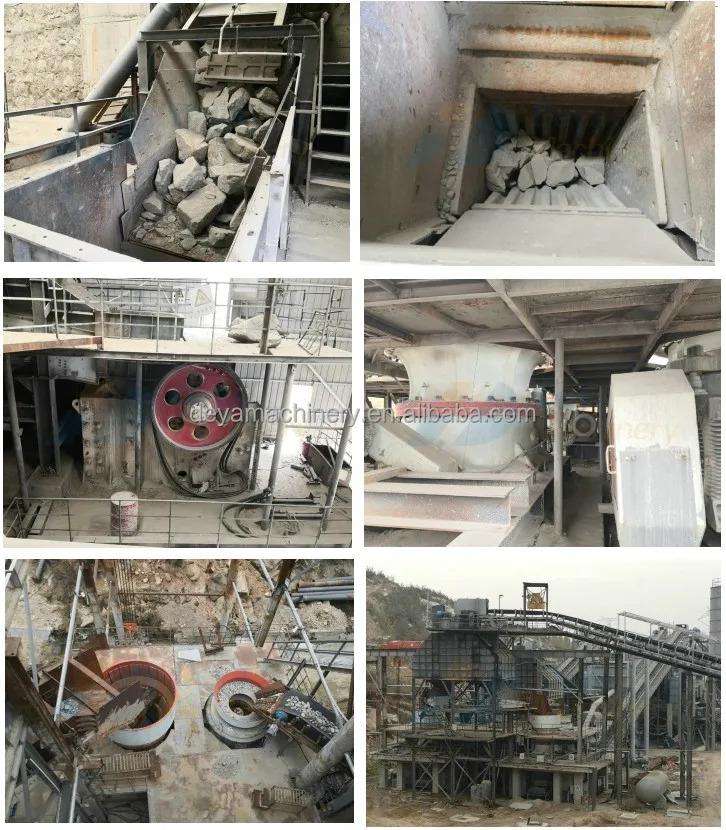

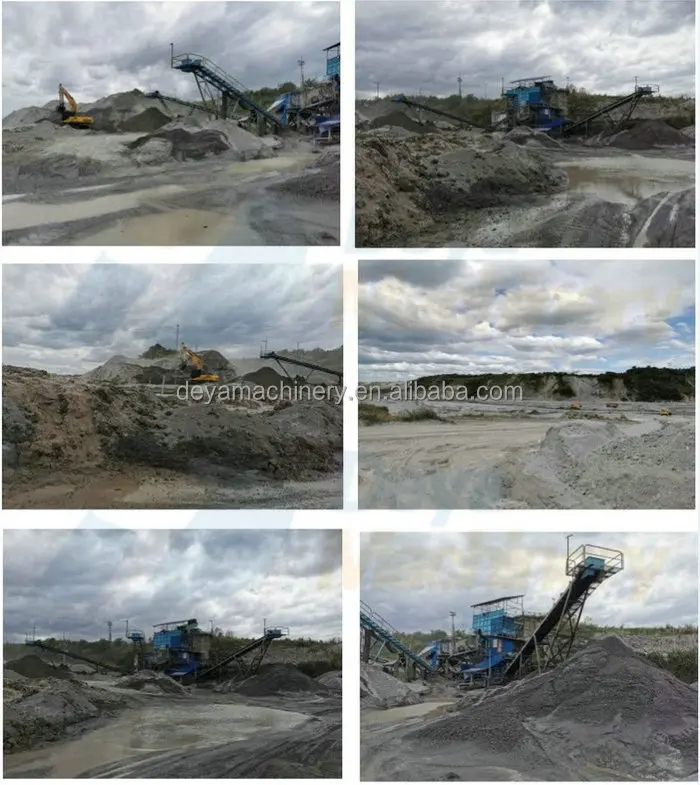

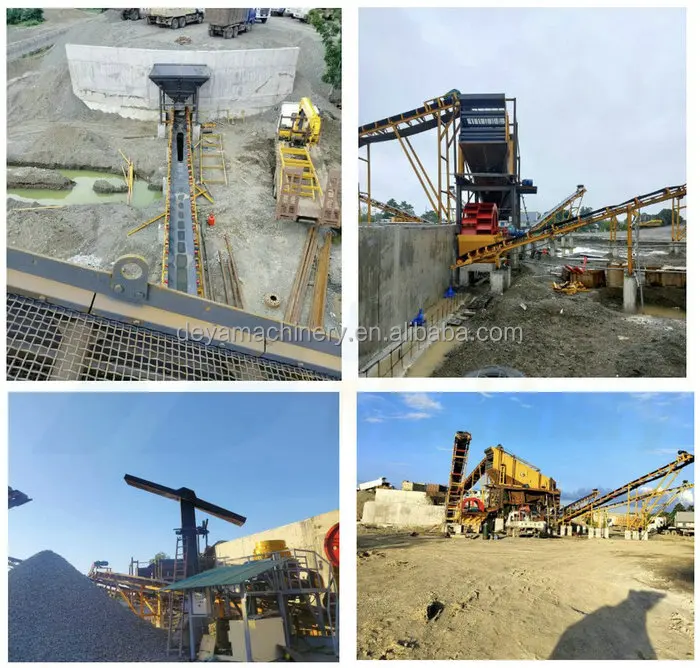

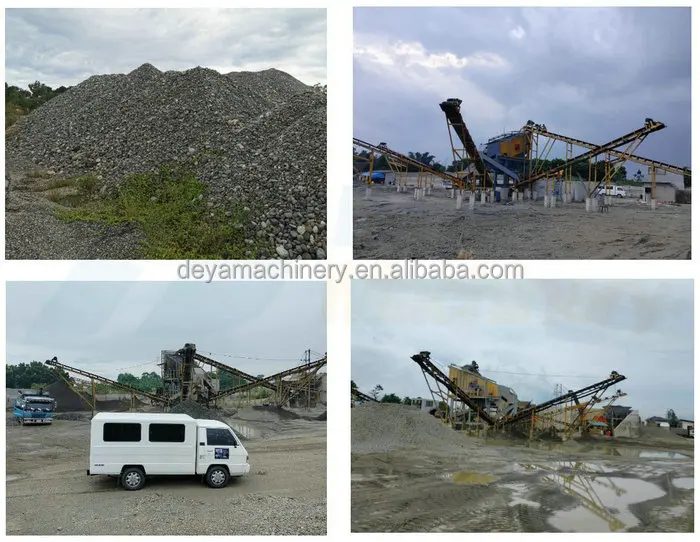

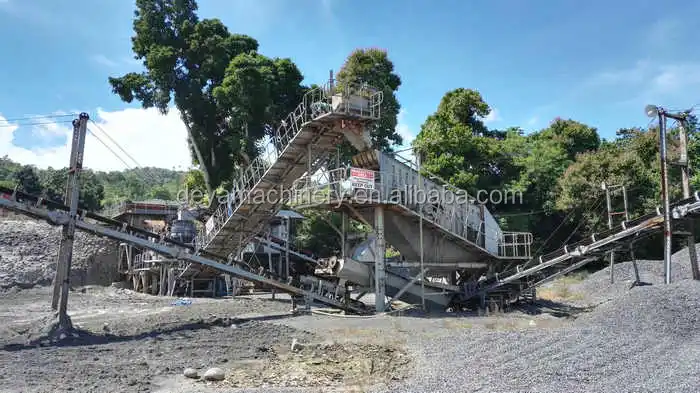

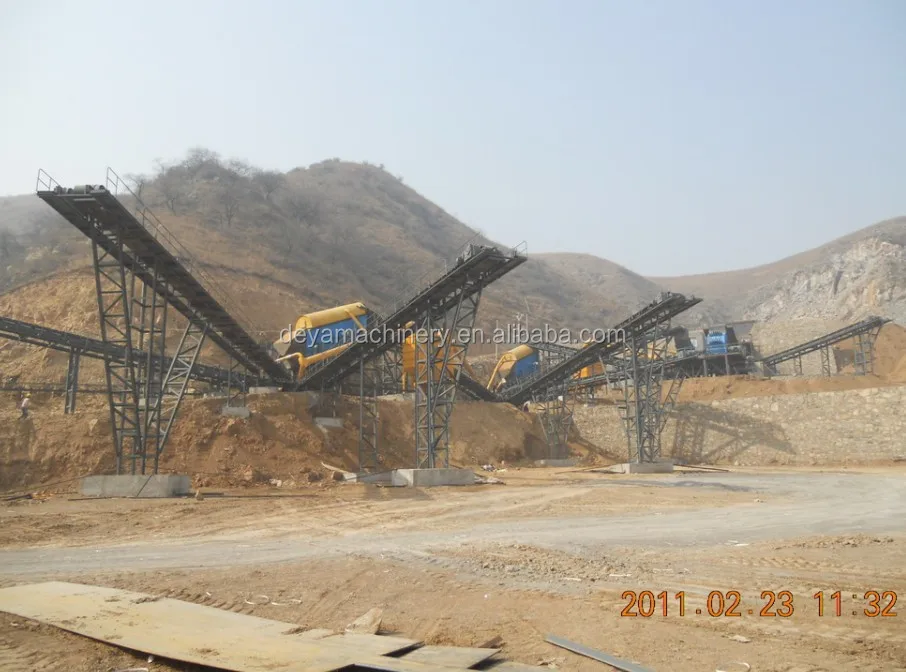

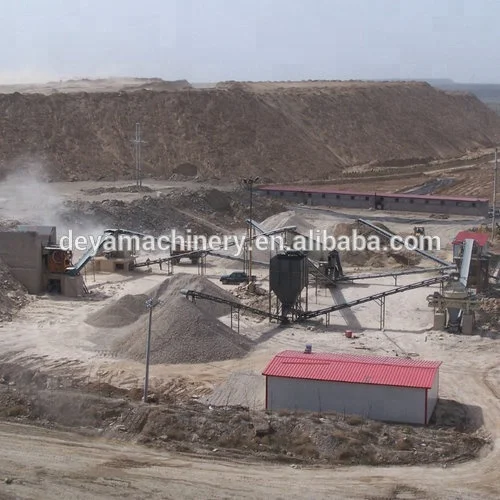

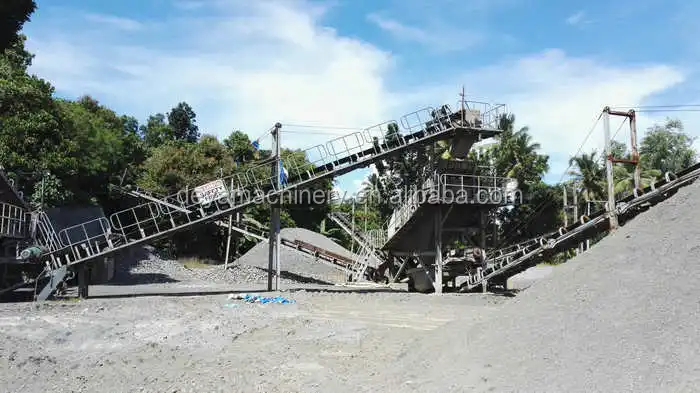

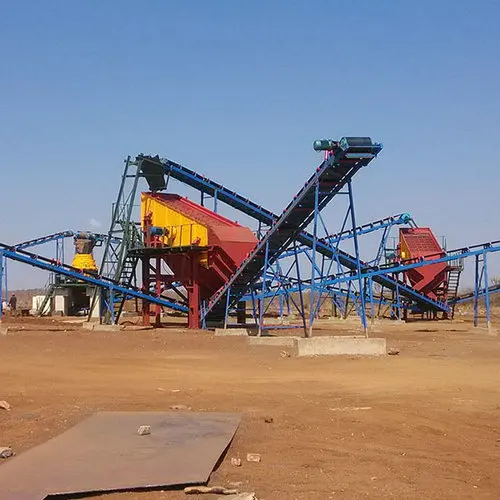

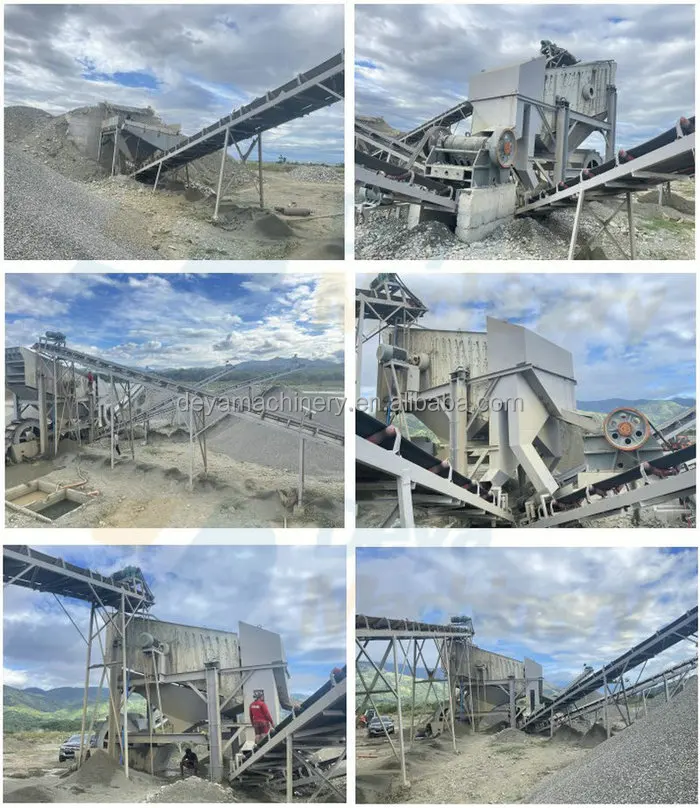

Aggregate rock stone crushing plant from deya clients,Contact us to get more information whatsapp & wechat: +86 137 2141 9876

Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.

-Pre-sale services

Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.

-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.

Contact us to get more information whatsapp & wechat: +86 137 2141 9876

Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of one hundred and twenty thousand square meters which includes forty thousand square meters of standard industrial workshop.

Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment includes Sand making machine, Cone crusher, Jaw Crusher, Vibrating screen, Ball Mill, complete crusher plant and mineral process plant. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine processing equipment.

As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 50 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.

1. Quality control

All the equipment offered by Henan Deya Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Deya Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.

2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.

3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.

4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).

5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.

6. Installation
Deya has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.

7. Equipment warranty
Equipment from Henan Deya Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.

Bruce Ma/International Sales Director
Henan Deya Machinery Co., Ltd.
Email: bruce.ma AT deyamachinery.com
Tel: +86-371-6030 5814, 6030 5824
Mobile/Whatsapp/Wechat: +86 137 2141 9876
Web: www.deyamachinery.com
Address: NO.2 Qinling Road, Zhongyuan District, Zhengzhou, Henan Provice, P. R. China.
