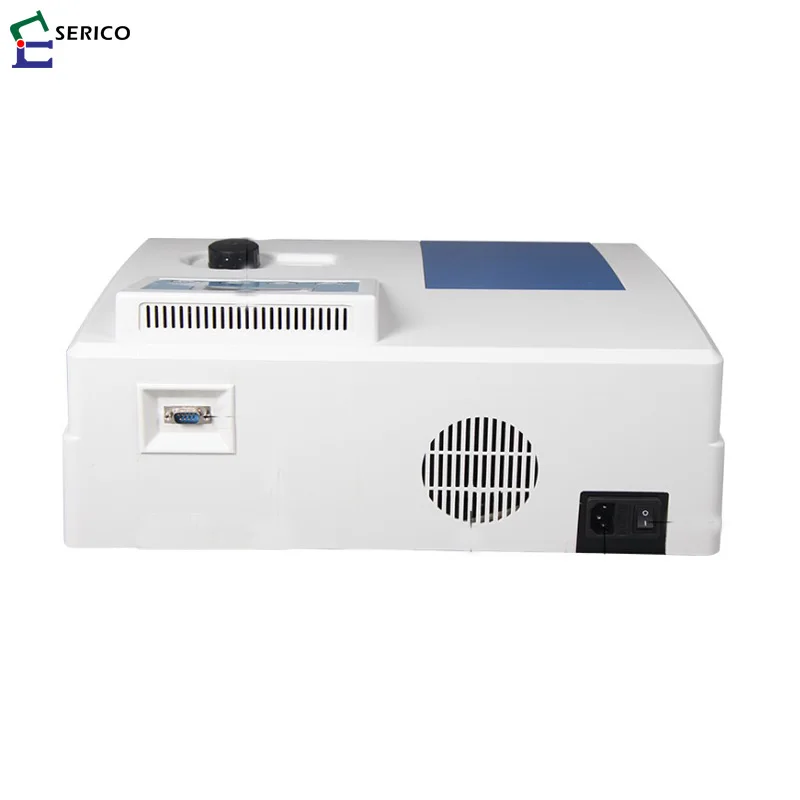

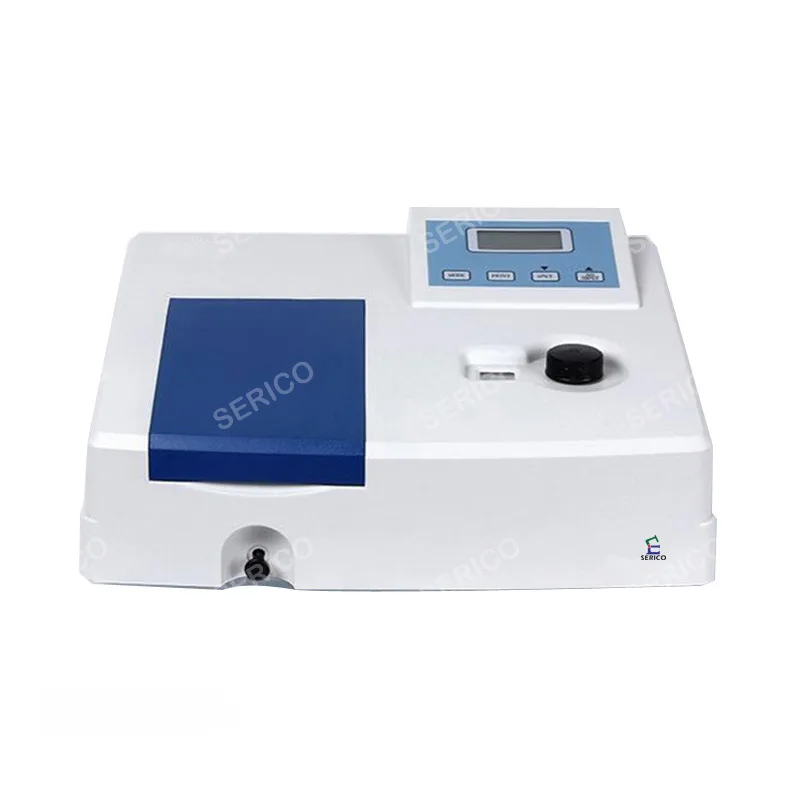

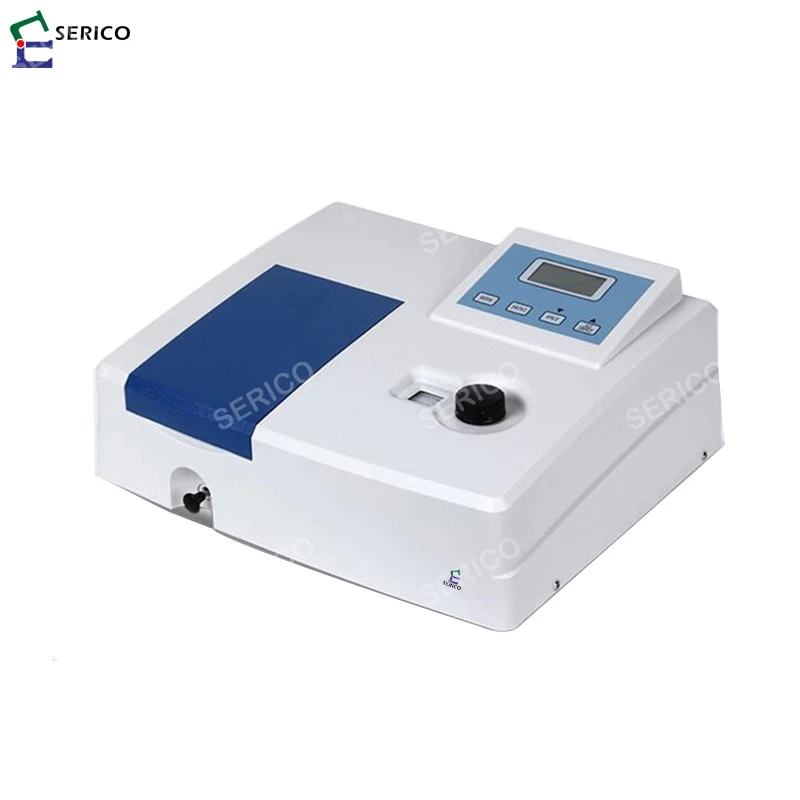

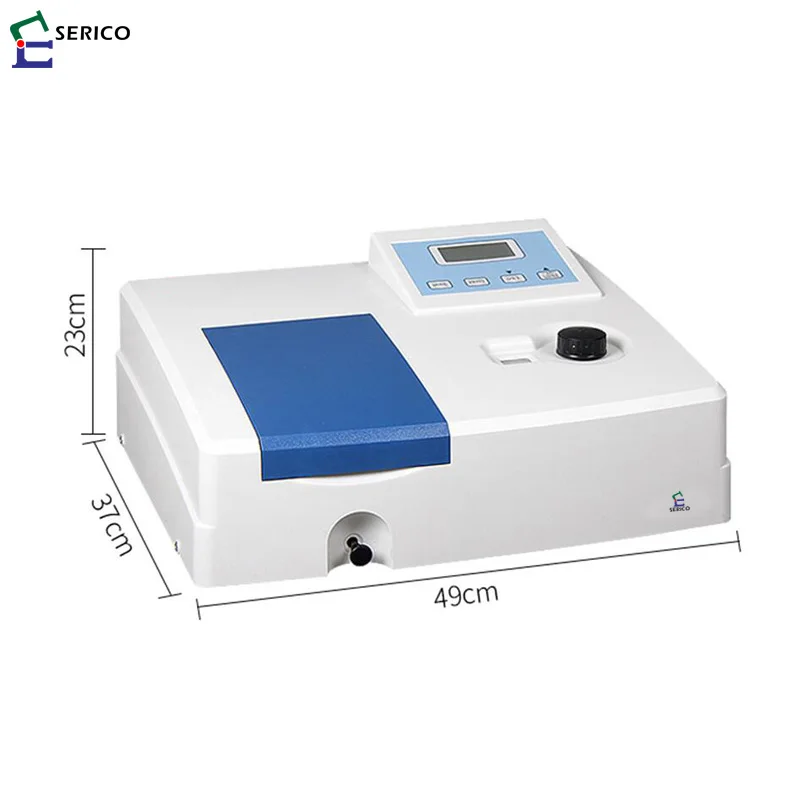

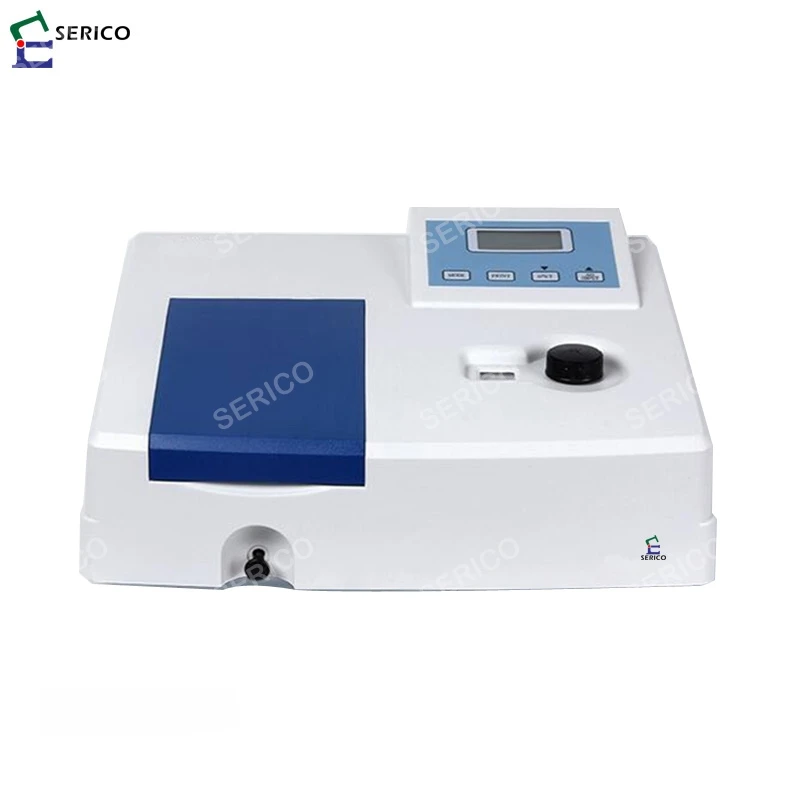

SERICO High Precision Single Beam Visible Spectrophotometer Model 752G Wavelength 200 1000nm

Product Overview

Description

SERICO High Precision Single Beam Visible Spectrophotometer Model 752G Wavelength 200-1000nm







Item No: 20222101

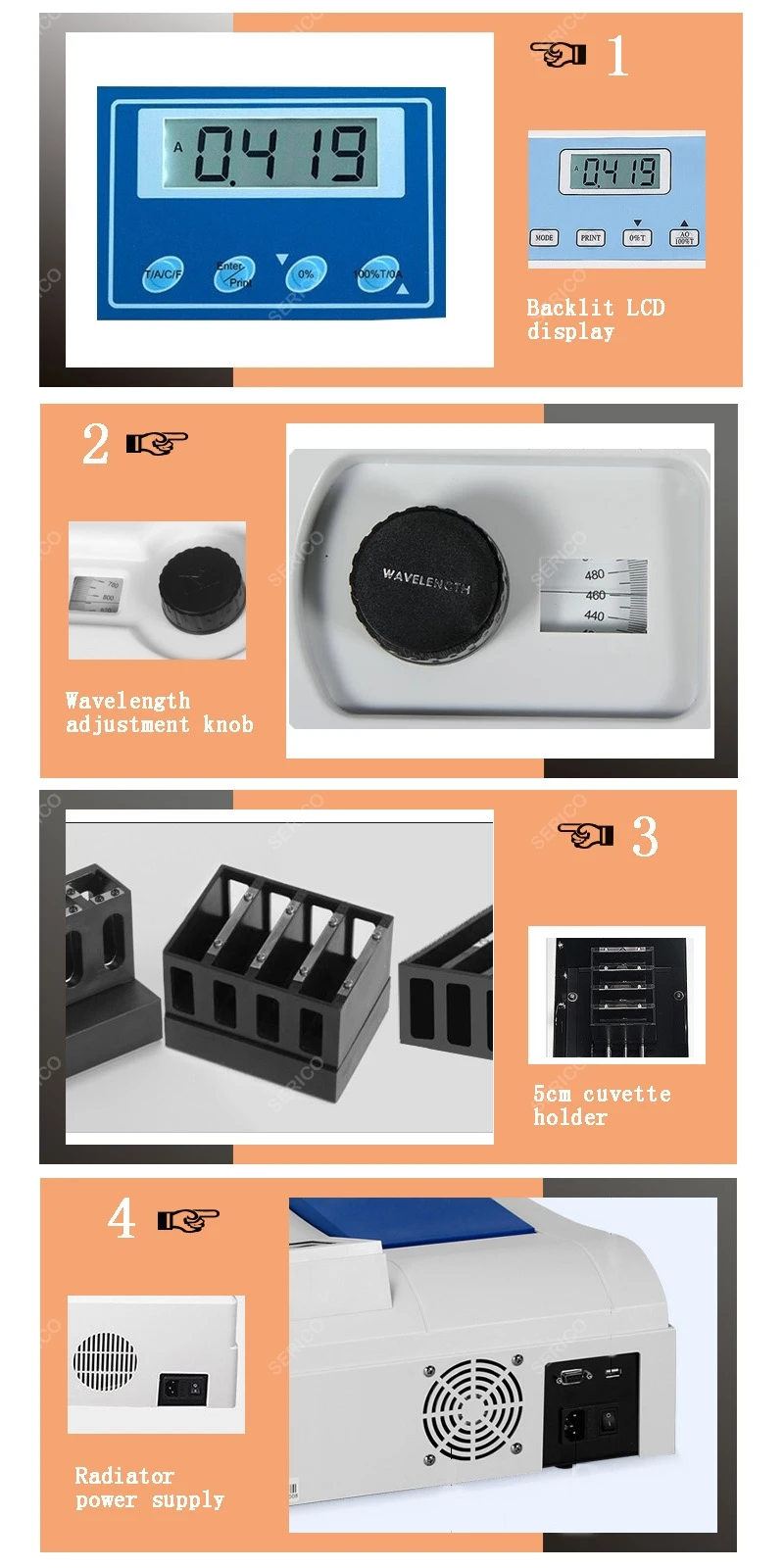

Features:

1. The monochromator with a holographic flashing grating. With advantage of high wavelength precision, good monochromaticity and low stray light.

2. The Spectrophotometer has sample compartment for 0.5cm-10cm cells.

3. Computer control system, precise automatic T/A changeover.

4. Automatic zero and full scale adjustment.

5. Direct concentration read-out and concentration factor setting function.

6. Printer can be connected and data can be sent to PC by special software.





Specifications:

Wavelength range	340-1000nm
Wavelength accuracy	±2nm
Wavelength repeatability	≤1nm
Transmittance accuracy	±0.5% (T)
Transmittance repeatability	≤0.2% (T)
Spectrum bandwidth	5nm
Stray light	≤0.5% (T)
Light current drift:	≤0.5%(T)/3min
Dark current drift:	≤0.2% (T)/3min
Cell Holder	5mm(100mm optional)



 Standard configuration:

1	Main instrument	1
2	Operation Manual	1
3	Glass cell 10mm	4
4	Quartz cell 10mm	-
5	Power cable	1
6	Fuse (3A)	2





Optional accessories:

Software

5/10/20/30/50mm Glass cell

5/10/20/30/50mm Quartz cell

Cell holder 100mm

Tungsten-halogen lamp(12V 30W)

Deuterium lamp(DD2.5)

Printer (FD-TP211)

Power cable (UK type)

Power cable (EU type)



Packaging & Shipping

Package Type: 1 Unit/ Carton

Dimension: 560*480*290mm

Gross weight: 13.5Kg

Net weight: 12Kg
