Multiport power over ethernet Patch Panel POE 16 Port for IP camera POE
- Category: >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (60442009935):
Product Overview
Description

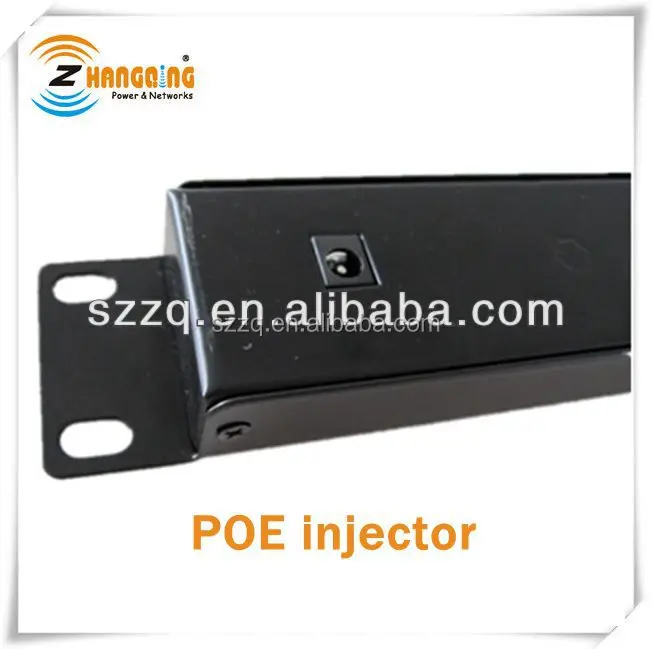

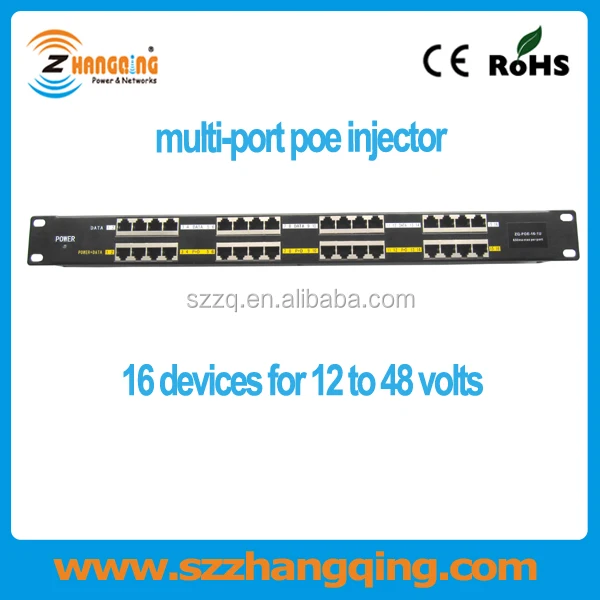

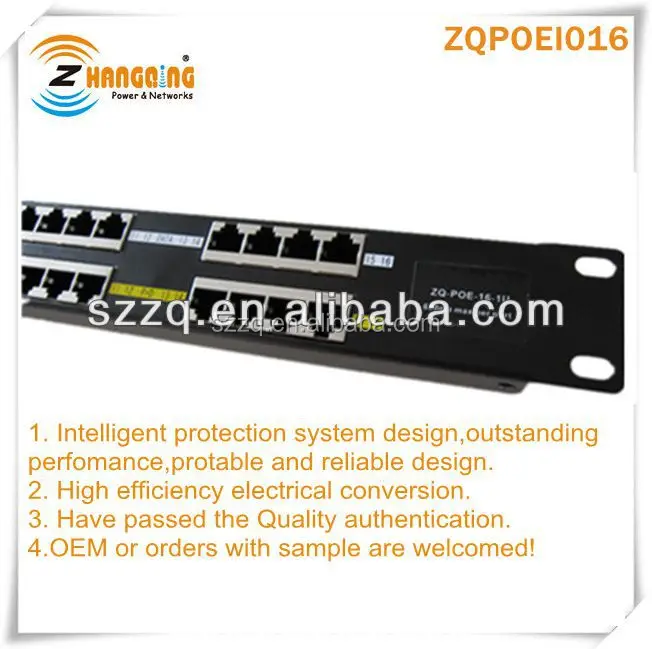

Multiport power over ethernet Patch Panel POE 16 Port for IP camera POE
PSE USE 10/100 Ethernet
Flexible power( DC 24V to 57V)

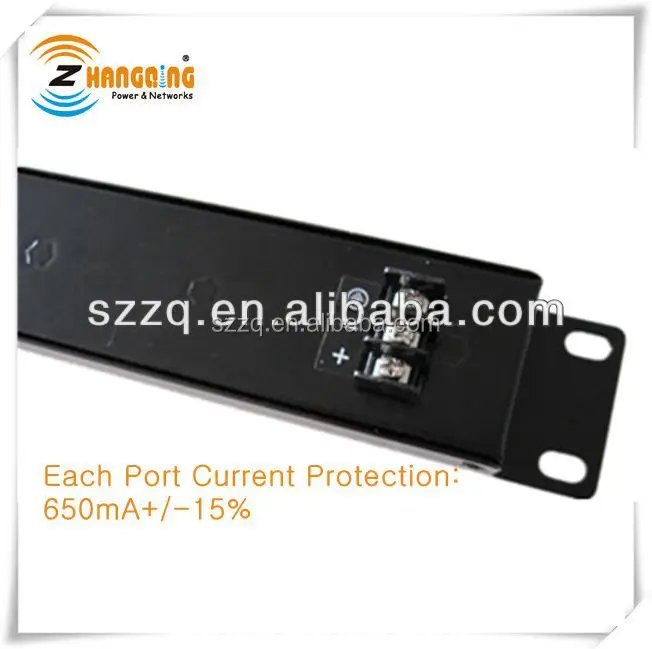

Each port current protection (650mA)
For 19'' Rack
Product Description
Passive and 802.3af POE uses pins 4/5 for plus power, and 7/8 for ground.
Many popular devices like Ubiquiti use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.
Connect the power supply you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and reduce the mess of cables. Reboot all 16 devices from one central location.
Spectification
Input 100-240V AC 50/60Hz
Output 12V TO 48V (up to 56v)
Data 1/2&3/6
Power 4/5 V+ & 7/8 VData
In Connects PC/HUB/Switch
Weight 16 Port 1.0Kg
Dimensions 482.6mm×44.3mm×25mm
Case of material metal work material
Ethernet Cable TIA/EIA 568 Cat. 5/5e/6/6e/7
Data rate 10/100Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH

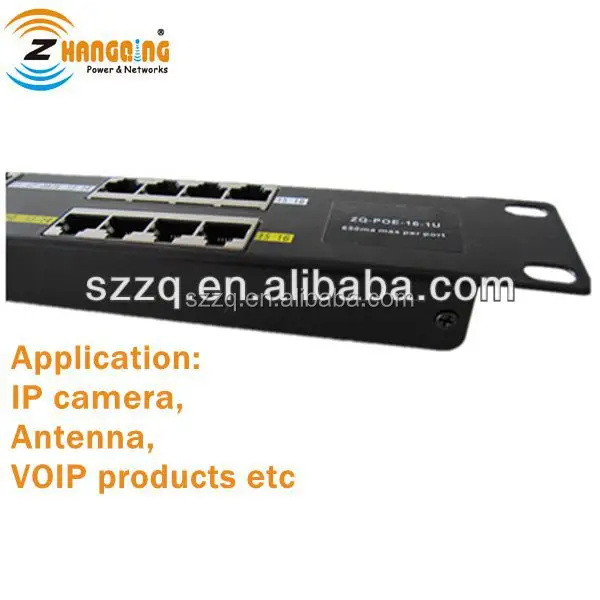

Application
IP Phone
Wireless Access Point (WiFi AP)
WiMAX Basestation
IP Survellance Camera
Door Security
POS
Netbook/mini Notebook
