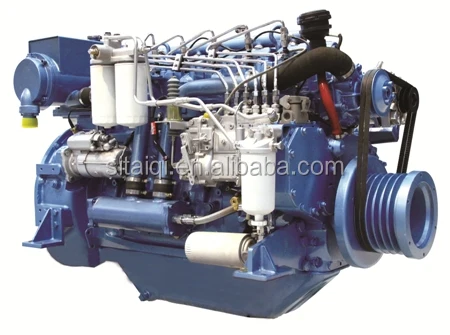

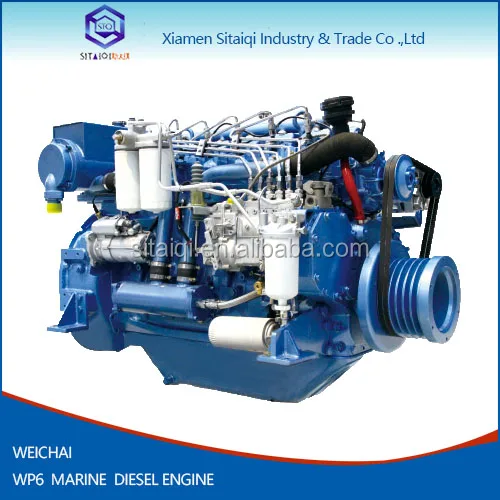

Weichai Deutz WP6 Series Marine Diesel Engine with gearbox 122hp 185hp
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60442218940):
Product Overview
Description
Weichai Deutz WP6 Series Marine Diesel Engine with gearbox with 122-185HP for Sale
Product Description
WEICHAI WP6 Marine Propulsion Diesel Engine( Power 90-136KW, 122-185HP)
ENGINE SPECIFICATION
Engine Type | Inline-6 Cylinder, 4-Stroke Diesel Engine |
Bore(mm)*Stroke(mm) | 105*130 |
Combustion System | Direction Injection |
Aspiration | Turbocharged/Turbocharged & Intercooled |
Starting System | 24V Electrical Starter |
Cooling System | Heat Exchanger |
Displacement(L) | 6.75 |
Rotation | Anti-clockwise Facing Flywheel |
Size of Flywheel Housing & Flywheel | SAE 1 & 14 in |
Emission | IMO TIER II |
Dry Weight (kg) | 750 |
Dimensions (L*W*H) | 1370*890*1054mm |
POWER RATINGS
Power Rating | Continuous duty |
Rated RPM | 1500 1800 2100 |
KW | 90/110 105/122 115/136 |
Fuel Oil Consumption in rated power (L/Hr) | 23.4/28.6 26.3/30.1 29.9/33.6 |

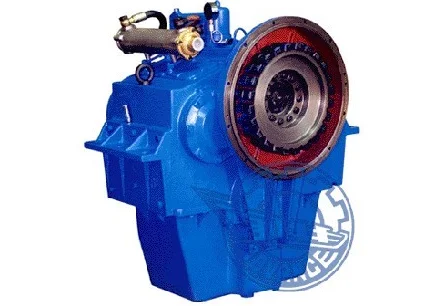

MARINE GEAR SPECIFICATIONS
Gear Model | 120C |
Type | Hydraulic multi-disc clutch |
Reduction Ratio | 1.48, 1.94, 2.45, 2.96, 3.35 |
Direction of Rotation | Clockwise from stern |
Dry Weight (kg) | 225 |
Dimensions (L*W*H) | 427*620*650mm |
Mechanical Efficiency | 97% |
STANDARD FITTINGS
Standard engine package, belt driven cast iron self-priming sea water pump, local & remote engine monitor, classification product certificate, EIAPP.
OPTIONAL FITTINGS
Air starter set, dirty oil hand pump, rubber impeller sea water pump/ self-priming bronze sea water pump, 2nd means of monitoring mechanical instruments, engine stop solenoid valve, L.O & F.W pre-heater, resilient mounting, marine gear alarm system, marine gear with inclined angle.
Packaging & Shipping
Packaging Details: Carton or Wooden box (Can be according to customer's requirements)
Delivery Detail: 25-30working days
Our Services
a. Flexible Marine Propulsion Package Design
b. Commissioning & Technical Support
c. Standard Warranty on Equipment & Accessories
d. Spare Parts Availability at Your Door
