High Efficiency Single Screw Extruder/Extrude machine

Product Overview

Description

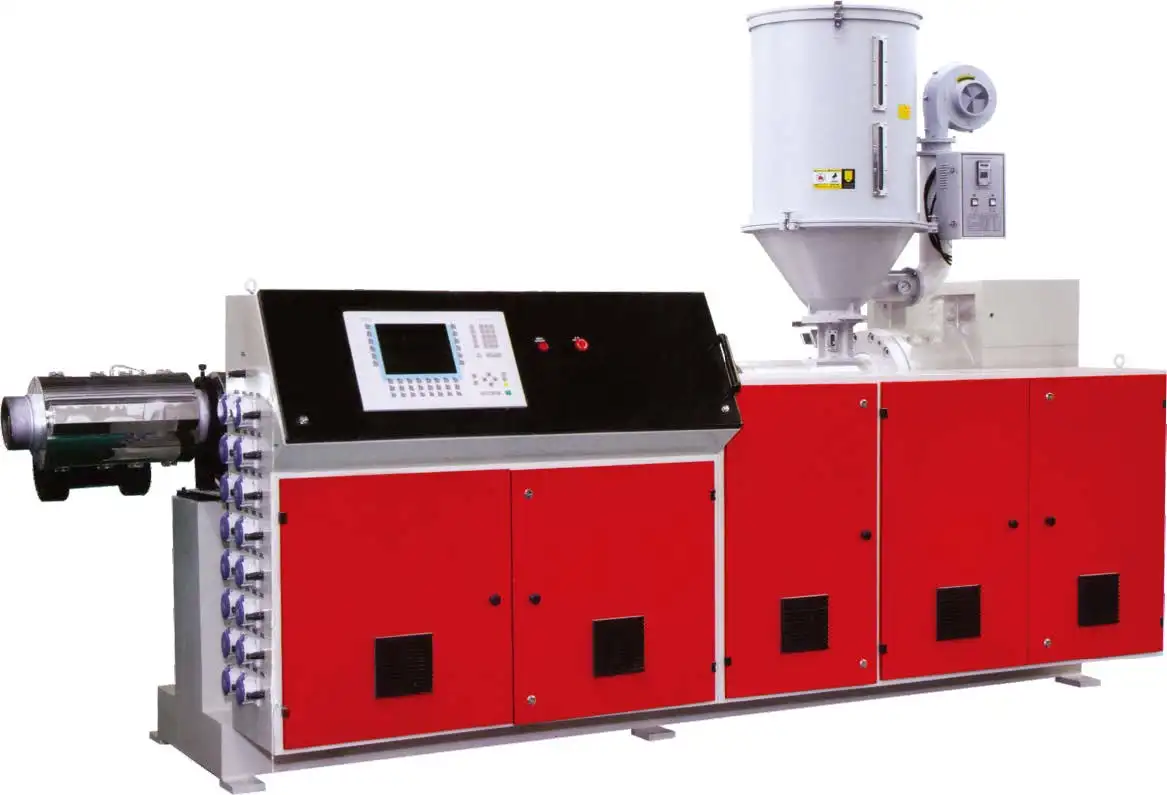

High Efficiency Single Screw Extruder



Application & Features:

1.It is developed by our company adopting latest advanced technology.Screw optimizes composing separate type screw and mixing parts.Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together.

2.It's optimized during material melting process.Thus get more extrusion throughout.

3.It is realized extruding  melt material in low temperature.

4.Cutting function is caused through separate  clearance and it makes materials equal well.

5.It's controlled during melt plasticization process. Therefore only granule smaller than separate clearance can enter melt channel.

6.Wide manufacture range for different materials. It's suitable for  all kind of polyolefin materials and specially for HDPE, PP, ABSpipe.



Introduction:

1.The machine is mainly to produce PP,PE,ABS and other plastics.

2.Equipment with different auxilliary equipment,

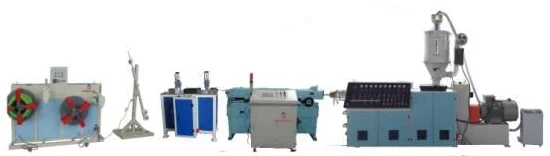

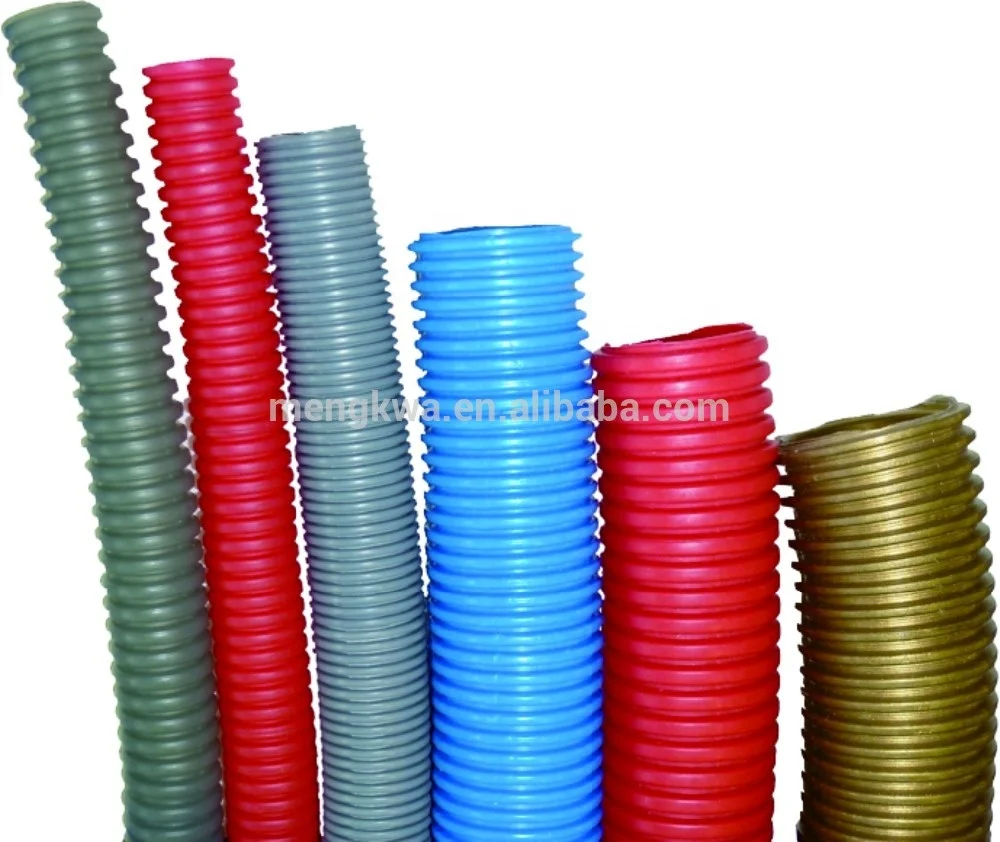

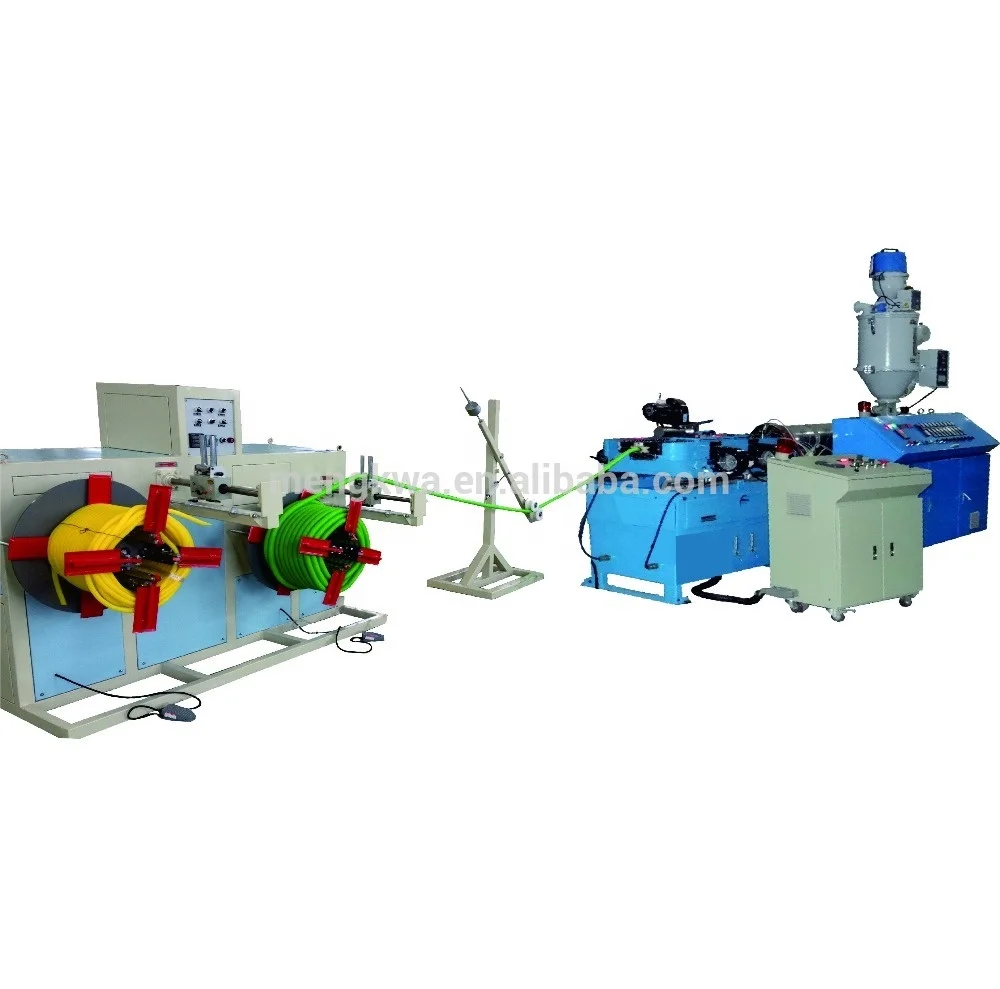

3.it can produce pipes,profiles,sheets and other plastic products and granular.

4.It has the advantage of simple production technological process,high output,stable quality and low cost.



Technical Parameter:

Model	SJ45/33	SJ50/33	SJ65/33	SJ75/33		SJ90/33	SJ120/33	SJ150/33
Main motor power(kw)	22/30		45/75/90	110/132		185/220	280/315	450
Screw diameter(mm)	45	50	65	75		90	120	150
L/D ratio	33	33	33	33		33	33	33
Torsion moment of screw(n.m)						11200	25000	45000
Capacity(kg/h)	90	110	200	350		500	800	1350
Dimensions(L×W×H)mm	2200× 1440×1950		2775× 1550×2200	3660× 1550×2200		4230× 1675×2200	5370× 1860×2400	6630× 1920×2450
