Superfine Powder Turbo Milling Pulverizer Machine
- Category: >>>
- Supplier: Qingdao Epic Powder Machinery Co. Ltd.
Share on (60442326417):
Product Overview
Description

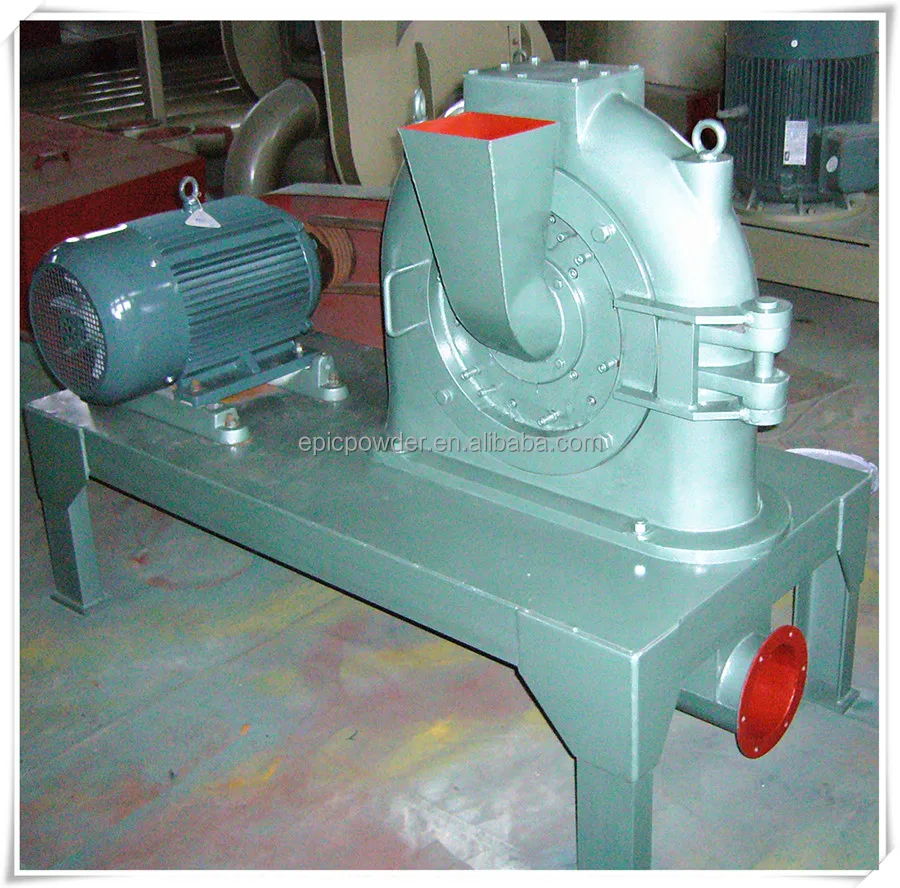

Superfine Powder Turbo Milling Pulverizer
MachineThe Turbo Whirl Mill: As already shown in the name of this mill the principle
of grinding is the impact force. The Turbo Whirl Mill is an ideal combination of impact
and fluidized bed mill for grinding, homogenisation, deagglomeration and coating.

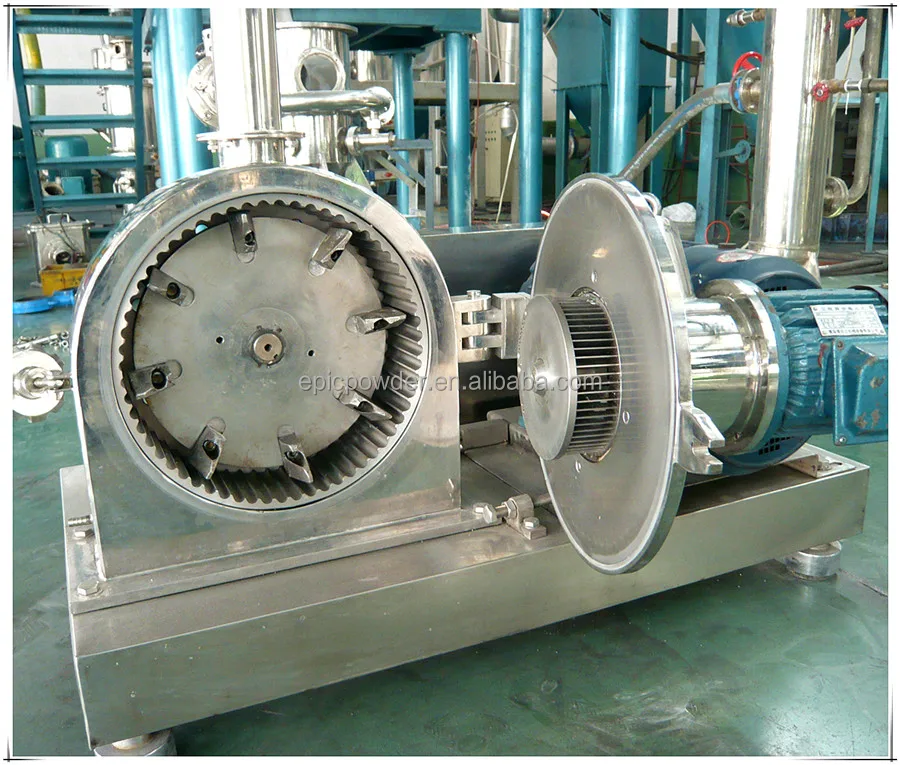

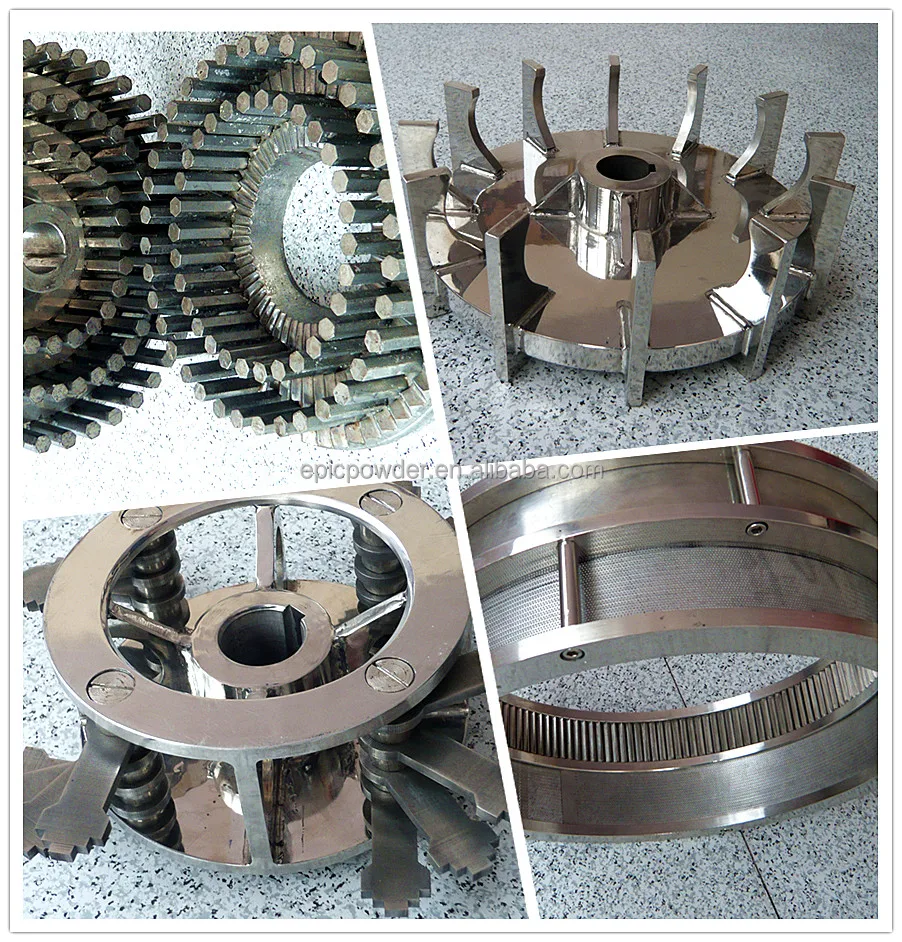

Thanks to their screwless fixing, the beaters can be replaced quickly and easily.
The rotor’s beater equipment can be flexibly modified with regard to the relevant
grinding and product demands. The possibility to operate the beater in both
clockwise and counter clockwise direction increases the beater’s lifetime.
]
Features
-- For soft to medium hard products
-- Absence of metallic contamination
-- For fibrous products especially
-- Pressure shock proof design
-- Low energy consumption
-- Step particle size distribution
-- Easy adjustment
-- Part wise no classifier needed
Application
-- Mineral fillers
-- Ceramic fillers
-- Animal food
-- Chemical products
-- Food
-- Surface treatment, coating
Technical Data
Model | Rotor Dia. | Motor | Rotation Speed | Air Flow m3/h | Output Size | Output |
RTM-300H | 300 | 18.5~22 | 7550 | 1600 | 5~250 | 30~800 |
RTM-500H | 500 | 45 | 4700 | 2400 | 80~2000 | |
RTM-750V | 750 | 55~75 | 3000 | 3600 | 100~3000 | |
RTM-1000V | 1000 | 90~110 | 2250 | 4800 | 200~4500 | |
RTM-1250V | 1250 | 110~132 | 1800 | 6000 | 300~6000 |
Model | Rotor Dia. | Motor | Rotation Speed | Air Flow m3/h | Output Size | Output |
LGM-400 | 360 | 30~37 | 4600 | 1200 | 15~250 | 30~800 |
LGM-600 | 540 | 45~55 | 3050 | 2000 | 80~2000 | |
LGM-800 | 730 | 75~90 | 2100 | 3000 | 100~3000 | |
LGM-1200 | 1130 | 110~132 | 1480 | 7500 | 200~4500 |
Note: The data sheet above is just for your reference. Please contact us for the detail brochure to
know more about our different Turbo Mills.
Project Service
- Project Definition:
- Feasibility and concept study
- Cost and Profitability calculations
- Timescale and resource planning
- Turnkey solution, plant upgrade and modernization solutions
- Project Design
- Knowledgable engineers
- Using the latest technologies
- Exploiting the knowledge gained from hundreds of applications across any industries
- Leverage expertise from our experienced engineers and partners
- Plant Engineering
- Plant design
- Process monitoring, control and automation
- Software development and real time application programming
- Engineering
- Machinery manufacturing
- Project Management
- Project planning
- Construction site supervision and management
- Installation and testing of instrumentation and control systems
- Machinery and plant commissioning
- Employee training
- Support throughout production
