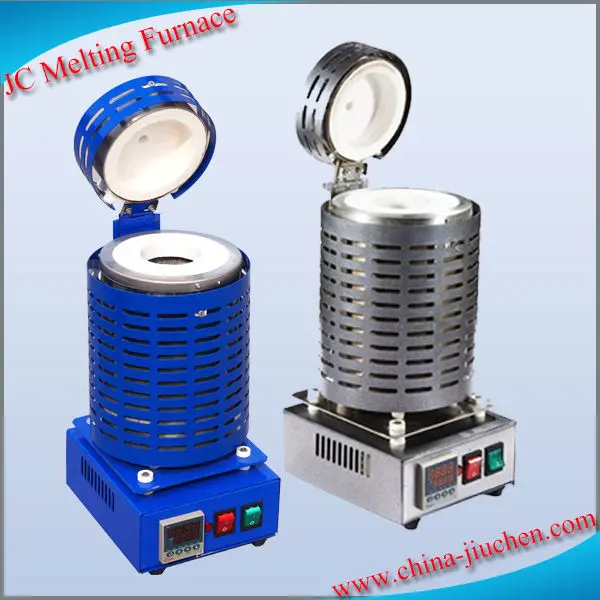

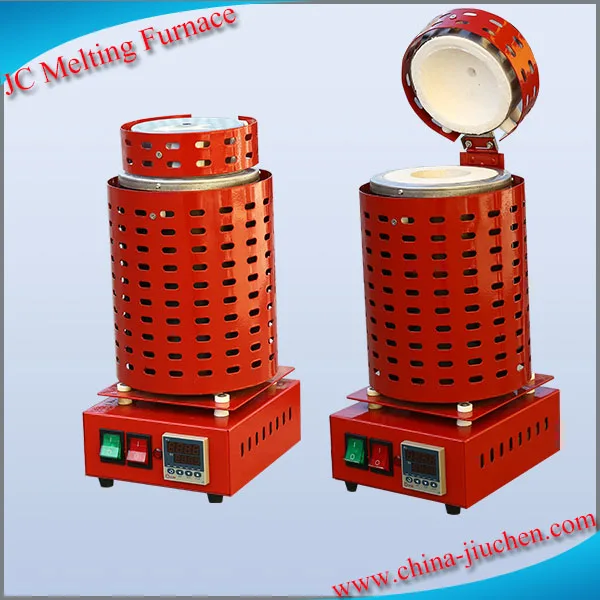

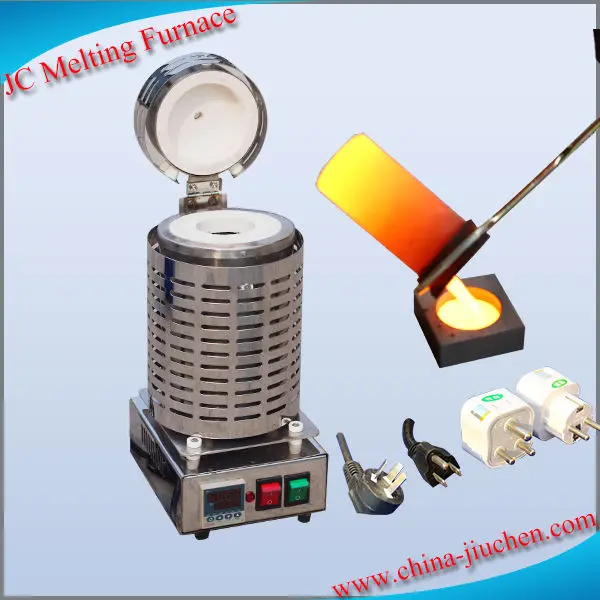

Small Aluminum Gold Lead Copper Smelting Furnace

Product Overview

Description

Small Aluminum Gold Lead Copper Smelting Furnace

Specification:

1.small portable gold lead copper smelting furnace

2.can melt gold,aluminum,copper,zinc,lead,brass,etc

3.fast melting speed and environmental protection

4.easy opearation and maintance

5.small size,light weight,accurate control

Small Aluminum Gold Lead Copper Smelting Furnace Description

Use	Removable crucible furnace for melting or maintaining melted state of non-ferrous metals. Handling the crucible with tongs.
Construction	Access to crucible from top, manual cover closing
Insulation	Multilayer insulation with double thickness of ceramic fiber
Electricity	Single-phase 110V/220VAC,1500W,50Hz,220V standard plug
Heating	Silicon Carbide chamber with no crack, no distortion, compared with other traditional ceramic fiber chamber and quartz chamber
Working temp	2102F (1150C) Temperature controlled with an accurate digital thermostat
Melting Speed	(Model JC-K-220-2) 15-20mins heat up to 1150 Degrees Celsius 25-30Mins(JC-K-220-1) heat up to 1150 Degrees Celsius

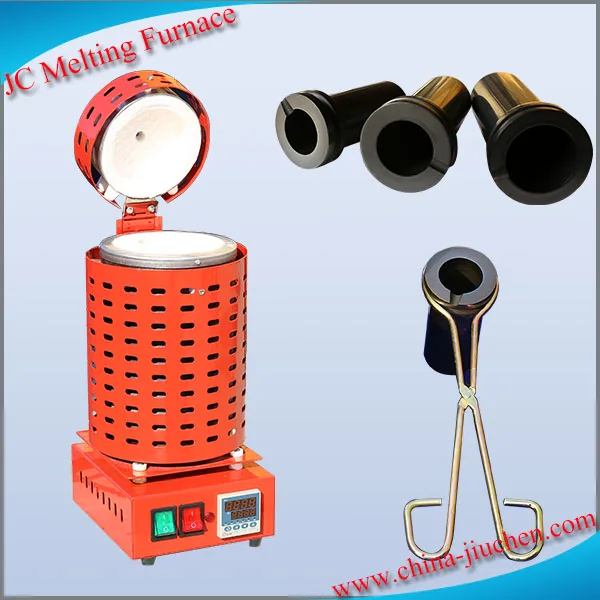

Standard Delivered with	1x1kg graphite crucible,1xcrucible tongs,1xinsluation glasses,1xgloves

Small Aluminum Gold Lead Copper Smelting Furnace Parameters

(Others can be customized according to your requirement)

Advantages of Small Aluminum Gold Lead Copper Smelting Furnace

1.High efficiency of melting;
2.Easy installation and operation;
3.Light weight and small volume;
4. Fast speed of raising temperature, the temperature is constant;
5.Safe and environment-friendly operation;

Instruction of Small Aluminum Gold Lead Copper Smelting Furnace

1. Set the temperature according to customers' needs:  (The default is 1100C)

2. Put the molten gold into the crucible, then put the crucible into the furnace.

3.Open green switch power supply, then red switch.Temperature controller with the digital furnace is slowly rising.

4.When the temperature reached 1150 degrees, the red light indicator cut off. Then cut off red switch and green switch, take out the molten crucible from the furnace.

5. Please pay attention to safety and maintain normal use of machine.

Small Aluminum Gold Lead Copper Smelting Furnace Features

1. High purity fiber alumina chamber for energy saving - chamber size: 63 mm dia. x 165 mm deep.

2. Precise temperature control, easy to read digital display and LED on/off indicator light.

3. Single point temperature control (Temperature only, no control for heating and cooling rate ).

4. Complete accessories are included for immediate use,

5. Small Portable Gold Melting Furnaces are supplied with a graphite crucible which provides a reducing atmosphere during melting

6. Designed with a High Temperature Ceramic Chamber for long lasting casting!

Small Aluminum Gold Lead Copper Smelting Furnace Certificate

Furnace Warranty

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.

If there is no man-made problems,we will replace or repair for you freely.

Other Information

1.What's the MOQ?---1 piece.

2.How about the delivery time?---3-15days if not stock.

3.What's the warranty?---one year free replacement spare parts.

4.How about our service?---longtime technology supporting.

5.What's the Skype address?---Aprilyan91.

6.Would you do me a call?---+86-18653335950.

If you need any assistance ,please be free to contact with us.
