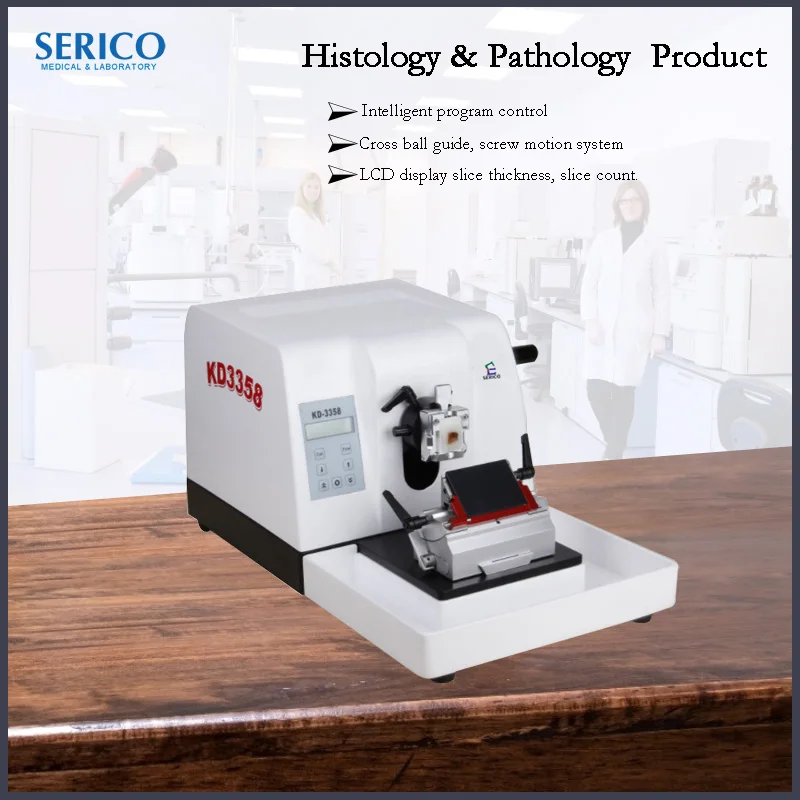

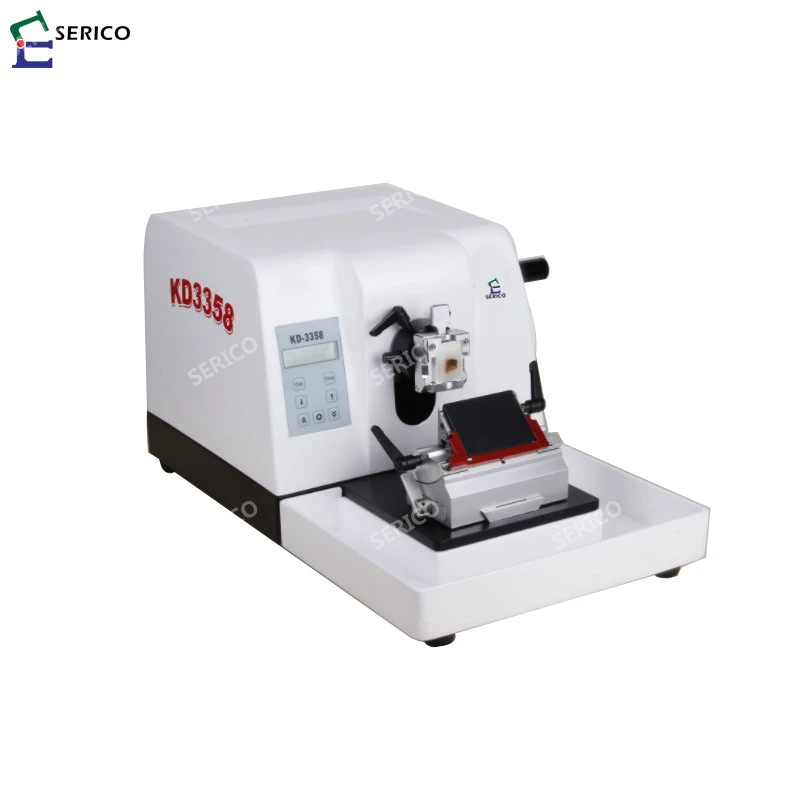

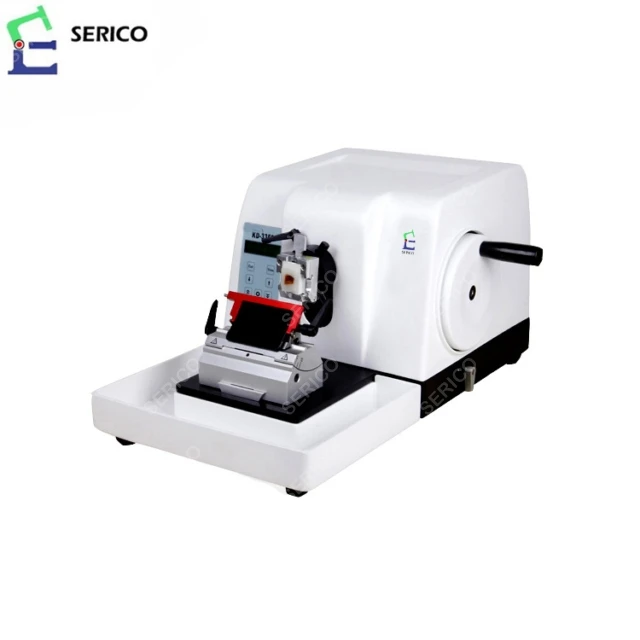

SERICO Semi automatic Rotary Microtome MODEL KD 3358 For Medical Histology Clinical analysis Research

Product Overview

Description



 SERICO Semi-automatic Rotary Microtome MODEL KD-3358 For Medical Histology Clinical analysis Research





Item No: 20502705



KD-3358 Semi-automatic microtome is new model after KD-202, KD-1508, KD-2258. This model adopt advanced, modern histopathology research technology. It has stable performance, ergonomic concept,. Main spare parts are imported from overseas. This model stand for very advanced technology and new development direction of histopathology research .

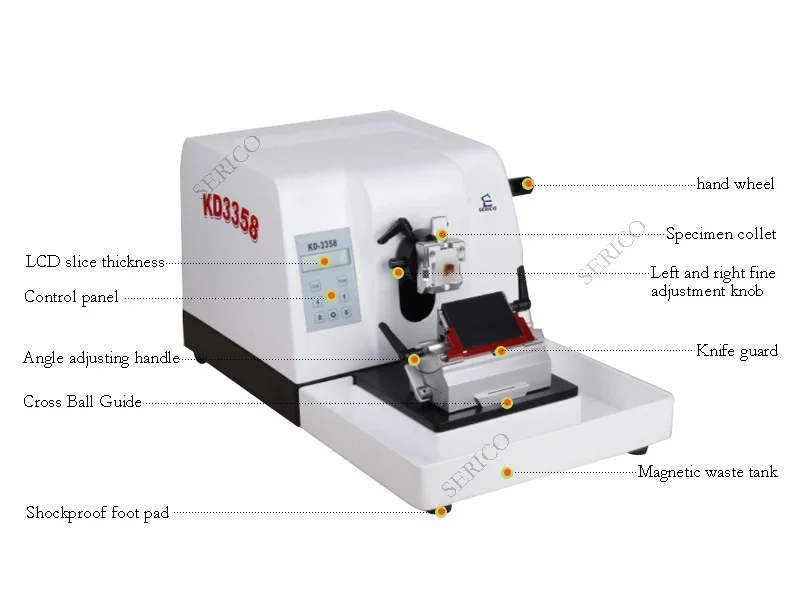

Features:

1. This product adopts a streamline design, and possesses advanced features with stable performance and easy operation;

2. Specimen feed drive is controlled by an intelligent, high precision control system, enabling semi-ultrathin slicing, starting from a thickness of 0.25μm;

3.  Specimen feeding drive utilizes an intelligent control system, it has high precision on cutting

4.  Advanced drive systems; multiple functions including sectioning, trimming, fast forward, fast backward, conversion etc.;

5.  Adopts imported cross-roller guide rails and a screw motion mechanism to ensure precision, thus achieving superior sectioning performance;

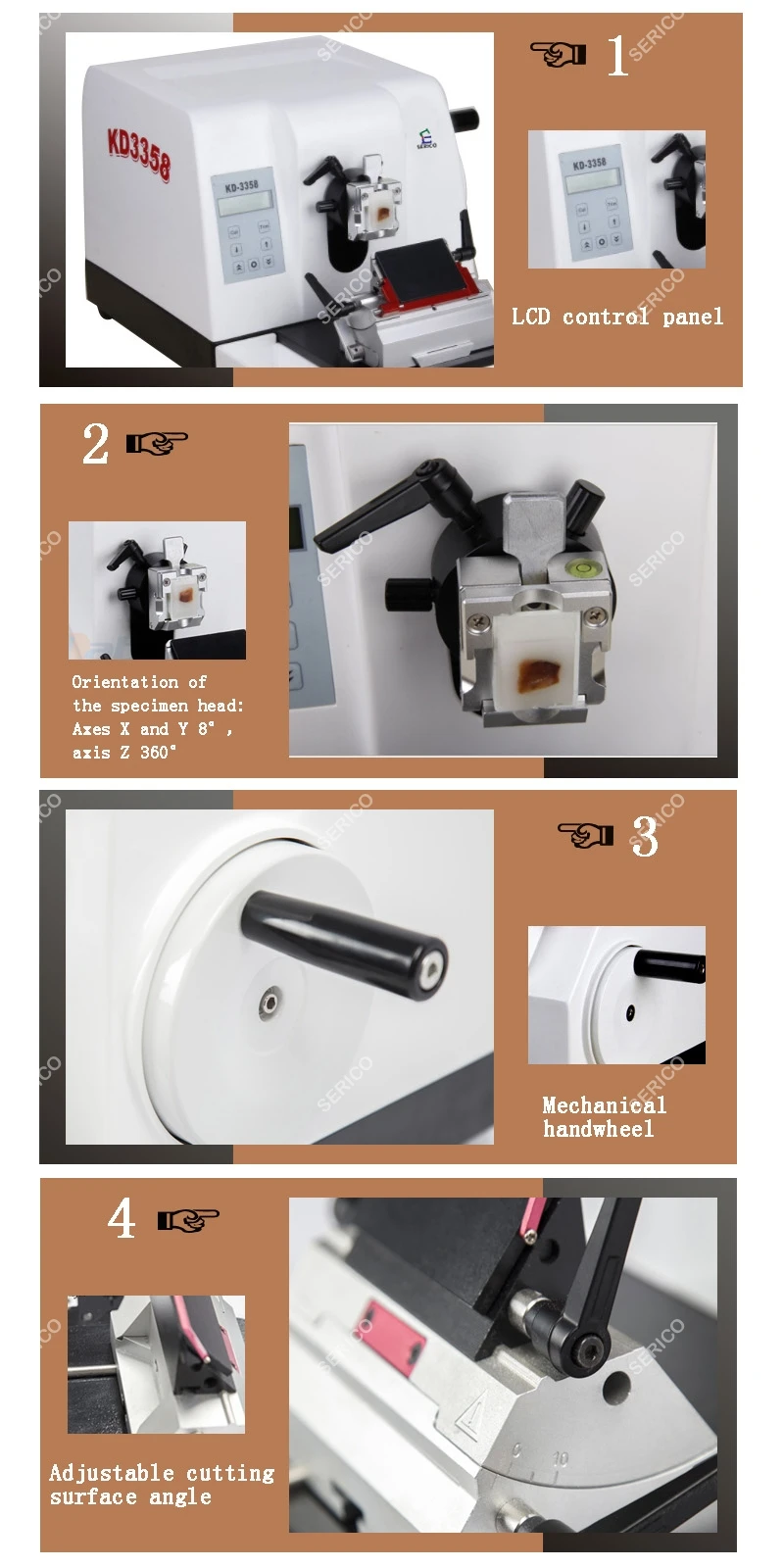

6.  LCD screen shows section and trimming thickness, number of sections and trims;

7.  Sectioning and trimming are completed through the control system;

8.  equipped with a safety alert system, drive-overload protection mechanism and an automatic standby protection mechanism;

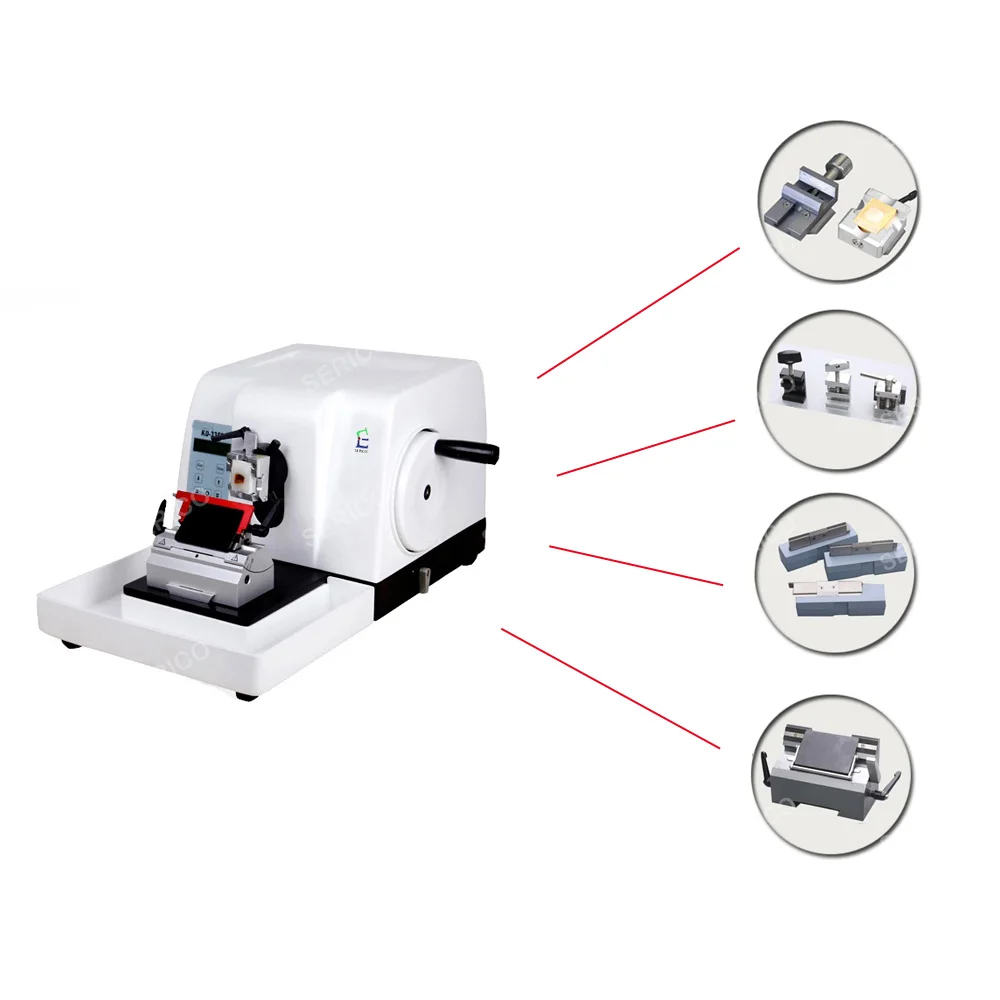

9.  Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);

10.  Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of operation;

11.  Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby utilizing the entire length of blade (three different segments);

12.  The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables the easy changing of the blade;

13.  Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;

14.  Large-volume waste tray is easy to remove, and items such as deposable blades can be stored on the top of the housing.





Specifications:

Section Thickness Setting Range	0 - 60μm
Section thickness adjustment
	0 - 1μm      increment 0.25μm
	1 - 10μm     increment 1μm
	10 - 20μm    increment 2μm
	20 - 60μm    increment 5μm
Trimming Thickness Setting Range	0 - 100μm
Minimum Setting of Sectioning Thickness	0.25μm
Total Horizontal Specimen Feed	28 mm
Vertical Specimen Stroke	52 mm
Movement Range of the Base of Blade Holder Base	0-60mm (front to back)
Movement Range of the Blade Press plate	0-23mm
Specimen Clamp Rotation	any angle within 360 degrees
Specimen Orientation	XY – 8°
Automatic return of specimen
Maximum Specimen Size	50×70mm
Precision Error	±1%
Working Voltage	AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power	100W
Dimensions	580×410×305mm(W×D×H)
Net weight	29kg
