digital ultrasonic flaw detector YUT-2620

♥ The firm and durable YUT-2620 is designed for the severe environment.



♥ Specifications of YUT-2620 Ultrasonic Flaw Detector

Full Screen Display Function	The echo display area covers the entire screen
Bulk Storage	Up to 1000 data sets can be stored, including waveforms, curves and parameters, etc
Measuring Point	Peak Mode or Front Mode
Echo-echo Method	No need of zero calibration, the net thickness of the base material can be directly measured through the coating
Wave Crest Memory	Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast testing of the flaws
Automatic Gain	Automatically adjust the gain to the preset amplitude height
Alarming Function	Afferent echo/echo loss alarming
Solid waveform	The solid waveform can enchancing the waveform visual contrast so the omission will hardly happen during the fast testing
Real-time Clock	Automatically record the date and time of the stored waveforms
Display Freezing	Catching the waveform and sound path data at any moment
Flaw Positioning	Real-time displaying the sound path S, horizontal height X, depth Y, and wave height H
Flaw Quantify	Real time display the dB difference value and sl quantitative value
Digital Inhibition	0-80%, increasing by 1%, not affecting the linearity and gain
Independent measurement shutters	2 independent measurement gates, monitoring the echo amplitude and the sound path distance
DAC/AVG Curve Functions	Perfect DAC curve functions enable the curves to change along with the changes of the gain, sound path, and displacement
Transverse wave Testing Method	When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness
Distance Compensation	When the resolving power in the near field is not influenced, only the remote signal will be compensated for its sensitivity so as to improve the testing range of the device significantly
Φ Value Calculation	This function is used for calculating the flaw quivalent
Languages	Chinese and English
Data Communication	Communicating with the computer via RS232 interface to transfer the waveform and data



♥ True color TFT LCD display, whose brightness is adjustable.



♥ The Actual Application of DAC Curve in detection

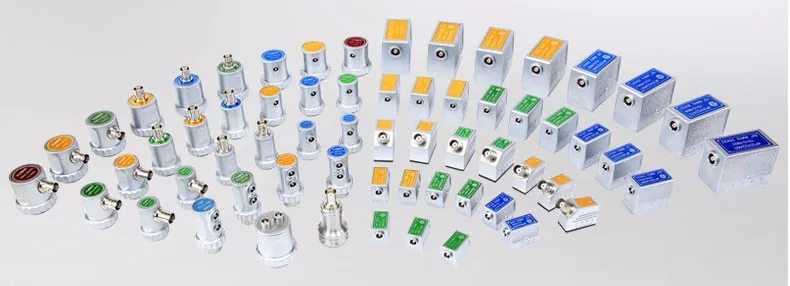

♥ With industry-leading probe production technology,We select the high performance of piezoelectric ceramic chips,regardless of the cost to build high quality.

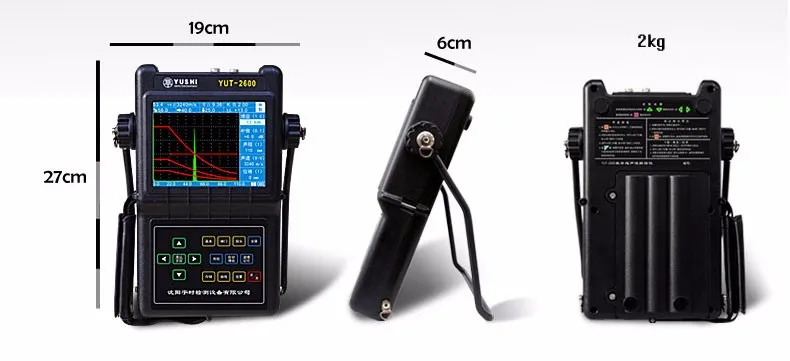

♥ Demension and Weight of YUT-2620 Ultrasonic Flaw Detector

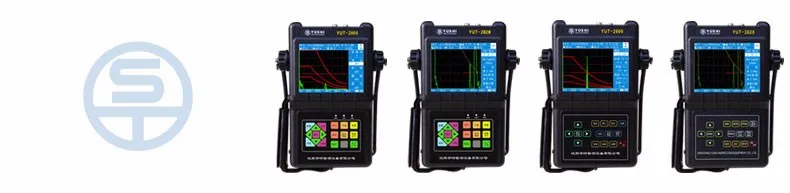

♥ Main Comparison Between Different Models





Model	YUT-2600	YUT-2620	YUT-2800	YUT-2820
True Color TFT LCD	√	√	√	√
DAC Curve	√	√	√	√
AVG Curve	χ	√	χ	√
Φ Value Calculation	χ	√	χ	√
Distance Compensation	χ	√	χ	√
Changeable Squared Ultrasonic Pulse	χ	χ	√	√
Wide/Narrow Band Filters	χ	χ	√	√
Four Impedance Matching	χ	χ	√	√
Data Logger	√	√	√	√

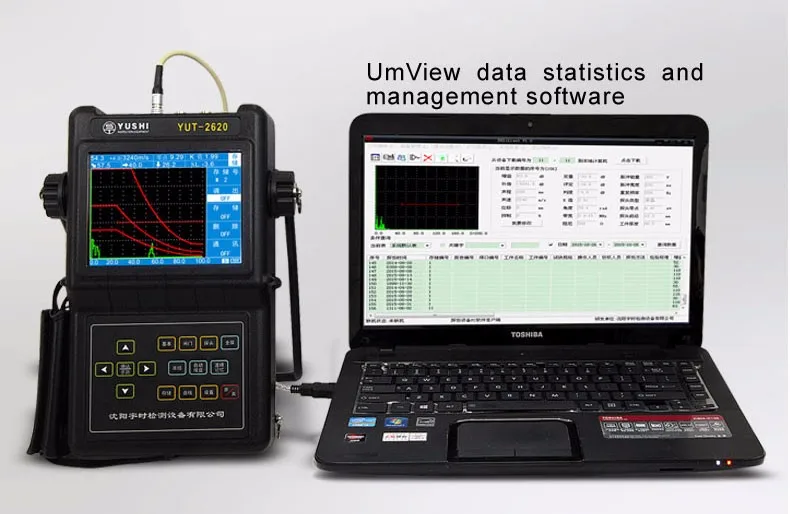

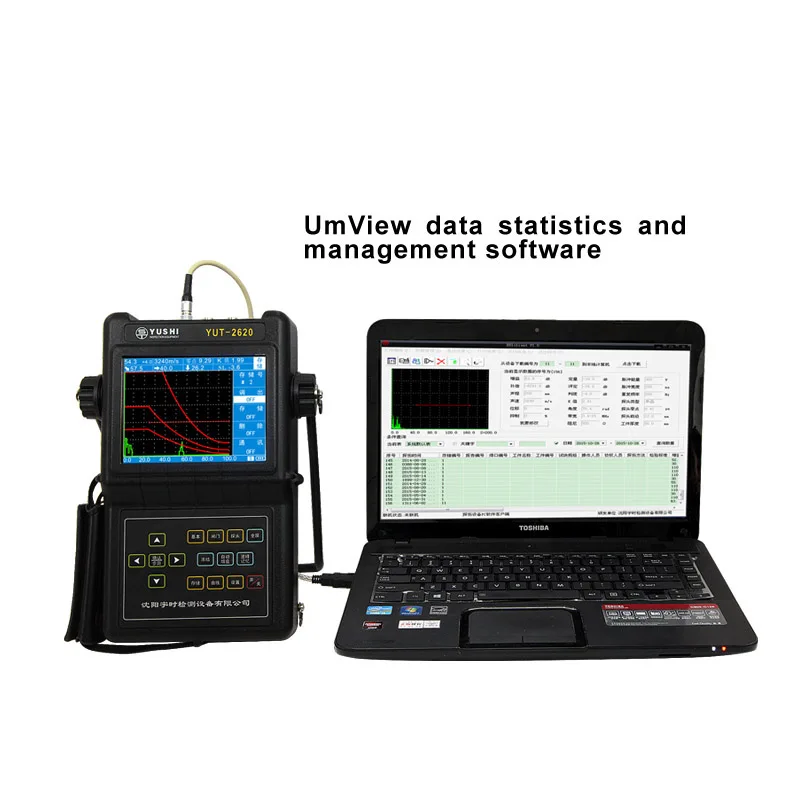

UtView Software	√	√	√	√



♥ Technical Parameters of YUT-2620 Ultrasonic Flaw Detector

Item	Index	Item	Index
Working Frequency	(0.5-15)MHz	Sensitivity Excess	≥60dB  (deep Φ2 Flat-bottom hole)
Material Sound Vecocity	(1000-9999) m/s	Definition	≥32dB
Operation Mode	Pulse echo, double crystal	Dynamic Range	≥30dB
Pulse Shift	(0-1000)mm	Average Noise Level	≤10%
Probe Zero	(0-199.99)us	Battery Working Time	9 hours
Gain Control	(0-110)dB,(0.1,1-2,6)dB stepping	Power Supply	12V DC ,220V AC
Vertical Linearity Error	≤3%	Dimensions	270mm x190mm x 60mm
Horizontal Linearity Error	≤0.3%	Weight	2kg(including batteries)

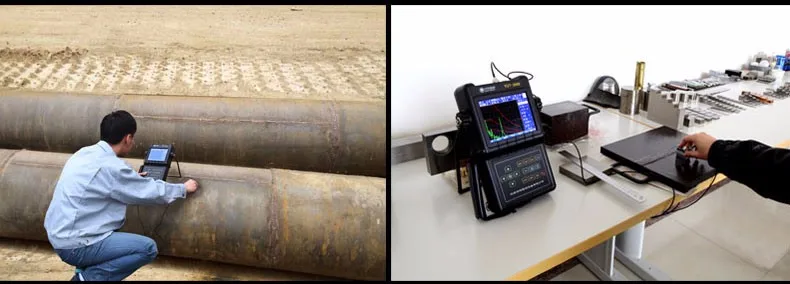

♥ Field Measurements of YUT-2620 Ultrasonic Flaw Detector

♥ Specially Used For Training Institutions

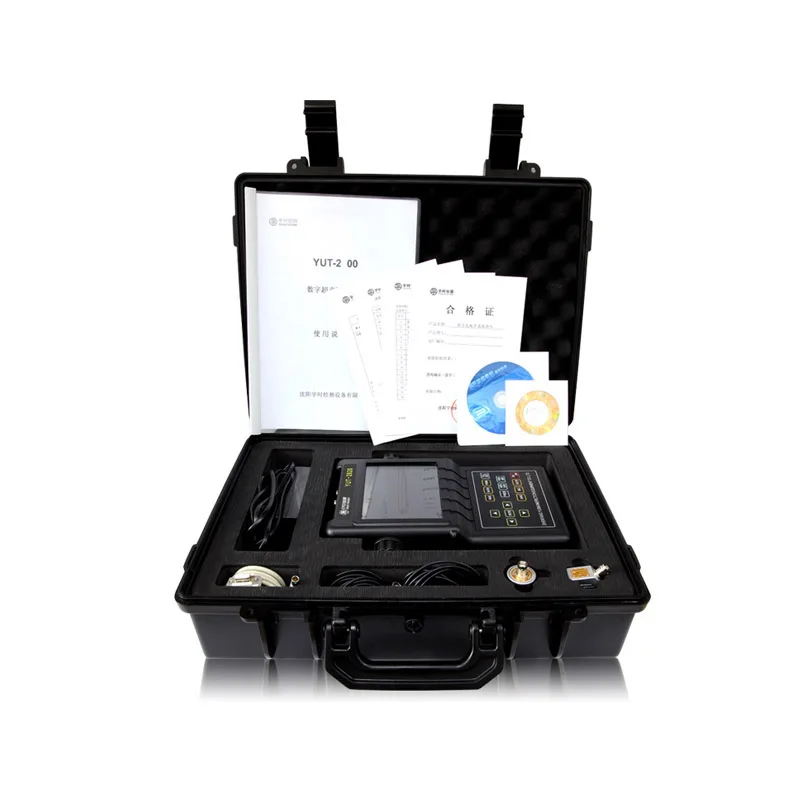

♥ Standard Delivery of YUT-2620 Ultrasonic Flaw Detector

NO.	Item	Quantity
1	Ultrasonic Flaw Detector	1
2	Lithium battery	1
3	Charger (with power line)	1
4	Communication Cable	1
5	Straight Beam Probe	1
6	Angle Probe	1
7	Probe Cable (BNC-BNC)	2

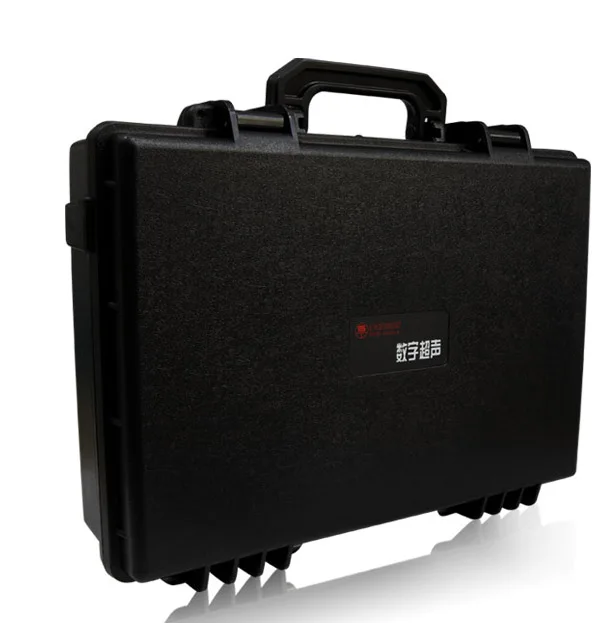

8	Instrument Case	1
9	Instrument Case Belt	1
10	User Manual, Packing List, Warranty Card	1
11	Data Communication Software (electronic-directions inside)	1
12	Demo Disc	1
