LXD hand push thermoplastc road marking machine
- Category: >>>
- Supplier: Jiangsu Daoying Highway Engineering Equipment Co. Ltd. [Jiangsu China]Jiangsu
Share on (60442581560):
Product Overview
Description
Our Company
Product Description
Product Introduction
LXD320 hand push thermoplastic road marking machine is the key equipment used in hot met road line marking construction,it need be worked with hot melt paint preheater.
The marking hopper of this machine is made of high-precision cast iron,which can make the marking line orderliness,uniform thickness and more beautiful.
The grounded knife of marking hopper can be applied to different kinds of road.
Glass beads automatic spreader equipped with buffer device of speed regulation which has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.
| Technical parameter | |||
| paint tank | double layer stainless steel,capacity of 100kg,equipped with inserted dismountable manumotive stirring device. | ||
| capacity of micor glass beads storing box | 10kg | ||
| micro glass beads dispenser | dispensing automatically,with speed governing shift device. | ||
| marking hopper | made of high-precision ultrathin material, scraper structure,standard configuration:150mm | ||
| grounded knife | made of hard alloy,the range of thickness of road line can be adjusted from 1mm to 2.5mm with eccentric locking collar. | ||
| rubber tire | aluminium alloy wheel hub,heat-resistance rubber,rear wheel equipped with localiser to make the machine walk along the straight line | ||
| heating method | liquefied petroleum gas | ||
| width of index line | 50/80/100/120/150/180/200/230/250/300/400/450mm, you can choose different specification of marking hopper to fit for the situation of construction. | ||
| size | 1320×820×1000mm | ||
| net weight | 135kg | ||
Main Features
1) Light,reasonable and compact structure,attractive in appearance.
2) Adjustable handlebar design,operator can adjust it according to his requirement.
3) It equipped with a device which can spread glass beads automatically.
4) The device which used to spread glass beads has speeder that equipped with two gears,you can adjust it according to your requirement.
5) Detachable Heat Preservation,reasonable designed mixer shaft which can solve the problem of paint remained in mixing tank.
6)Adjustable pointer can improve work efficiency.
7)Marking hopper is made of high-precision steel plate,which has advantages of high temperature resistance,anti-corrosion,anti-deformation,rapid heating and so on.
8)The wheel is made of cast iron and imported rubber,which has the advantage of handiness,burliness and durable.
2) Adjustable handlebar design,operator can adjust it according to his requirement.
3) It equipped with a device which can spread glass beads automatically.
4) The device which used to spread glass beads has speeder that equipped with two gears,you can adjust it according to your requirement.
5) Detachable Heat Preservation,reasonable designed mixer shaft which can solve the problem of paint remained in mixing tank.
6)Adjustable pointer can improve work efficiency.
7)Marking hopper is made of high-precision steel plate,which has advantages of high temperature resistance,anti-corrosion,anti-deformation,rapid heating and so on.
8)The wheel is made of cast iron and imported rubber,which has the advantage of handiness,burliness and durable.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | |
| Size | 1320 (L) * 820 (W) * 1000 (H) |
| Weight | 135kg |

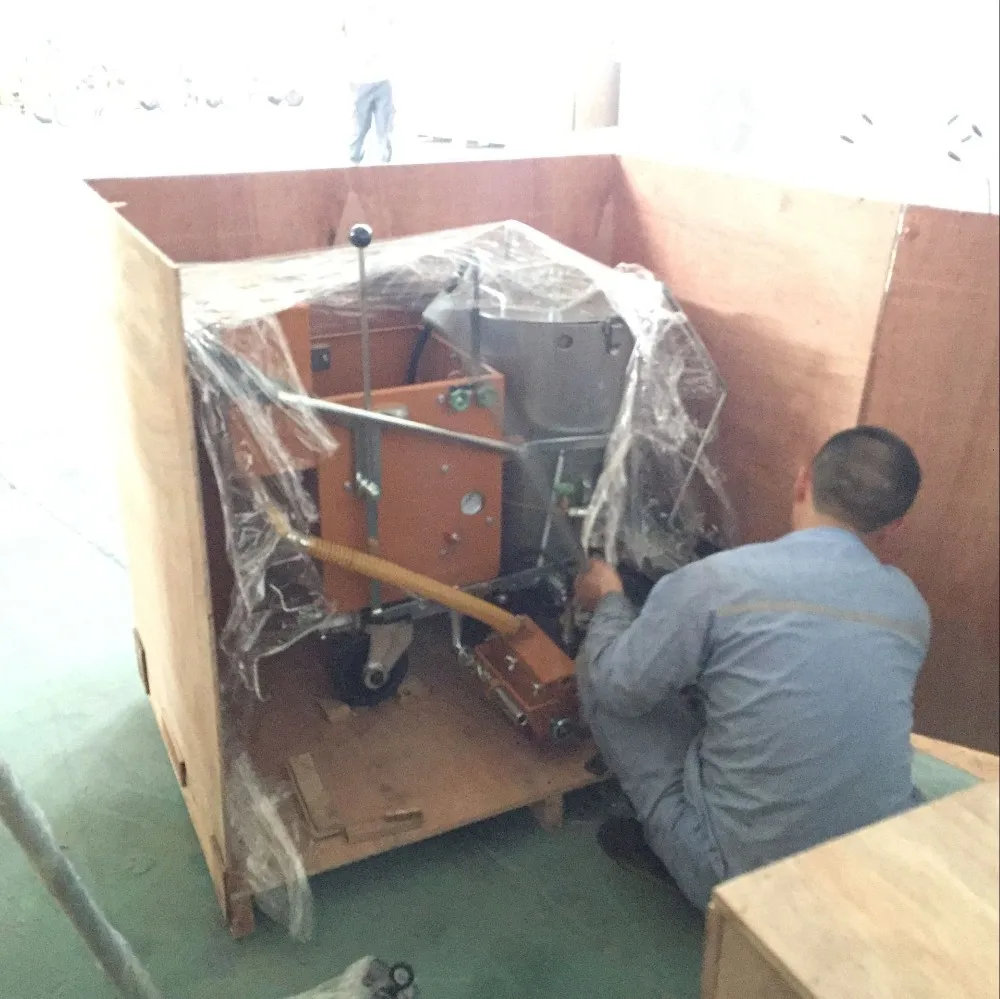

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 1320 (L) * 820 (W) * 1000 (H) |
| Weight | 135kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request. |

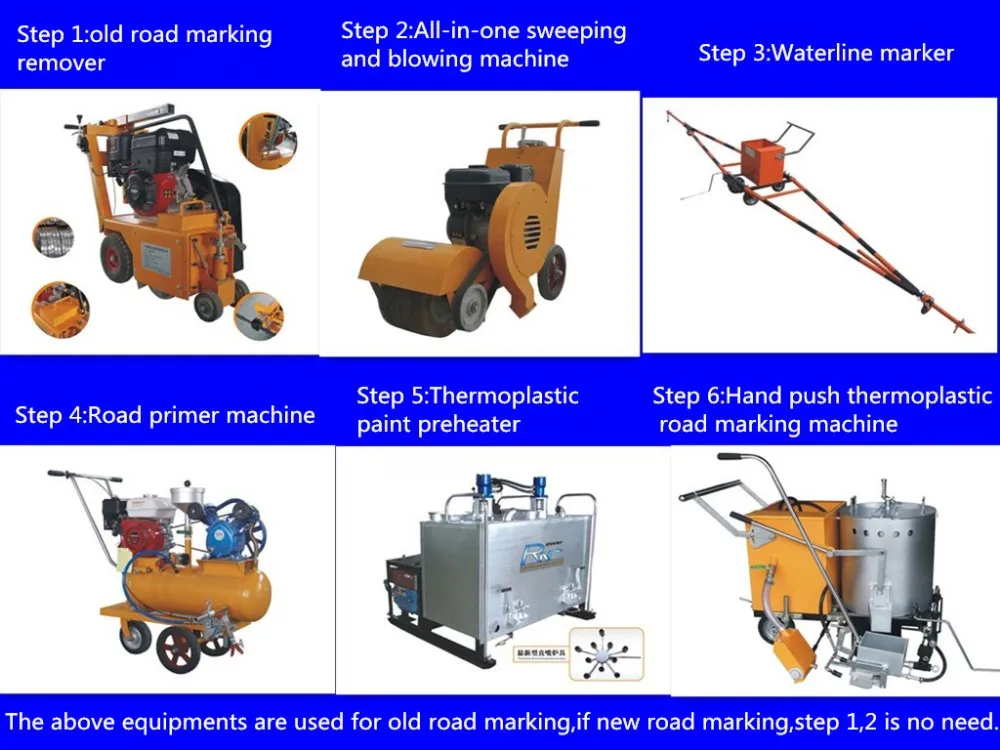

Procedure
