Full automatic forklift electric pallet jack stacker
- Category: >>>
- Supplier: Taizhou Jetstar Machinery Equipment Co. Ltd.
Share on (60442734920):
Product Overview
Description

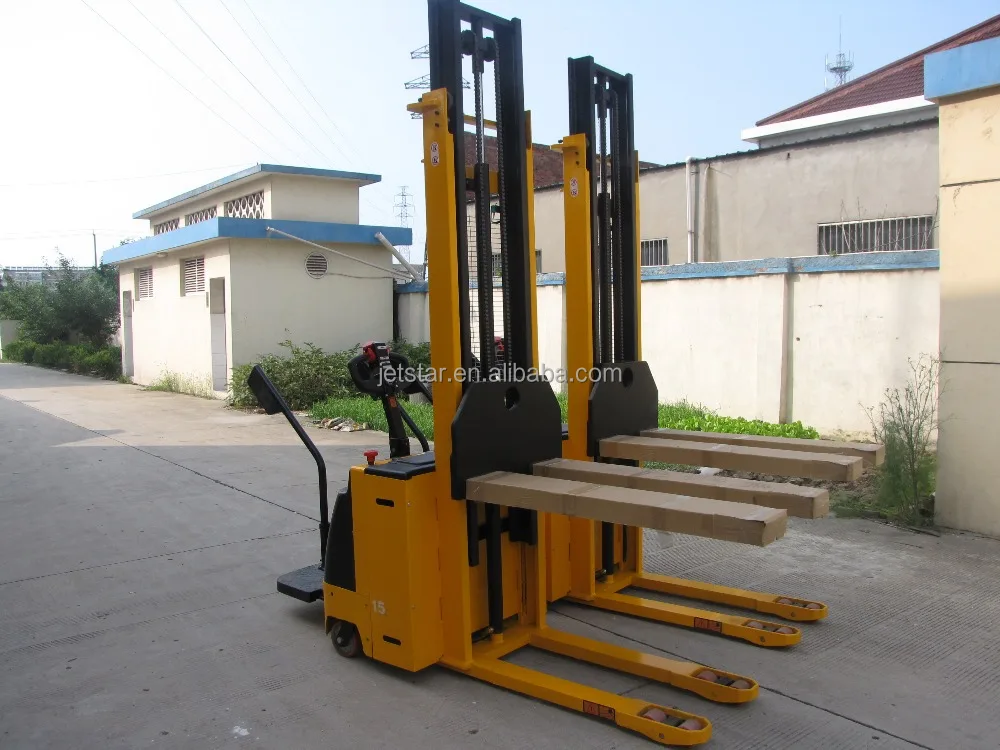

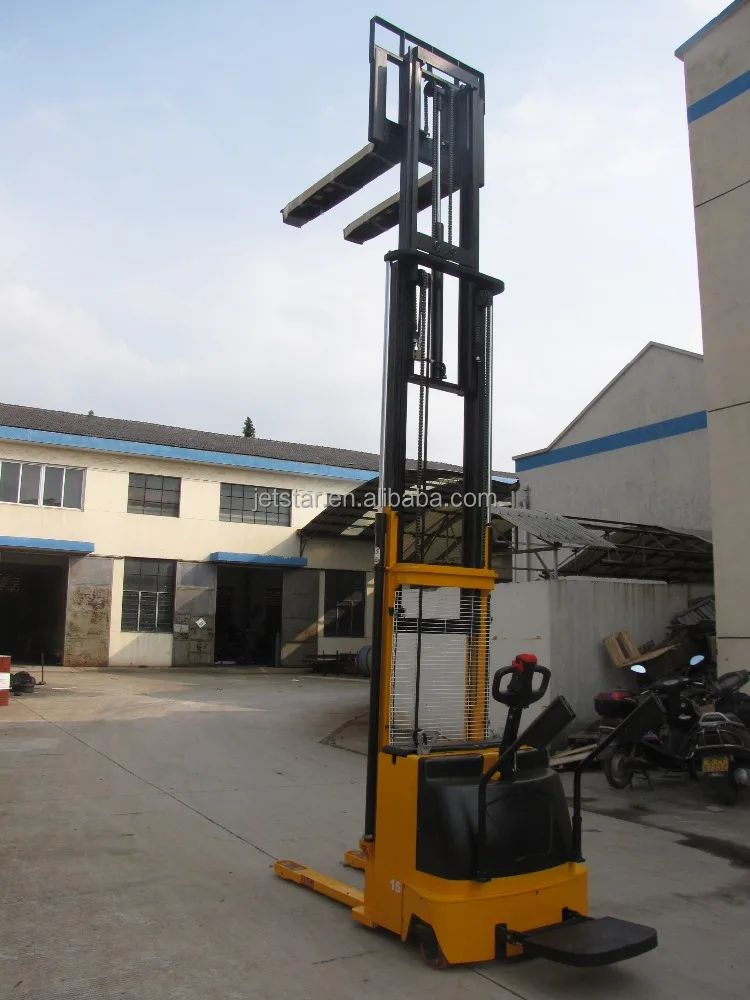

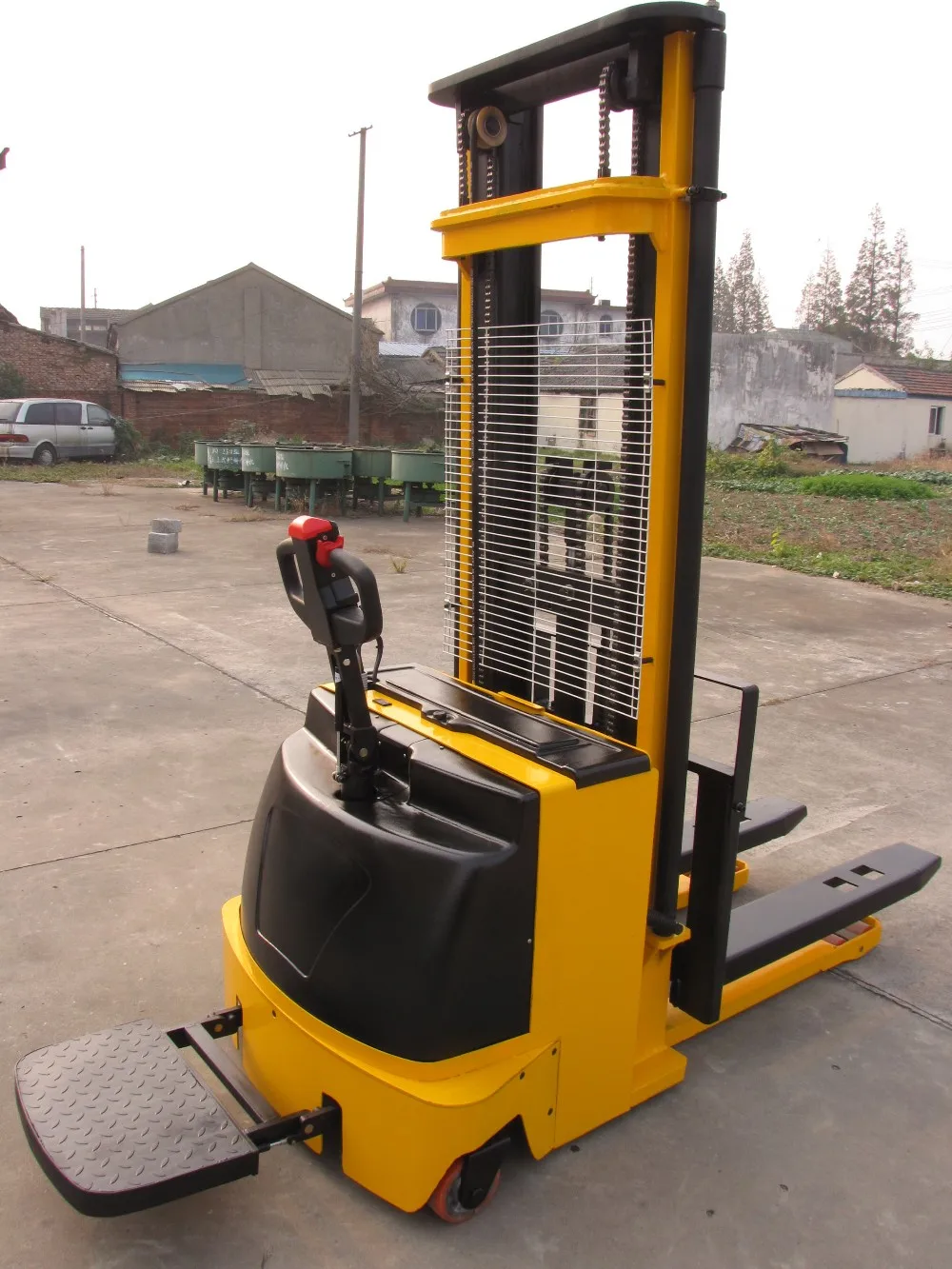

Full automatic forklift electric pallet jack stacker
Full automatic forklift electric pallet jack stacker designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouses, supermarket and workshop etc. These trucks have following features and benefits, human system engineering design, Continuously Variable Transmission, wide view mast assembly made of Germany steel, maximum lifting height 6meters, with optional standing plat.
Pictures
Technical Data
General | Model | Unit | HL10 | HL12 | HL15 | |
Rated load capacity | kg | 1000 | 1200 | 1500 | ||
Power |
| Tractive-type battery | ||||
Operator type |
| Pedestrian / rider (pedal) | ||||
Characteristics | Maximum lifting height | mm | 1600 | 1600 | 1600 | |
Lowered height of fork | mm | ≤90 | ≤90 | ≤90 | ||
Minimum turning radius | mm | 1425 | 1425 | 1650 | ||
Minimum aisle width | mm | 2300 | 2300 | 2500 | ||
Minimum ground clearance | mm | 30 | 30 | 30 | ||
Standard fork length | mm | 1150 | 1150 | 1150 | ||
Standard fork width | mm | 160 | 175 | 175 | ||
Fork overall width | mm | 560 | 570 | 570 | ||
Fork individual width | mm | 240 | 220 | 220 | ||
Chassis | Overall length | mm | 1800 | 1800 | 1988 | |
Overall width | mm | 850 | 850 | 1000 | ||
Mast extended height | mm | 1975 | 1975 | 1975 | ||
Mast lowered height | mm | 1975 | 1975 | 1975 | ||
Performance | Maximum traveling speed | Laden | km/h | 4 | 4 | 4 |
Unladen | km/h | 6 | 6 | 6 | ||
Maximum lifting speed | Laden | mm/h | 80 | 80 | 80 | |
Unladen | mm/h | 130 | 130 | 130 | ||
Maximum lowering speed | Laden | mm/h | 110 | 110 | 110 | |
Unladen | mm/h | 90 | 90 | 90 | ||
Gradeability | Laden | % | 5 | 5 | 5 | |
Unladen | % | 8 | 8 | 8 | ||
Brake | Braking type |
| Electromagnetic | |||
Wheel | Wheel type front/rear |
| Poly/Poly | |||
Wheels |
| 1×Driven wheel,2×Balance wheel,4×Front wheel | ||||
Balance wheel dimension | mm | Φ156×50 | Φ156×50 | Φ156×75 | ||
Axis space | mm | 1228 | 1228 | 1450 | ||
Motor | Driving motor | kw | 1.2 | |||
Lifting motor | kw | 2.2 | ||||
Battery | Battery(Voltage/Capacity) | V/Ah | 12/120×2 | 12/165 | 24/210 | |
Control | Control system |
| Curtis I207a | |||
Weight | Weight | kg | 650 | 690 | 690 | |
Packaging & Shipping
Packaging
1)Normal Packing for free
Inner Pack: Bubble Film + PP Knitted Band
Outer Pack: Wrapping Film + Iron Pallet
2)Plywood case packing for optional
Shipping
The transportation depends on client's choice, usually by sea, by train etc.You also can choose other shipping method and inform us before shipment.
Company Information

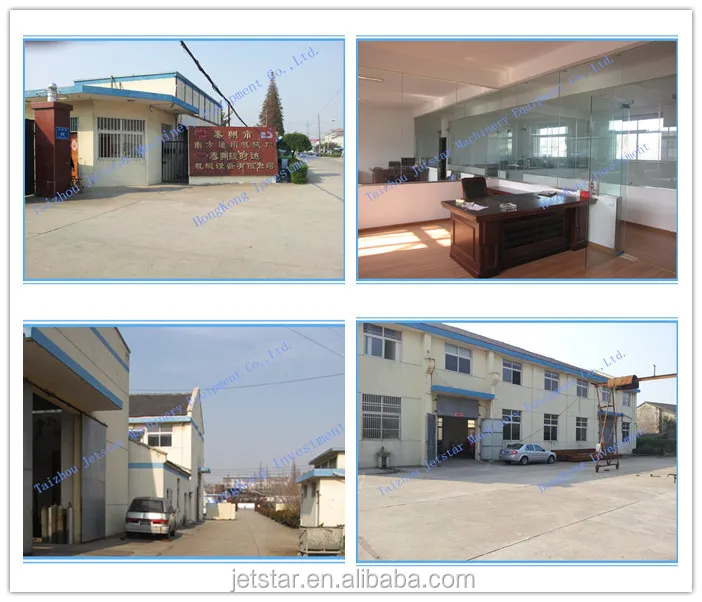

Hong Kong Investment Taizhou Jetstar Machinery Equipment Co. Ltd. is a diversified, high-tech, and internationalized large modern company. She was established in 2006 as a professional manufacturer and exporter of forklift. The head office was located in Hong Kong, as a window for overseas business, and the factory is located in the Economic Development Zone, Taizhou city of Jiangsu Province.
