Heat Insulation Mould Proof Medium Density Calcium Silicate Ceiling Board

Product Overview

Description

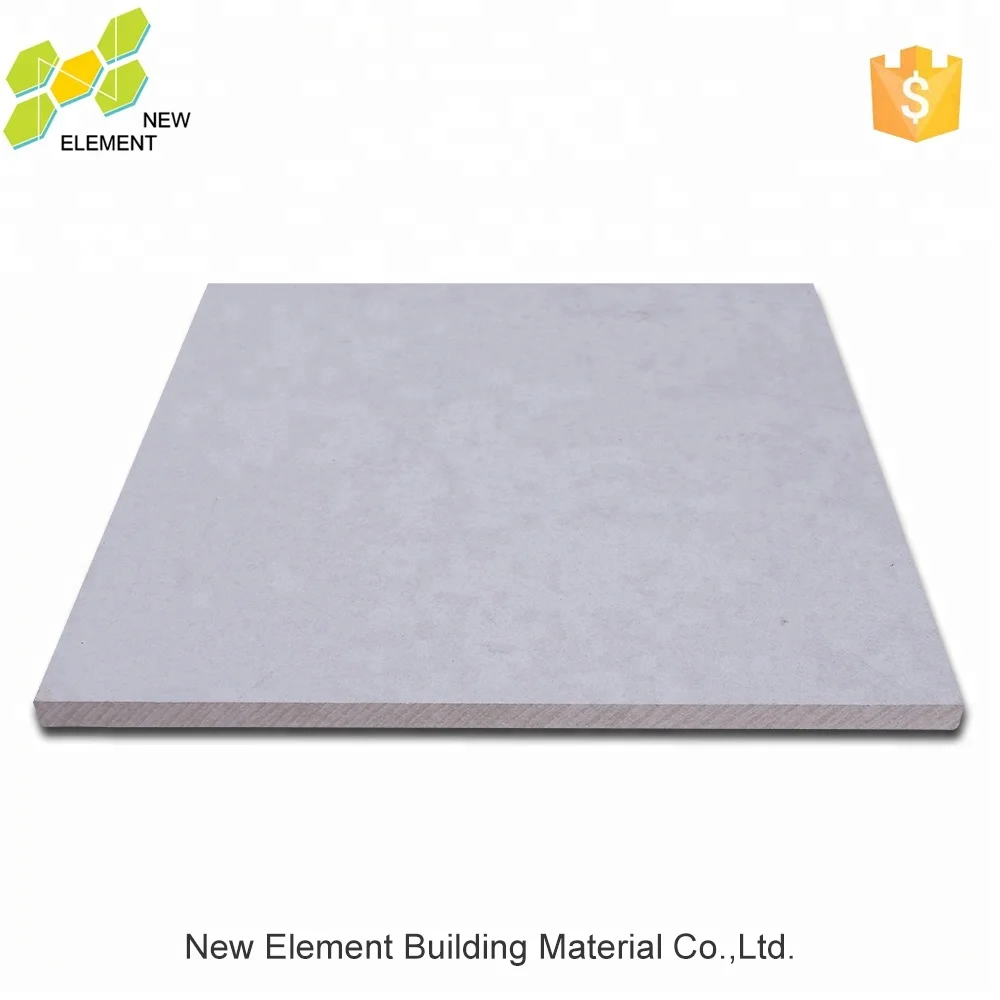

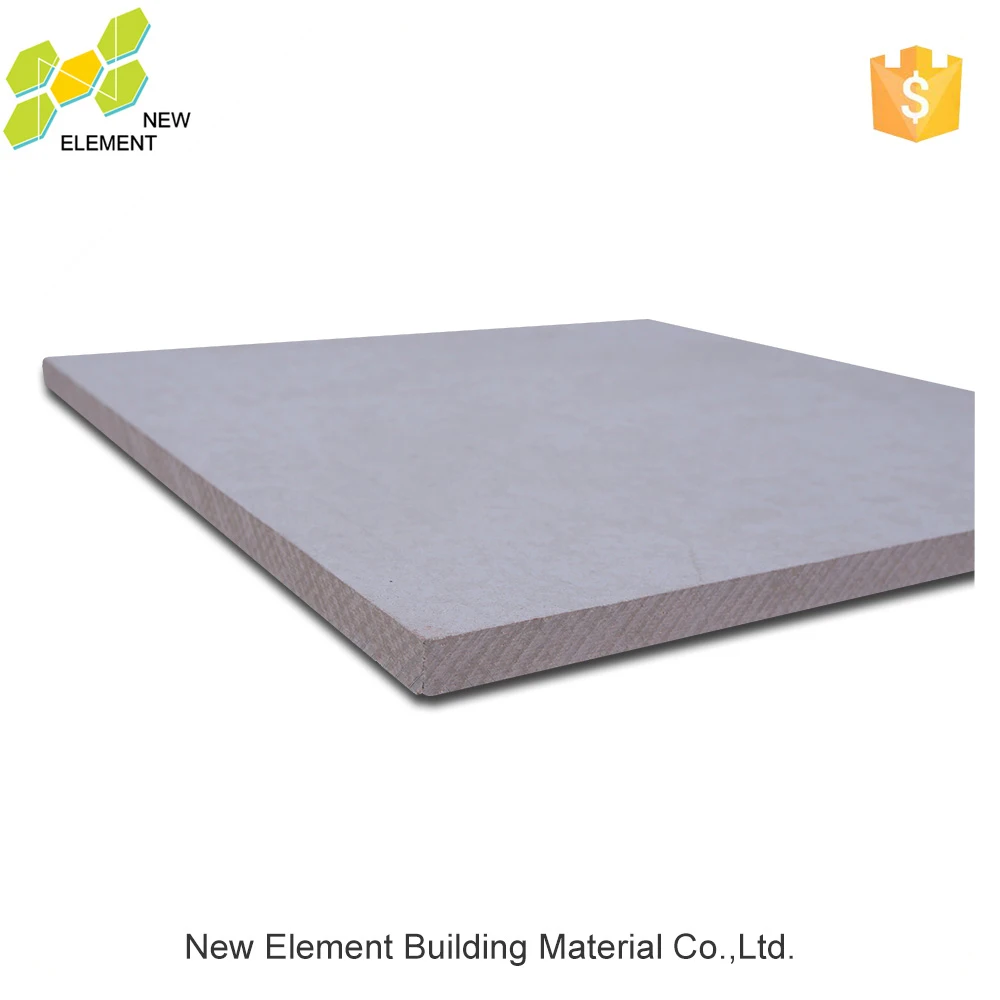

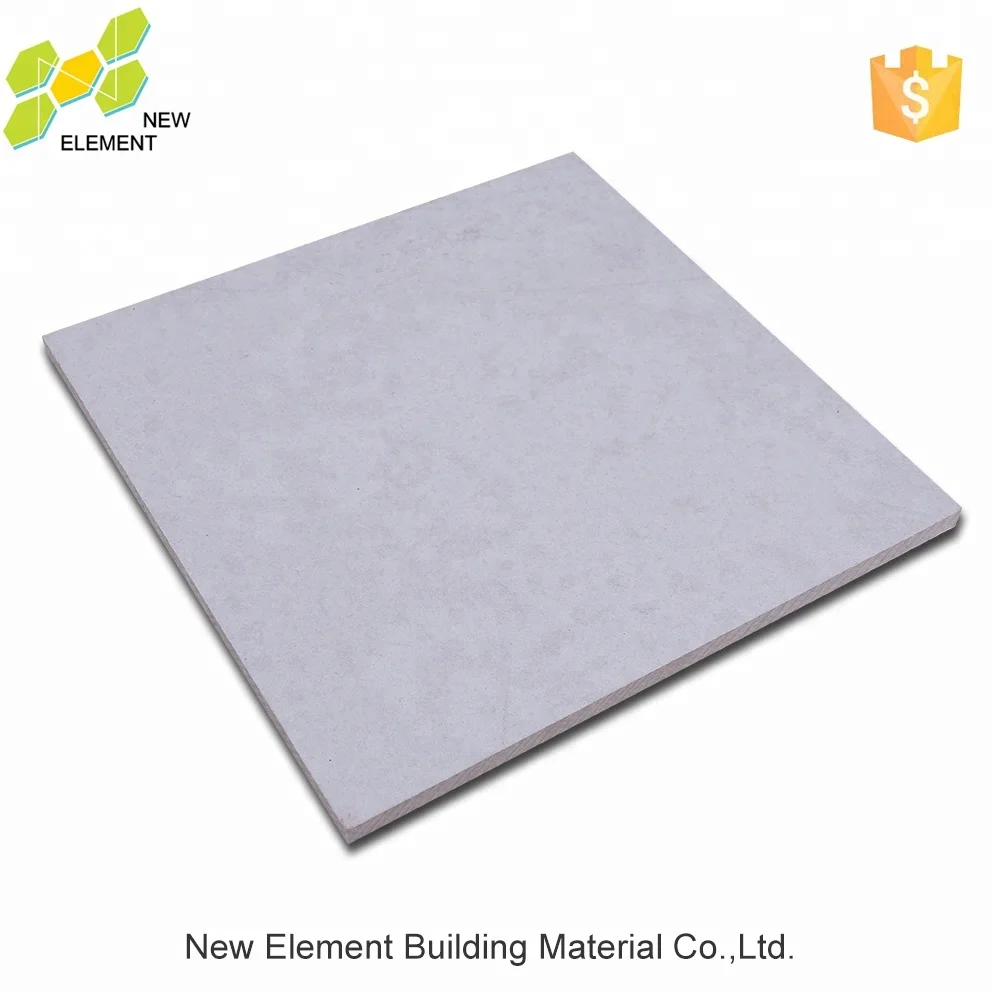

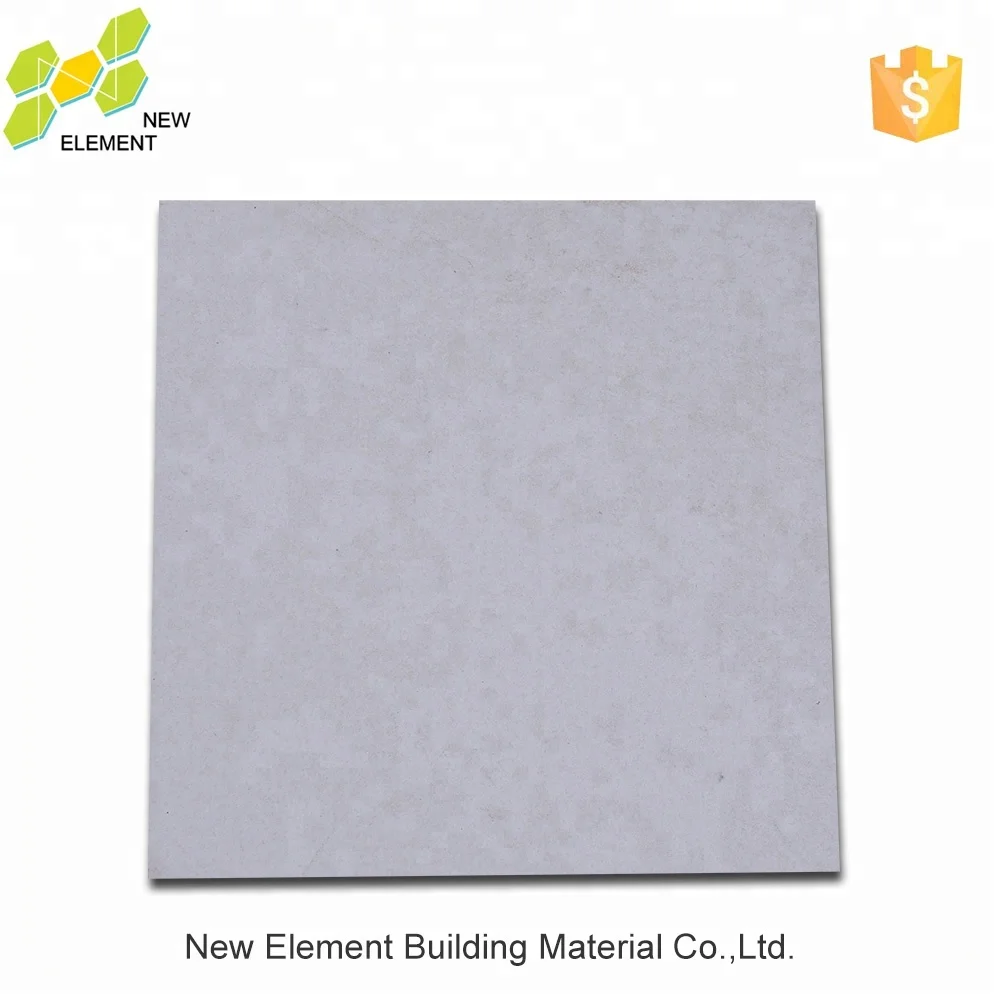

Heat Insulation Mould-Proof Medium Density Calcium Silicate Ceiling Board

Product Feature



1.100% asbestos free, high strenth

2.Medium density,  light weight

3.Anti-high temperature:4 hours fireproof testing

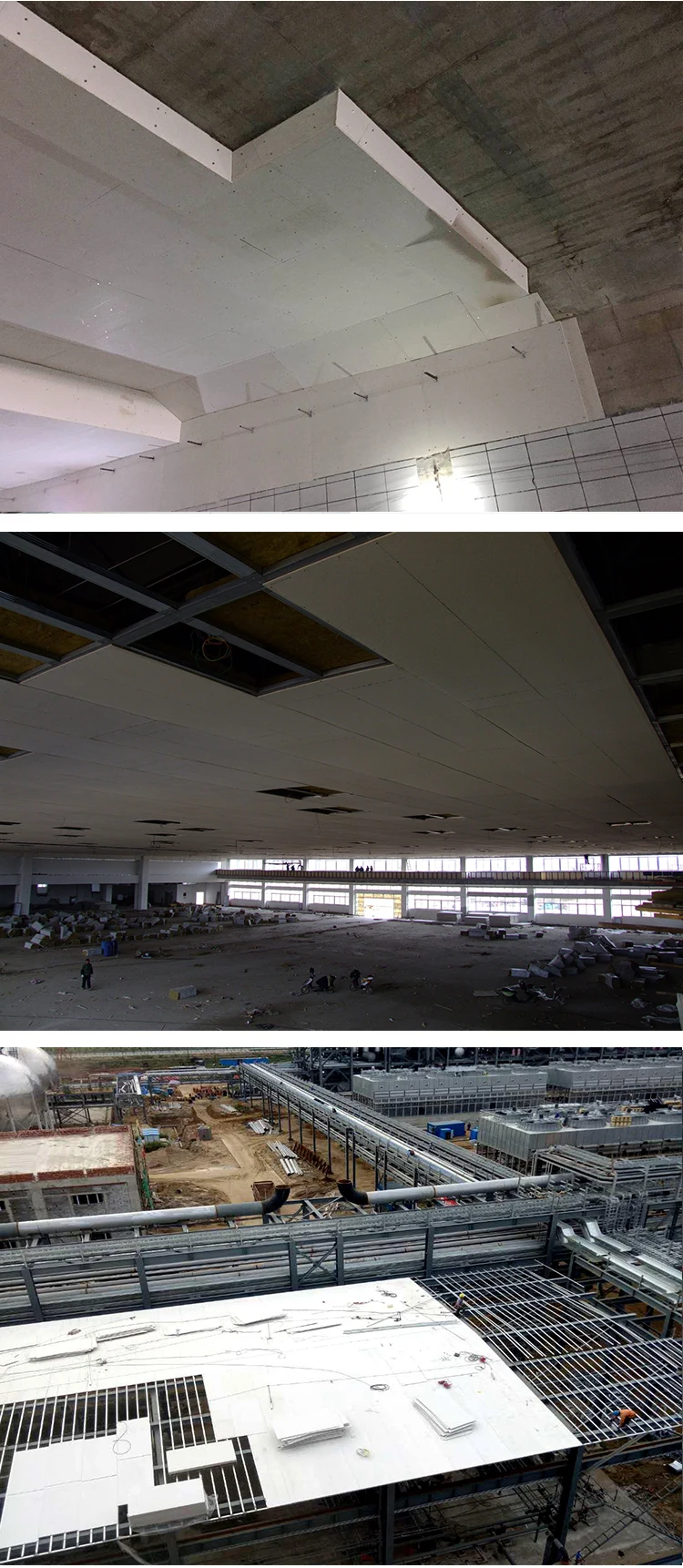

4.Applied to indoor partition wall and ceiling

5.Fireproof material:pure quartz,quit lime,

portland cement, cellulose,mineral additives

6.Low moisture absorption

7.Easy to install & fix

8.Excellent impact resistant



Thickness	Width	Length
6,8,9,10,12,15,18,20,24mm	1220mm	2440,3050mm
REMARK: We can also supply other specification as the client’s specially requirement



2.Tolerance in dimension

Item		Requirement
Length(mm)	<1200	±3
	1200~2400	±4
	>2400	±5
Width(mm)	≤1200	±3
	>1200	±4
Thickness(mm)	≤9	±0.3
	9~15	±0.5
	>15	±0.6



3.Safety Capability

Item	Index	Spection
Asbestos Including	100% asbestos free	safe for application
Radioactive	<1.0 IRa	safe for application
	<1.0 Ir	safe for application
noncombustibility	A	the highest grade





1.Guangdong New Element Building Material Co.,Ltd was estabilished in 2003.

   It has 3 highly mechanized pulp flowing production line.

2.Annual output for Non-Asbestos fiber reinforced calcium silicate board / fiber cement board are

  more than 10 million square meters.

3.The unique manufacturer which produce low, medium and high density products in China.

4.CE,BS,AS,ISO9001,14001, China Environmental Labeling Product Certificate.

5.Have our own R&D team.

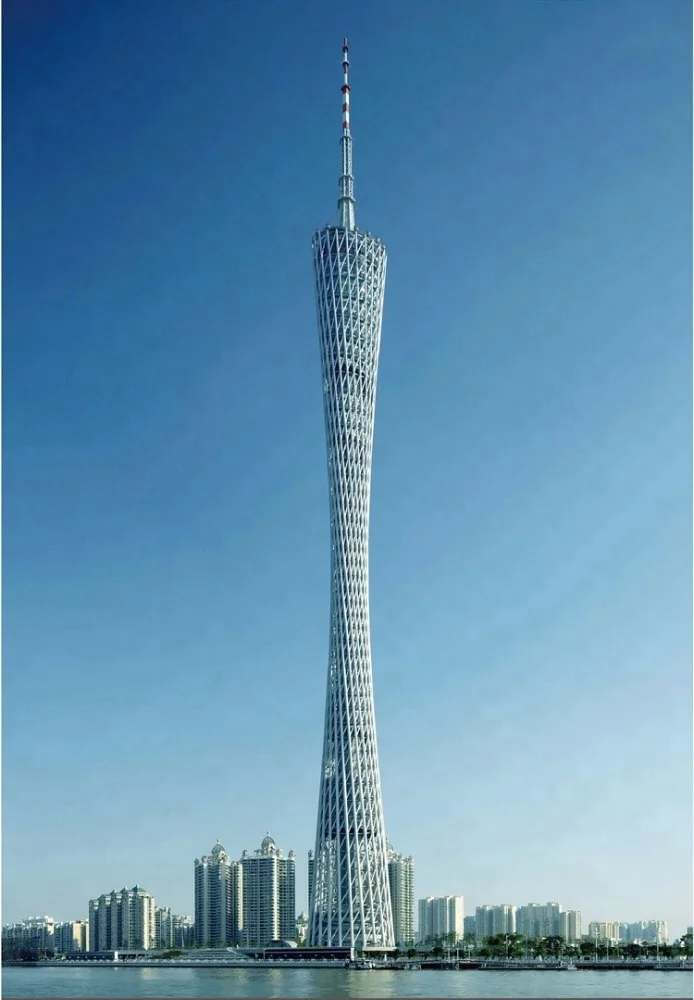

6.Protectpan in Tianjin tunnel poject, Cladboard in National stadium olympic project, and Starpan in

   Guangzhou TV tower project that were awarded “New Century, New Architecture, New Material -

   China Building Application & Innovation”
