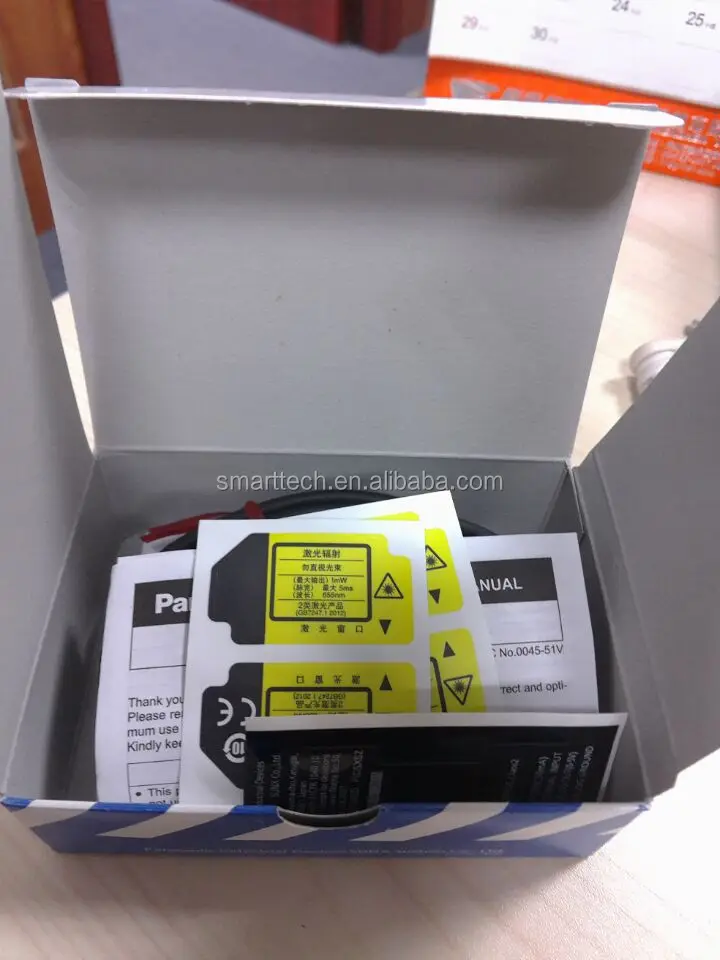

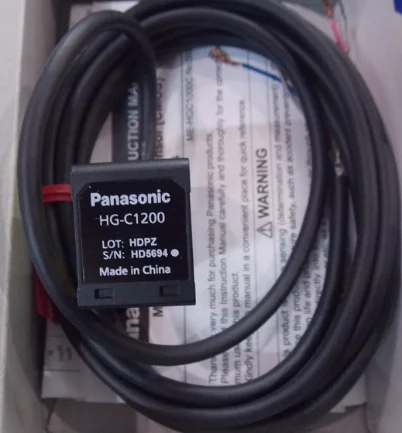

Hot New Distance measurement of micro laser displacement sensor HG C1200 for PANASONIC
- Category: >>>
- Supplier: Shenzhen Smart-Tech Automation Equipment Co. Ltd. [Guangdong China]Shenzhen
Share on (60442809912):
Product Overview
Description
Specifications Detail
| Model No. | HG-C1030 | HG-C1050 | HG-C1100 | HG-C1200 | HG-C1400 |
|---|---|---|---|---|---|
| Measurement center distance | 30 mm 1.181 in |
50 mm 1.969 in |
100 mm 3.937 in |
200 mm 7.874 in |
400 mm 15.748 in |
| Measurement range | ±5 mm 0.197 in |
±15 mm 0.591 in |
±35 mm 1.378 in |
±80 mm 3.150 in |
±200 mm 7.874 in |
| Beam diameter | Approx.ø50 μm 1.969 mil |
Approx.ø70 μm 2.756 mil |
Approx.ø120 μm 4.724 mil |
Approx.ø300 μm 11.811 mil |
Approx.ø500 μm 19.685 mil |
| Repeatability | 10 μm 0.394 mil |
30 μm 1.181 mil |
70 μm 2.756 mil |
200 μm 7.874 mil |
300 μm 11.811 mil (Measuring distance 200 to 400mm 7.874 to 15.748 in) 800 μm 31.496 mil (Measuring distance 400 to 600mm 15.748 to 23.622 in) |
We are agent for Panasonic PLC, Servo Motor, HMI, Sunx Sensor, Vigor PLC and Weinview HMI.
