CY80 ASK OOK Long Range RF FSK Receiver Module

Product Overview

Description

DESCRIPTION:
The CY80 is a ASK/OOK/FSK compatible superhet receiver, Which is designed with high sensitivity, long distance, easy use for designing, it can be able to fulfill most demands of European market.

FEATURES:
ASK /OOK/FSK modulaton;
Working Frequancy: 315M/433.92MHz;
Max sensitivity: -116dBm(ASK),-115dBm(FSK);
Supply voltage: VCC= 2.7 to 5.5 V;
IF band: 250KHz;
Low power cosumption: Icc=6mA(FM,Vcc=5.0V/433.92MHz);
Wide operating temperature:-40~+85℃ ;
Excellent selectivity and noise rejection;
Easy for design and wireless applications;
Analog RSSI Output.

APPLICATION:
Garage door and gate openers
Remote controls
Remote fan and light control
Smart home system
Alarm and security system

PIN DEFINITION:

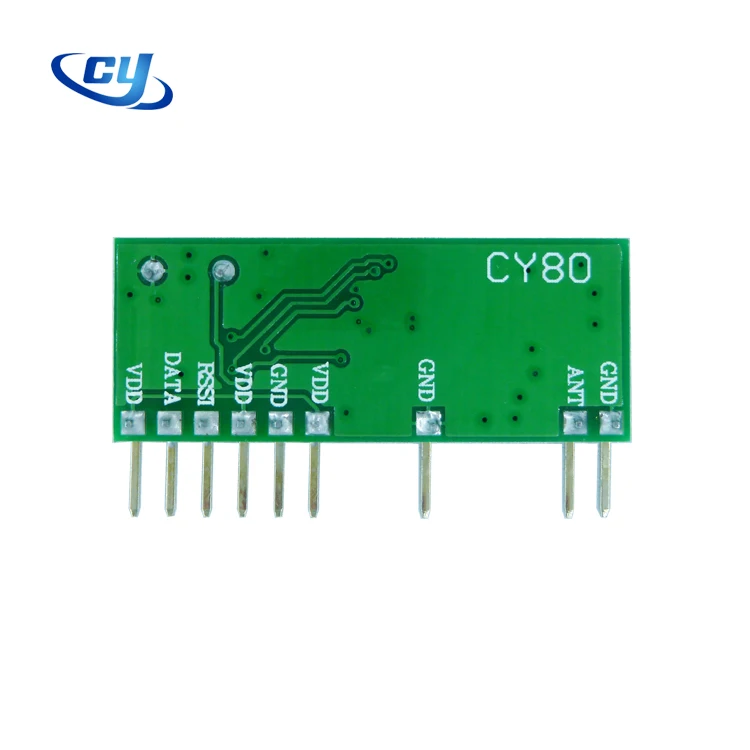

Figure 1 CY80 Shape & Pins

Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz

ELECTRICAL CHARACTERISTICS:

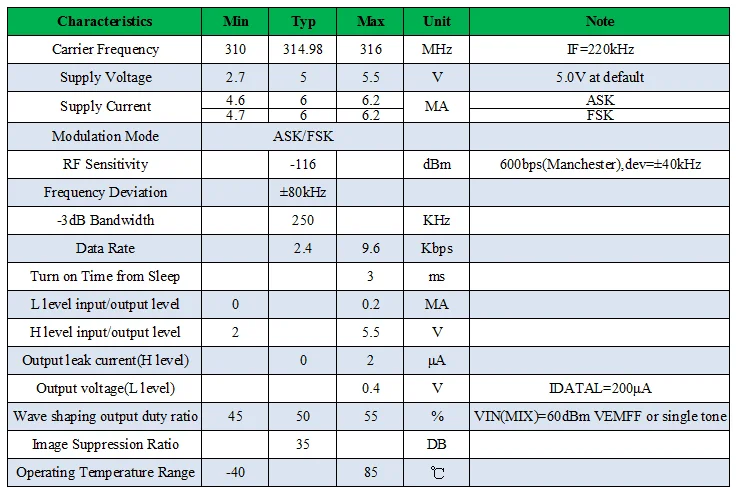

Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

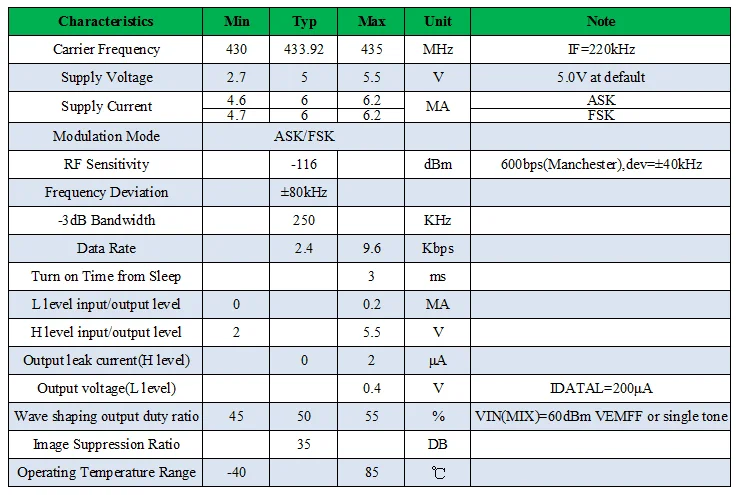

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

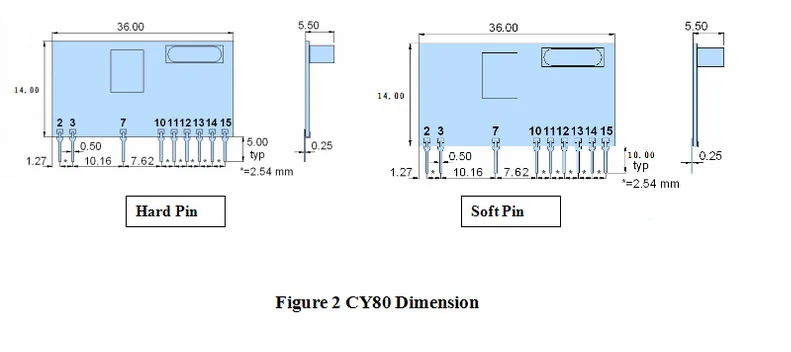

MECHANICAL SIZE: (UNIT: mm)

ORDER INFORMATION:
