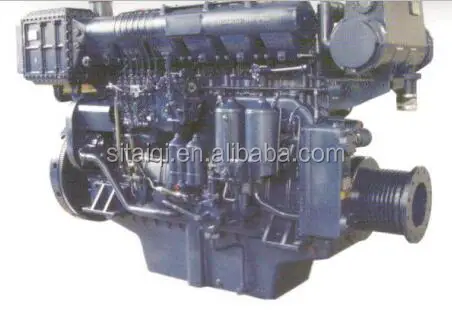

Weichai Deutz X6170 Series Marine Diesel Engine with gearbox 580 620HP
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60442973447):
Product Overview
Description
New brand Weichai Deutz X6170 Series Marine Diesel Engine with gearbox with 580-620HP for Sale
Product Description
WEICHAI X6170 Marine Propulsion Diesel Engine( Power:426-456KW, 580-620HP)
ENGINE SPECIFICATION
Engine Type | Inline-6 Cylinder, 4-Stroke Diesel Engine |
Bore(mm)*Stroke(mm) | 170*200 |
Combustion System | Direction Injection |
Aspiration | Turbocharged & Intercooled |
Starting System | 24V Electrical Starter |
Cooling System | Heat Exchanger |
Displacement(L) | 27.24 |
Rotation | Anti-clockwise Facing Flywheel |
Size of Flywheel Housing & Flywheel | SAE 1 & 14 in |
Emission | IMO TIER II |
Dry Weight (kg) | 3100 |
Dimensions (L*W*H) | 2442*1256*1905mm |
POWER RATINGS
Power Rating | Continuous duty |
Rated RPM | 1350 1500 |
KW | 426 456 |
Fuel Oil Consumption in rated power (L/Hr) | 99.3 106.3 |
MARINE GEAR SPECIFICATIONS
Gear Model | HC400 HCD400A |
Type | Hydraulic multi-disc clutch |
Reduction Ratio | 2.04,2.50,2.86,3.0,3.42 3.96,4.33 |
Direction of Rotation | Clockwise or anti-clockwise from stern |
Dry Weight (kg) | 820KG 1100KG |
Dimensions (L*W*H) | 834*950*863mm 850*1010*1050mm |
Mechanical Efficiency | 97% |
STANDARD FITTINGS
Standard engine package, belt driven cast iron self-priming sea water pump, local & remote engine monitor, classification product certificate, EIAPP.
OPTIONAL FITTINGS
Engine front PTO, air starter set, dirty oil hand pump,self-priming bronze sea water pump, 2nd means of monitoring mechanical instruments, engine stop solenoid valve, L.O & F.W pre-heater, resilient mounting, marine gear alarm system, light weight marine gear with inclined angle.
