Factory Price Phaeton UD 3206P Large Format Eco Solvent Inkjet Printer 6 spt510/35PL Heads digital Printing Machine
- Category: >>>
- Supplier: Guangzhou Caixu Digital Technology Co. Ltd.
Share on (60443205735):
Product Overview
Description
Product Description
Pheaton stable printer UD-3206P
1. Equipped with 4 /6/8 SPT510 print heads
2.Full aluminum platform, high quality and long life.
3. Self-developed automatic cleaning and capping system which make the operation and maintenance convenient.
4. X,Y axis AC servo motors, which is stable and durable..
5. Bearing and rail with less noise, low resistance and no vibration.
6. 6 color printing,the quality output achieves 46 m2/hr
7. Individual color purging minmizes the waste of the ink
8. 3 way intelligent heater improve the printing quality
9. Adopt USB2.0 output system,which is faster and more flexible.
Parameter list:
Model | UD-3206P | |
Printhead | SPT 510/35pl | |
Number of printhead | 6 heads | |
Maximum print width | 3200mm | |
Print Speed(m/h) | Print Mode | Standard Output(m/h) |
| D | 2 PASS 39 | |
| S | 3 PASS 27 | |
| Q | 4 PASS 18 | |
| HQ | 6 PASS 14 | |
Ink | Type | Solvent ink&ECO solvent ink |
Color | (C,M,Y,K,LC,LM) | |
Capacity | 1L or 5L per Main Tank of Each Color | |
Ink Supply System | Low Ink sensor ,Auto or Manual Ink Supply System | |
Media | Width | Max. 3300m |
Type | Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc | |
Auto Media Feeding System | Equipped(Max Media Weight 80kg) | |
Auto Cleaning System | Individual Positive Pressure Cleaning, Anti-clogged Flash Function&Capping System | |
Pre-heatig&Drying Sytem | Equipped | |

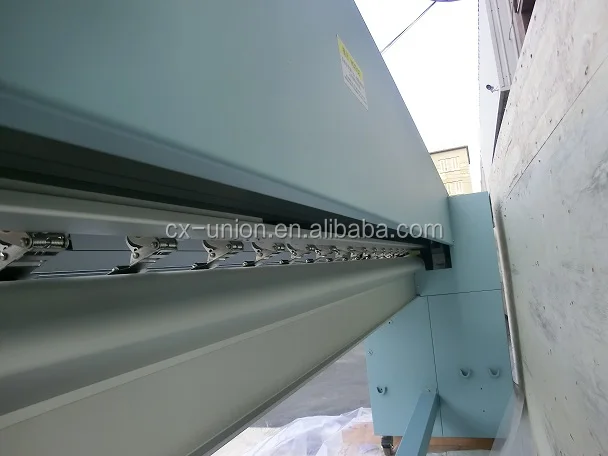

Clamp | Equipped | |
Print Interface | USB2.0 | |
Printhead height | 2-6mm from Media | |
RIP Software | Maintop, Ultraprint, Photoprint, Wasatch, Topaz | |
Input Power | AC 220V,50Hz/60Hz | |
Machine Dimension | L4, 500 x W905 x H1,260mm / 348KG | |
Package Dimension | L4, 590 x W1,050 x H890mm / 591KG | |
| Requirement | Temperature:20°C-28°C Humidity:40%-60% | |
Photo for reference:

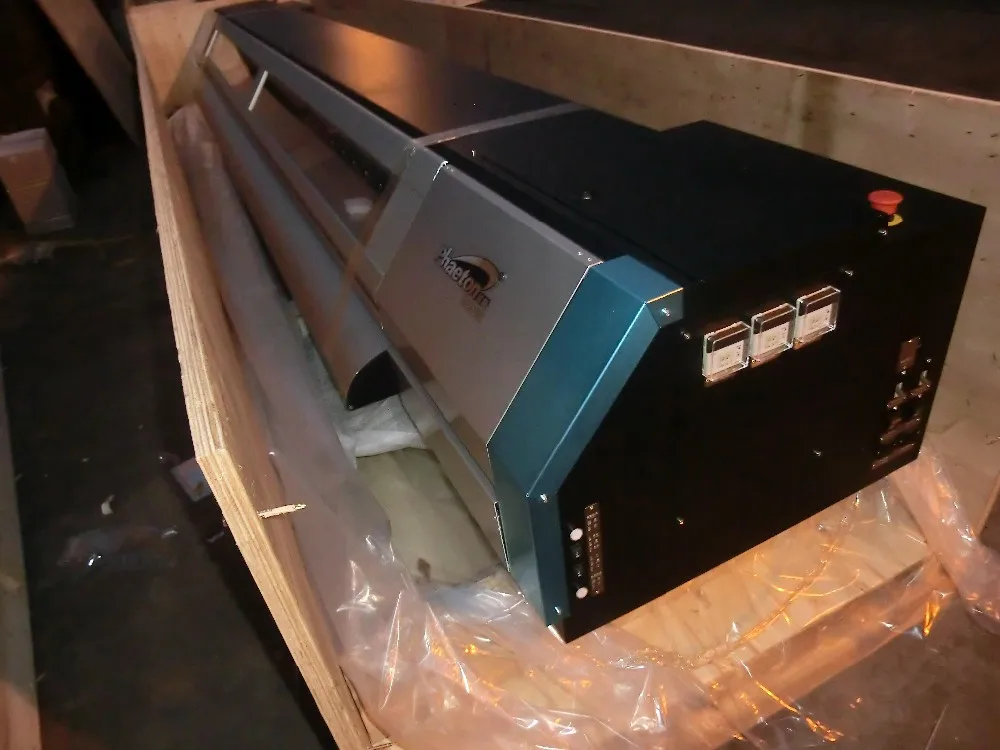

The front side of UD-3206R.
Two emergncy swiths in the both left and right side . In the right size there are temperature control. Ensure printing safely and smoothly .
The right side of printer.

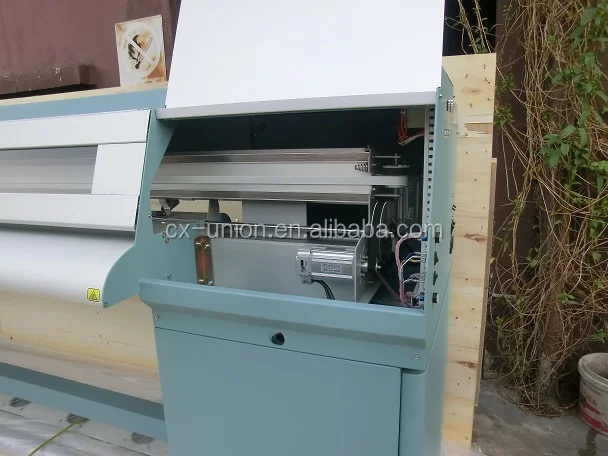

Top quality X Y motor. Keep stable runing.
Right side of printer: Indvividual color cleaning system. Light of printer .

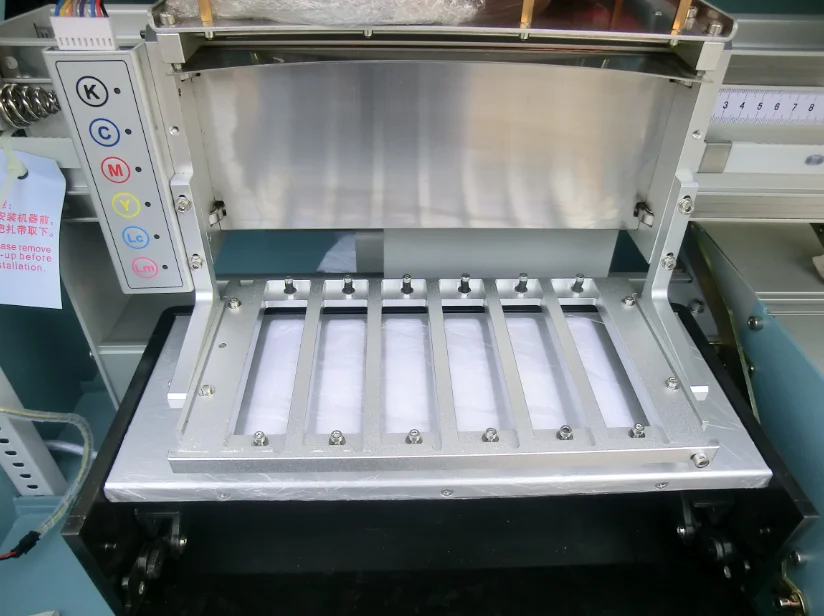

Print head position

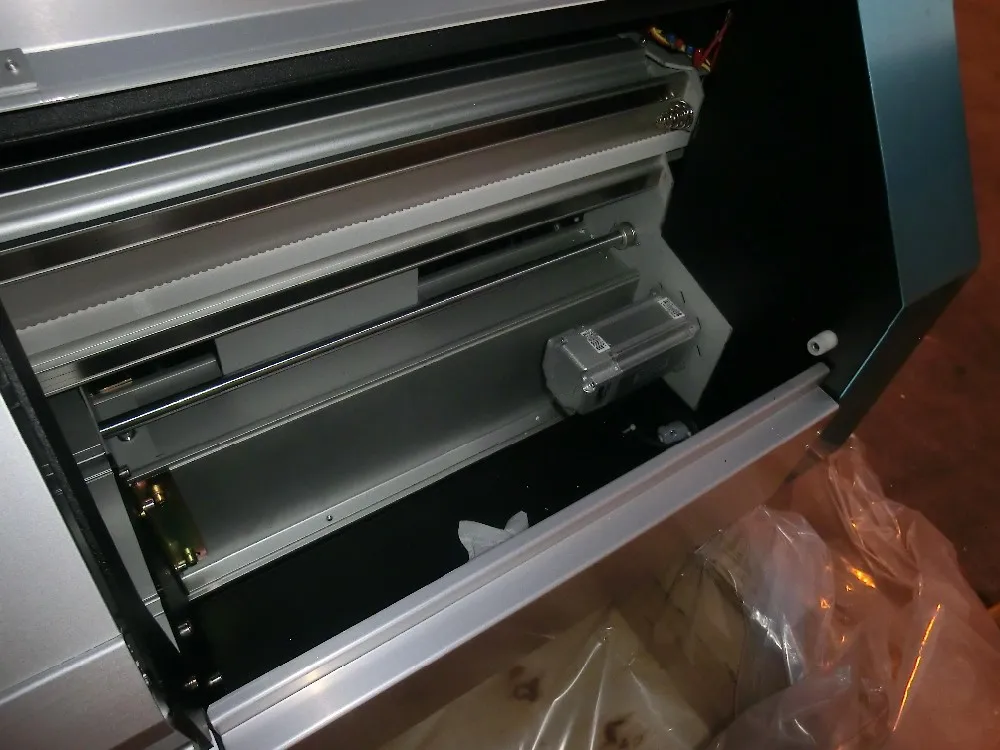

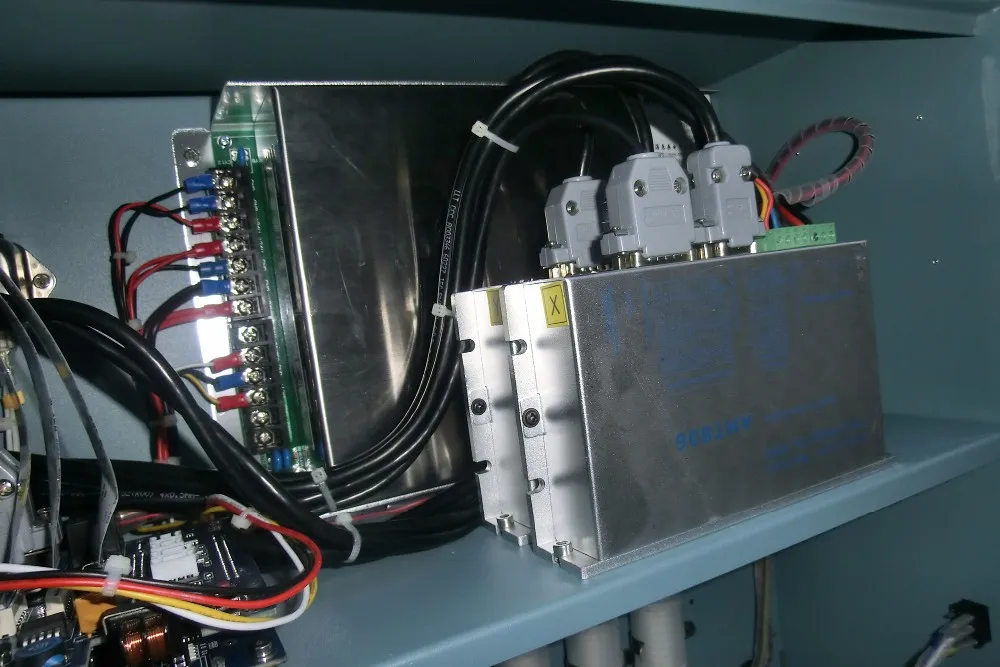

Inside looking of box.
Print head board
Good and strong flat table make sure the stable printing .
3 ways heating system to ensure the vivid color .
Back side of the printer
Packaging & Shipping

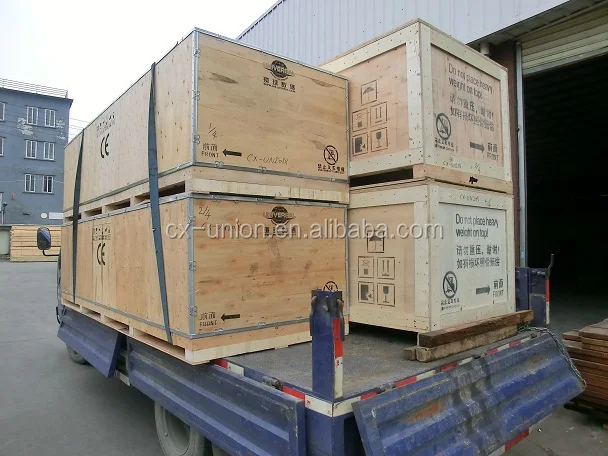

Machine always be packed with safe crate.
Printer should be strictly check by us before send out .
We always keep stcoking all kinds model of printer
other products:

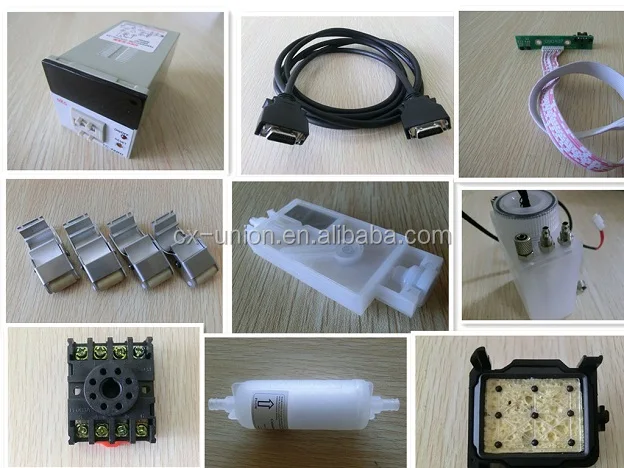

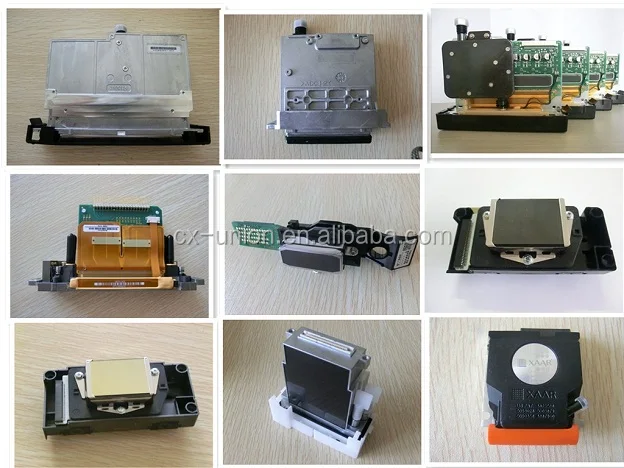

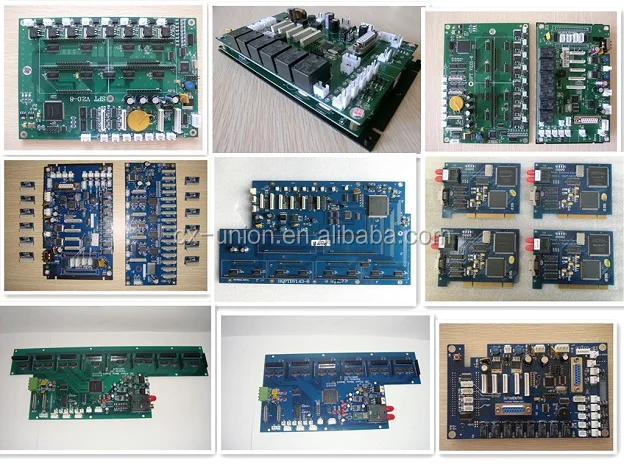

We supply all kinds of spare parts , including all kinds of brand main board , print head boards , ink tube ,print head ,ink,etc . Any intersting , please feel free to contact us .
-
Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us .
