220V LY R890A Automatic align BGA rework station with CCD alignment system and HD touch screen for Iphone repair

Share on:

Price:$6,045.00 - $6,698.00
Price in USD:Details


Product Overview


Product Description

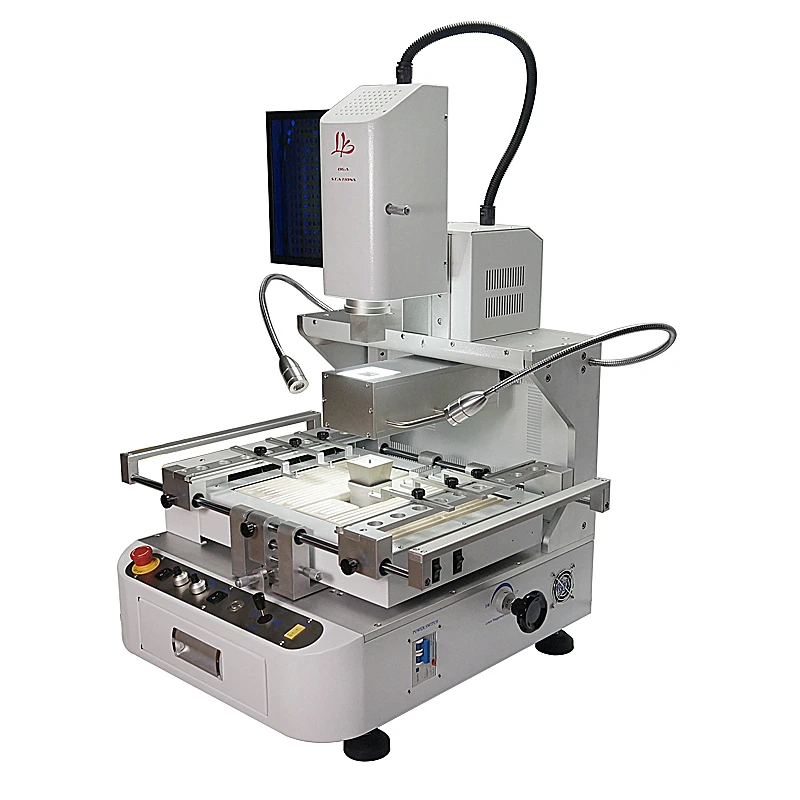

LY-R890 Automatic BGA rework station with CCD alignment system and HD touch screen



Vedio : https://www.youtube.com/watch?v=jn9EDm6nb2Q&feature=youtu.be



Technical parameters:

1 Total Power 4300W

2 Upper heating power 800W (first zone)

3 lower heating power 800W (second temperature zone)

4 The third zone 2700W (about infrared heating panels can be independently controlled)

5 Power AC 220V ± 10 50 / 60Hz

6 electrical material selected Dalian temperature control system

7 outer shape dimensions 600 × 640 × 850mm

8 Temperature control K-type thermocouple closed-loop control

9 Positioning V-slot mode, with universal clamps

9 P C B Size Max 430 × 400mm; Min50 × 50mm

10 applicable chip 1 × 1 ~ 80 × 80mm

11 outside the mouth of a set temperature

12 Net weigLY 58kg machine



separate three-zone temperature control system


LY-R890 can be carried out from the top and bottom of the PCB components while hot air circulation local heating, supplemented by a large area of infrared heating, can be completely avoided in the process of PCB rework upturned sink, freedom of choice through software alone or upper or lower heating element, and a combination of upper and lower heating elements energy freedom, making the double BGA, CCGA, QFN, CSP, LGA, SMD rework and other devices easier. At the same time the external interface for precise temperature detection of temperature can be collected at any time of the actual temperature profile BGA analysis and proofreading.


precise optical alignment system


LY-R890 optical alignment system image is clear, enlarged to 200 times the maximum component placement accuracy up to +/- 0.01mm. And has a spectral color, zoom and fine-tuning, configuration, 12 "high-definition LCD display.

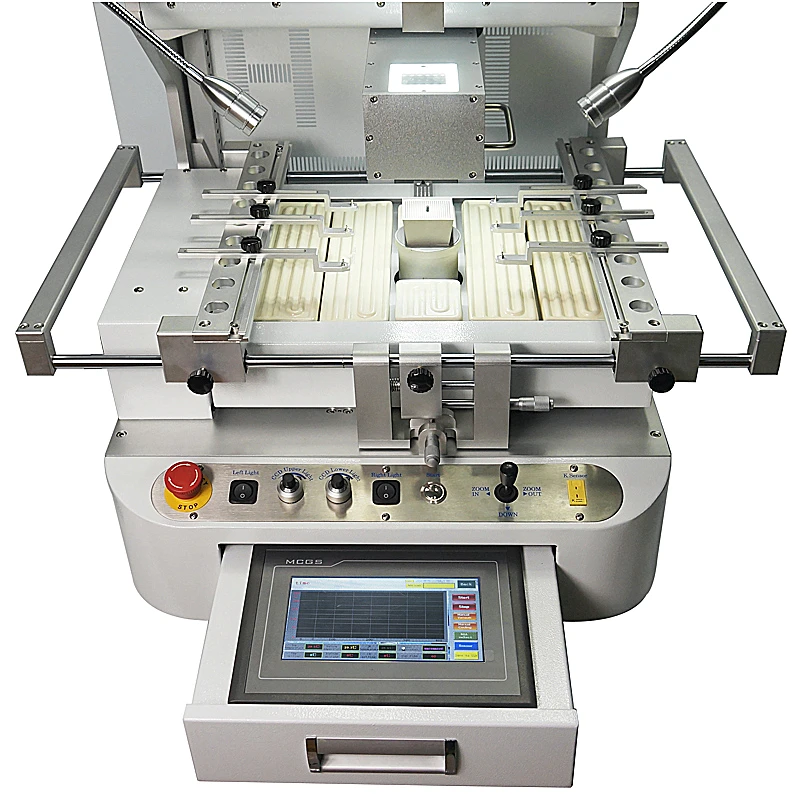

versatile user-friendly operating system


LY-R890 with touch screen interface, K-type thermocouple closed loop control and intelligent automatic temperature compensation system. Upper hot thunder and mounting head integration design, with soldering and desoldering functions. While the temperature can be set to 6 and 6 segment thermostatically controlled heating and storage temperature setting parameters N group, can be called at any time depending on the BGA.

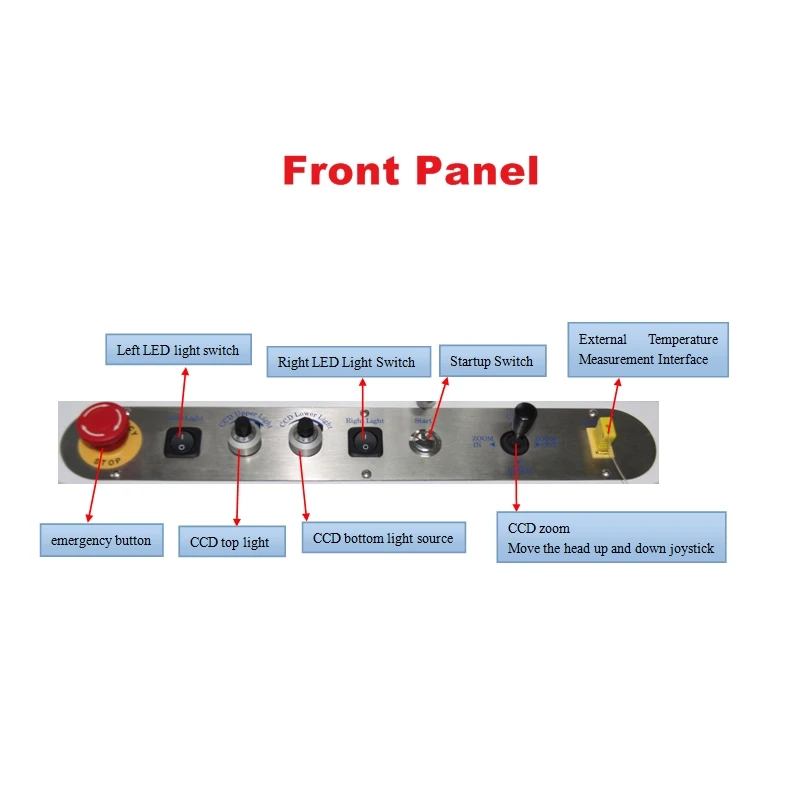

superior security features


LY-R890 is designed after soldering or desoldering finished with alarm function, temperature abuse case, the circuit can automatically power, with dual over-temperature protection. Temperature parameters with password protection to prevent arbitrary changes and foolproof security and many other features, with superior security features to ensure that PCB and components to avoid damage and repair the machine under any abnormal condition itself damaged.





Packaging & Shipping


Packaging material: Carton/Wooden case with foam inside.


A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

Our Services

1. We provide you the friendly English User manual or operating videos for free.

2. 24 hours technical support by email or calling.

3. Warranty: 1 year free, 2-3 years cost price and free technical support always.

4. Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
