CAMA AFM31 oem capacitive fingerprint scanner module for luggage padlock

Product Overview

Description

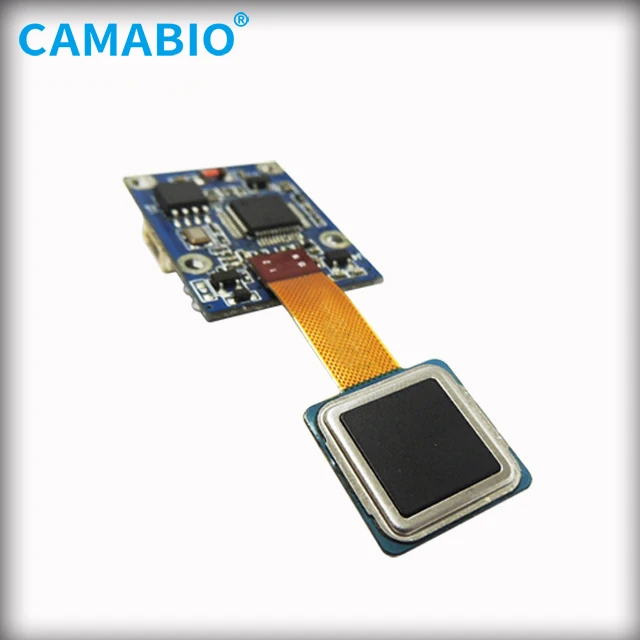

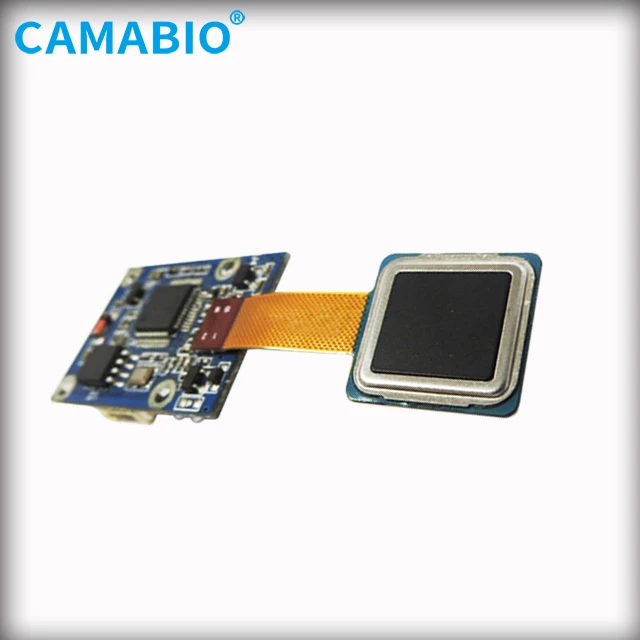

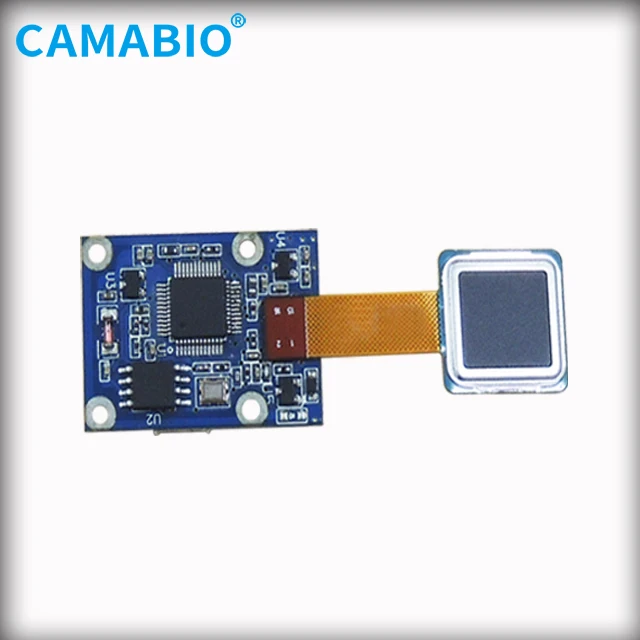

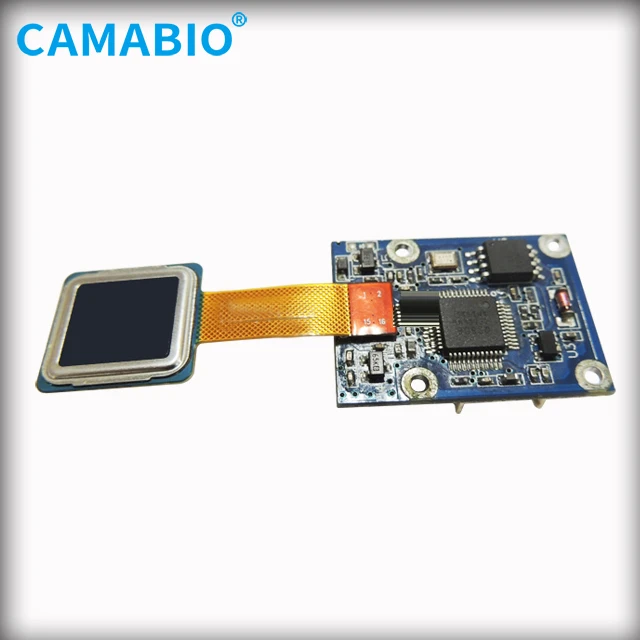

CAMA-AFM31 oem capacitive fingerprint scanner module for luggage padlock









CAMA-AFM31 capacitive fingerprint embedded module is a fingerprint oem module for secondary development. It features small size, low power consumption, simple ports,high reliability, small fingerprint template (496bytes), large fingerprint capacity, etc. It is convenient to be embedded to user system for realizing clients required fingerprint verification products.



CAMA-AFM31 outstandingly features self-learning function. During the fingerprint verification process,the latest collected fingerprint features would be integrated into the fingerprint database automatically so that the users would obtain better and better fingerprint verification result.











No.	Item	Description
1	Model	CAMA-AFM31
2	Keyword	Fingerprint embedded module
3	Sensor	FPC1020 Capacitive Fingerprint Sensor
4	Fingerprint image	242 * 266(pixel)
5	Resolution	500dpi
6	Power Supply	DC3.3V
7	Work current	<100mA, Standby Mode less than 5mA
8	Communication port	USB/UART







Communication interface :USB/ UART



Optic sensor is reliable and Low-cost,High ESD Protection



1:N Identification (One-to-Many)



1:1 Verification (One-to-One)



High speed fingerprint identification algorithm engine



Self study function



Fingerprint template data read from /write to FLASH memory function



Get Feature Data of Captured fingerprint and Verify/IdentifyDownloaded Feature withCaptured fingerprint(Specially designed for fingerprint stored in IC card)



Identify Downloaded Feature with Captured fingerprint



Security Level setting



Able to set BaudRate/ Device ID/Device Password
