Flexible Fiberglass Cable Duct Rodder With 3/8" Diameter 150M

 Fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fibre cables in telecom, power industries, buildings and many other fields.The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate.

The FRP push pull rod will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.

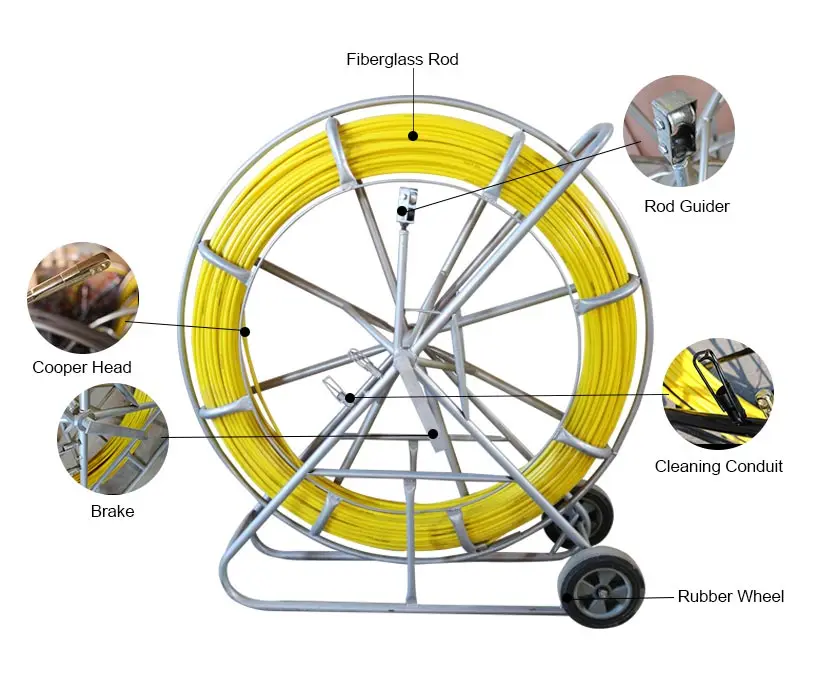

   ♦ Fiberglass duct rodder components description:



(1)  Outer protect layer are made of  high density polyethylene and import material.

(2)  Inner Core is E-Glass Fiber.

(3)  Rod material is  FRPI import solid core material.

(4)  There are kinds of colors and size for the rod to choose.



Specification

 ♦ Fiberglass duct rodder specifications:

Technical Date of Fiberglass Duct Rodder
Specification	Rod Diameter (mm)	Φ 4.5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16
	Rod Length (m)	30m~350m
	Frame Spec. (mm)	1300x450x1330,1200x420x1220,980x350x1000, 680x240x700,420x180x400
Material:	Fiber glass rod inner,	Extruded by fiber glass and high strength resin at high temperature
	Fiber glass rod outer	High Density polyethylene coating
	Metal Frame	Steel with high-temperature sprayed plastic or hot dip galvanized
Physical Property	Fiber glass content	75-80%
	Density	> 1.9gr/cm3
	Working environment	-40° C to +80° C
	Minimum Pulling strength	4000N +/-5%
	Consistency of rod	137gr/m
	Flexural Modulus	> 46.500Mpa
	Elongation at break	2.5-3%
	Min Bending Radius	388mm



How to use?

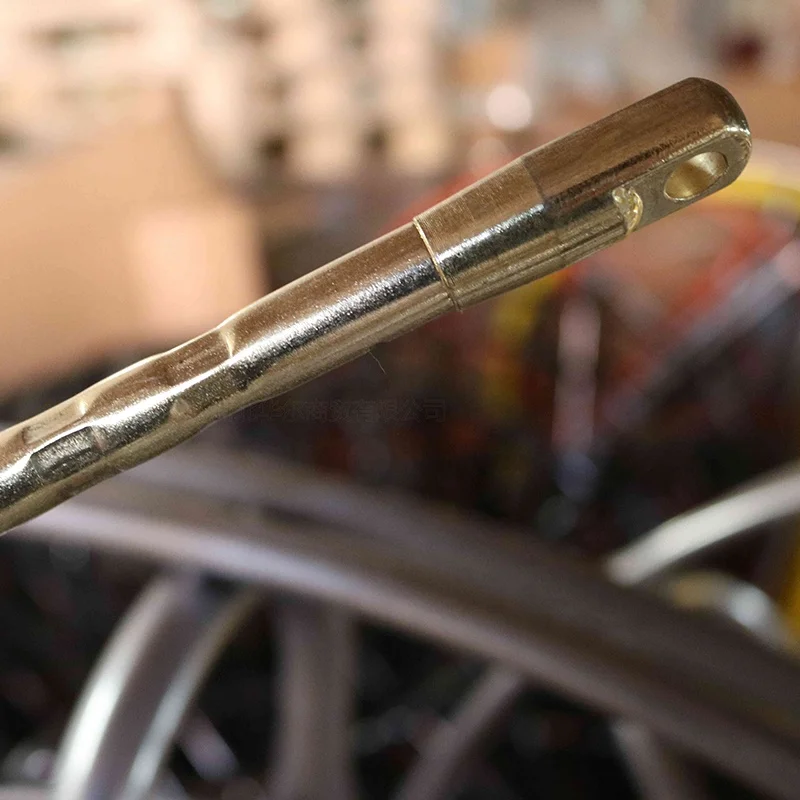

Detailed Pictures

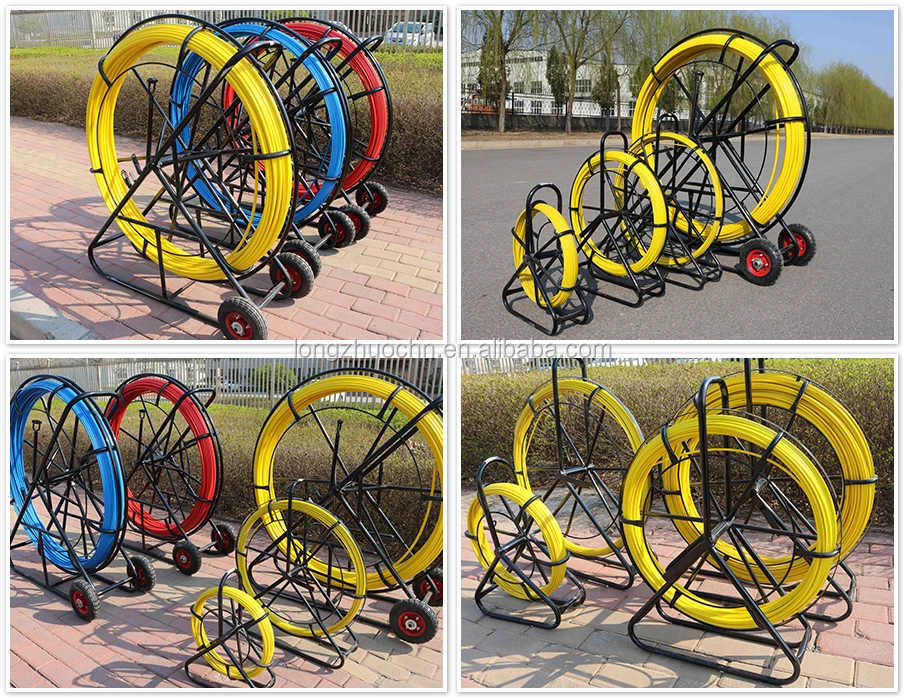

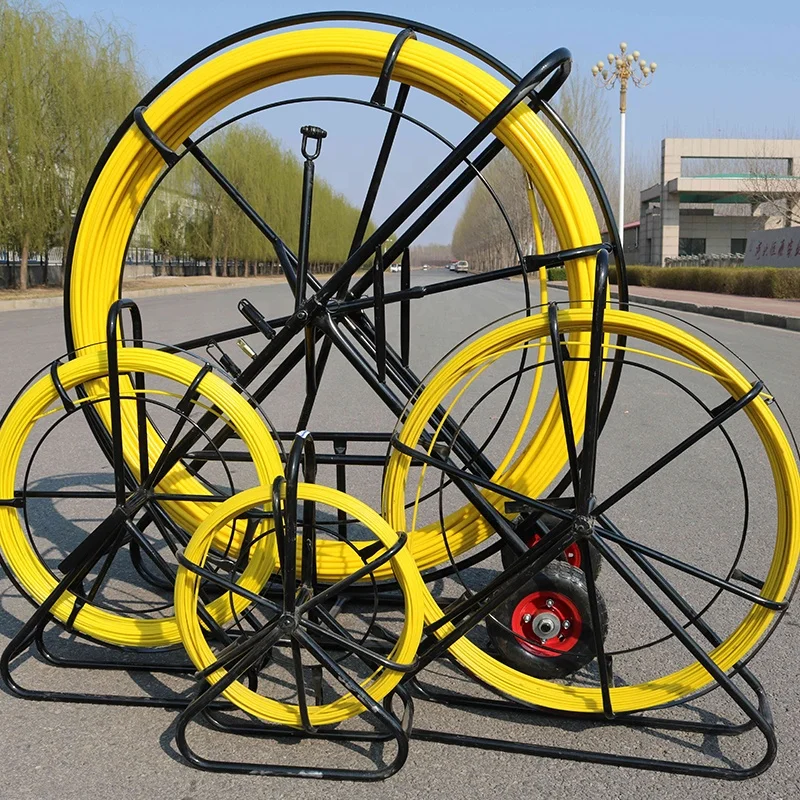

 ♦ Fiberglass duct rodder with beautiful appearance and high quality:

Product Features

  ♦ Fiberglass duct rodder features:



1. Light weight, durable, resistant to acid, alkali, aging, corrosion...etc.

2. High tensile strength and bending properties to make it go through narrow pipes easily.

3. Good temperatures adaptability, it will not soften in hot weather nor become brittle in

cold weather, its usability will not be affected by temperature.

4. There are meter marks on the rod for the user to read out its reaching distance easil

The mark is waterprodd, resistant to ultraviolet and can remain clear even after using very long time.



Packaging & Shipping

 ♦FRP push pull rod packaging:

Plastic woven bag and  carton box or as your require.
