brand new 125t 4000mm metal sheet press brake tooling for sale

brand new 125t 4000mm metal sheet press brake tooling  for sale

About Gilde:

Established in 2000, our company is a management-modernized enterprise specializing in

manufacturing various types of press brake,shearing machine, plate rolling machine, press machine, etc. Our firm covers an area of 70,000 square meters. There are more than 400 employees in our company and 12 engineers in the research and development department.

We have already set up a perfect quality assured system to satisfy your specific need on personalized products.

In future, we will continue sparing no effort to create a win-win situation among customers, employees, and our company.

Our address:        Bowang District, Ma’anshan City, Anhui Province, China

Tel:                         +86 555 2222129

WhatsApp:           18055586312

Skype:                   live:wendy_5749

Email:                    wendy(at)emagcnc.com

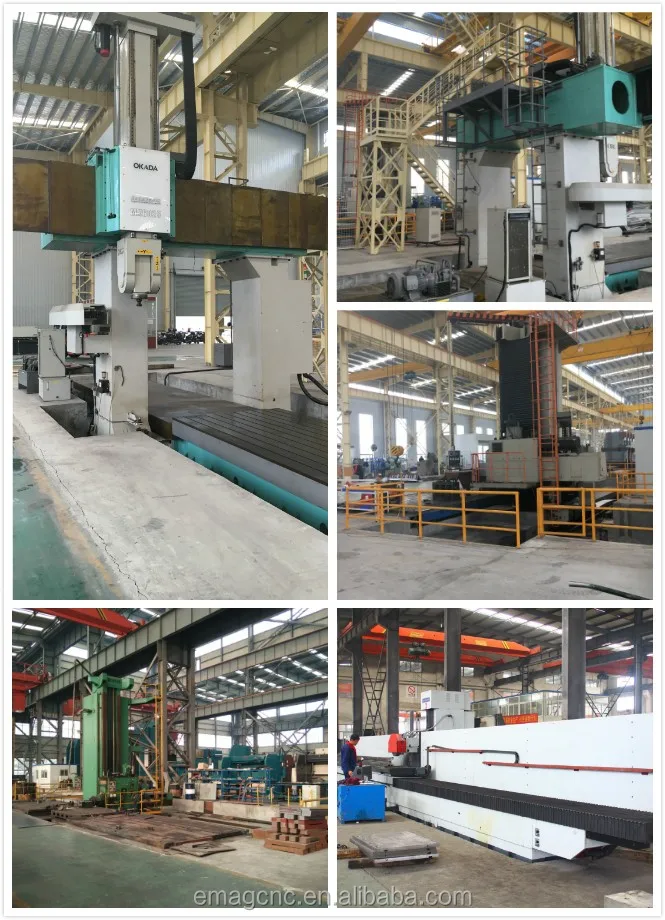

Our Factory:

brand new 125t 4000mm metal sheet press brake tooling  for sale

 1.Main Features:

1)Totally EU streamlined design,monoblock by welding robots & apparatus and stress relief process by annealing treatment.

2)WE67K Series are among the highest rated machines which will help you increase your

productivity and keep the cost at a minimum level with its user friendly CNC controller and low cost

hydraulic maintainance.

3) Automatic axis referencing and calibrating when machine is turned on.

4)Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm

5)Well-known top and bottom tool brands are long lasting stiffened and provide precise

bending.Silent high pressure pump.

2. Hydraulic system:

1)Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.

2) Oil seals by Japanese, NOK.
3)Overload & overflow protection to ensure there is no leakage and protect hydraulic system;

the oil level can be read directly.

3.Servo motorized back gauge:

1) CNC back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.

2) Back gauge has good enough mechanical strength and rigidity with tank-type gauge structure.
3) High-precision ball screw and linear guide-way. Particular finger-stop design for safety, enlarge the range of back gauge.

4.Electrical parts and protection device:
1) Schneider or Siemens low

voltage apparatus. In accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2) Protective fence and the safety interlock to ensure the operation safety. With a movable single-hand pedal switch,it is easier to operate the machine.
3) Light screen protection.

5.Delem DA52S CNC Press Brake Control system:

1)6,4” VGA colour LCD (TFT)

2)Numerical, one page programming

3)Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

4)CNC Crowning control

5)USB, peripheral interfacing

6)Servo, frequency inverter and AC control for back gauge axes.

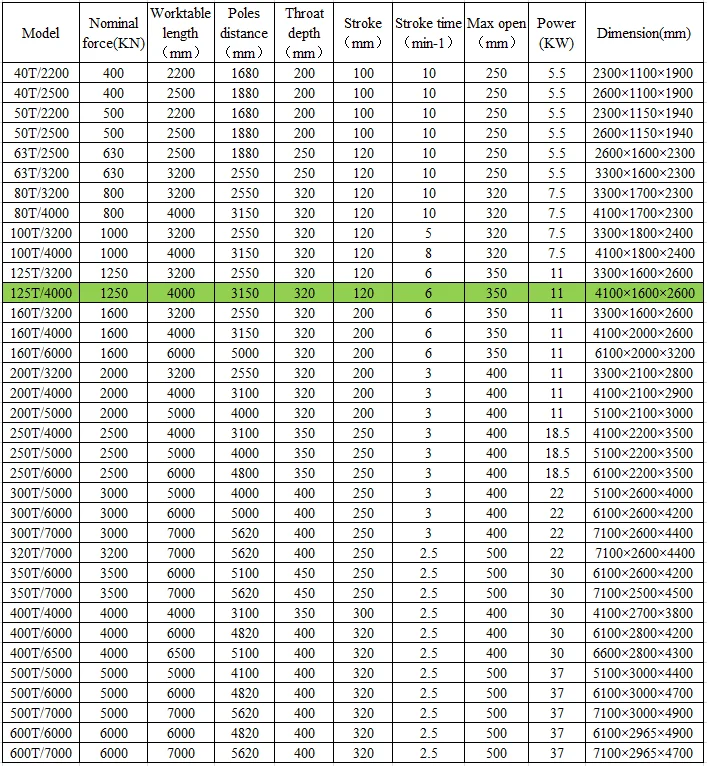

Parameter

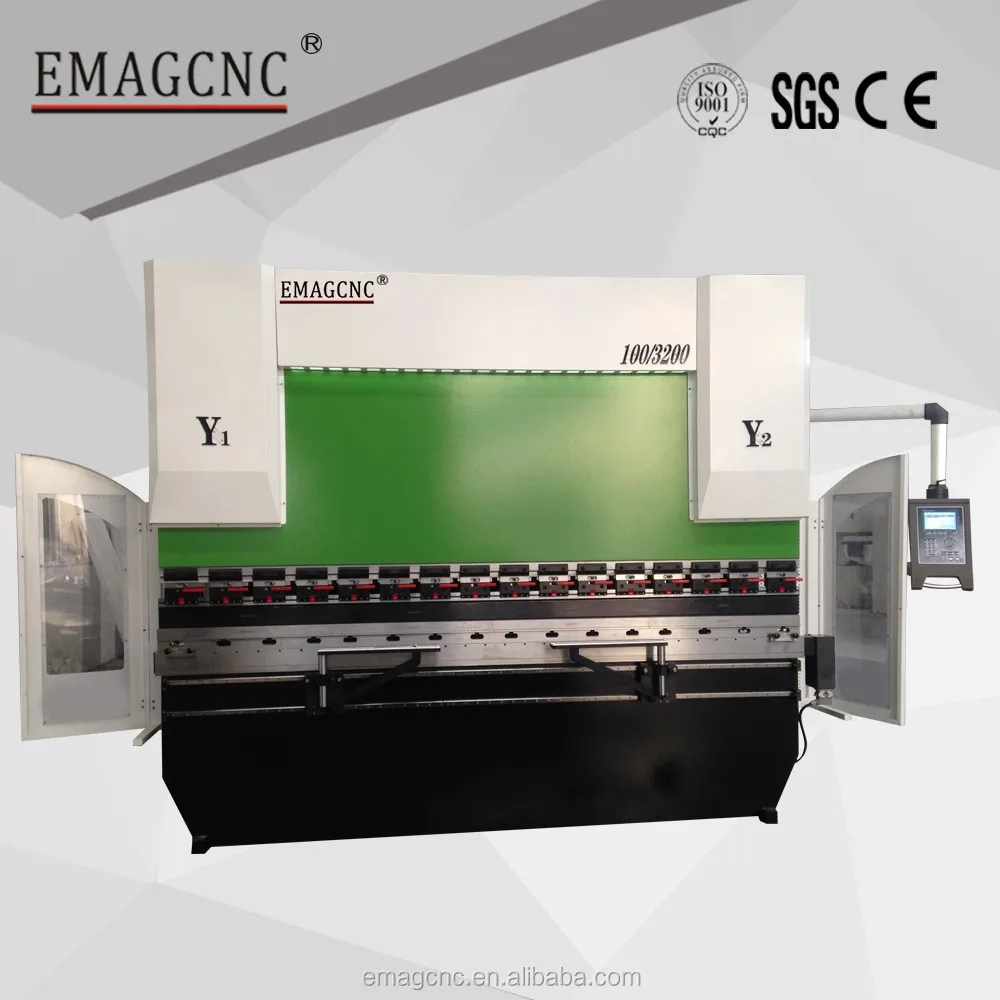

Front View of Machine

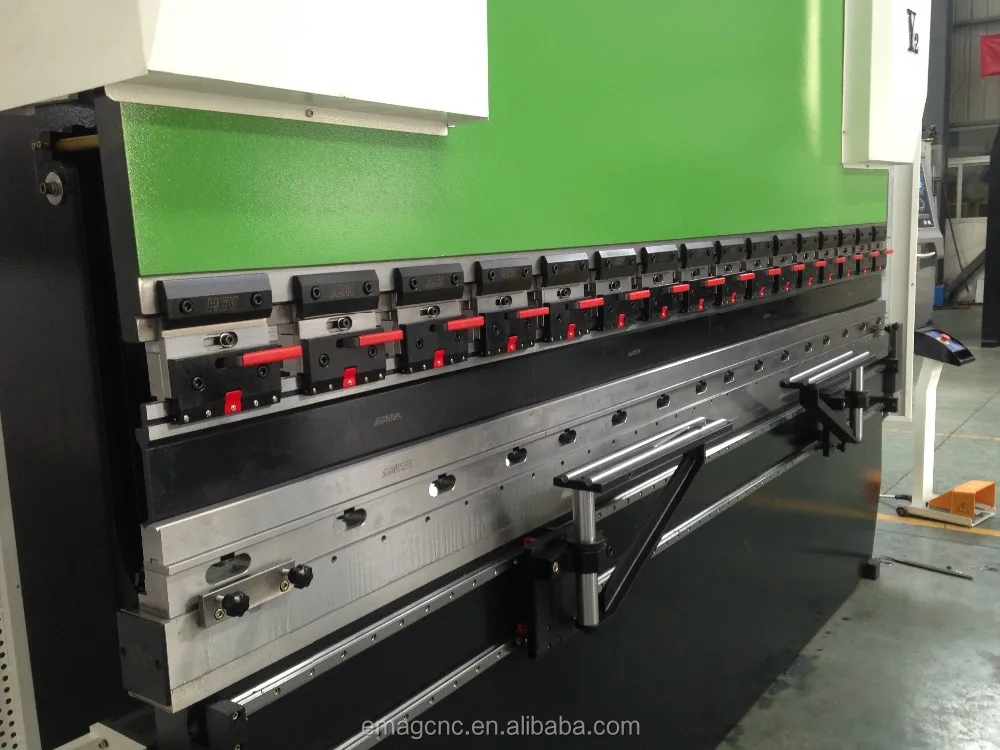

 Mold

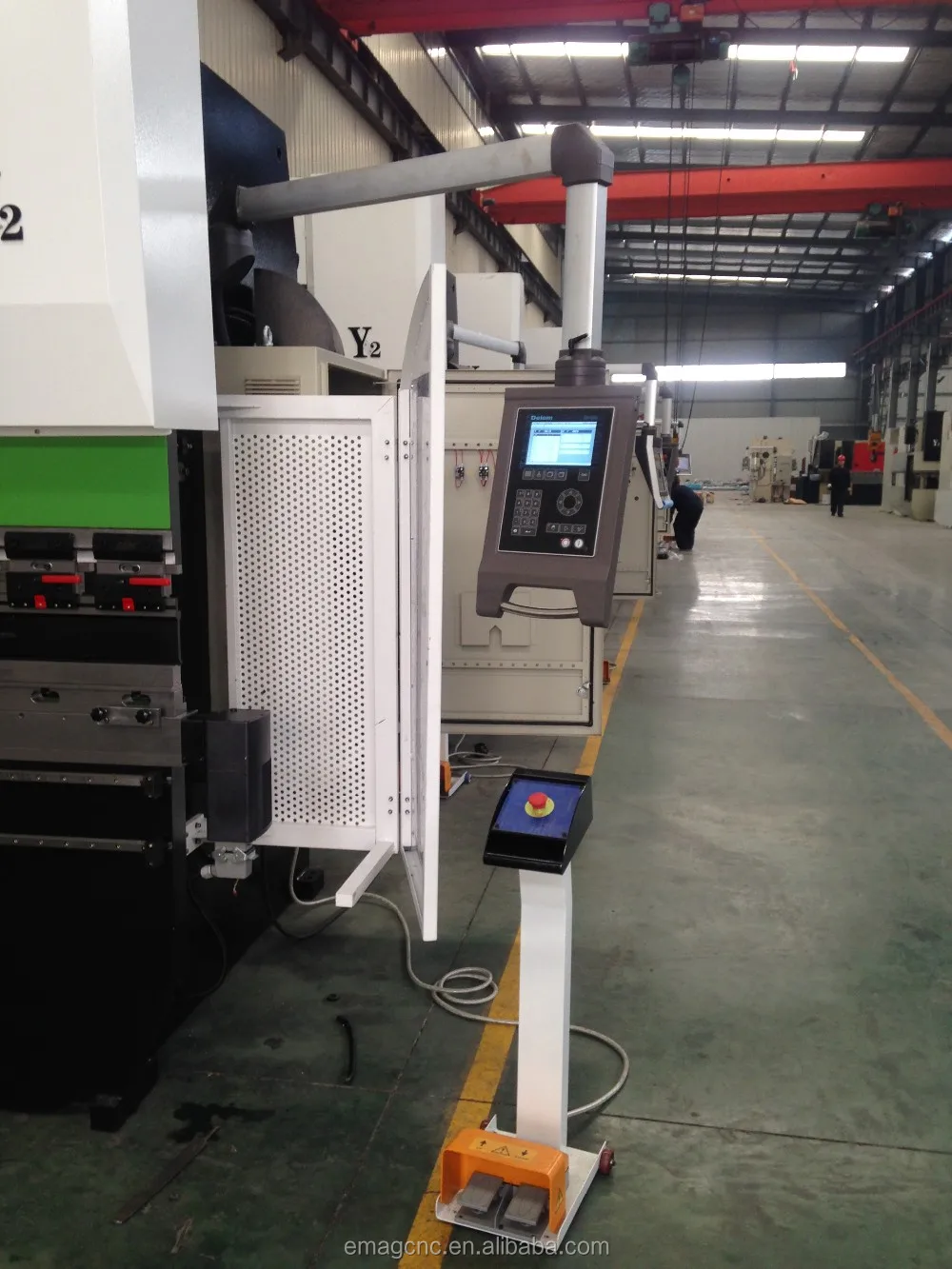

DELEM  DA52S Controller

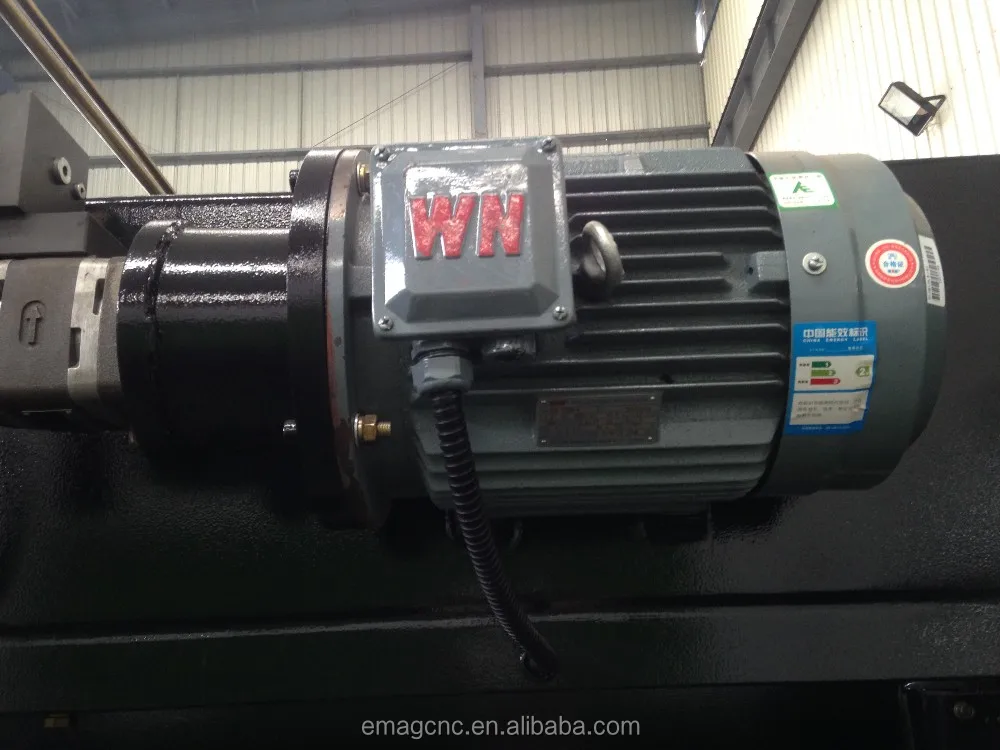

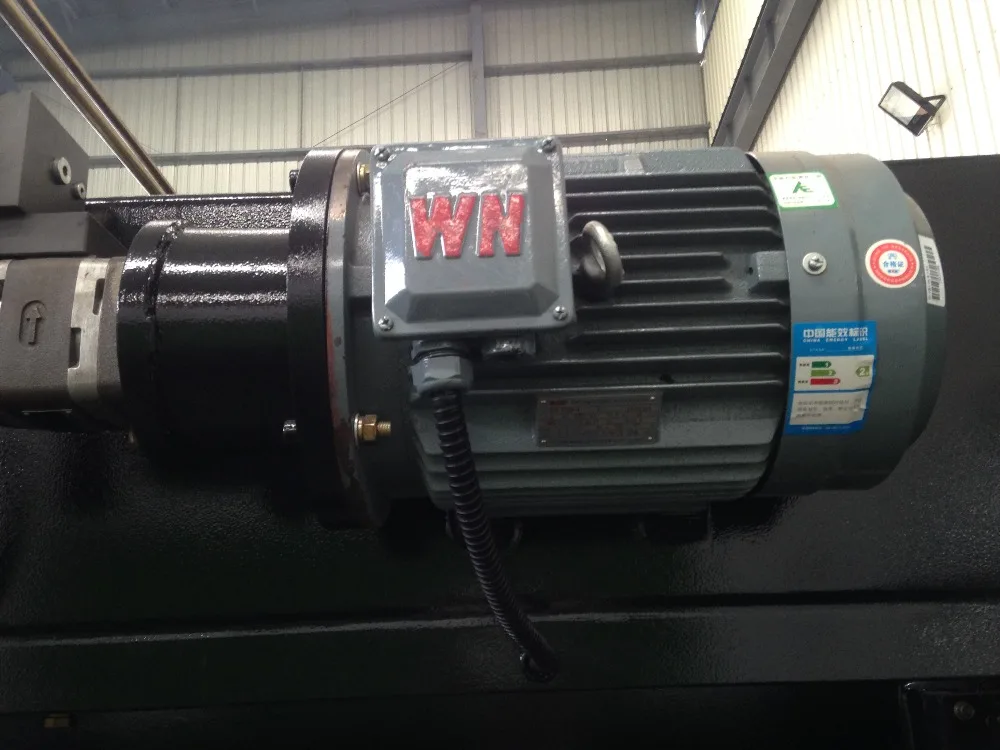

Oil Pump Motor

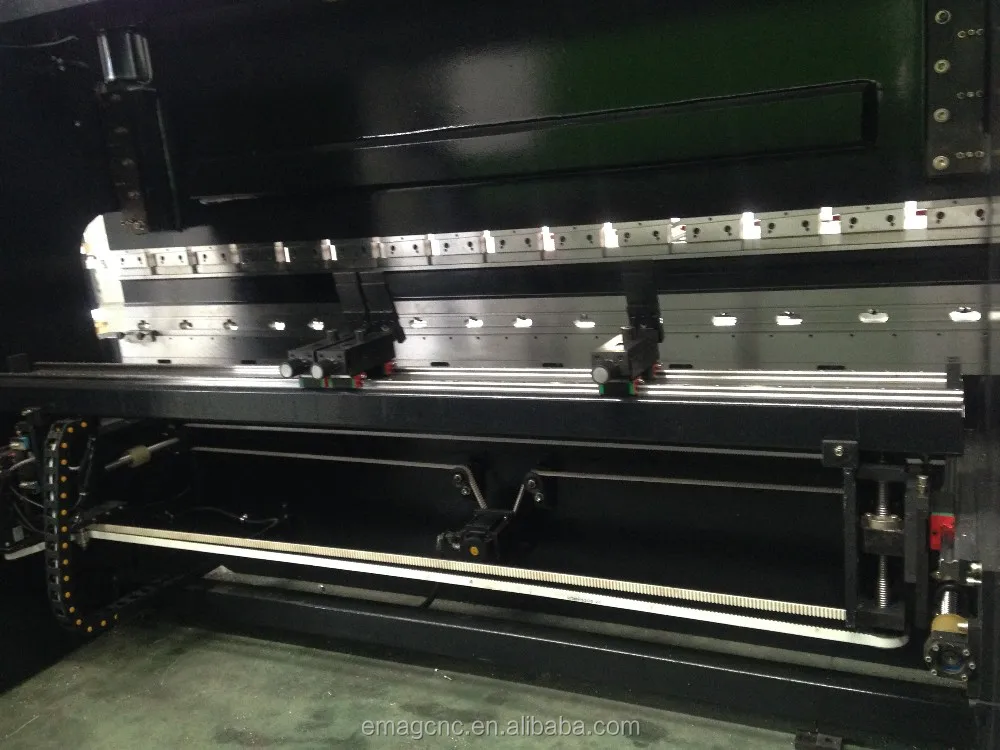

Back gauge

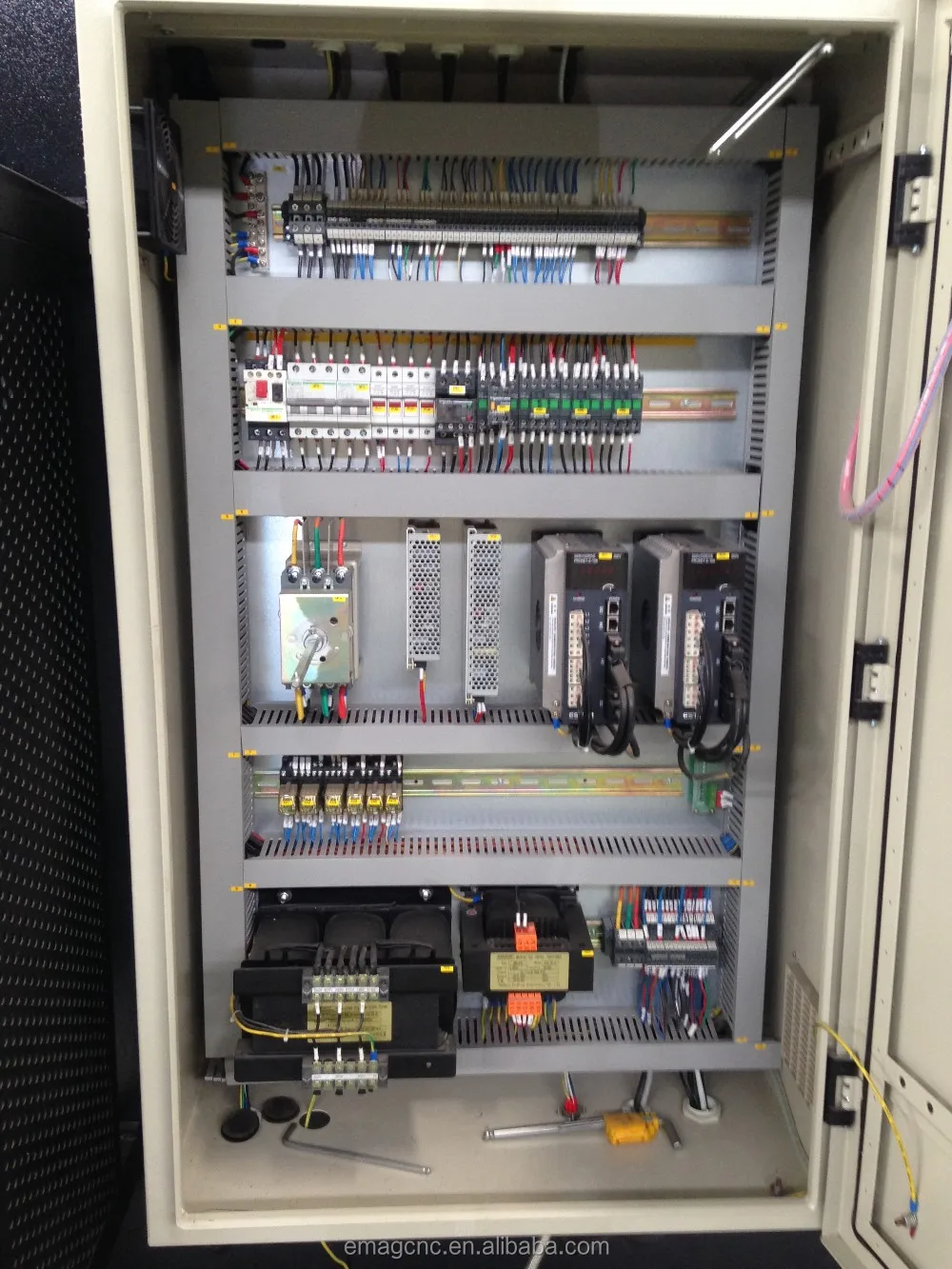

Electric Cabinet(Schneider electrics)

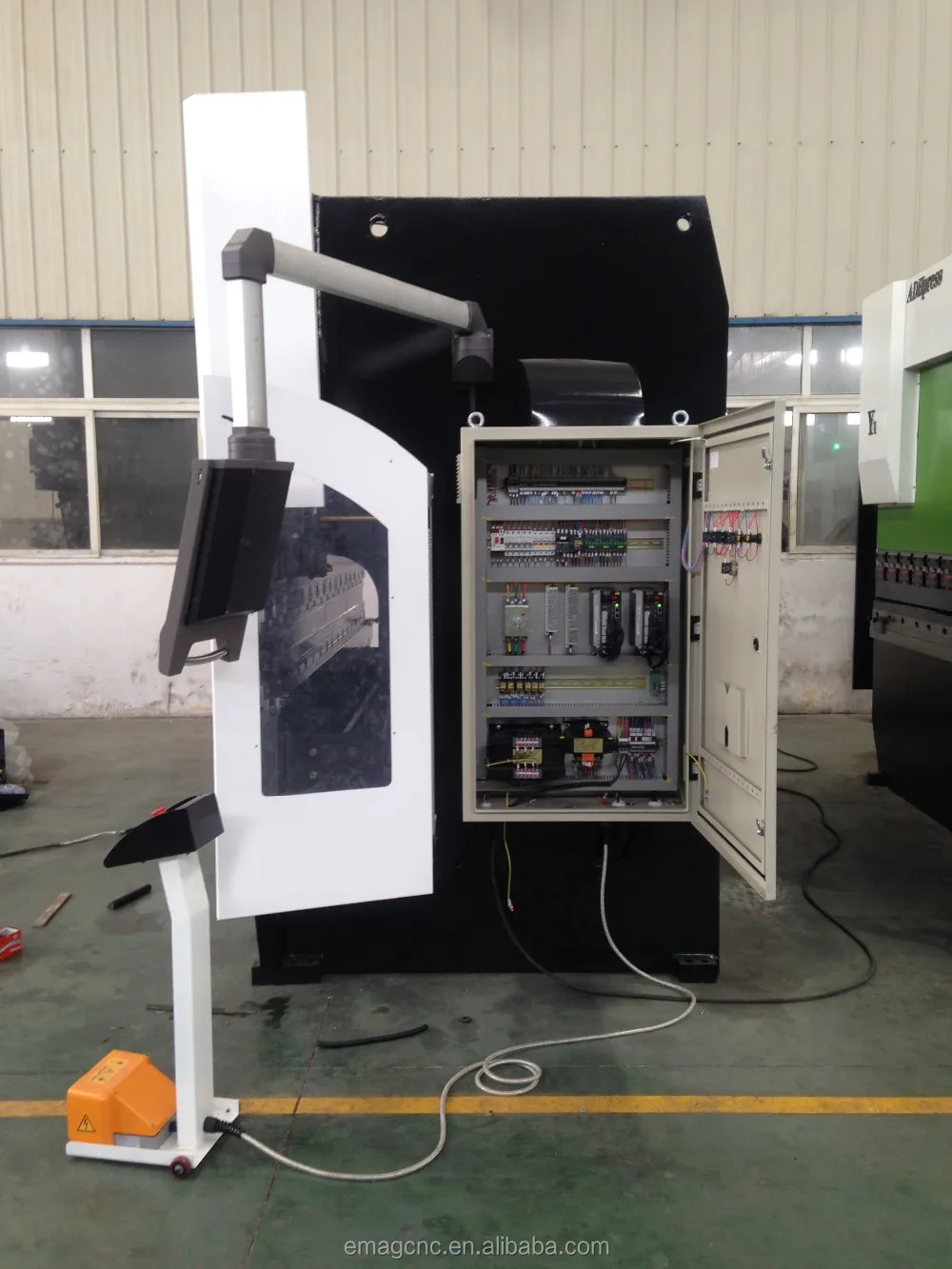

Side View of Machine

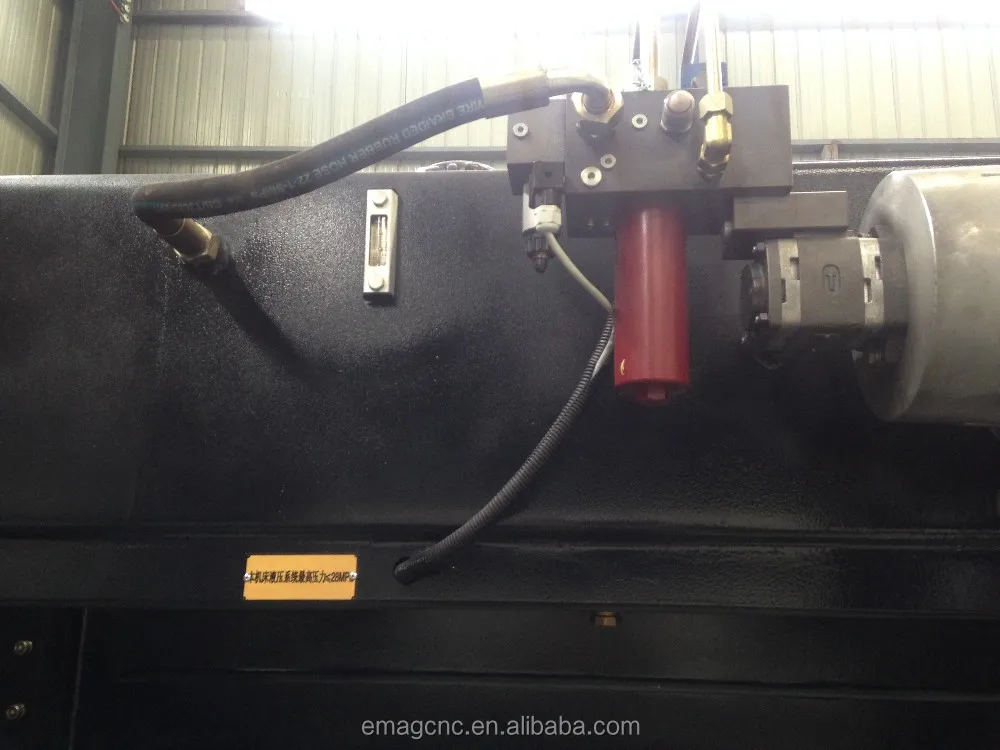

Valve and Pump(BOSCH, Germany)

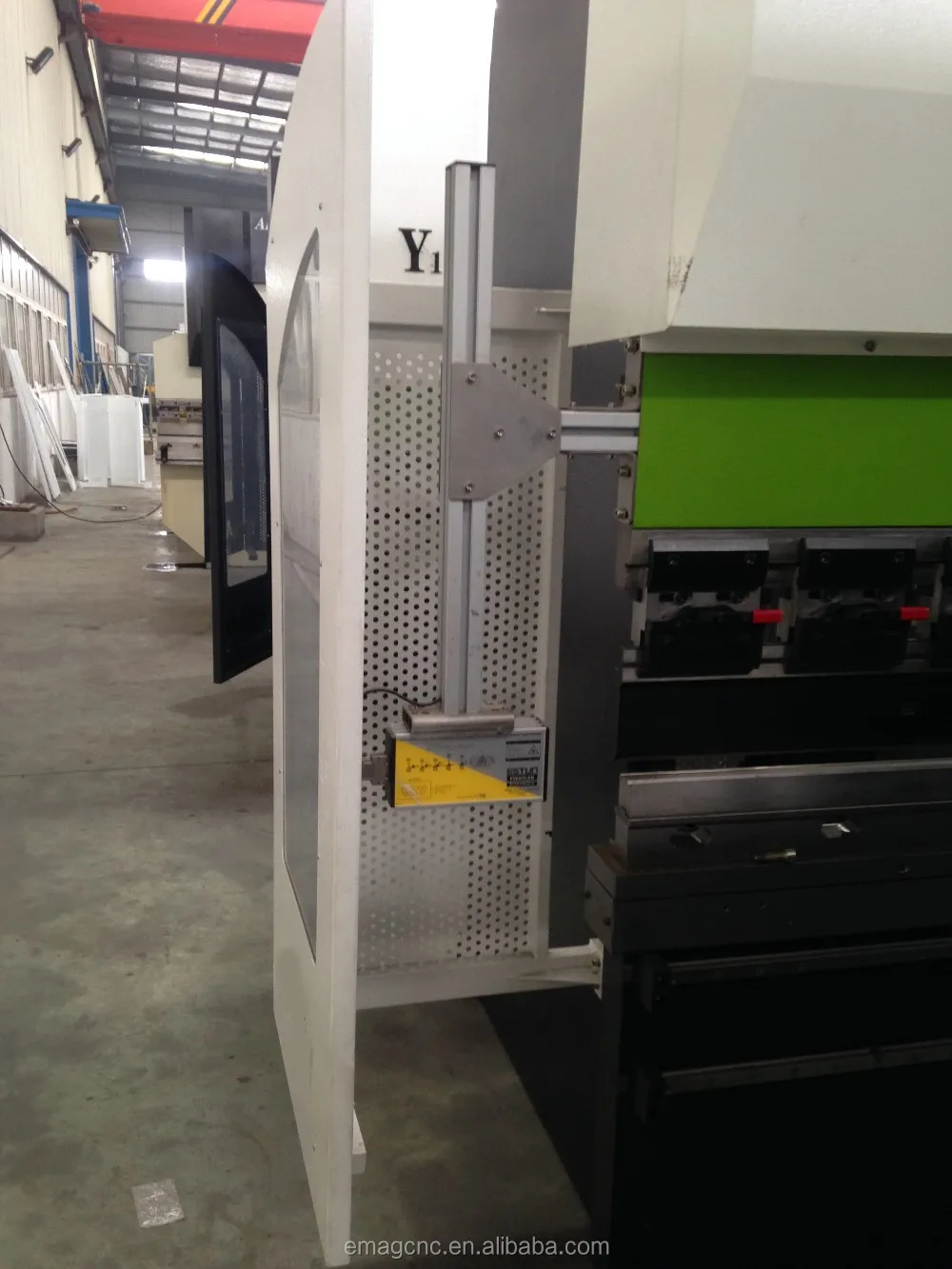

Photo-electric safety device

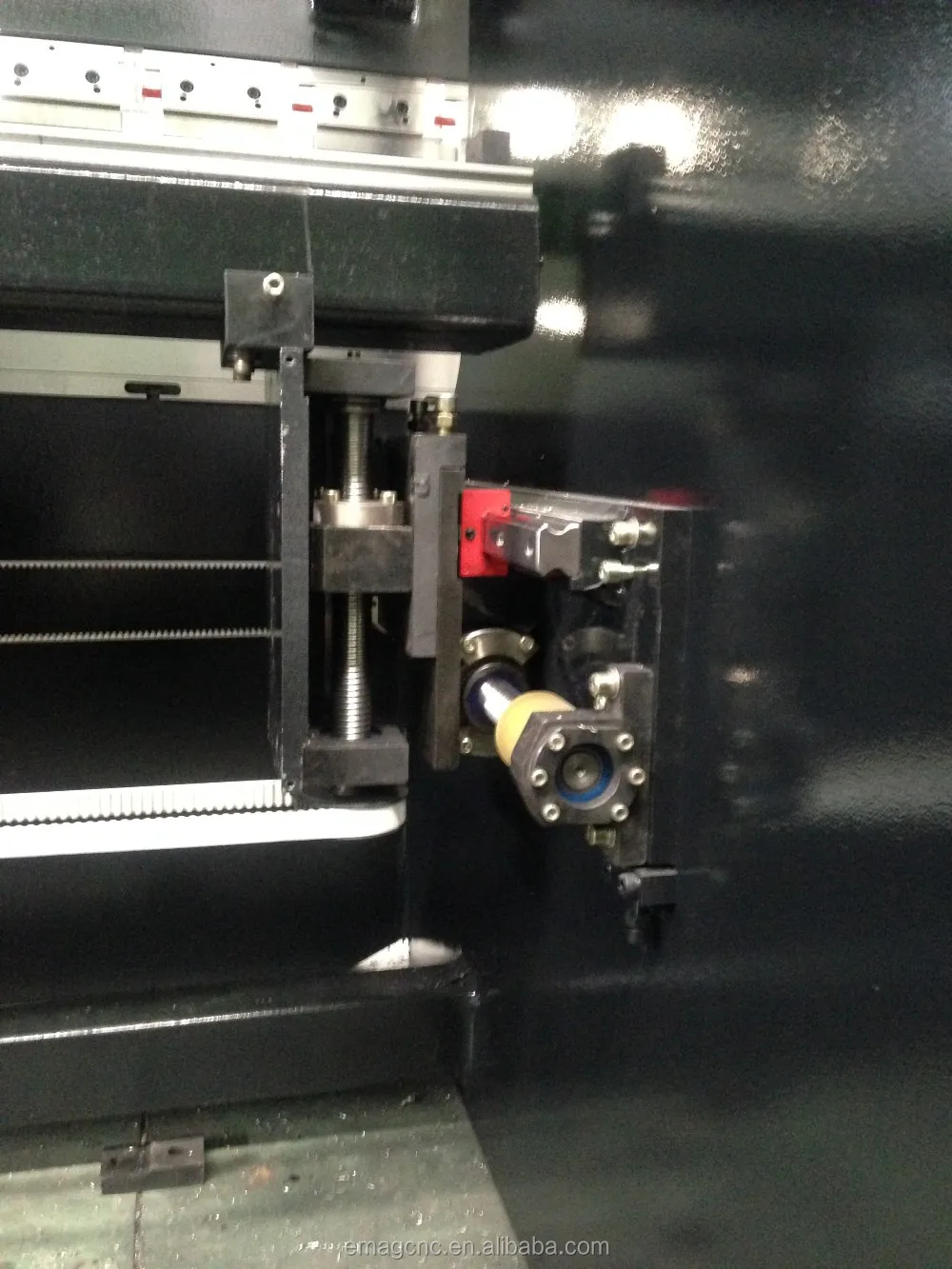

Back gauge details

1.Installation Service
We dispatch technician to customer's factory for installation and preparation of machine operation. ( Customers only need to pay for the air fare and hotel .)

2.Training Service
Our technicians are available to your factory and provide training on how to use the machine. As well, you may send your technician to our company to learn how to operate machines.  ( Customers only need to pay for  the air fare and hotel. )

3.Quality Guarantee
We arrange final test before shipment. After making sure machine is in the best condition, we make shipment.

Machine warranty is 3 year.
