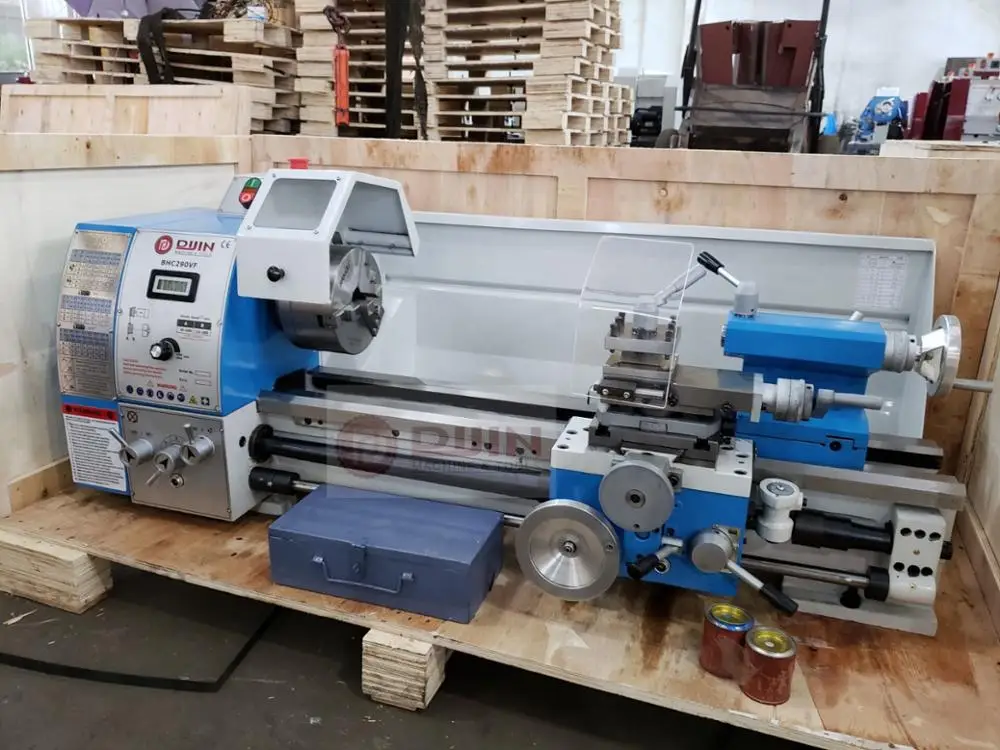

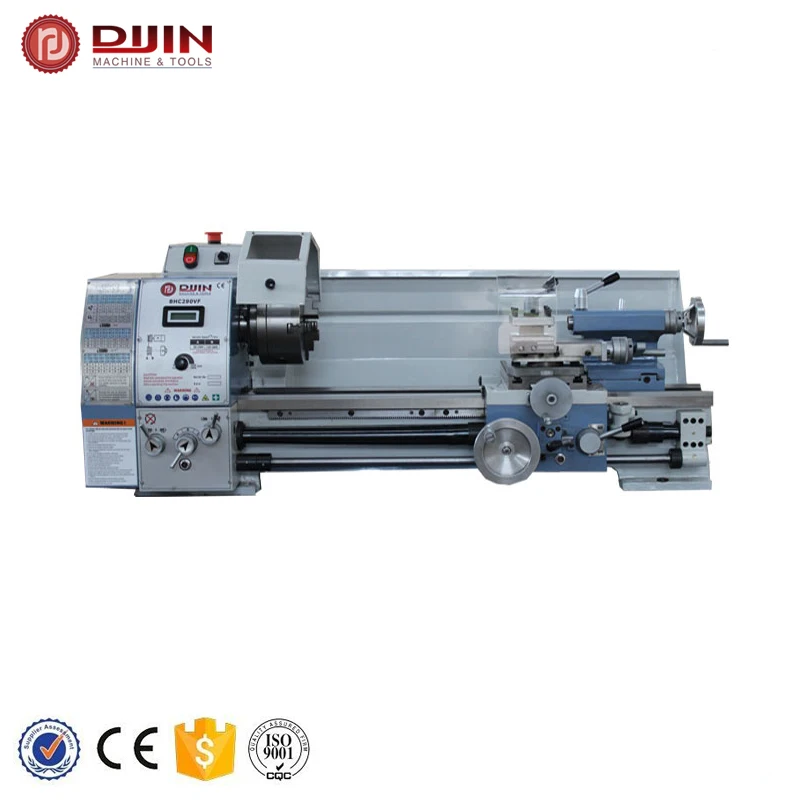

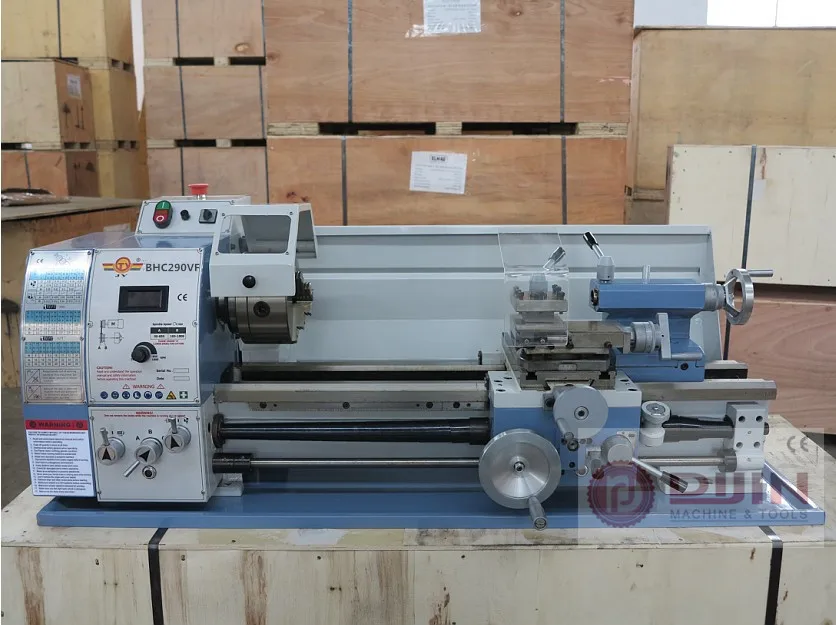

mini tour metal BHC290VF spindle bore 38mm AC motor 1.1KW inverter control DIJIN brand
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60443469927):
Product Overview
Description
Product Description
Product Application
This machine can turning ,drilling round bar work piece,process out
circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small
workshop ,development,DIY hobby ,school for training
NOTE: Machine stand is optional,Need to pay extra, The website picture just for display purpose
Model | BHC290VF |
Max Swing over bed | 290mm |
Width bed | 180mm |
Distance between centers | 700mm |
Spindle bore | 38mm |
Taper of spindle bore | Mt5 |
Range of spindle speed | 50-1800rpm(two steps) |
Range of longitudinal feeds | 0.07-0.40mm/r |
Range of inch threads | 8-56TPI(21) |
Range of metric threads | 0.2-3.5mm(18) |
Tape slide travel | 60mm |
Cross slide travel | 165mm |
Tailstock quill travel | 80mm |
Taper of tailstock quill | Mt3 |
main power | 1.1KW |
Net weight/gross weight | 220/270kg |
Packing size | 1400*700*680mm |
Main Features
1) Use two rod ,more steady ,X,Y axis easy automatic feed .
2) Big spindle bore 38mm,three jaw chuck diameter : 160mm
3) Lead screw nut material use pure copper,more durable .
4) equip with three jaw chuck guard ,tool post guard ,lead screw protection.
5) Metal gear ,super frequency hardening .Meet CE requirement
Detailed Images
Advantage(1)

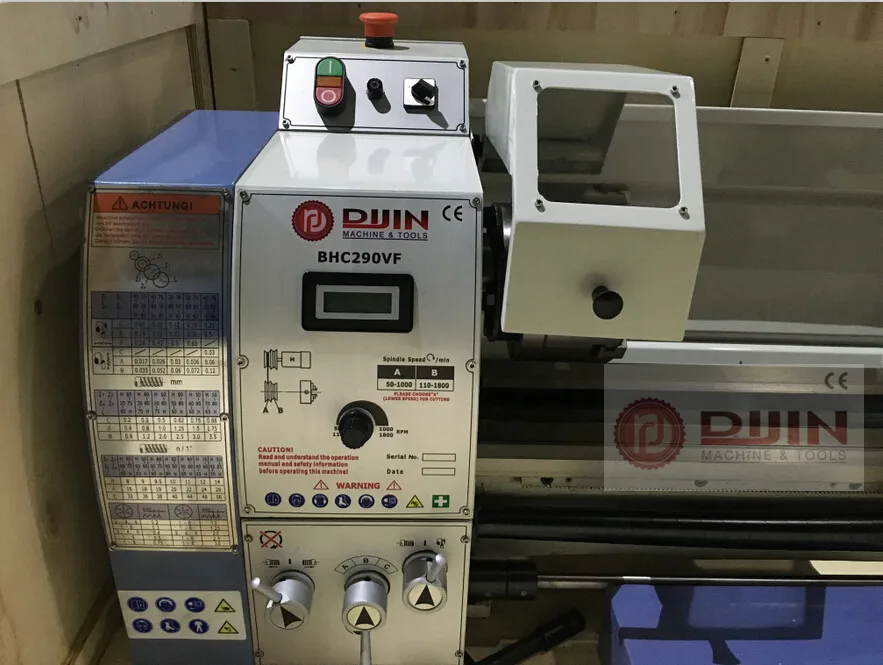

Use Siemens contactor ,emergency stop switch.
variable speed ,install speed display ,free to adjust speed.
install limited switch inside headstocks.
Advantage(2)
Equip with three jaw chuck guard ,tool post guard ,lead screw protection .
use two rod ,more steady ,X,Y axis automati feed .
Lead screw nut material use pure copper,more durable .
Advantage(3)

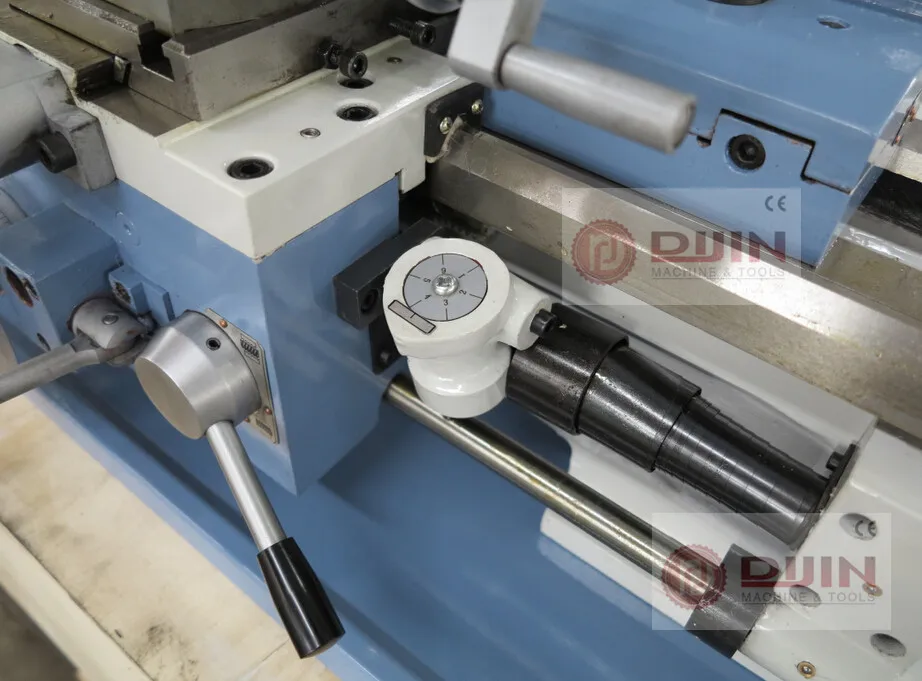

Install polished rod clutch ,avoid working overload.

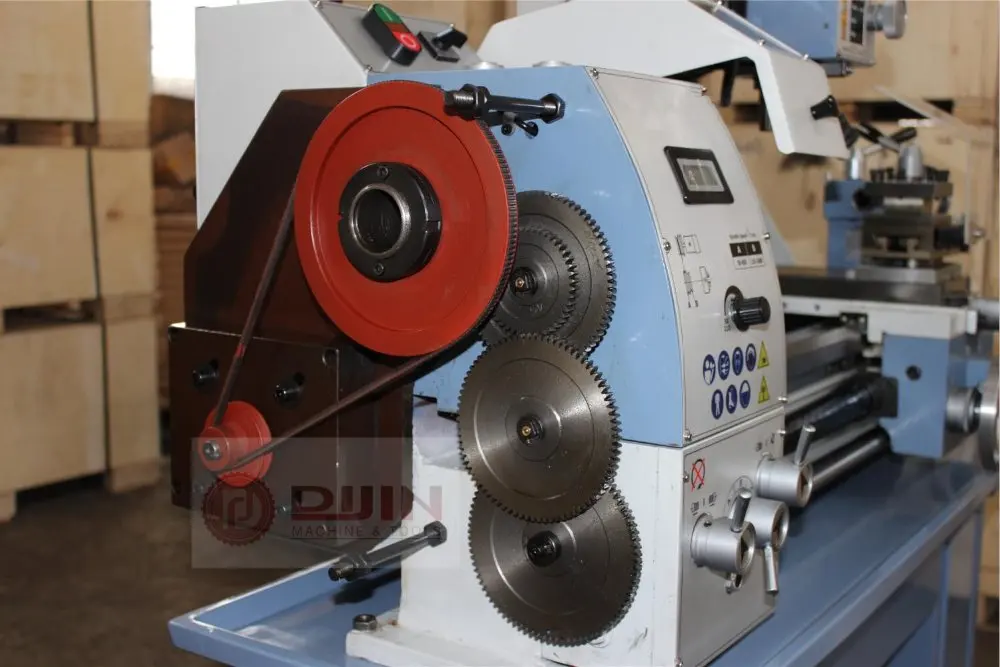

Metal gear ,super frequency hardening .
Advantage(4)
Use C-type spindle ,easy change chuck ,just loose three bolts
Big spindle bore 38mm,three jaw chuck diameter : 160mm
The lathe and mill concentricity tolerance is 0.03,0.01mm
Special part
Motor side install fan ,extend working time and life .
lathe bed surface frequency hardening .

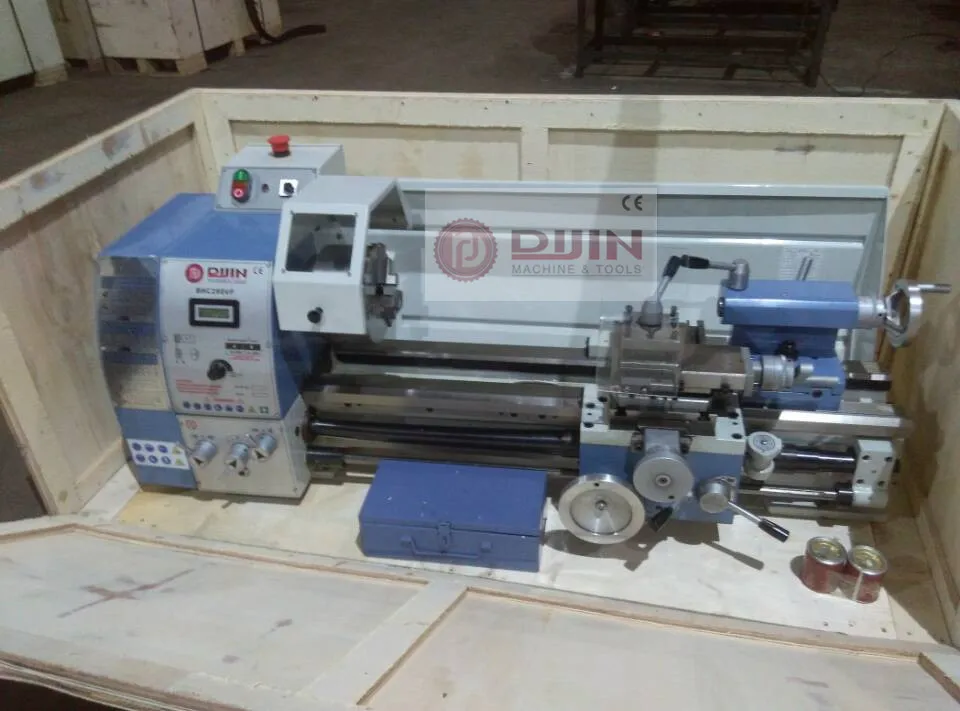

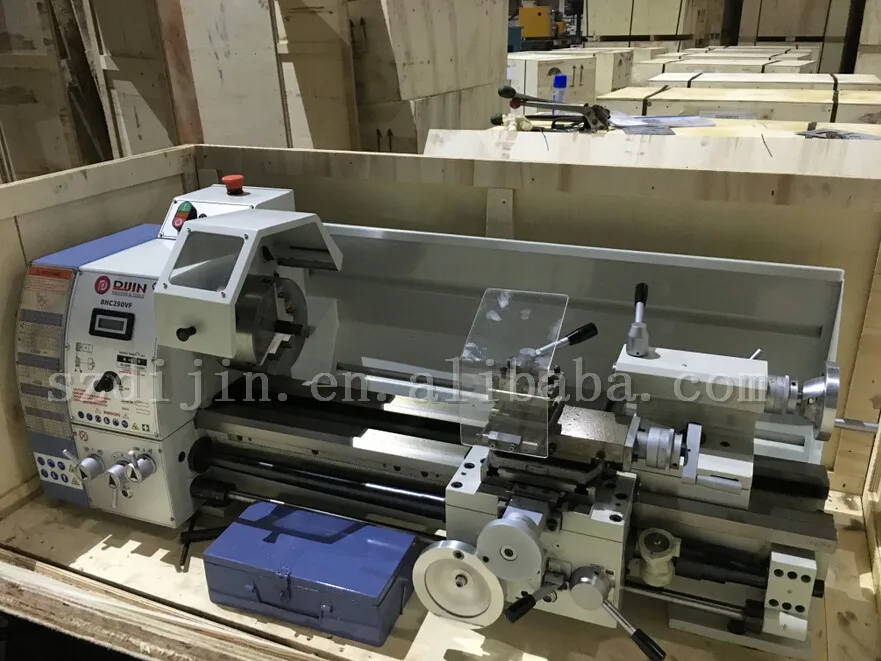

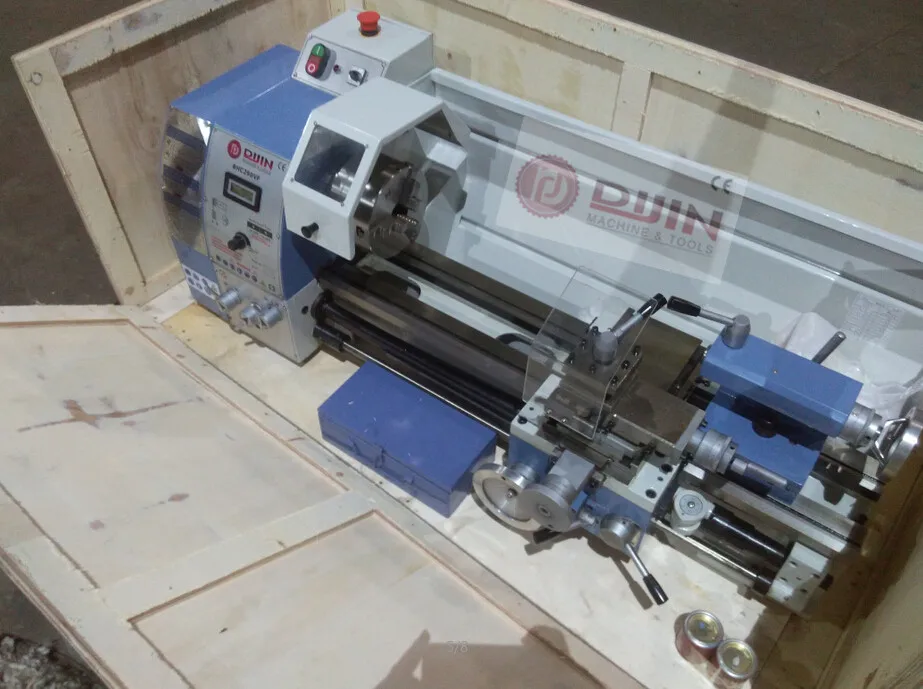

Packing & Delivery
Packaging | ||
Size | 1400(L) * 700(W) * 680(D) | |
Weight | 240kgs | |
Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,pust enough foam ,ensure goods safety arrive your home . | |
Packaging | ||
Size | 1400(L) * 700(W) * 680(D) | |
Weight | 240kgs | |
Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,pust enough foam ,ensure goods safety arrive your home . | |
