2022 newest generation supercritical co2 fluid extracting device for oil extraction 60l supercritical co2 extraction machine
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (60443479656):
Product Overview
Description
We are the professional producer for Supercritical CO2 Extraction system, we have a Research team started to develop the supercritical CO2 extraction machine from the year of 1989. Now, we have produced full range of HA Series models widely used in lab and mass production. Our sales of this machine in the Chinese market share is over than 90%.
The SCFE system can work very well and very popular with following material, with good feasibility
Chili Powder for red color extraction
Sea buckthorn seeds oil extraction/ Wolfberry oil extraction
Marigold Lutein extraction
Sandle wood/Agarwood
Ganoderma spore oil
Lavender/rose essential oil
Arteannuin,sundrops oil,angelica sinensis oil,chuanxiong rhizome oil,clove oil,atractylis oil,zedoary turmeric oil,dahurian angelica oil,cinnamon leafoil,zedoary turmeric oil,dahurian angelica oil,cinnammonleaf oil,ginkgo oil.netmeg oil,menthence,schisandra oil,plantain seed oil,radix buple
Gingerol,pepper haematochrome,dried tiny shrimp haematochrome,zanthoxylum oil,allspice oil resin,onion root oil,garlic oil,hops extract,tobacco leaves essencial oil
Standard Models available
Model 0.5L/50Mpa - 1 Extraction 2 Separation
Model 1L/50Mpa - 1 Extraction 2 Separation
Model 2L/50Mpa -1 Extraction 2Separation
Model 5L/50Mpa -1 Extraction 2 Separation
Model (5+1)L/50Mpa -2 Extraction 2Separation
Model (5+5)L/50Mpa- 2Extraction 2 Separation
Model 10L/40Mpa -1 Extraction 2 Separation
Model (10+10)L/40Mpa -2 Extraction 2 Separation
Model 24L/40Mpa -1 Extraction 2 Separation
Model (24+24)L/40Mpa -2 Extraction 2 Separation
Model (24+24)Lx2/40Mpa -4 Extraction 2 Separation
Model(30+30)Lx2/40Mpa-4 Extraction 2 Separation
Model(50+50)Lx2/40Mpa-4 Extraction 2 Separation
Model 100Lx3/35Mpa-3 Extraction 2 Separation
Model 200Lx3/35Mpa-3 Extraction 2 Separation
Model300Lx3/35Mpa-3 Extraction 2 Separation
Model400Lx3/35Mpa-3 Extraction 2 Separation
Model 600Lx3/35Mpa-3 Extraction 2 Separation
Model 1000Lx2/35Mpa-2 Extraction 2 Separation
Other customized models can be available at customer request.

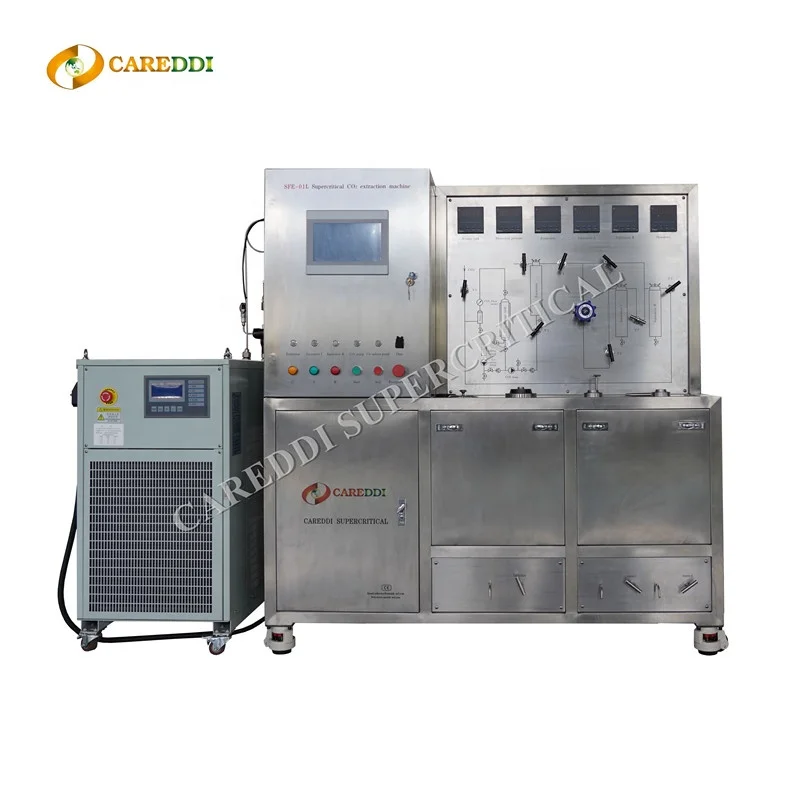

Machine Introduction

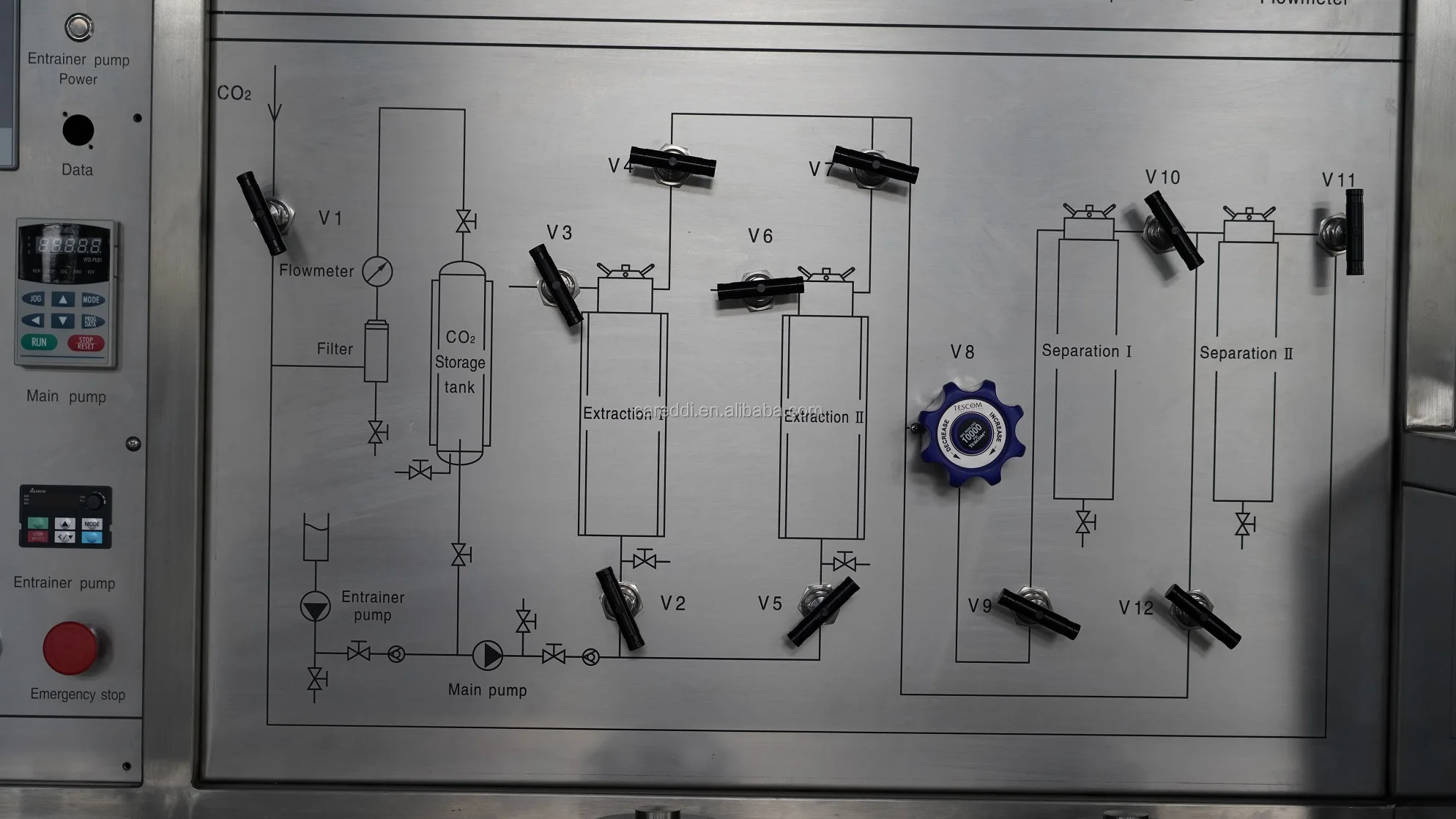

HA series supercritical CO2 extraction system is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. The system consists of following parts:
Extraction tank
Separation tank
CO2 high-pressure pump,
Co-solvent pump,
Cooling system,
CO2 tank,
Heat exchanger systems,
Purification systems,
Flow meters,
Temperature control system
Safety devices and other components.
Main Parts Specifications of the Model (5+5)L
EXTRACTION TANK
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume 5L+5L (2 tanks)
Max working Pressure 50MPa
SEPARATION TANK
Equipped with jacket water circling heating system, temperature adjustable.
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume 1X4L and 2X1L
Max working Pressure 30MPa
CO2 HIGH-PRESSURE PUMP
Flow Rate(Double plunger) 0-50L/H (Inverter adjustable)
Max working Pressure 50MPa, pumps head with cooling system
CO-SOLVENT PUMP
Flow Rate: 0.25-4L/H
Max working Pressure 50MPa (Mechanical adjustable)
COOLING SYSTEM
Cooling Capacity 5100Kcal/h (air cooling)
Temperature range -5℃~+5℃ (meet process requirement)
HEATING EXCHANGE SYSTEM
Material: 1Cr18Ni9Ti (#304 stainless steel)
Type: Φ6×1 Coil
Max working Pressure 50MPa
PURIFICATION SYSTEM
Material: 1Cr18Ni9Ti (#304 stainless steel)
Max working Pressure 50MPa
CO2 STORAGE TANK
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume: 6L
Max working Pressure 16MPa
FLOWRATE METER
Model: Metal tube float (6.3-63L/H)
Digital indicator: indicate both instant flow rate and accumulation
TEMPERATURE CONTROL SYSTEM
Temperature Range: Room temperature~75℃ adjustable
Accuracy: ±1℃
SAFETY DEVICES AND OTHER COMPONETNS
(1) Pressure gauge at high pressure pump outlet, overpressure protection.
(2) Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief.
PIPE LINES
Valves, fittings: DW6
All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel
PIPE LINES
Valves, fittings: DW6
All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel
OTHER SPECS
Power: 18Kw
CO2: Food grade≥99.5%, single bottle net weight ≥22Kg, User-supplied
Installation dimension: 2700×2500×1500mm,plus operation space.

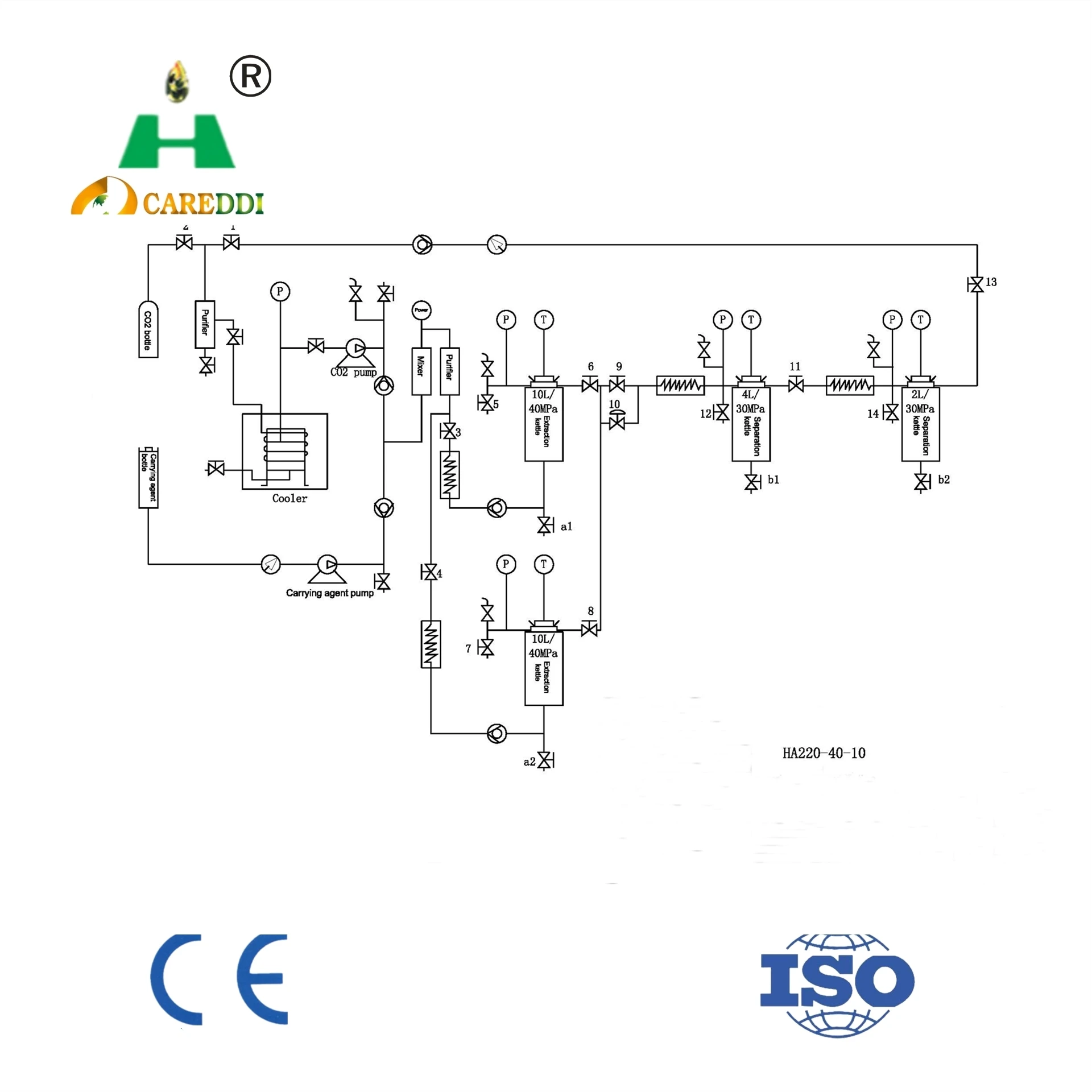

Main Parts Specifications of the Model (10+10)L
EXTRACTION TANK
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume 10L+10L (2 tanks)
Max working Pressure 40MPa
SEPARATION TANK
Equipped with jacket water circling heating system, temperature adjustable.
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume 2X5L (two separation tank)
Max working Pressure 30MPa
CO2 HIGH-PRESSURE PUMP
Flow Rate(Double plunger) 0-200L/H (Inverter adjustable)
Max working Pressure 40MPa, pumps head with cooling system
CO-SOLVENT PUMP
Flow Rate: 0.25-4L/H
Max working Pressure 50MPa (Mechanical adjustable)
COOLING SYSTEM
Cooling Capacity 10700Kcal/h (air cooling)
Temperature range -5℃~+5℃ (meet process requirement)
HEATING EXCHANGE SYSTEM
Material: 1Cr18Ni9Ti (#304 stainless steel)
Type: Φ14×2.5 Coil
Max working Pressure 50MPa
Equipped with jacket heating system, temperature adjustable.
PURIFICATION SYSTEM
Material: 1Cr18Ni9Ti (#304 stainless steel)
Max working Pressure 50MPa
CO2 STORAGE TANK
Material: 1Cr18Ni9Ti (#304 stainless steel)
Volume: 15L
Max working Pressure 16MPa
FLOWRATE METER
Model: Metal tube float (6.3-63L/H)
Digital indicator: indicate both instant flow rate and accumulation
TEMPERATURE CONTROL SYSTEM
Temperature Range: Room temperature~75℃adjustable
Accuracy: ±1℃
SAFETY DEVICES AND OTHER COMPONETNS
(1) Pressure gauge at high pressure pump outlet, overpressure protection.
(2) Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief.
PIPE LINES
Valves, fittings: DW14
All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel
FEATURES
Extraction kettle pressure ring quickly open.
CO2 can be recycled
OTHERS
Power: 18Kw
CO2: Food grade≥99.5%, single bottle net weight ≥22Kg, User-supplied
Installation dimension: 3000×3000×1800mm,plus operation space.
Loading volume: 8CBM , 1300Kg.
Some Pictures from the workshop

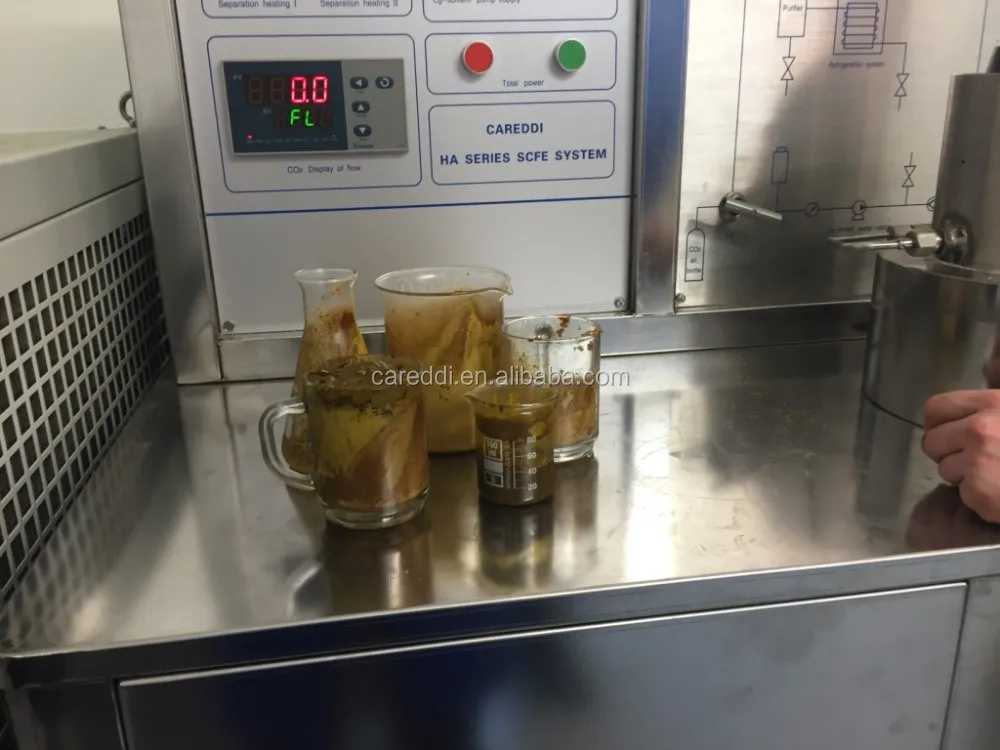

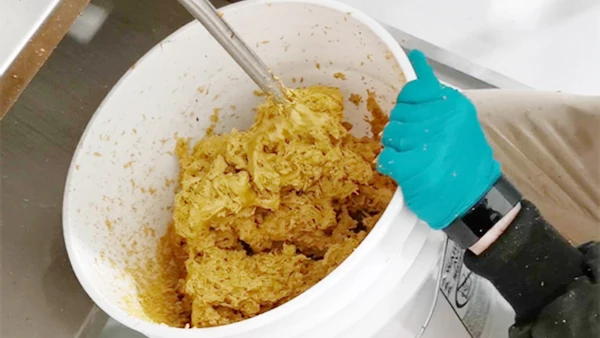

Some pictures about oil Extraction from Customers site
Application of the Super Critical CO2 Fluid:
Range of Application | Type of Application |
Pharmaccutical Industry | Extraction of effective contents of Chinese herbs,concentration, Refinement and precipitation of raw material,separation and refinement of fatty mixtures |
Foodstuff Industry | Extraction of hops,caffeine removal from coffee berry,extraction of plant pigment |
Cosmetics and Perfumery Industries | Separation and refinement of natural and synthetic perfumeries, dealkalization of tobacco,extraction of raw material cosmetics
|
Chemical Industry | Separation of hydrocarbon,refinement of organic synthetic raw material,separation of azeotrope,retrieval of raw materials of reaction,dehydration of water soluble power of organic solution,water oxidation |
Others | Superconducting,semiconductor,ceramics,oil washing of petroleumcore,enzyme catalytic reaction,preparation of materials, superfine granules,extraction of complex compound,Supercritical dyeing technique,supercritical reaction,supercritical coating technique(pharmacy-making) |
