Variable Speed mini lathe Multi purpose Lathe And Milling Machine jyp290vf spindle bore 38mm DRO for sales
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60443531660):
Product Overview
Description
Product Description
Product Application
This machine can turning ,milling ,drilling round bar work piece,process out
circle ,inner bore ,cutting ,threading ,groove , drill hole ,mill keyslot ,mill surface ,end face，reaming ,popular with small workshop ,DIY hobby ,school for training .
circle ,inner bore ,cutting ,threading ,groove , drill hole ,mill keyslot ,mill surface ,end face，reaming ,popular with small workshop ,DIY hobby ,school for training .
Model | BHP290VF |
Max distance between center | 700mm |
Max swing over bed | 290mm |
Max swing over cross slide | 165mm |
Bed of width | 180mm |
spindle bore | 38mm |
taper of spindle | Mt5 |
Range of spindle speed | 50-1800rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 165mm |
Tail stocks quill travel | 80mm |
Taper of tail stocks quill | Mt3 |
main power | 1.1kw |
Max drill capacity | 25mm |
Max end mill capacity | 16mm |
Max face mill capacity | 63mm |
Taper of spindle | Mt3 |
Max distance spindle to table | 375mm |
Max distance spindle to column | 185mm |
Main motor | 750w |
Spindle travel | 50mm |
Spindle speed | 50-2250rpm |
T-slot | 10mm |
Overall Net /gross weight | 300/340kgs |
Overall packing size | 1400*780*1070mm |
Main Features
1) Use two rod ,more steady ,X,Y axis easy automatic feed .
2) Meet CE requirement ,equip with three jaw chuck guard ,tool post guard ,lead screw protection.
3) Big spindle bore 38mm,three jaw chuck diameter : 160mm
4) Lead screw nut material use pure copper,more durable .
5) Metal gear ,super frequency hardening .
2) Meet CE requirement ,equip with three jaw chuck guard ,tool post guard ,lead screw protection.
3) Big spindle bore 38mm,three jaw chuck diameter : 160mm
4) Lead screw nut material use pure copper,more durable .
5) Metal gear ,super frequency hardening .
Detailed Images
Advantage (1)
Use Siemens contactor ,good for avoid working overlod.
Install emergency stop switch ,be safety.

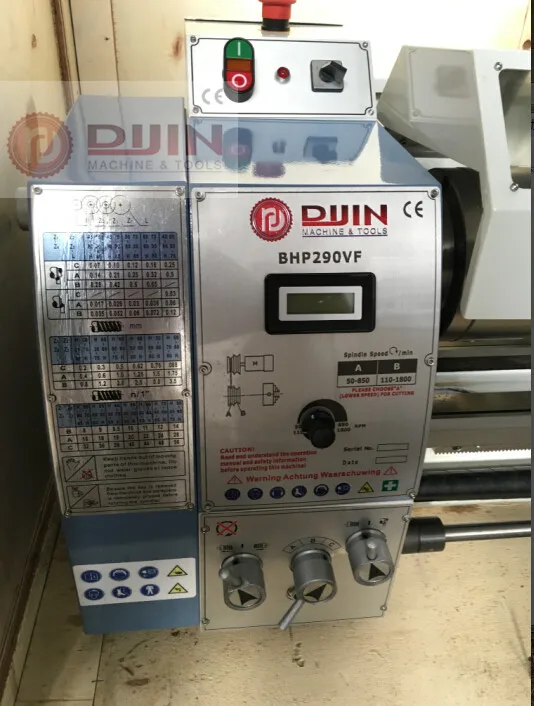

Variable speed ,install speed display ,free to control spindle speed .
Advantage (2)
Equip with three jaw chuck guard ,tool post guard , lead screw protection .
use two rod ,X,Y axis automatic feed .
install limited switch inside headstock.
Advantage(3)
Install polished rod clutch ,avoid working overload.
Metal gear ,super frequency hardening .
Advantage(4)
Use C type spindle ,easy change chuck ,just loose three bolts.
three jaw chuck diameter 160mm ,spindle bore 38mm
the lathe and mill concentricity tolerance is 0.03 and 0.01mm.
Special part
milling head tilt +-90degree .spindle hardening .
lathe bed surface frequency hardening.
Packing & Delivery
Packaging | ||
Size | 1400(L) * 730(W) * 1080(D) | |
Weight | 340kgs | |

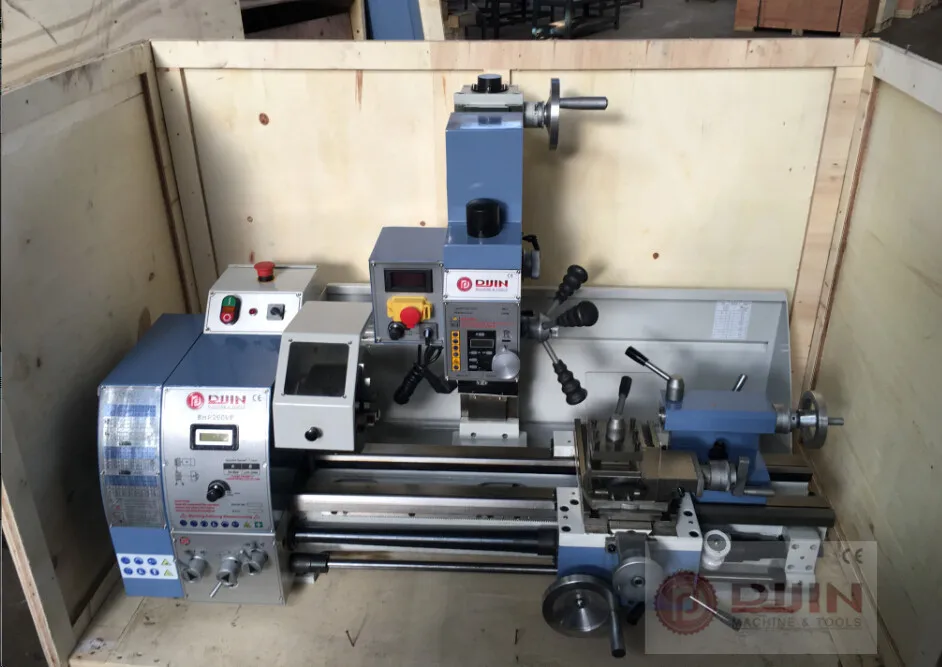

Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,pust enough foam ,ensure goods safety arrive your home . | |
Packaging | ||
Size | 1400(L) * 730(W) * 1080(D) | |
Weight | 340kgs | |
Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,pust enough foam ,ensure goods safety arrive your home . | |
