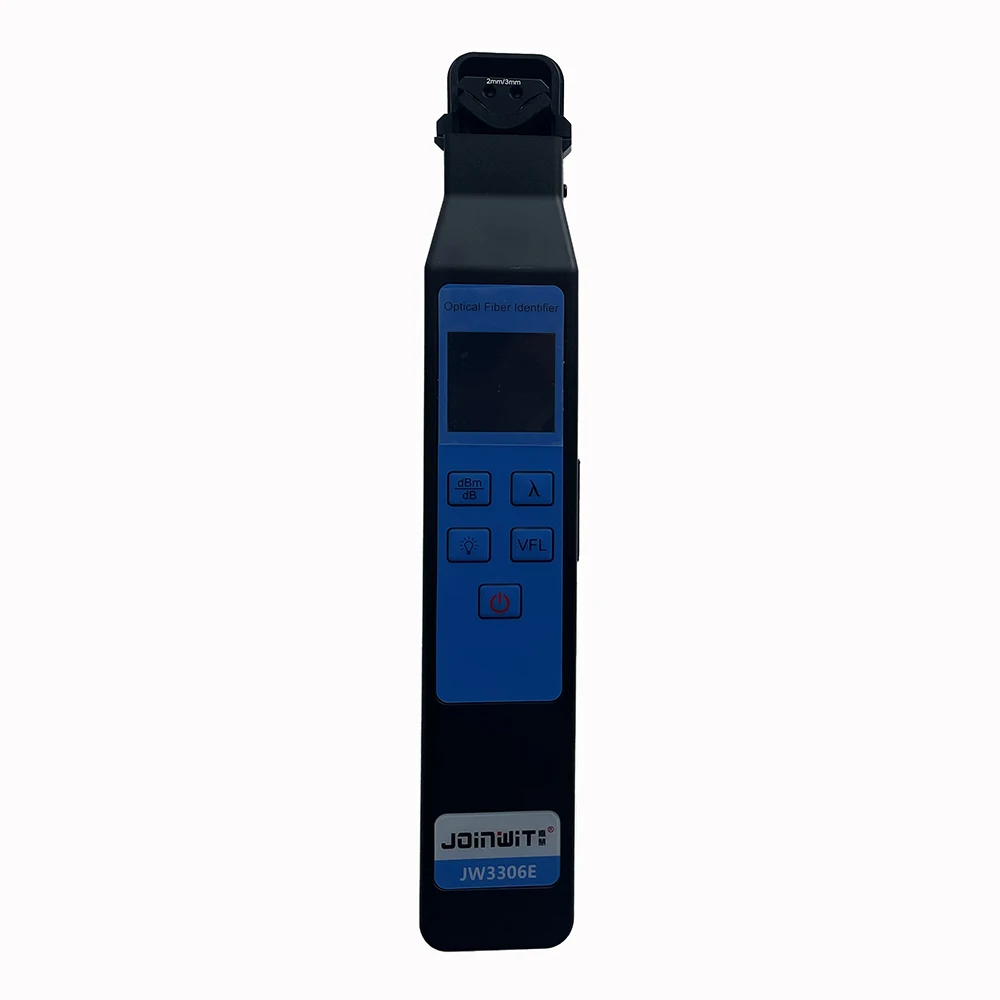

Live Active Fiber Optic Trafic Signal Detector Identifier OFI & VFL 10mW and Optical Power Meter Suitable for 0.25/0.9/2.0/3.0mm

Product Overview

Description

FTTH Live Active Signal Detector Optical Fiber Trafic Identifier with 10mW Visual Fault Locator and Optical Power Meter for 0.25/0.9/2.0/3.0mm Cable

Overview
Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function and power meter function.

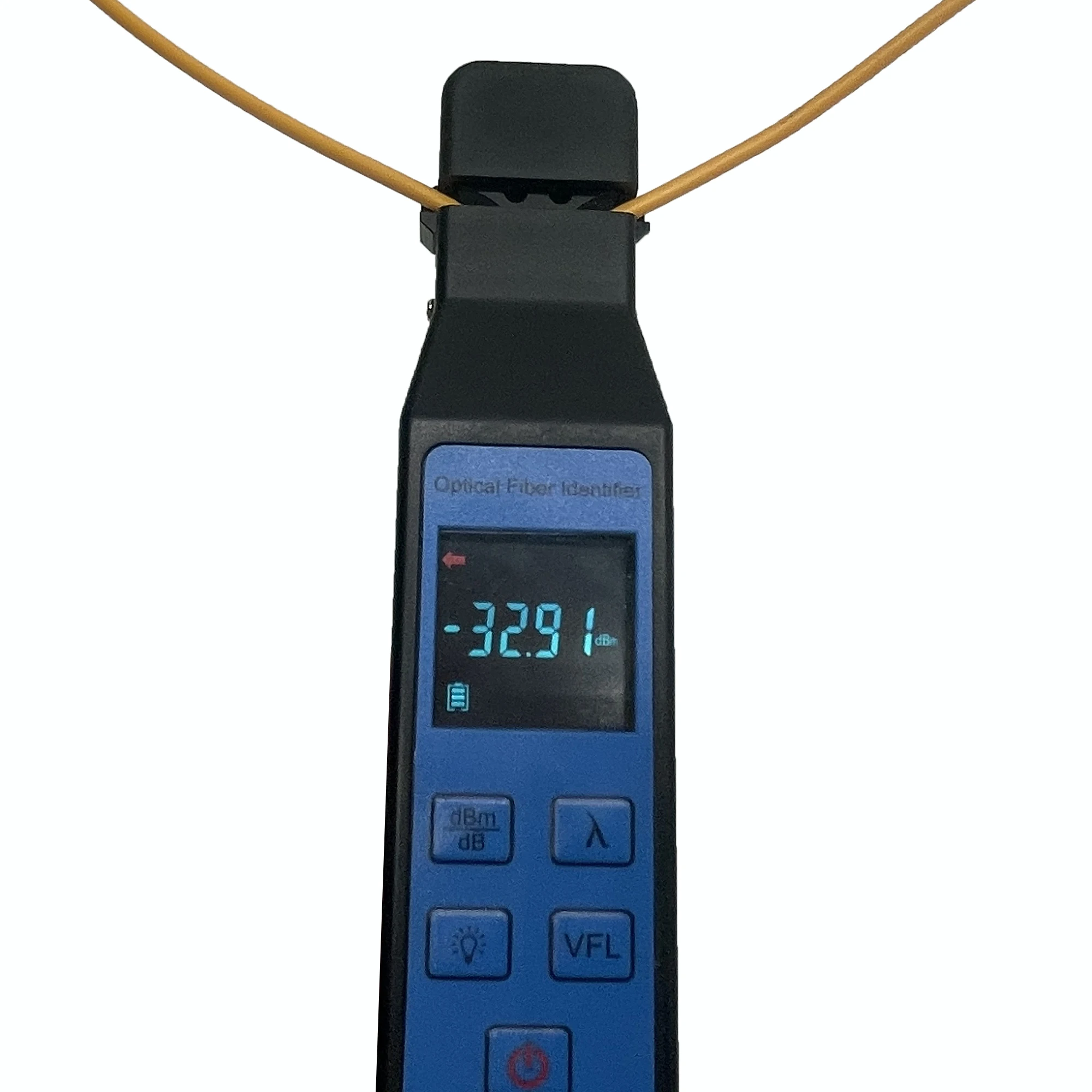

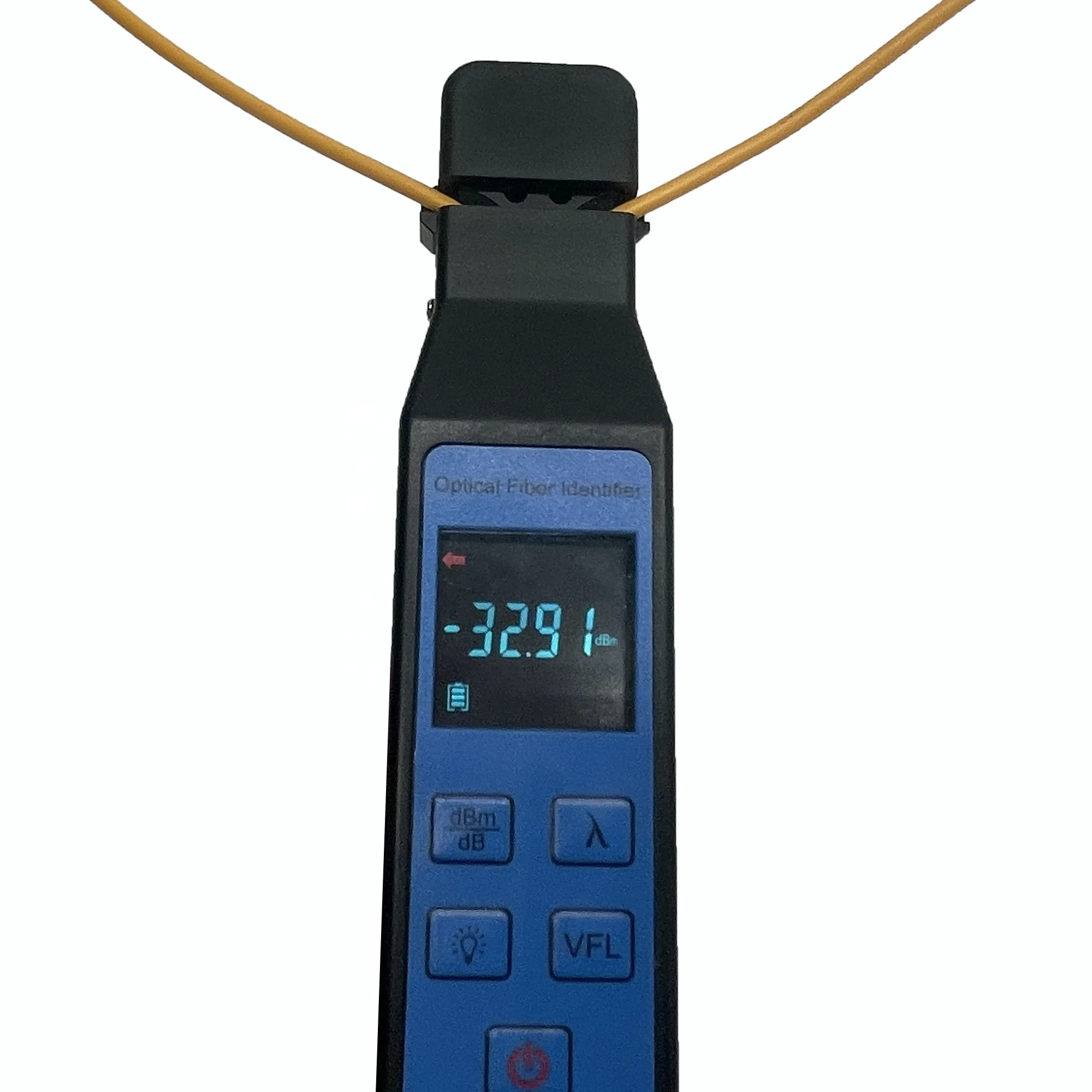

Using the macro bending technology on line for nondestructive testing, It can measure the signal direction and power and avoid mis-operation resulting in interrupted lines.
Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity. Doesn’t damage optical fiber, without interrupting communications, and direct detection of 2.5mm bare fiber, 0.9mm and 2.5mm fiber casing tight jumper.



Features

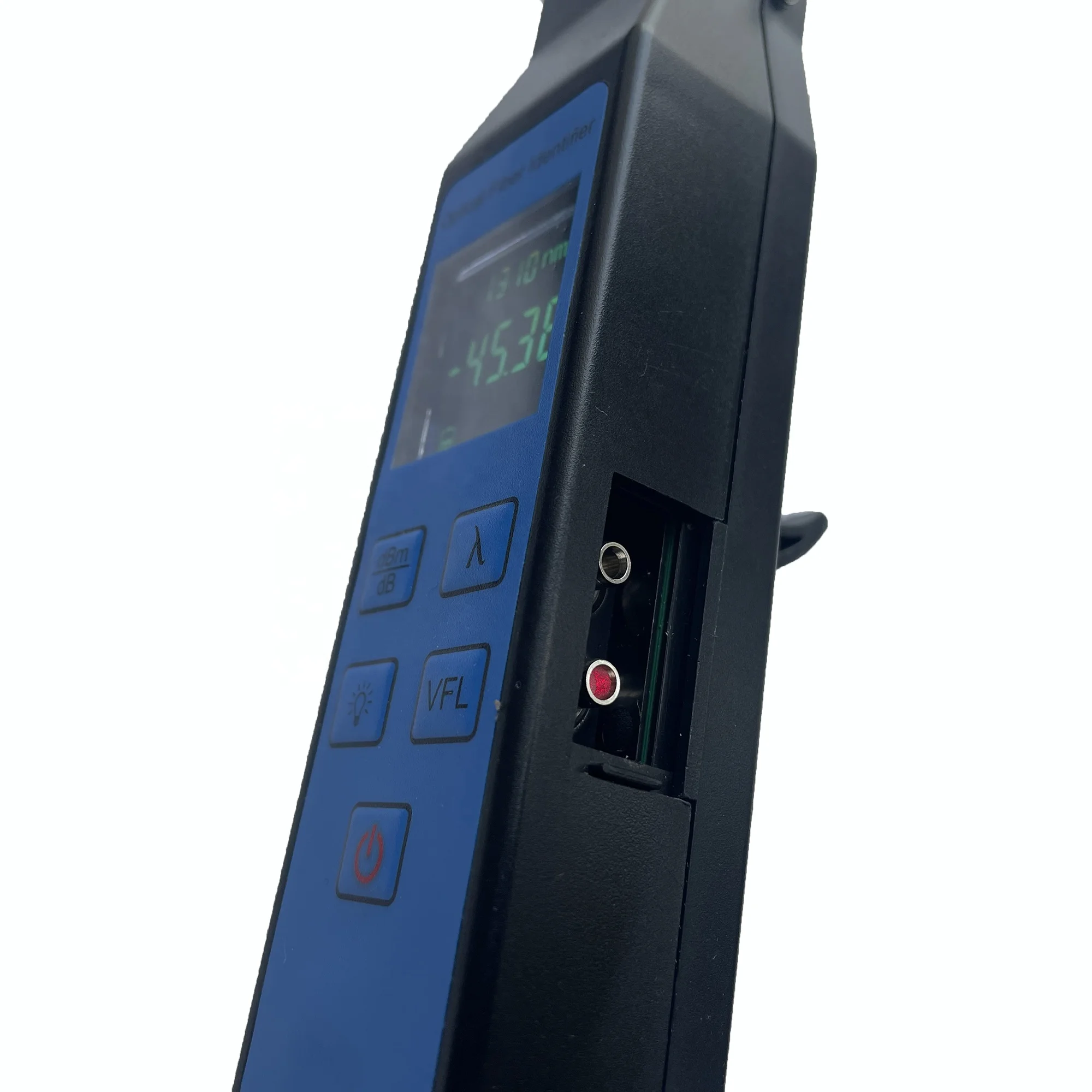

Build in 10mW VFL function
Build in Optical Power Meter

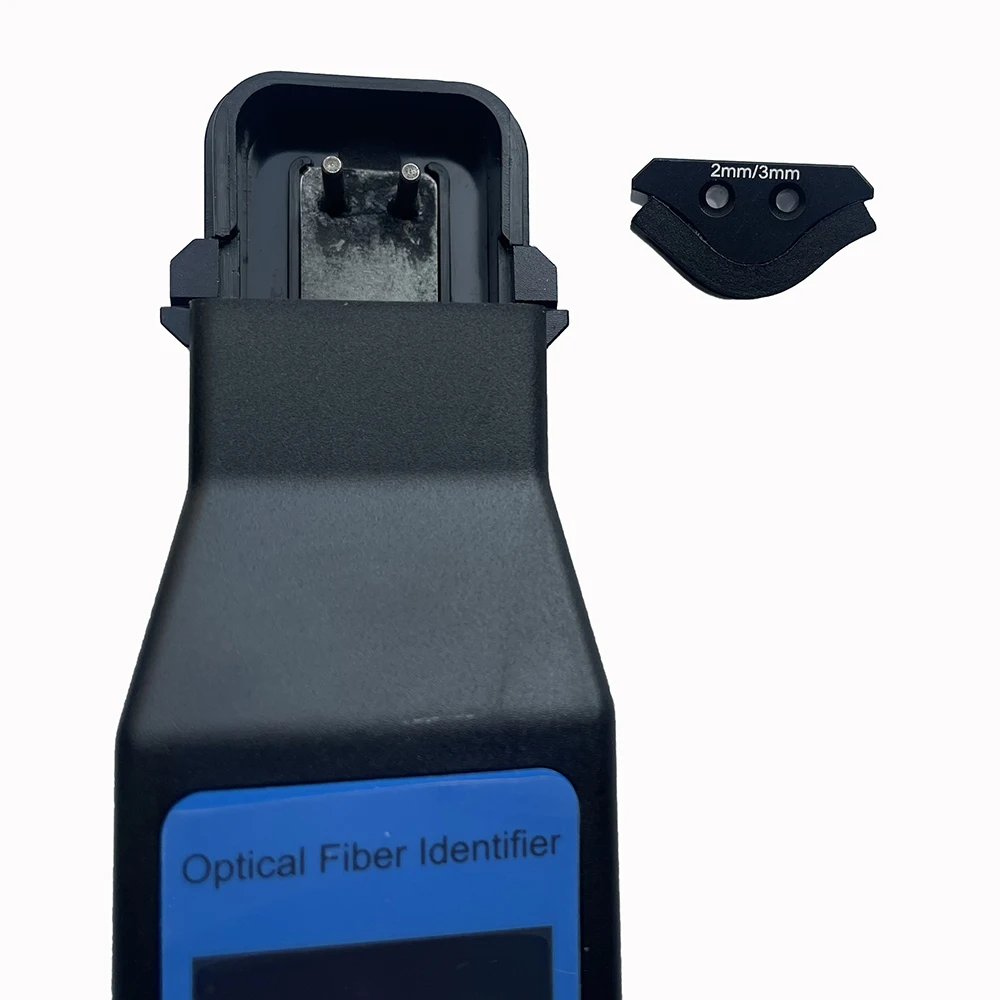

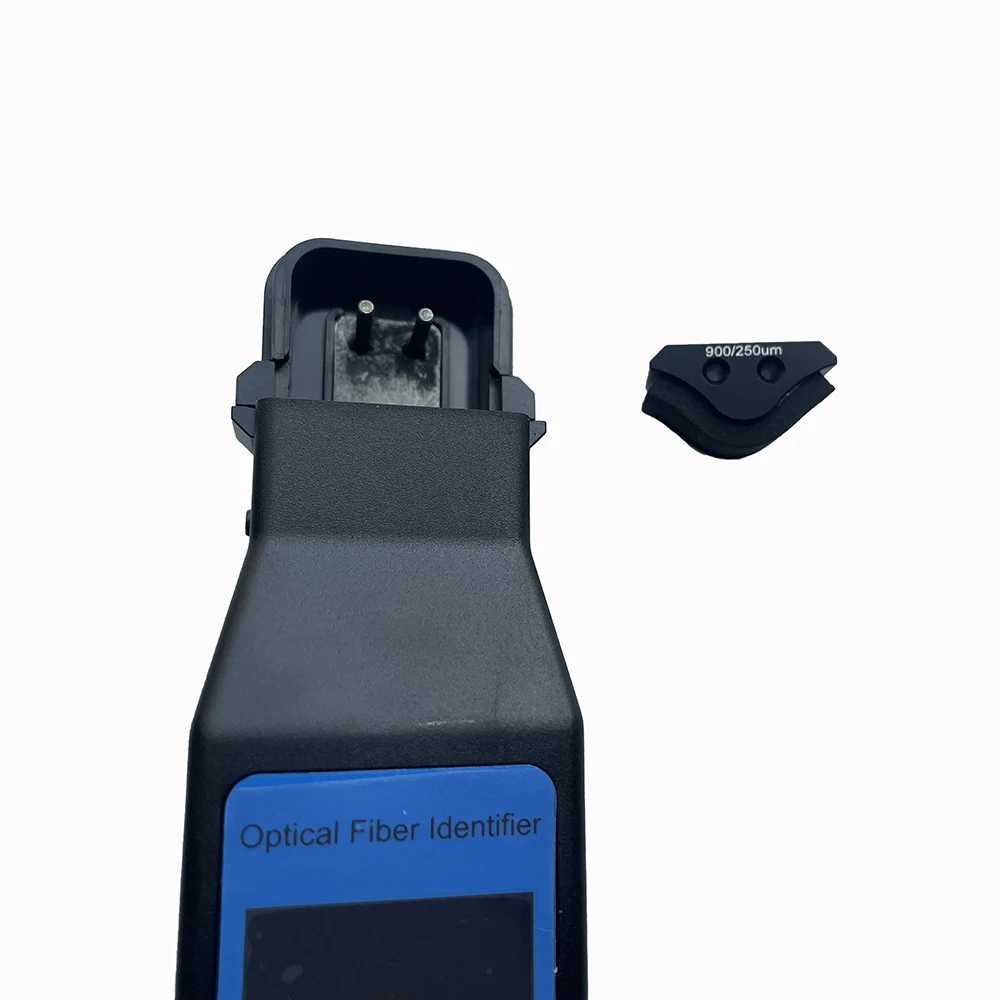

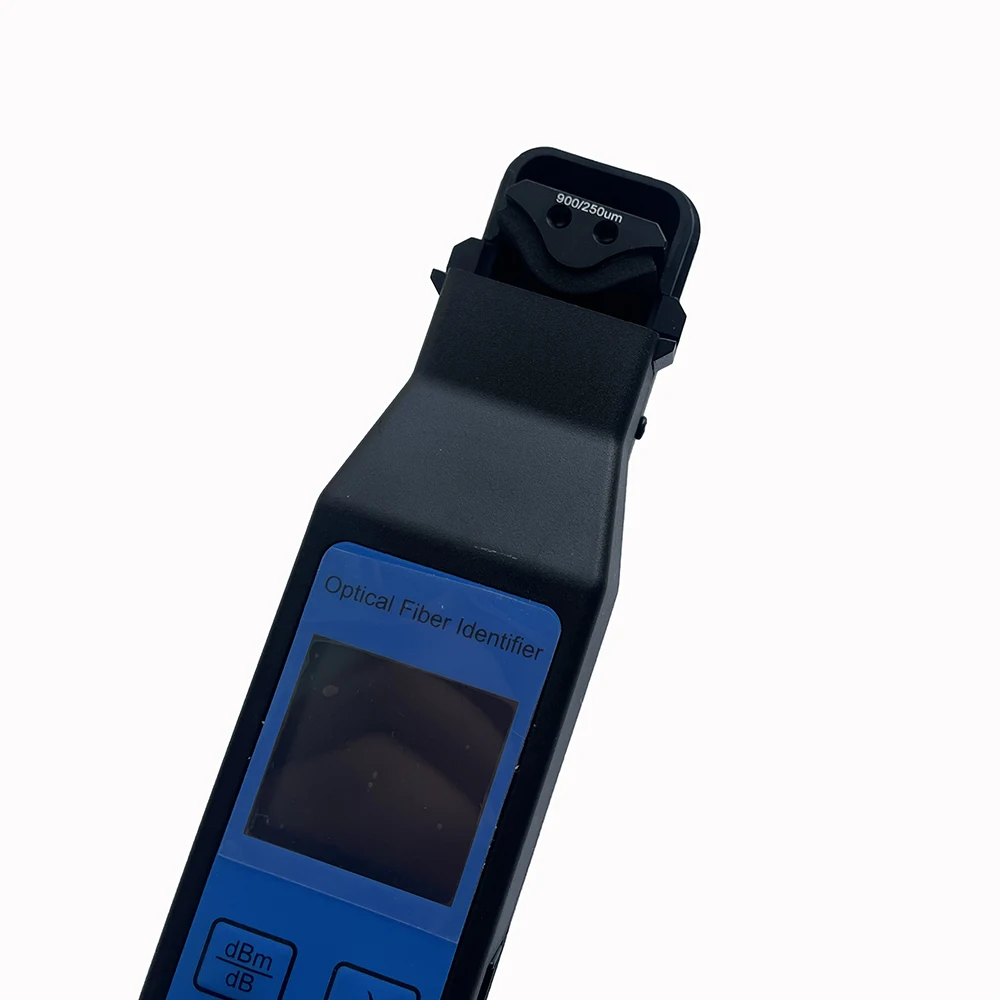

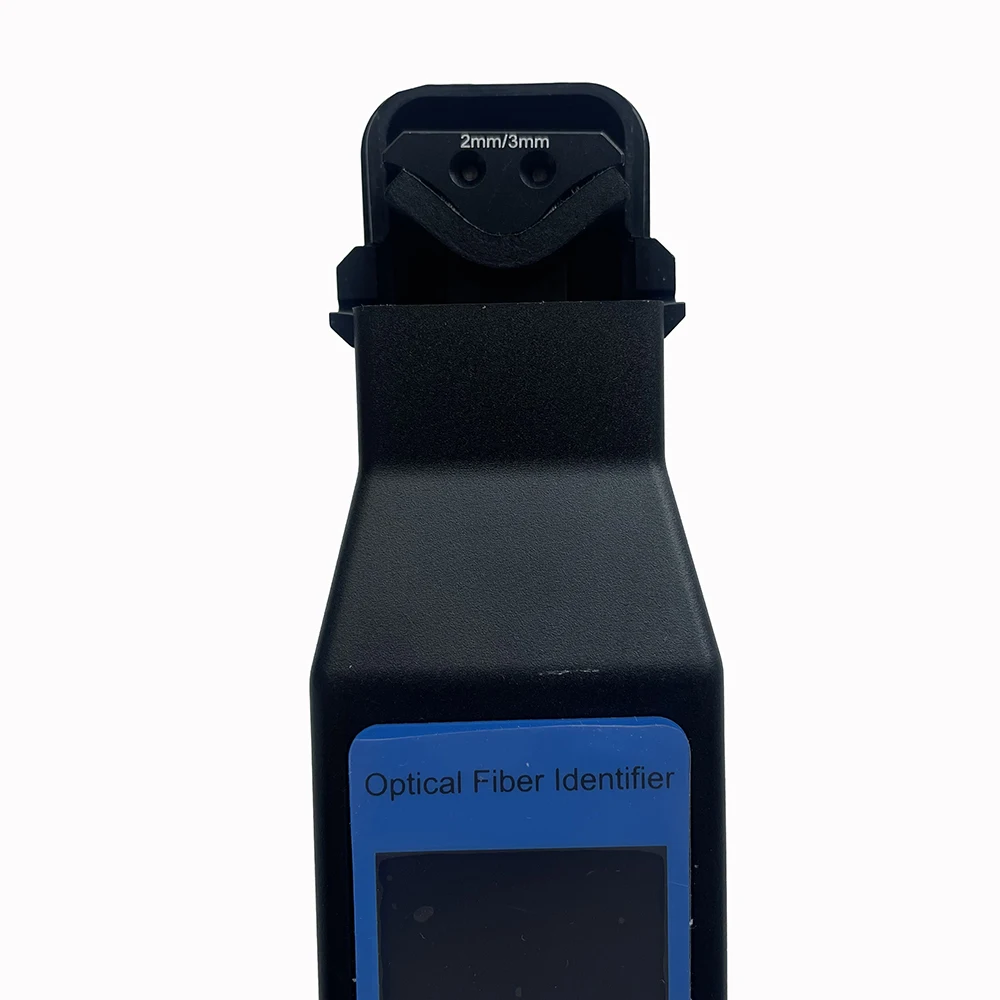

Metal gripper, no need to change the adapter
Low battery monitoring function
Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber.



Technical Specifications

Wavelength: 800nm-1700nm

Pass through insertion loss:
1. 250um / 900um optical fiber: 1.0dB
2. 2.0 / 3.0 optical fiber: 1.5dB

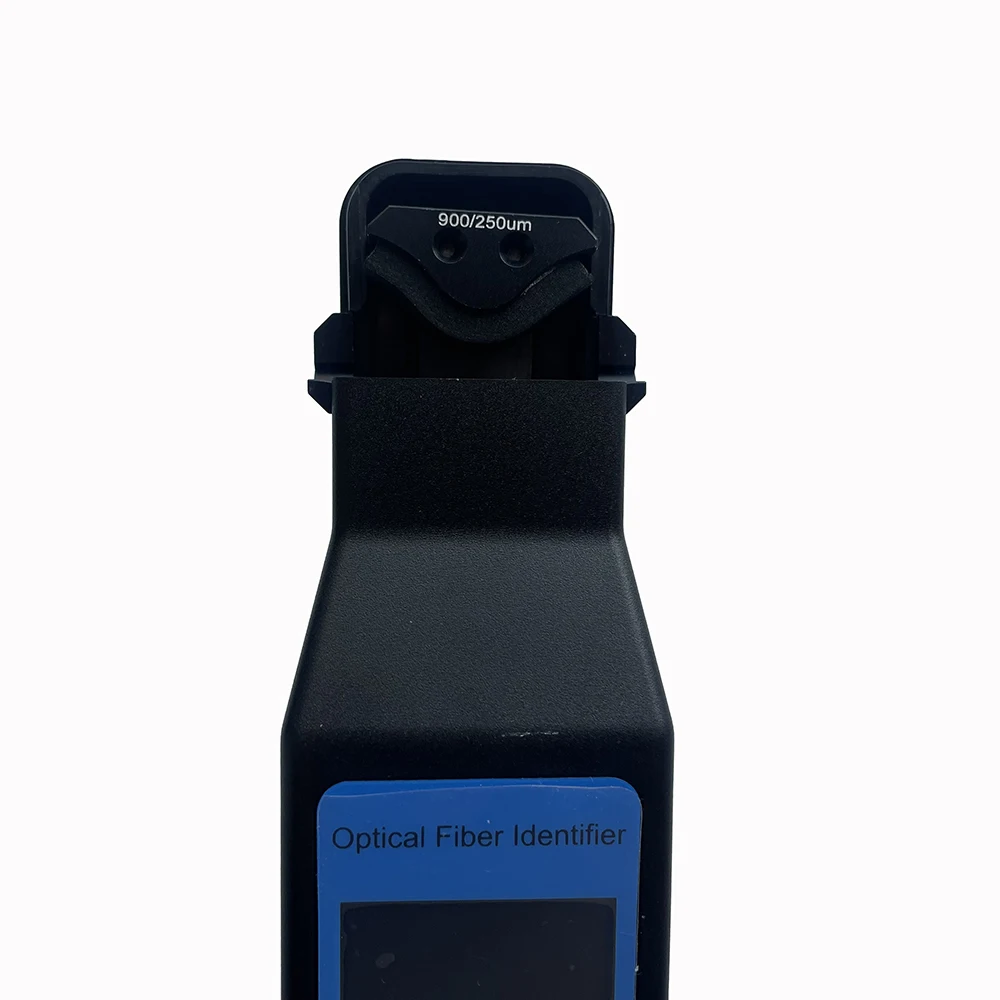

Application of optical fiber: 250um/900um/2mm/3mm optical fiber
Identified Signal Type: 270HZ/1KHZ/2KHZ
Identification of modulated signals: Yes
Power Measurement: Yes
Display: LED color screen
Tone: Yes
Low power monitoring: Yes
Detector type: 1mm InGaAs Specifications of VFL



Specifications of VFL
Wavelength: 650nm±10nm
Output Power: 10mW

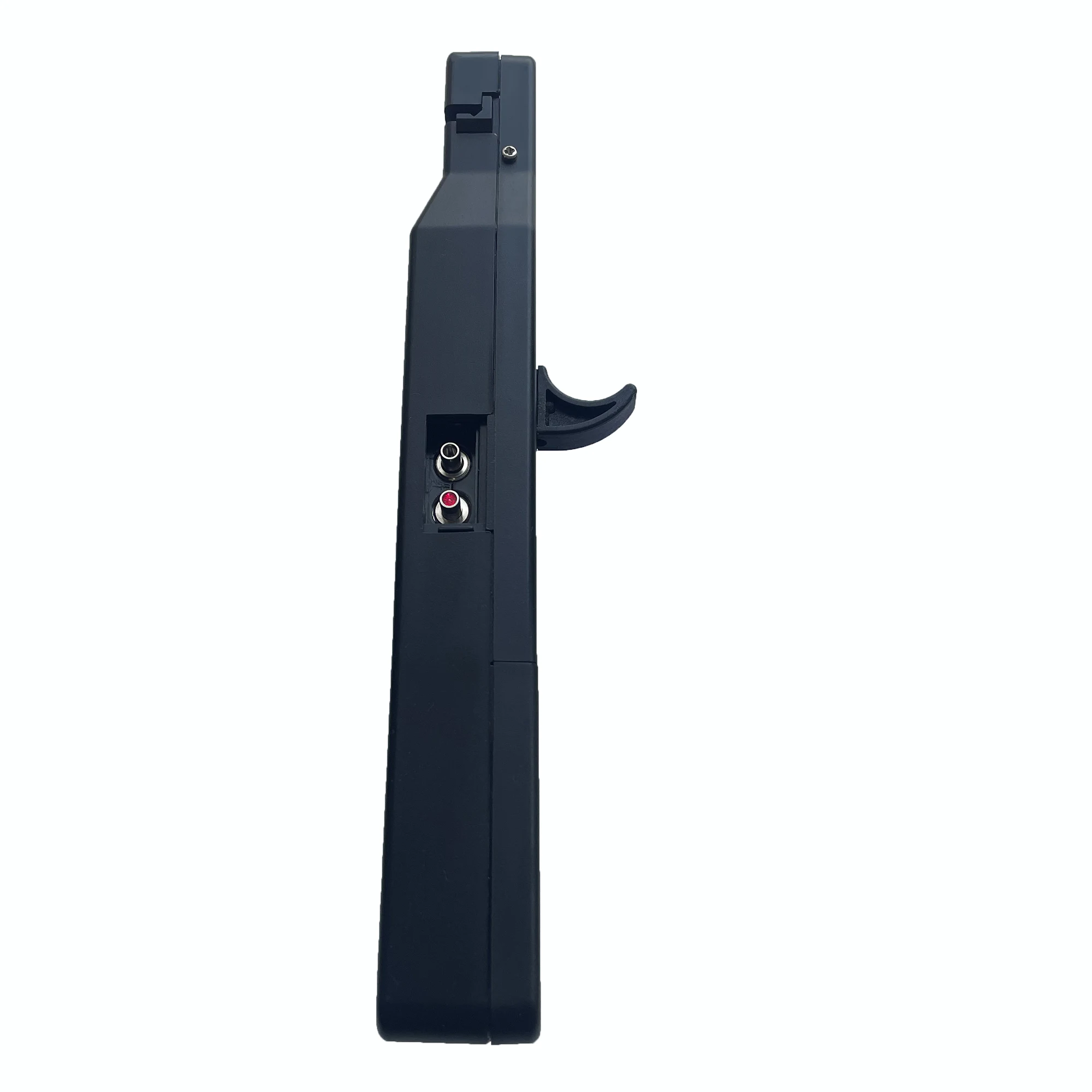

Fiber Port: 2.5 universal connector



Specifications of Optical Power Meter
Wavelength: 800~1700nm
Calibration certificate: 850/1300/1310/1490/1550/1625nm
Measurement range: -50~+26dBm
Connector type: 2.5 universal connector
Power supply: 2*AA 1.5V Alkaline Battery
Operation Temperature: -10℃ to +50℃
Storage Temperature: -20℃ to +70℃
Outline size: 230*43*36mm
weight: 200g
