Dry Process 1830*7500 Steel Slag Ball Mill For Sale

Product Description

Slag ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement,new building material, silicate, refractory material, ferrous metal,fertilizer, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

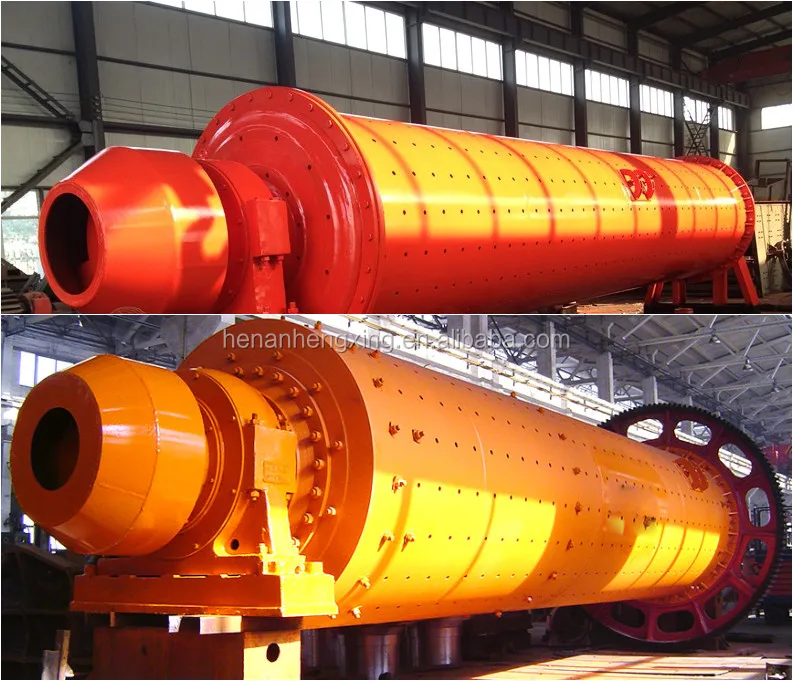

Dry Process 1830*7500 Steel Slag Ball Mill For Sale

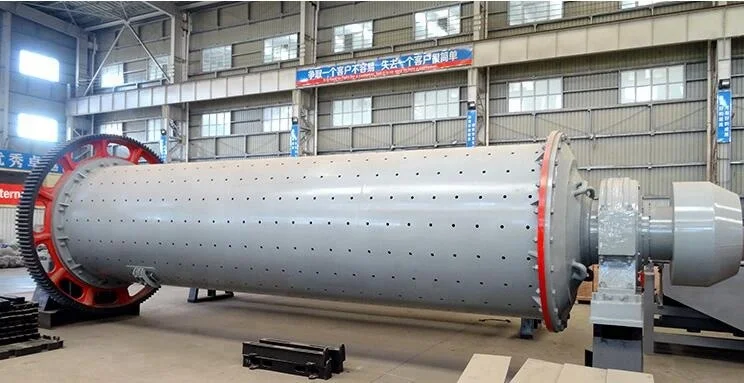

steel slag ball mill.jpg

Slag ball mill can be applicable to all kinds of ores and other materials, and is widely used in dressing, building materials, chemical and other industries. Grinding ways can be divided into dry and wet these two types. According to different ore discharge ways, it can be divided into grid type and the overflow type.

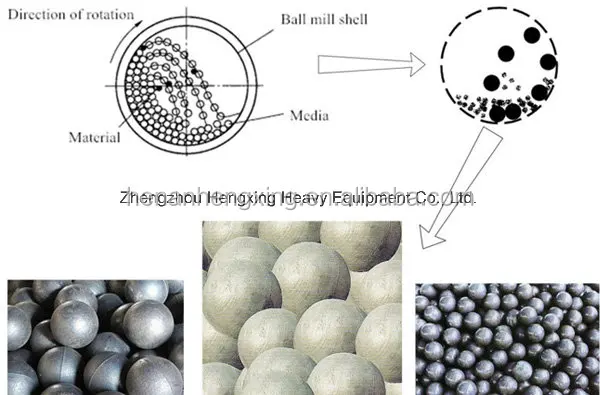

Steel slag ball mill working principle:

Materials enter evenly into the first storehouse from feeder though the empty tube in a spiraling way. There are stepped lining plate and corrugated plate in this house which is equipped with different kinds of steel balls. The steel balls are lifted at a certain height with centrifugal force producing by running tube and fall down. The moving steel balls hit and grind materials during such process. The materials are coarse crushed in the first storehouse, then they enter into the second storehouse though single-wall partition. There are steel balls and a plane liner in the second storehouse which will further grind the materials. The powder material is discharged from exit plate. Then the whole grinding line finishes.

steel slag ball mill

Slag Ball Mill Features:

1.high efficiency
2.small investment
3.high return
4.less pollution
5.simple operation
6.reliable working

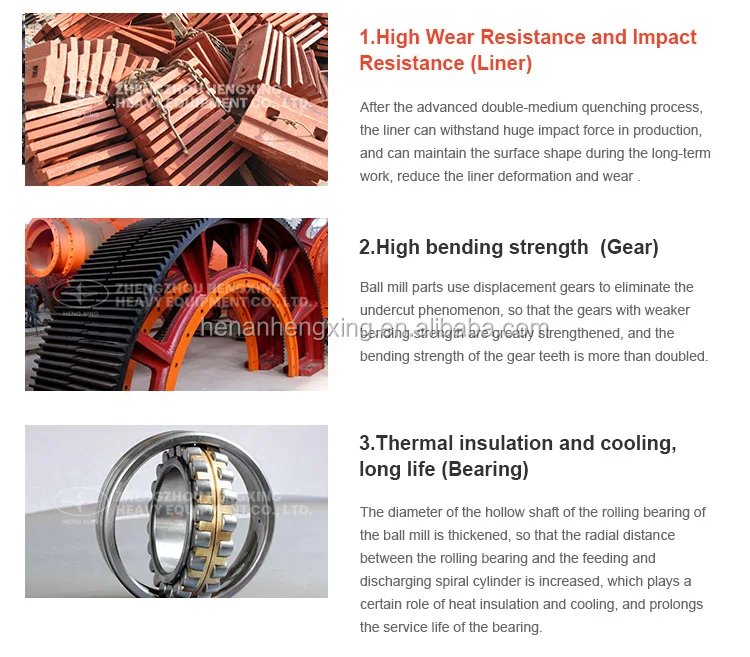

This slag ball mill is composed by feeding department, the material department, rotary department, transmission department (reducer, small gear motor, electric control) and other major parts. Hollow shaft adopts steel castings, and the lining is shiftable. The rotary big gear has the good abrasion resistance, with cast roll teeth processing, the cylinder body set with wear-resisting lining board. This machine is smooth operation and reliable work.

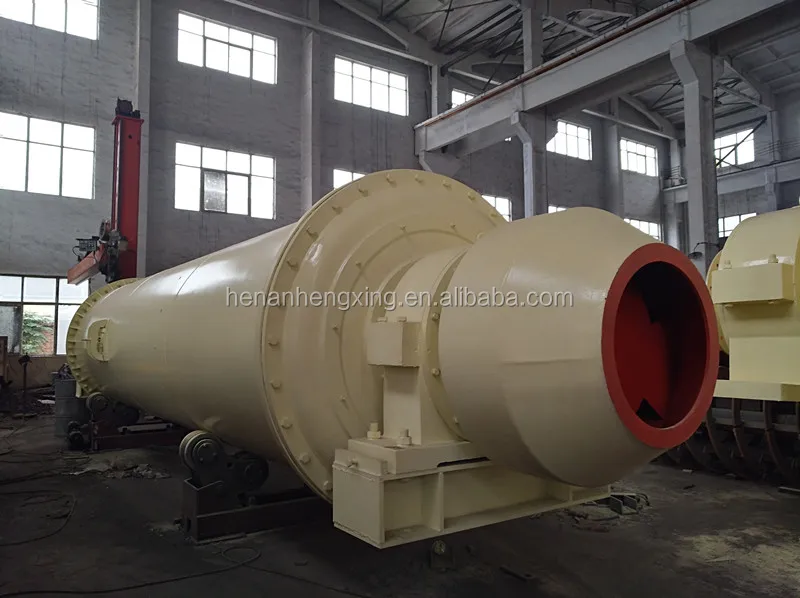

Dry Process 1830*7500 Steel Slag Ball Mill For Sale

Steel slag ball mill technical parameters:

Model	Shell rotation speed (r/min)	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.85
900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.98
1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	13.6
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	14.3
1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	15.6
1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	19.5
1500×4500	27	11	≤25	0.074-0.4	3-6	110	22
1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	34.5
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	38
1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	45
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	56
2100×7000	23.7	26	≤25	0.074-0.4	12-48	280	59.5
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	54.5
2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	61
2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62.5
2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	72
2700×4000	20.7	40	≤25	0.074-0.4	22-80	380	95
2700×4500	20.7	48	≤25	0.074-0.4	26-90	480	102
3200×4500	18	65	≤25	0.074-0.4	As per process conditions	630	149

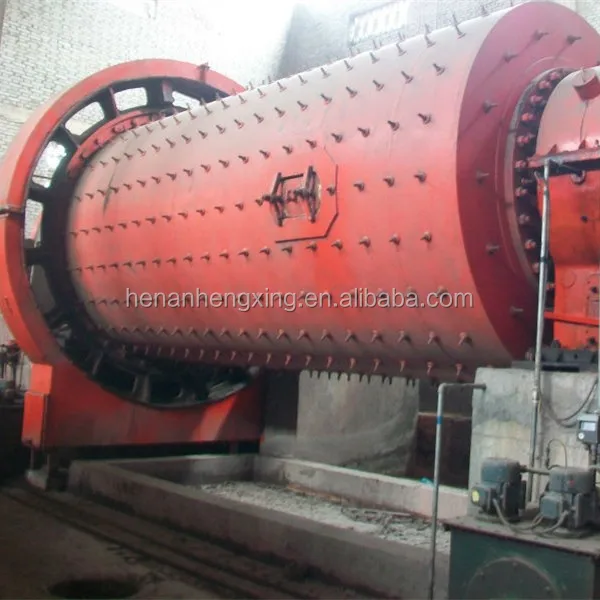

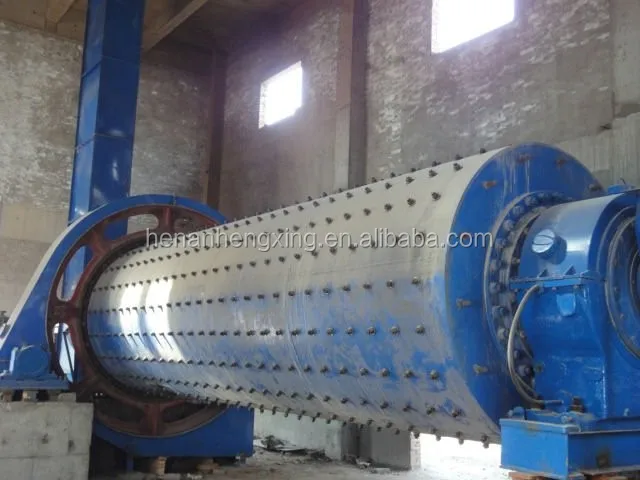

Steel slag ball mill customer case :

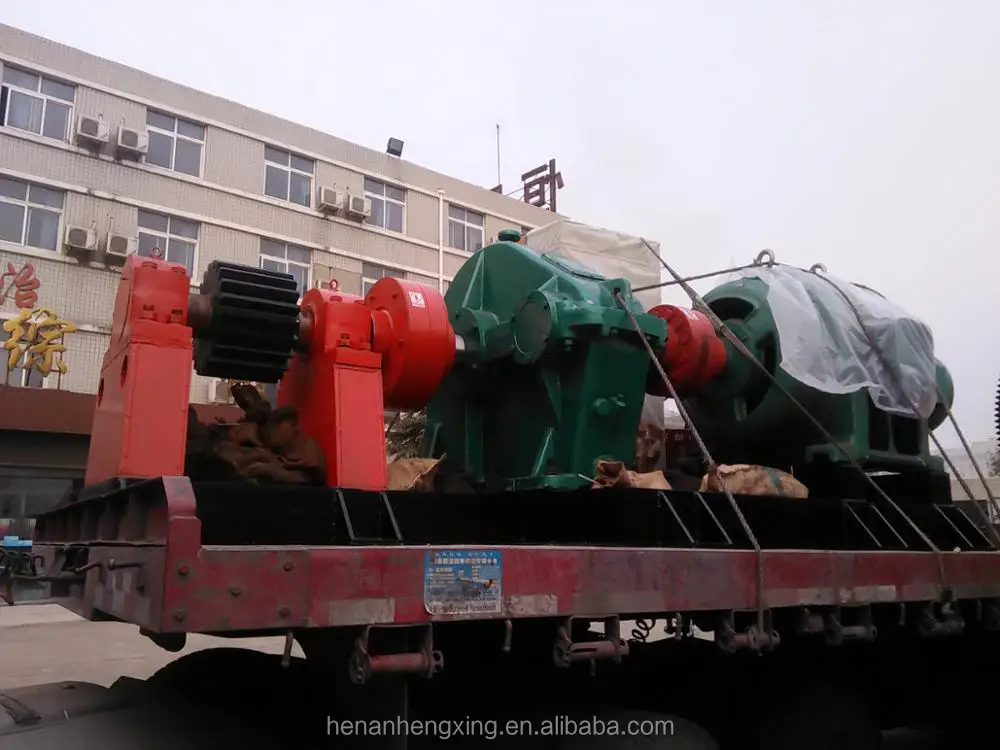

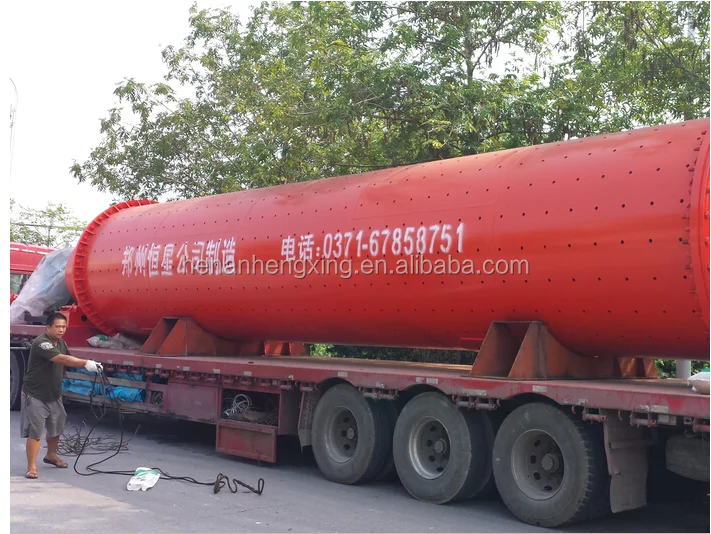

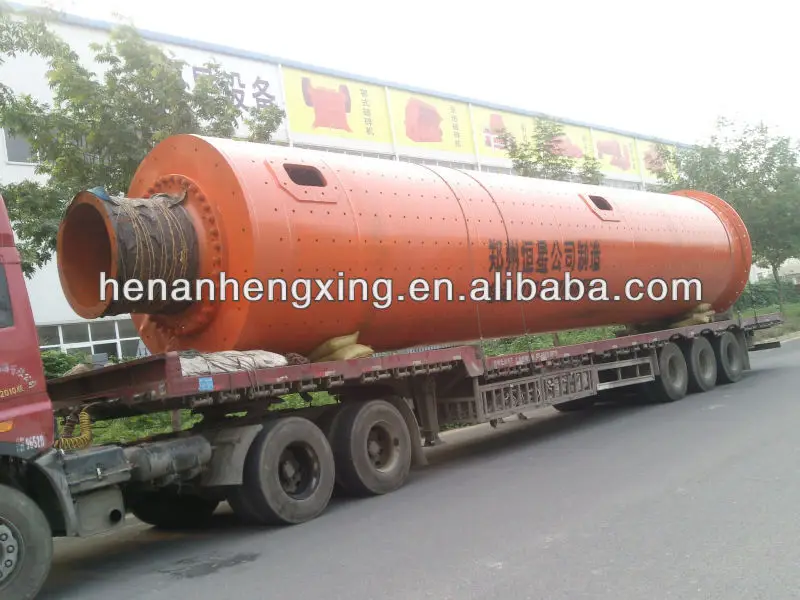

Packaging & Shipping

The steel slag ball mill will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.

We promise that the steel slag ball mill will be shipped to you timely and safely.

steel slag ball mill

Our Services

Hengxing equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.

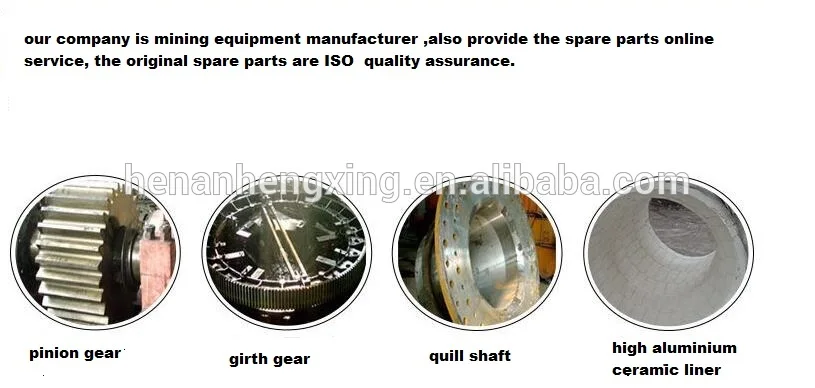

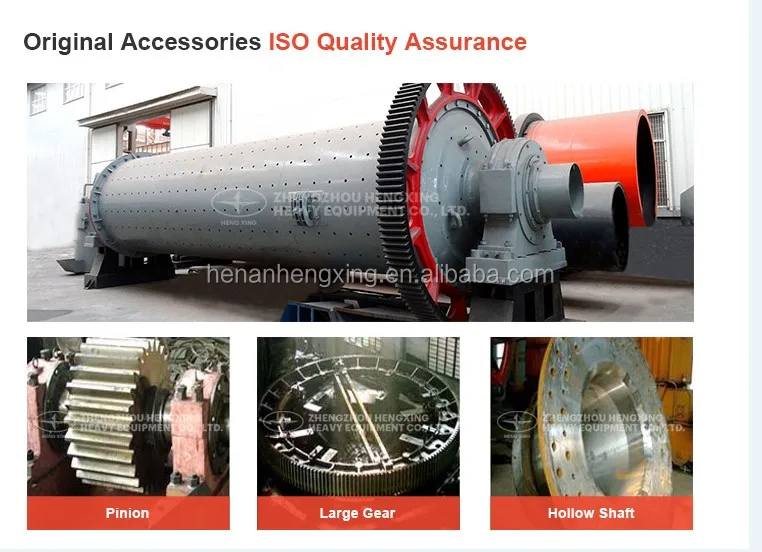

About Spare Parts

Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.

About Training

Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.

About Installation and Commissioning

Hengxing equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
