Galaxy UD3212LD 2 dx5 heads 3.2m large format eco solvent printer vinyl printer

Product Overview

Description



1.Printhead: dx5 printhead (F186000)

 2.Printing media: vinyl, polyester,flex,back-lit film, PS Board, KT Board, PVC Foam Board etc

 3.Printing Width 1.6Meter, 1.8Meter, 2.1Meter, 2.5Meter,3.2meter .

  Advantage for UD printer:

1.Full Aluminum platform

2.X.Y Axis AC Servo motors

3.Bearing rail. Stable and long durability

Model	UD-3212LC
Print Head	DX5
Number of Print Head	2 Head
Max Printing Width	3200mm
Print Speed (m2/h)	Print mode	Standard output(m2/h)
	Draft	2 PASS 66
	Standard	3 PASS 44
	Quality	6 PASS 22
	High Quality	8 PASS 16
	Backlit	12 PASS 11
Ink	Type	Solvent Ink / ECO Solvent Ink
	Color	4 Color (C,M,Y,K)
	Capacity	1L per Main Tank of Each Color
	Ink Supply System	Auto Ink Supply System
Media	Width	Maximum 3300mm
	Type	Vinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding System	Equipped Max media weigh 40kg
Auto Cleaning System	Anti-clogged flash function and capping system
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB2.0
Print Head Height	2-10mm from media
Rip Software	Ultraprint, Maintop, Photoprint, Shiraz, Wasatch
Input Power	AC220v, 50HZ/60HZ
Machine Dimension	L4,500 x W905 x H1,260mm / 304KG
Package Dimension	L4,590 x W1,100 x H940mm / 547KG
Requirement	Temperature: 20-28 degree, Humidity: 40% - 60%



Pictures to referece:

New model UD-3212LC of galaxy eco solvent printer .

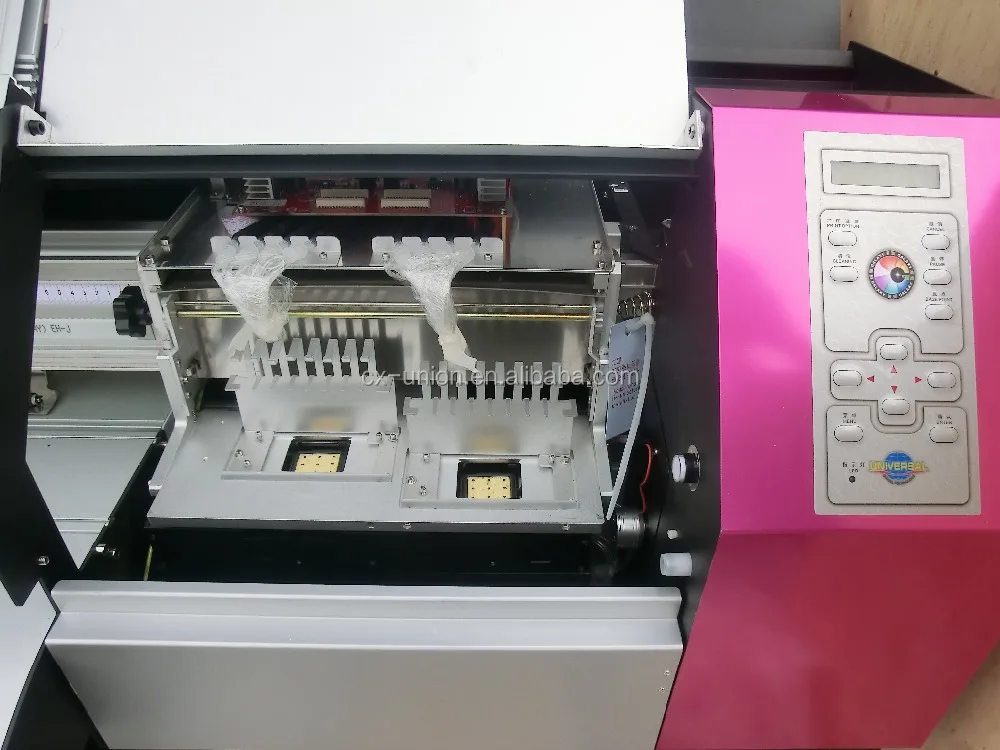

Automatic cleaning&capping system.

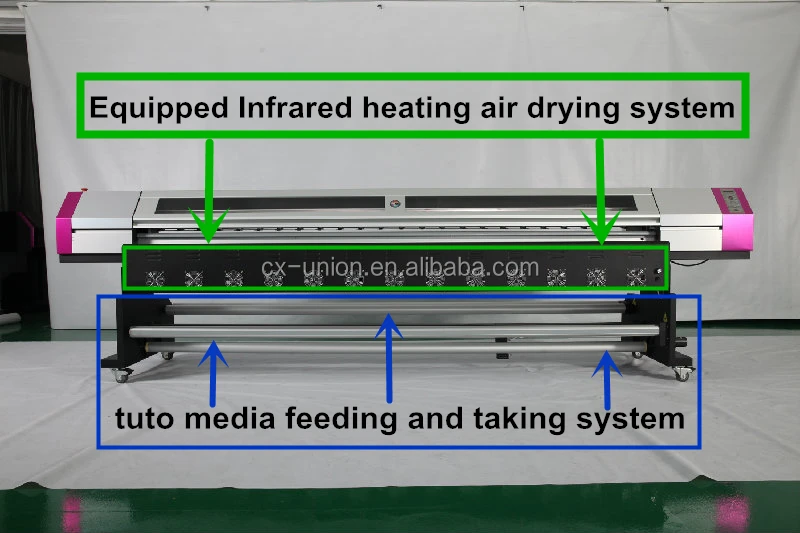

Fans to make the picture dry fast and keep the color vivid .

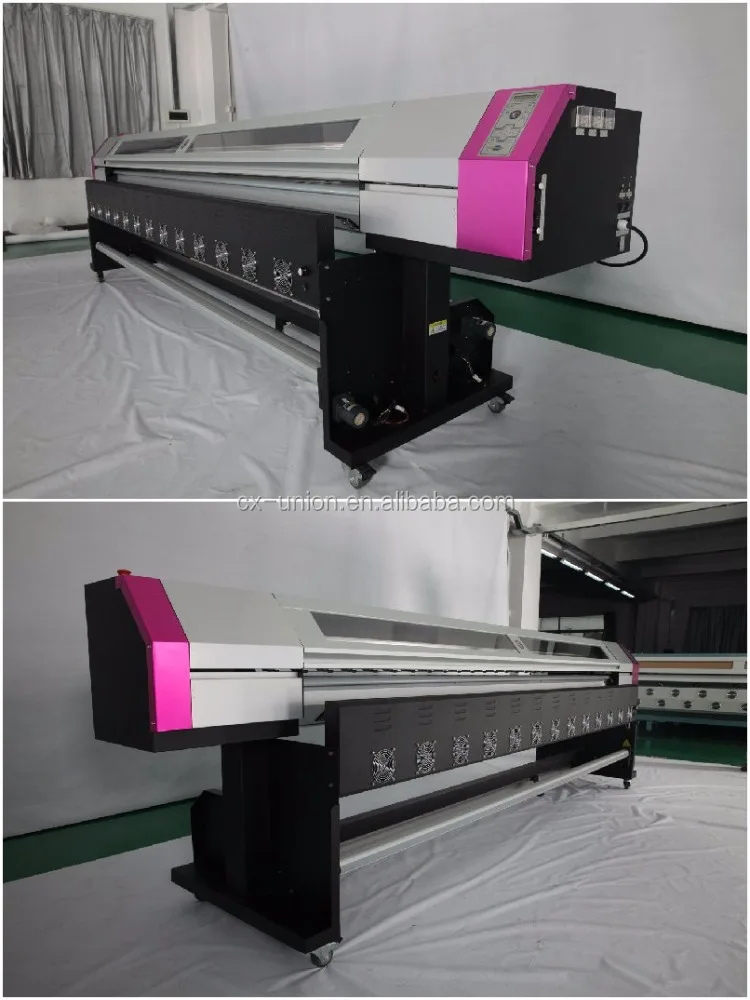

Strong body of the machine,ensure the quality of printing.

Temperature adjustors.

Continous ink system,just need to insert the ink box directly .Very easily.

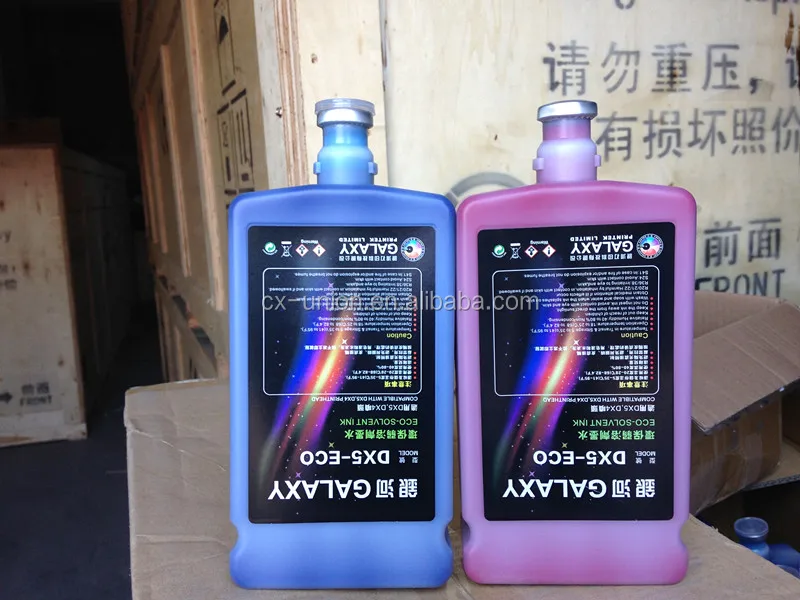

Original galaxy dx5 eco solvent ink for this machine .

strong&accurate media feeding&take-up system.

New design of media clamps,can print two rolls media(Banner,Vinly,etc) at the same time

 Safe packing .

All machines are guarantee to deliver within 7 days after payment confirmed.

Machines are in sufficient stock in the warehouse. Your are welcomed to come for checking machines and chating business face to face in guangzhou .

Another , we can supply eco solvent ink solvent ink for Konica ,Spectra ,galaxy printers

Any interesting ,please do not hesitate to contact us .



Another , we can supply eco solvent ink solvent ink for Konica ,Spectra ,galaxy printers



Any interesting ,please do not hesitate to contact us .



You may interesting in this print heads . We provide 100% original and brand new products.









 Technical Support  :

 1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .

 2. All kinds of original spare parts for the machine to ensure your machine running smoothly .

 What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .

 This month our company has discount for the machine . And the shipping cost will be 30% off.  Please feel feel to contact us .
