Double Arm Articulating Cantilever TV Bracket Wall Mount with Tilt for 40" 70" LCD LED Plasma Flat Panels

Double Arm Articulating Cantilever TV Bracket Wall Mount with Tilt- for 40"-70" LCD LED Plasma Flat Panels

Products Features

Super Low Profile:
Super low profile design saves the room space and makes your TV looks like a picture hanging on the wall
Extended swivel arm:
Extended arm offers wide-angle optimum viewing position.
Angle free tilt:
It provides effortless adjustment of viewing angle without tightening the knob.
Safty Lock system:
Built in safty lock keeps your flat panel Tv safty and stable.

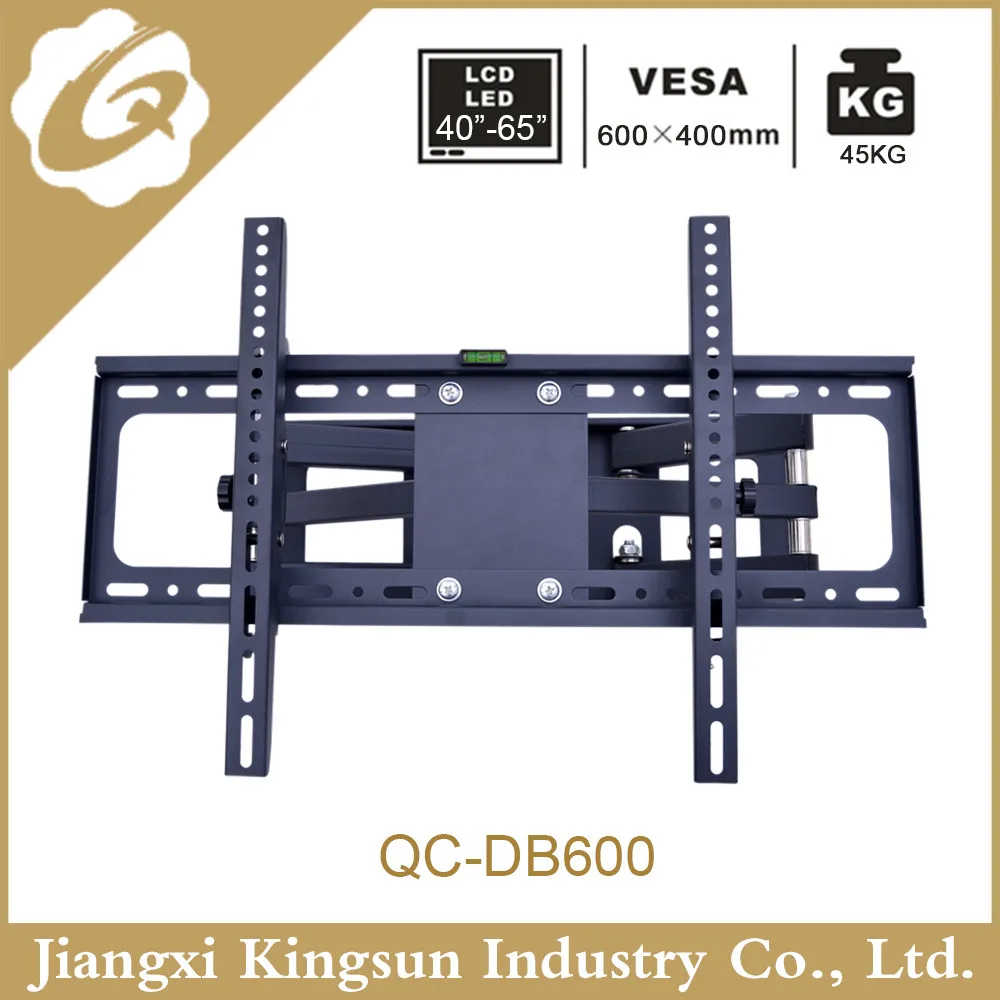

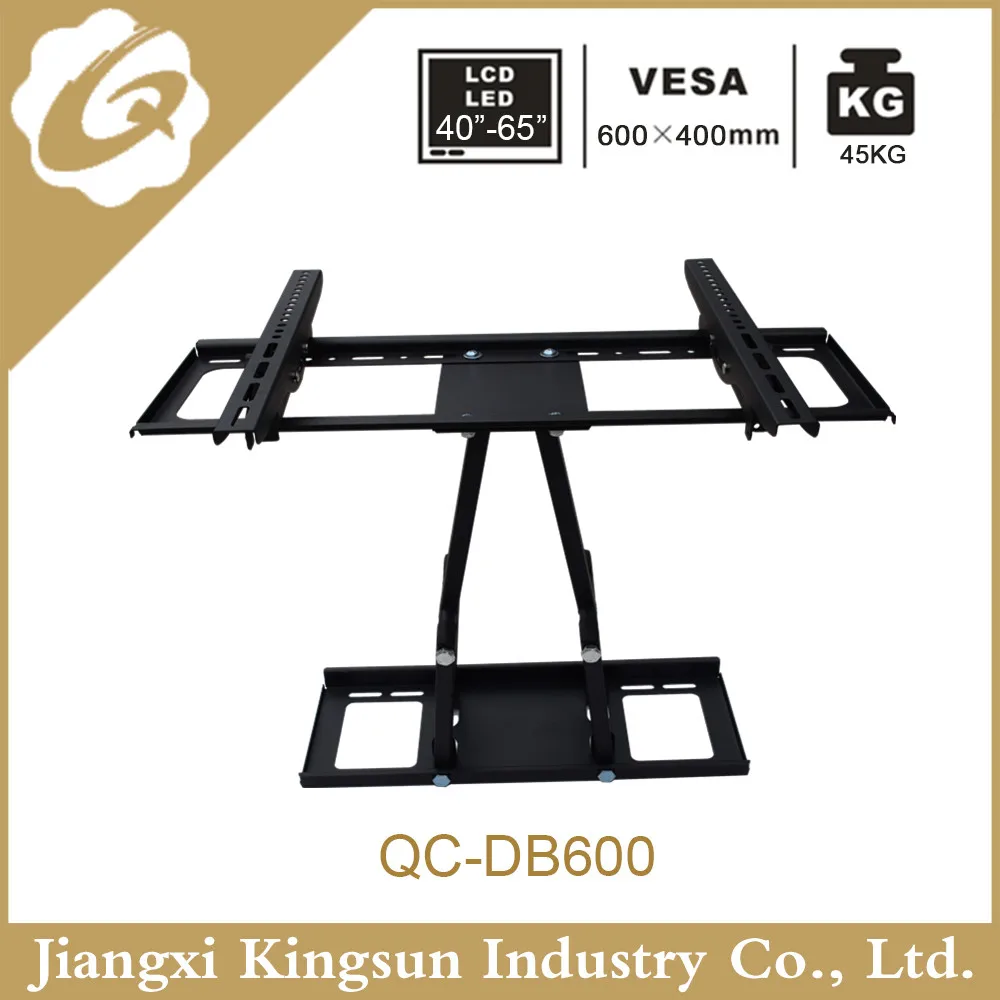

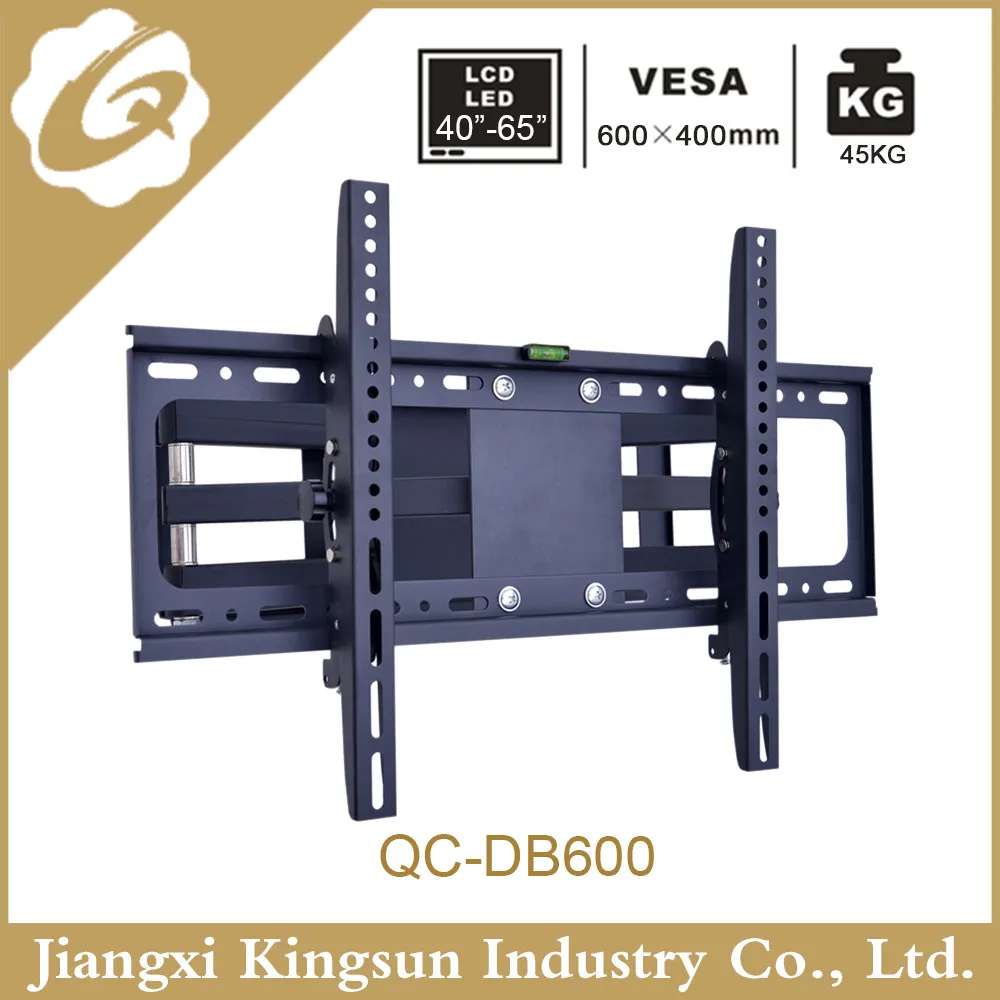

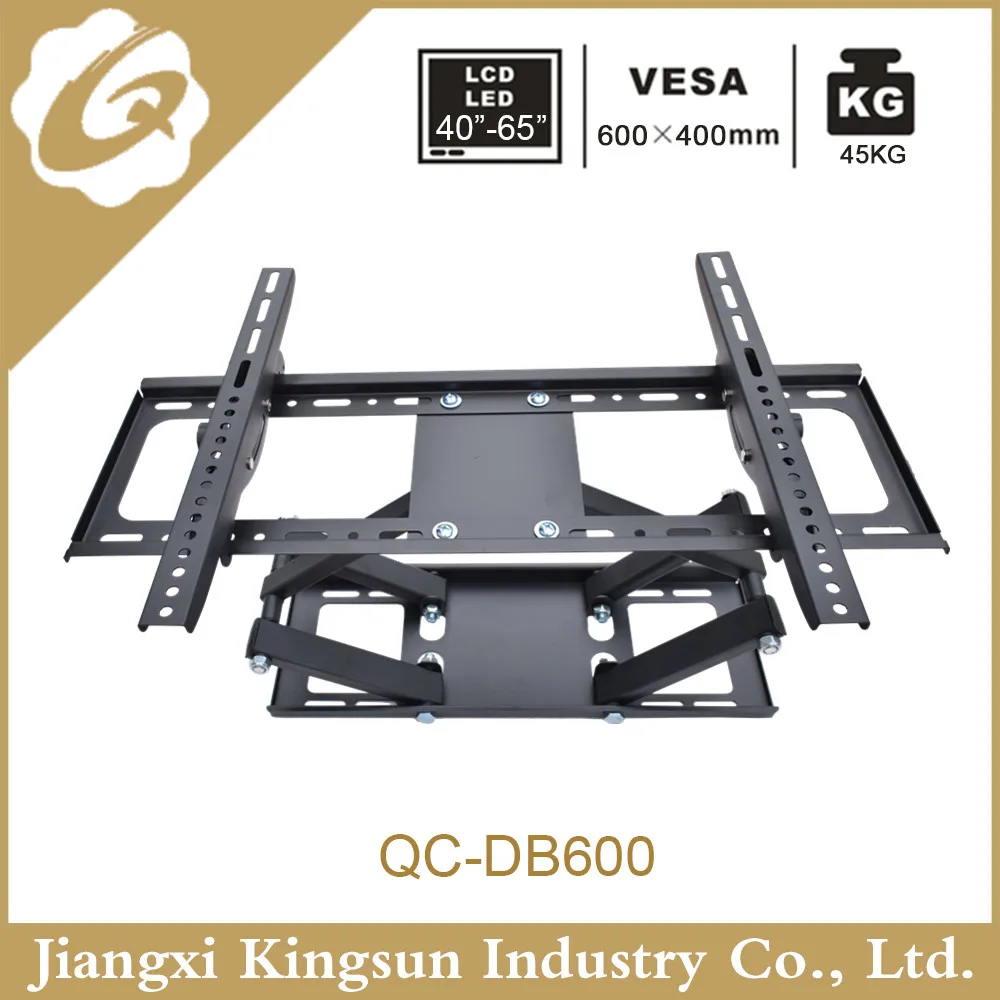

Double Arm Articulating Cantilever TV Bracket Wall Mount with Tilt- for 40"-70" LCD LED Plasma Flat Panels
Product Name	Full motion LCD LED PLASMA TV wall mount bracket
Model Number	QC-DB600
Suggested Screen Size	40"-70"
Max.Hole Pattern	640x410mm
VESA	100x100, 200x200 300X300, 400X400, 600x400 etc.
MAX. Load Weight	50kg / 110lbs
Distance to Wall	70-570mm
Adjustable	Tilting +15 degree/-15 degree
Material	Cold Rolled Steel / SPCC
Thickness of Material	1.4mm
Surface Finish	Powder Coating
Available Color	Matt Black
Bubble Level	YES
Installation	Solid wall, Single Stud

Products Show

Tilting Design

No tools will be able to achieve the vertical tilt adjustment
+15 Degrees and -15 degrees can be adjusted in line with any of your intimate sitting comfort

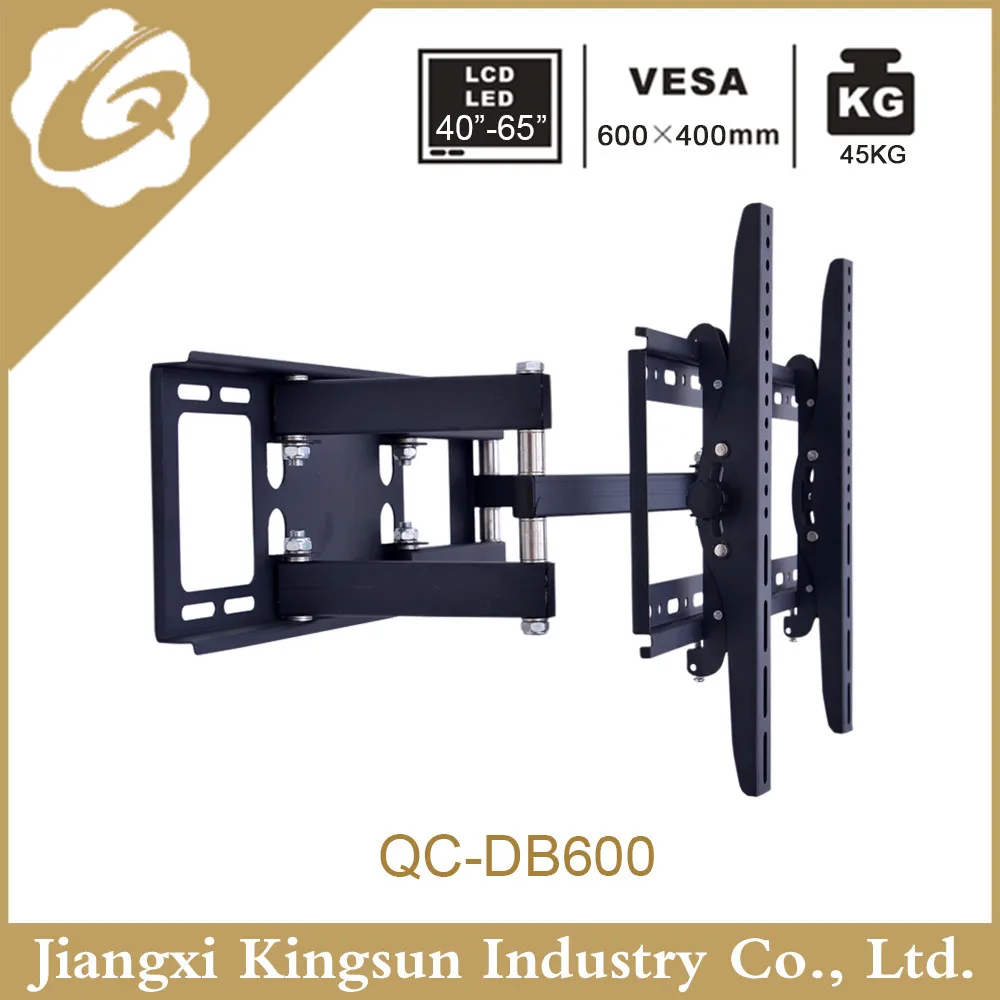

Wide arm system

120 degrees wide-angle rotation, to meet the needs of different viewing angle, a TV set equal to three

More Details

Material

Cold-rolled plate
No surface oxide scale, high hardness, good punching performance, prolonged use less prone to corrosion and deformation

Surface Finish

Electrostatic spraying technology
Surface color pure, uniform surface, smooth, beautiful and generous, moisture, rust, do not fade

Self-tapping screws

Alloy high-strength screws
High strength, high hardness alloy materials, will not easily fall off, to ensure that the user's life and property more secure

ABS resin expansion pipe

ABS resin material production, has good stability, can be used at very low temperatures, good impact strength, wear resistance, corrosion resistance

Packing & Delivery

Packing Details : Articulating full motion tv wall mount bracket QC-DB600, 1pcs in gift box, 2pcs in one carton.

Delivery Details : 30-40 days after order of fixed tv wall mount bracket confirmed.

Exquisite gift packaging and transport packaging

Our Service

Manufactory

Jiangxi Kingsun Industry Co., Ltd. was specialized in producing LCD/LED/Plasma TV wall mounts.

Serious Quality Control

We focus on products quality, keep pursuing the perfection. With the courage and confiidence, Keep moving forward till reach the top of innovation. And after that , the satisfaction from you will be our great Honor.

Our Company

JIANGXI KINGSUN INDUSTRY CO., LTD.

Jiangxi Kingsun Industry Co., Ltd. was founded in2013, specialized in LCD/LED/Plasma TV wall mounts.
Our company take 30,000 square meters,have 4 workshops include stamping workshop, tooling workshop ,assembly workshop and paint spraying workshop .Our products exported to North America, Europe ,Australia and Middle East .Customers feedback always is high satisfactory.

Factory

Stamping Workshop

Warehouse

Team

Exhibition

2015 Brazil Electronic Show

GITEX 2015

The China Import and Export Fair 2015

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: What is your Policy for damaget working TV Brackets?

A: For those items have quality problems, we can agreed to return them back for repairing.

Q: Can we use our own designed color box?

A: The defaul package is common brown box with sample word printing, we aslo can use your designed color box, and you need to advise your packaging requirement ahead of time for an accurate quote.
