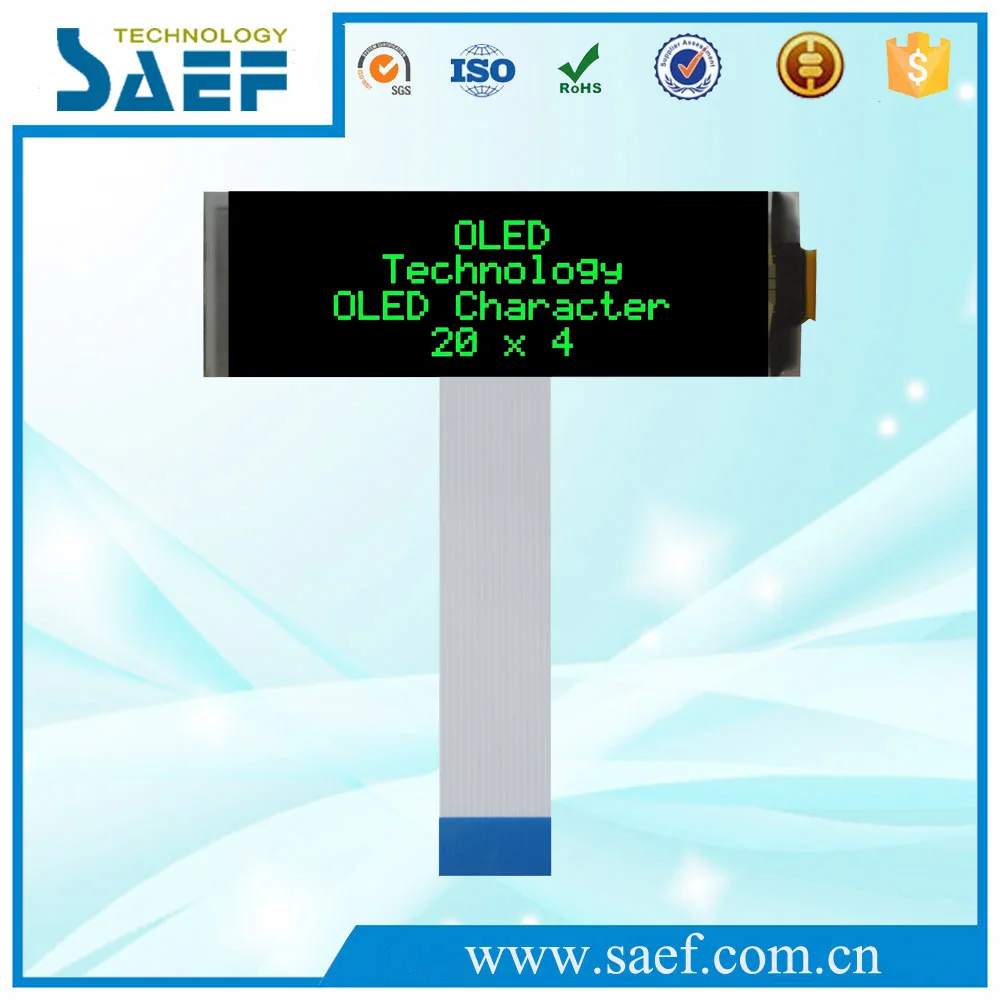

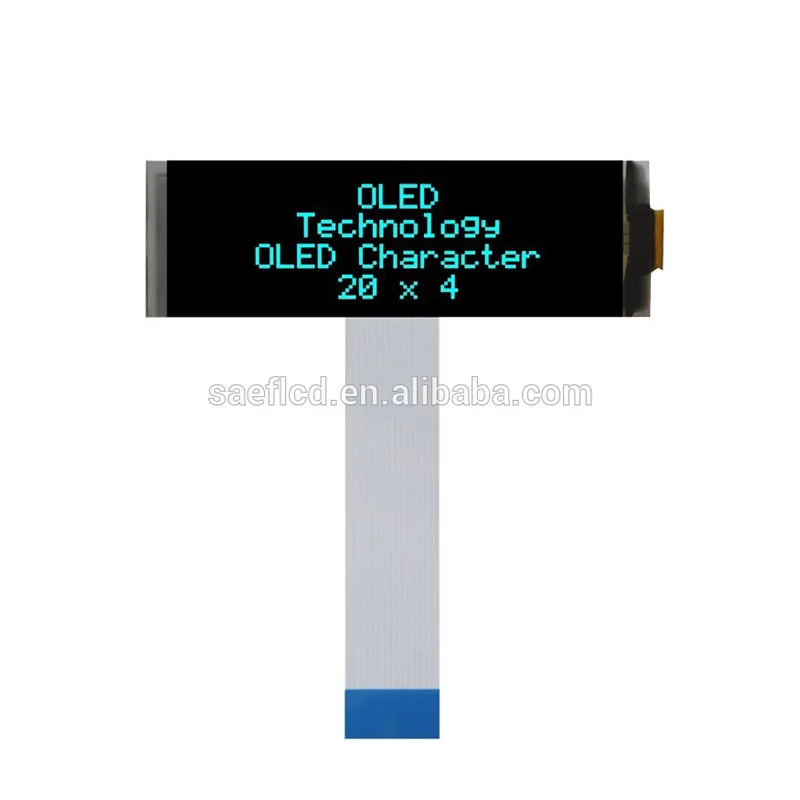

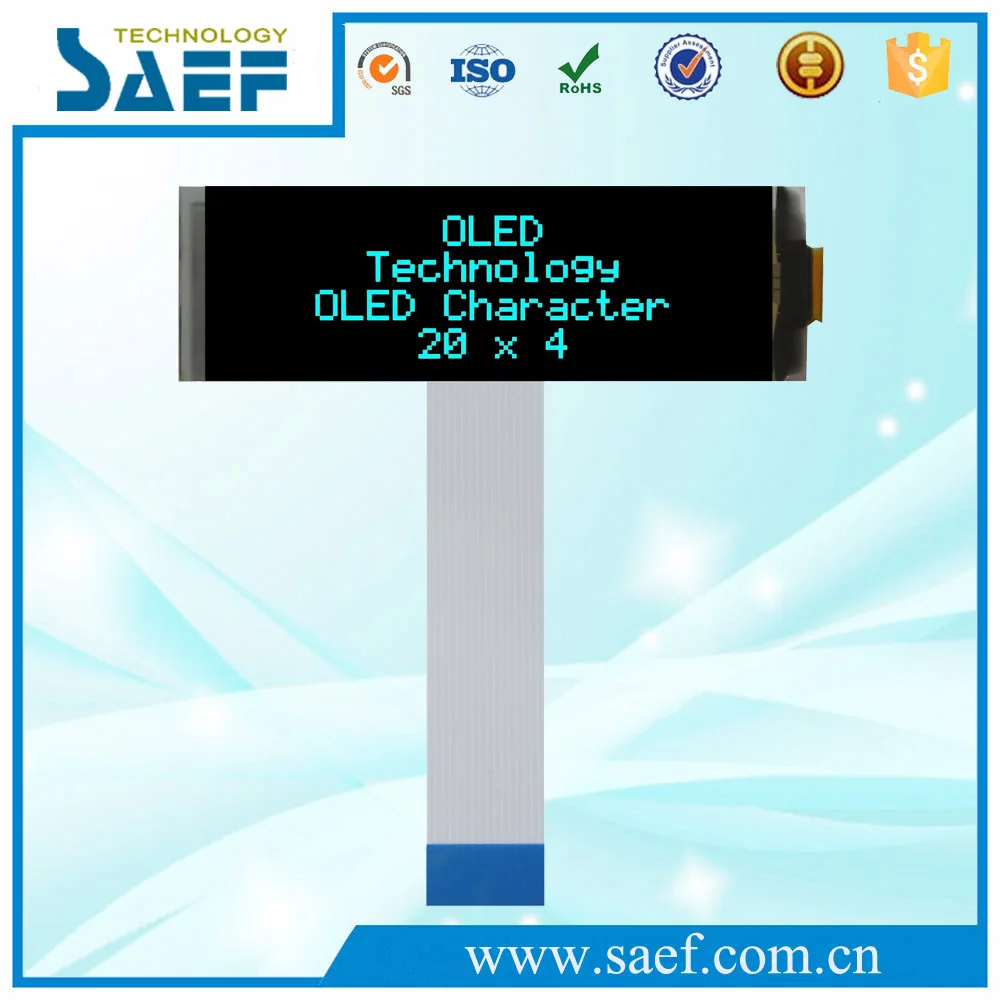

20x4 character blue lcd module 2.9/3 inch oled COB type display panel
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd. [Guangdong China]Shenzhen
Share on (60443681052):
Product Overview
Description
20x4 character blue lcd module 2.9/3 inch oled COB type display panel
1. Display Type: | 20x4 character oled display |
2. Interface Type : | 6800/8080 /SPI/I2C |
3. Outline Dimension : | 84.5(W)×27.5(H)×6 max(D) |
4. Display Format : | 20 characters (W)×4 lines (H) |
5. Viewing Area : | 77(W)mm×25.2(H)mm |
6. Dot size : | 0.57(W)mm×0.57(H)mm |
7. Dot Pitch : | 0.60(W)mm×0.60(H)mm |
8. Duty Ratio: | 1/32 Duty |
9.Viewing angle : | Free |
10. Controller : | SSD1311 or Equivalent |
11.Operating Temp: | -40°C~+85°C |
12.Storage Temp: | -40°C~+85°C |
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
