Skid Steer Loader 1000kg with multifunctional implements

Rated Operating Capacity (kg)

1000

Tipping load (kg)

2000

Bucket Capacity (m³)

0.5

Engine power (hp)

75

Operation Weight(kg)

3500

Max. Travel Speed (km/h)

12

Hydraulic Pump Flow (L/min)

75

Fuel Tank Capacity (L)

75

Tires

12/16.5NHS

Overall dimensions (mm)

3350x1900x2050

Maker

Deutz/Perkins

Net Power

80 hp @ 2500 rpm

Type

Direct-injection, in-line, Water colled, 4 stroke, Diesel Engine

Displacement

3.9~4.2L

Standard

Optional

1. Encloesed Operator Cab

1. Air Conditioner

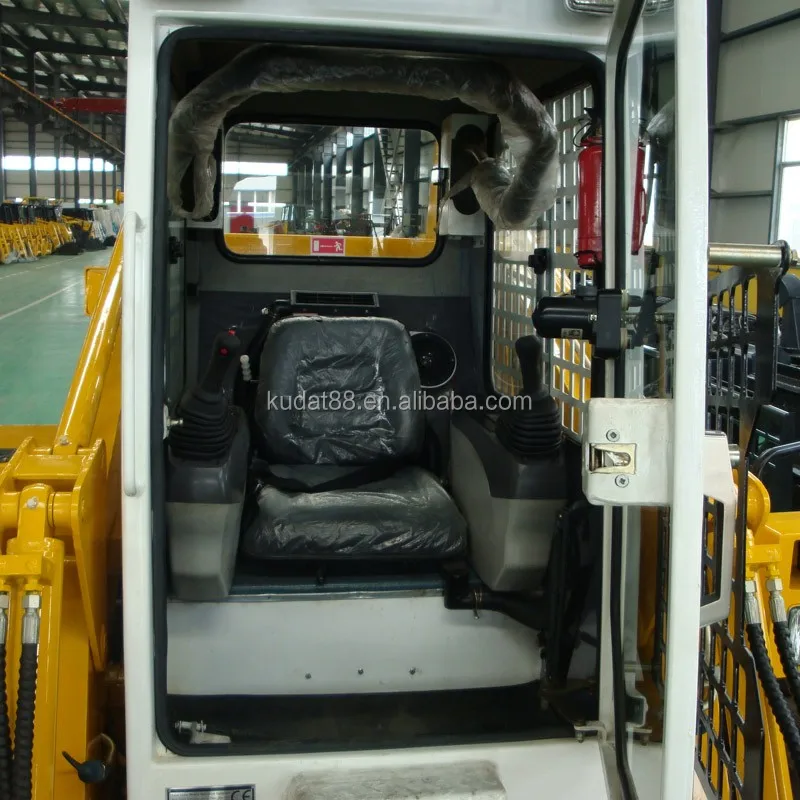

2. Hydraulic Joystick Controls

2. 2-Speed Transmission System

3. Standard Bucket

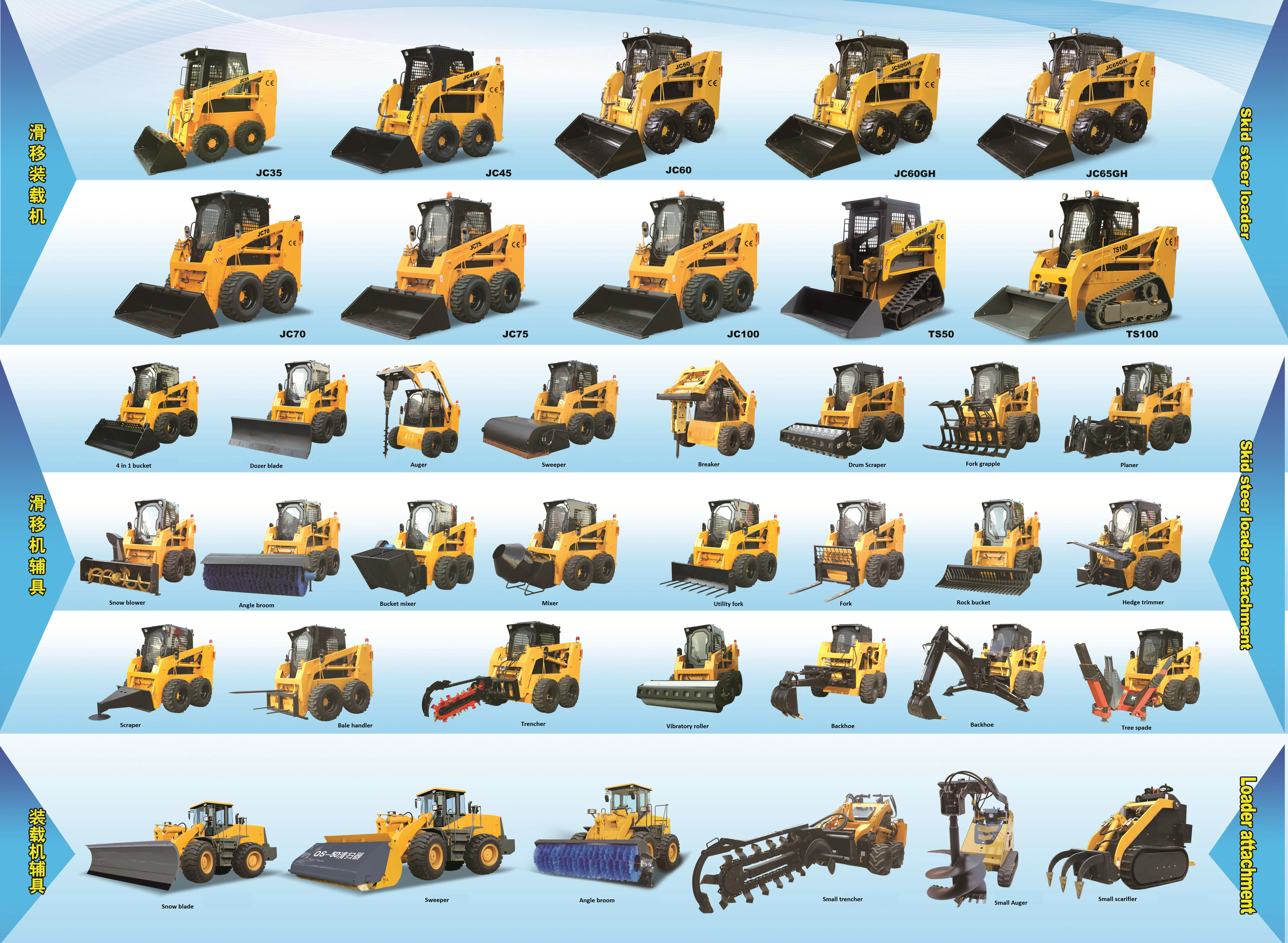

3. Attachments: Backhoe, Breaker, Angle Blade, Auger, Sweeper, Pallet Fork, Combinition Bucket, Mower, Asphalt Cutter, and More.

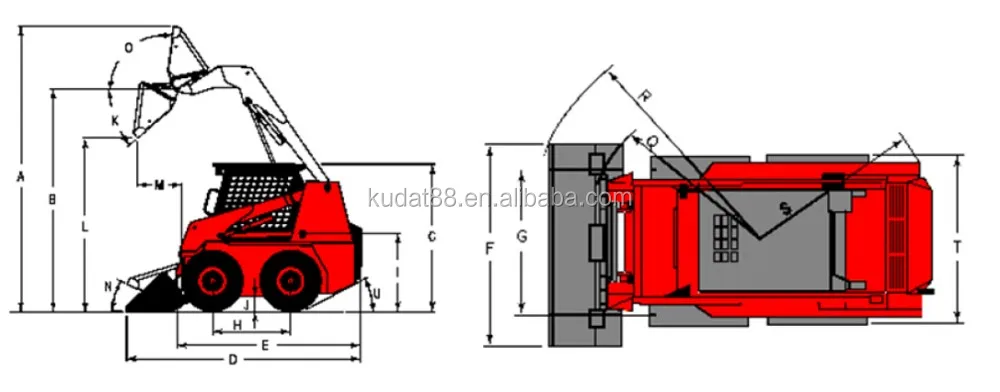

A. Height at Maximum Extension

3690mm

B. Height to Bucket Hinge Pin

2920mm

F. Width with Bucket

1880mm

G. Track Width

1500mm

H. Wheelbase

1020mm

J. Ground Clearance

205mm

K. Dump Angle

40°

L. Dumping Height

2250mm

N. Rollback at ground

26°

U. Angle of Departure

20°
