Product Overview
Description

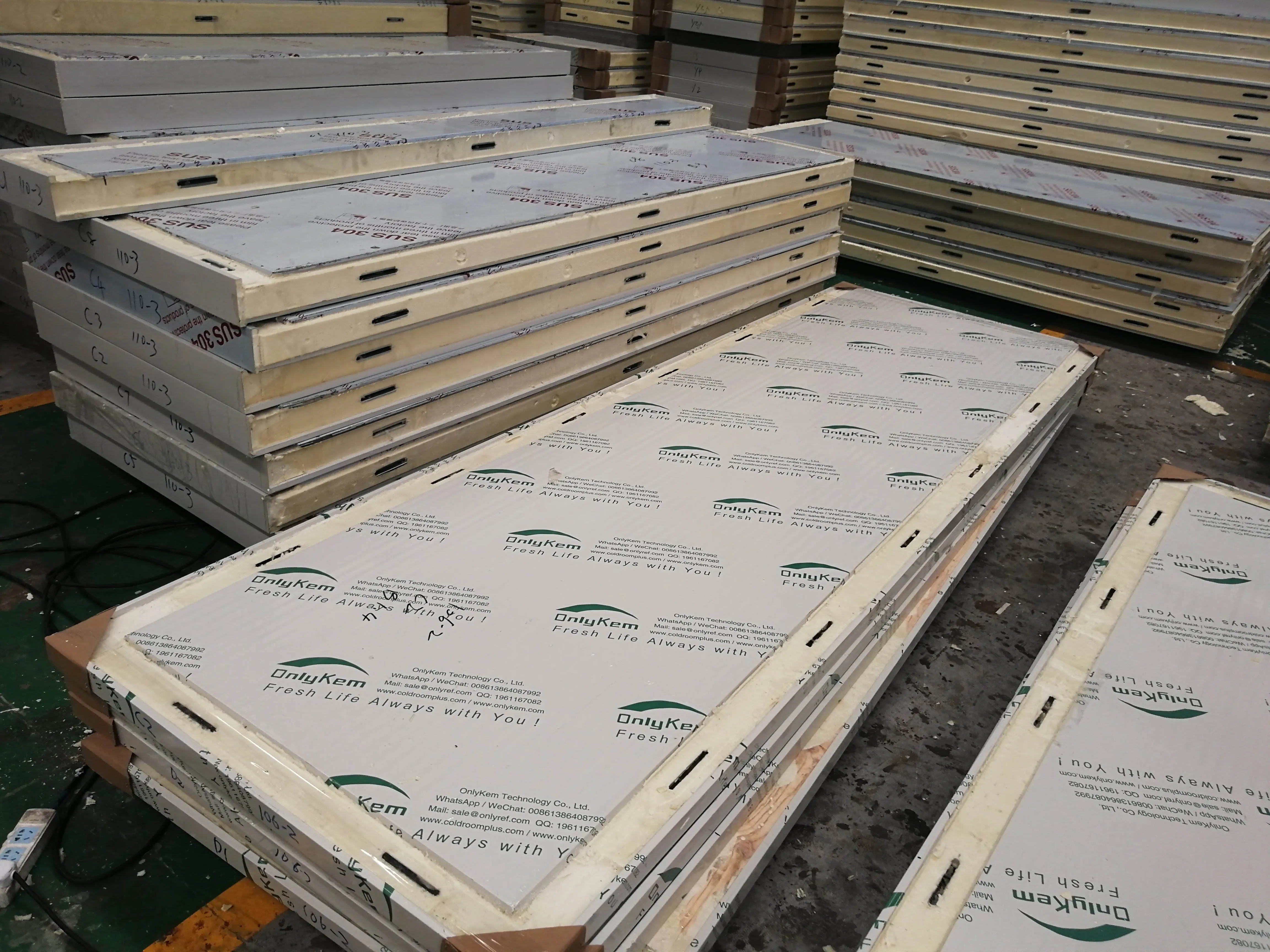

Cold Storage Panel
This product with quick installation and good insulation which is
applied widely in: cold store, ceiling, temporary house,dormitories,warehouse,workshop and etc.
1. Outer materails specification of Cold Storage Panel
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option
2) Thickness(mm): 0.32~1.5mm
3) Color: According to customer requirement, default is milk white.
4) Width: 980mm, 1180mm
5) Length:According to customer requirement,the max length is 8700mm.
2.Sandwich core: Polyurethane(PU)
Density: 38-40(kg/m3), 40-42(kg/m3), 42-45(kg/m3).
Thickness(mm): 75, 100, 120, 150, 200.
3.Fireproof:According to customer requirement
4. Panel inspection result:
Inspection Item | Unit | Technology requirement | Inspection result |
Density | kg/m3 | 32~50 | 43 |
Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
Bending Strength | Kpa | ≥ 245 | 331 |
Absorbing rate | % | ≤ 4 | 3 |
Heating coefficient | W/mk | 0.024 | 0.021 |
Average burning time(vertical) | S | ≤ 30 | 3 |
Average burning height(vertical) | s | ≤ 250 | 250 |
5.Panels information for Cold Storage Panel
Insulation material | 100% polyurethane, with gasket, with flame retardant |
panel steel cover | SS, GI, aluminum etc |
office Foam panel | 50mm thickness |
standard width | 960mm |

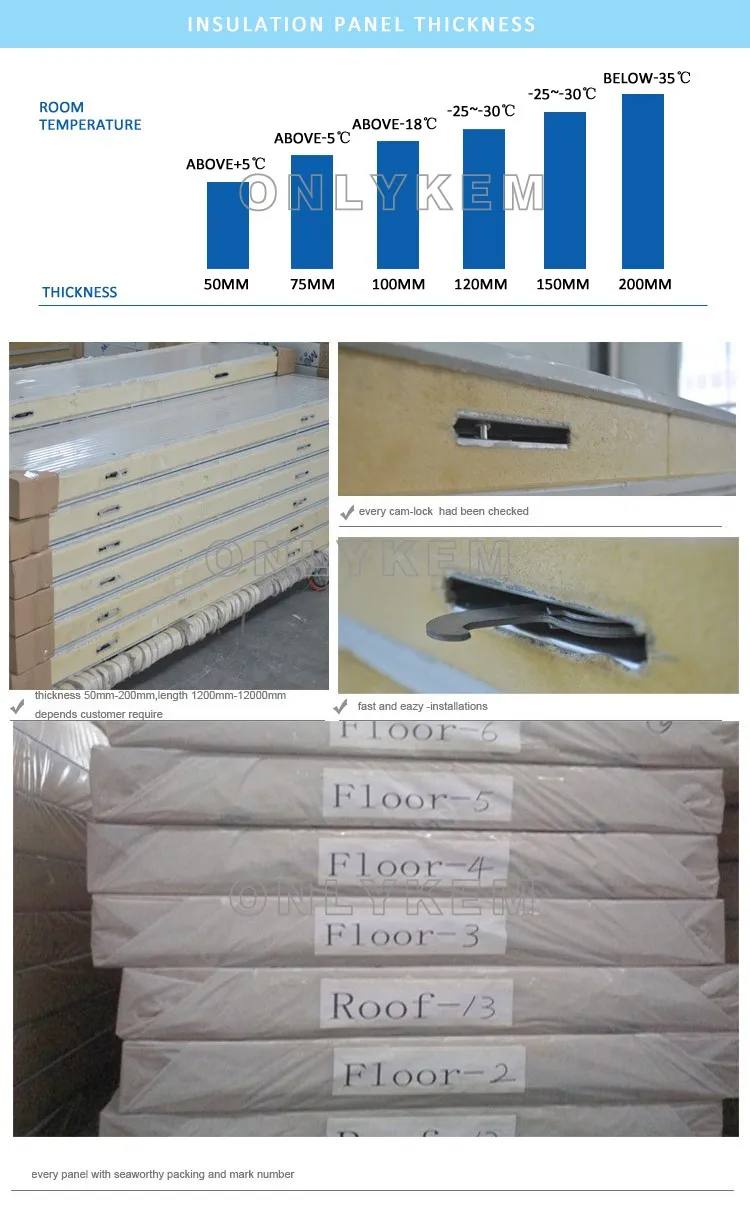

processing room 10℃ | 50mm/ 75mm PU |
5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25/ -35℃ | 150mm/200mm PU |
Workshop--PU panel

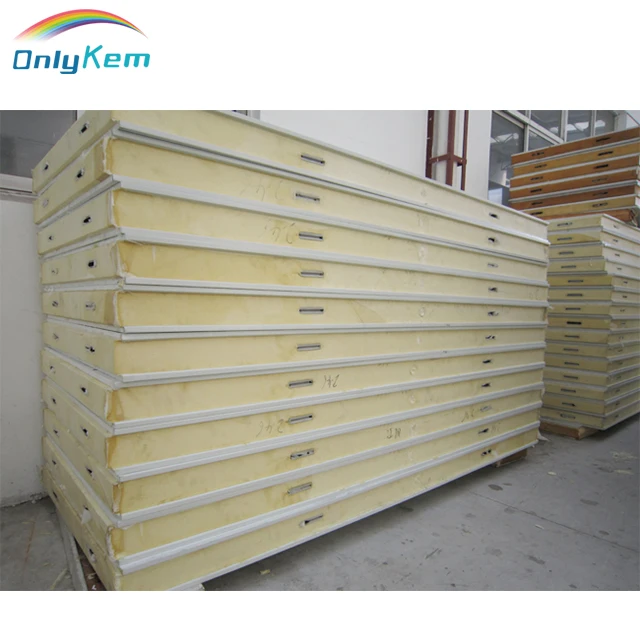

Cold Storage Panel
Cold room parts
Cold room CFC free panels | |

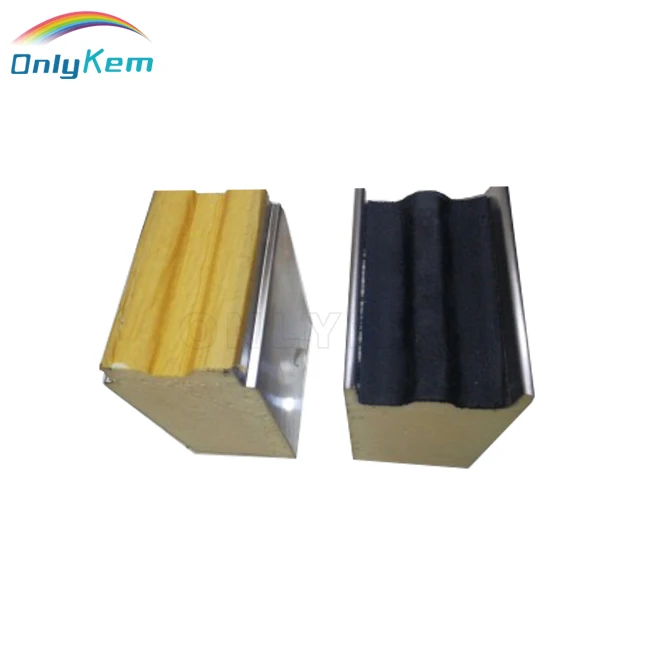

| Polyurethane foam is been sandwiched between the two outer skins and hence is known as PU sandwich panels. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.Those two layers are available in profile with zinc coated, galvanized steel, embossed aluminum, stainless steel or other material sheets. |  |

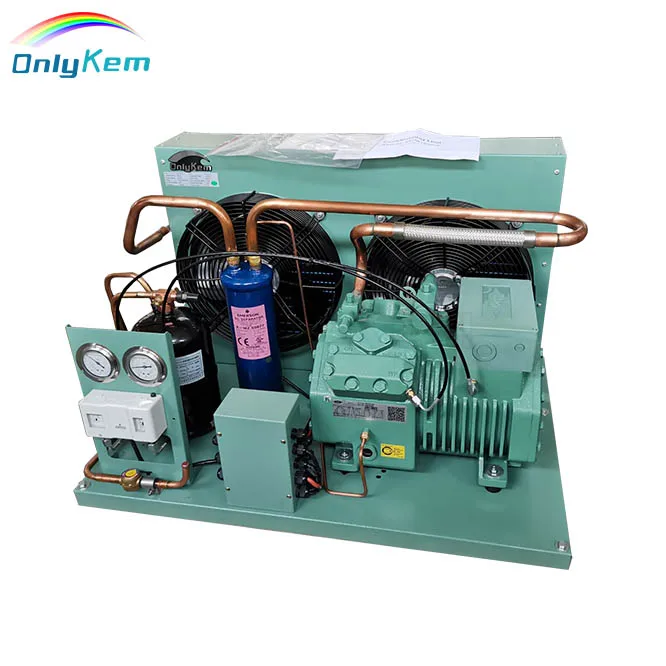

Cold room condensing unit for Polyurethane Aluminum Sandwich Panels For Cold Storage | |
| 1.Configuration of condensing unit: Compressor, condenser, axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve, sight glass, check valve, junction box, etc. 2.Brand of compressor: Germany Original Bitzer compressor and American Original Copeland compressor 3.Refrigerant: R22, R404A, R134A |  |

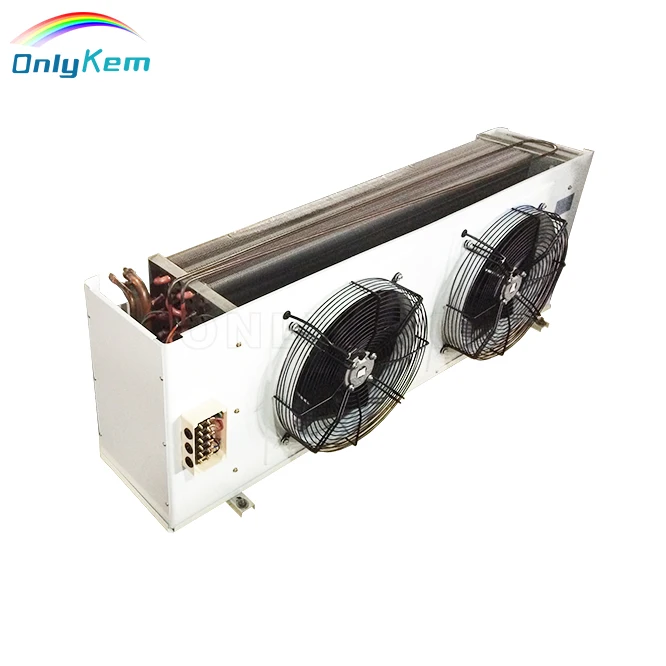

Cold room unit cooler for Polyurethane Aluminum Sandwich Panels For Cold Storage | |
| 1. Axial Fan: Chinese famous brand axial fan, stable quality, more quiet, more efficient, design with waterproof, enough safety 2.Copper pipe data: 15.88 mm 3. Fin Data: Hydrophilic aluminum fin, better anti-corrosion 4. More Details: Stainless steel screw, Stainless steel defrost tube, Spaying plastics for surface… |  |
