Omrom type dc solid state relay( 5A to 40A)
- Category: >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (60443893784):
Product Overview
Description
General Properties
- Input and output electro-optic isolation or transformer isolation.
- Input constant current control and LED display, control signal and TTL & CMOS logic is compatible.
- Bidirectional controlled sillion or unidirectional controllable counter-parallel output, zero electric current opening zero electric current shutdown.
- Power solid state uses the SCR chip counter-parallel output and working is stable.
- Buit-in resistance-capacitance absorbing circuit, dead zone voltage and small harmonic interference.
- Higher than of 2.5KV safe isolation voltage between the input output and ledger wall's.
- Small volume, small input power, non-contact, sparkless, noiseless, non-machinery wear, anti-vibration and the long life.
Application
Model & Meanings
Interior Schematic Diagram and Basic Property Test
Features
- Bolt installation - Horizontal type, DC solid state relay.
- Patent design.
- IGBT / MOSFET NO output.
- DC-DC DC signal control DC load.
- Transformer isolation.
- SMD mount technology.
- LED status indicator.
Technical Specification
| Product Model | XSSR-DD__W1 |
| Control Voltage | 5-30VDC |
| Control Current | 4-25mA |
| Reverse Voltage | 30VDC |
| Guarantee Close Voltage | 1.5VDC |
| Guarantee Open Voltage | 3VDC |
| Load Voltage | 12-250VDC 12-400VDC |
| Load Max Current | 5-40A |
| Load Mini Current | 0.06A |
| Breakover Voltage | ≤1.8VDC |
| Output Leakage Current | ≤1mA |
| Medium Withstand Voltage | ≥2500VAC |
| Insulating Resistance | ≥100MΩ |
| Switching Time | ≤5mS |
| Operating Temperature | -20~+70℃ |
| Load Current Safety Factor | (resistive load) 40-50% |
| (inductive load) 20-30% |

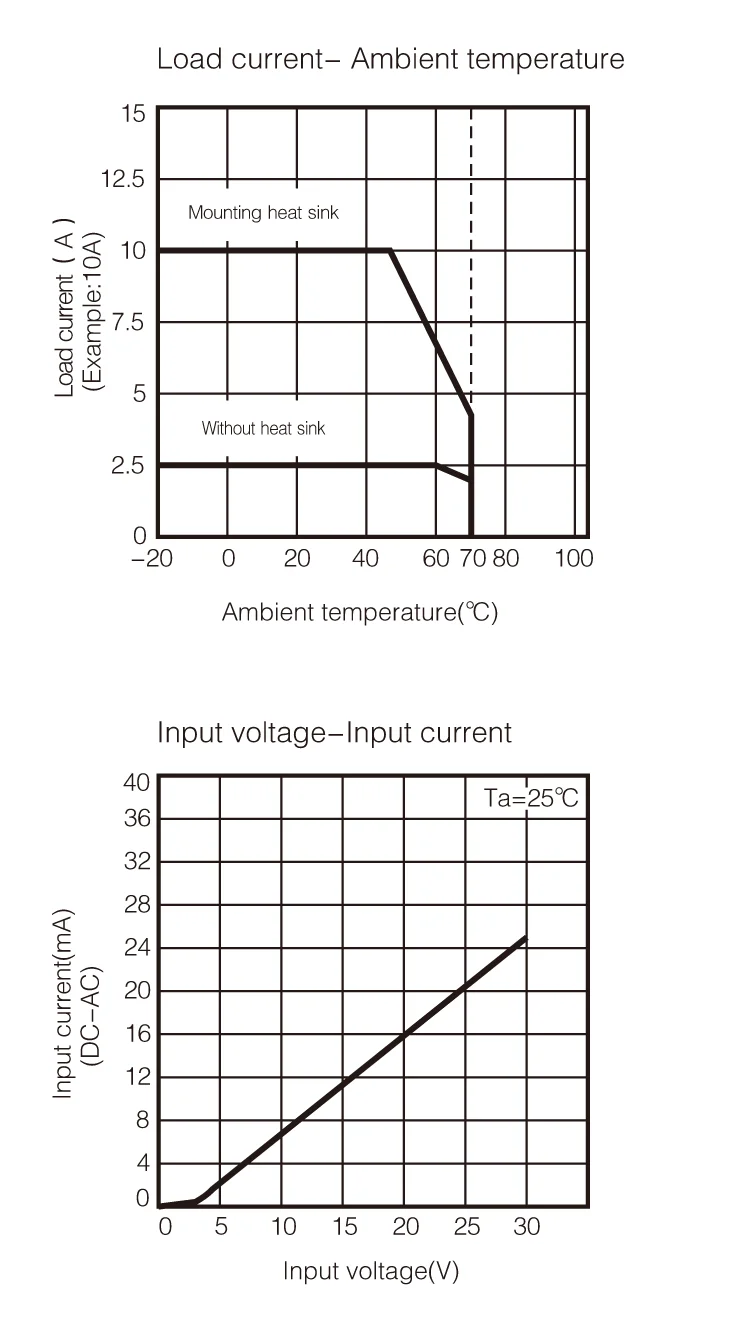

Characteristic Curve

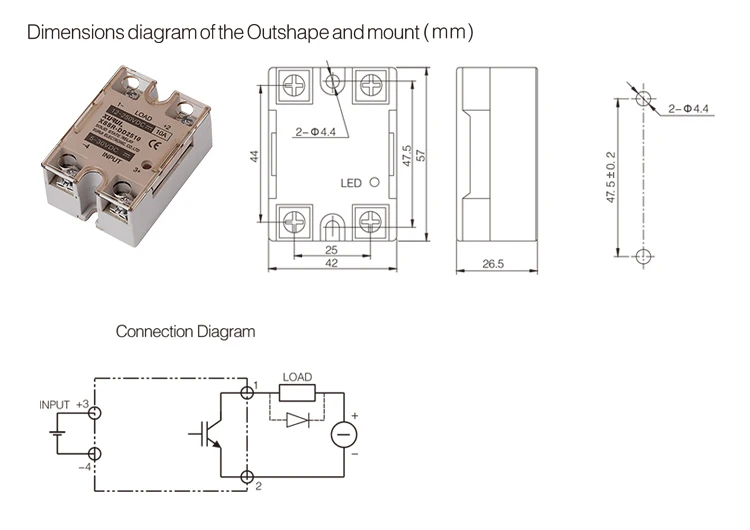

Outshape Dimension & Connection Diagram
Certifications
Why Choose Us
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- Short Delivery Time: Stock in 2 days, order as short as 7 days.
- Small order welcome.
- Payment by Paypal, Western Union is supported.
