PWM (Pulse-Width Modulation) is the most effective means to achieve constant voltage battery charging by switching the solar system controller's power devices. When in PWM regulation, the current from the solar array tapers according to the battery's condition and recharging needs.

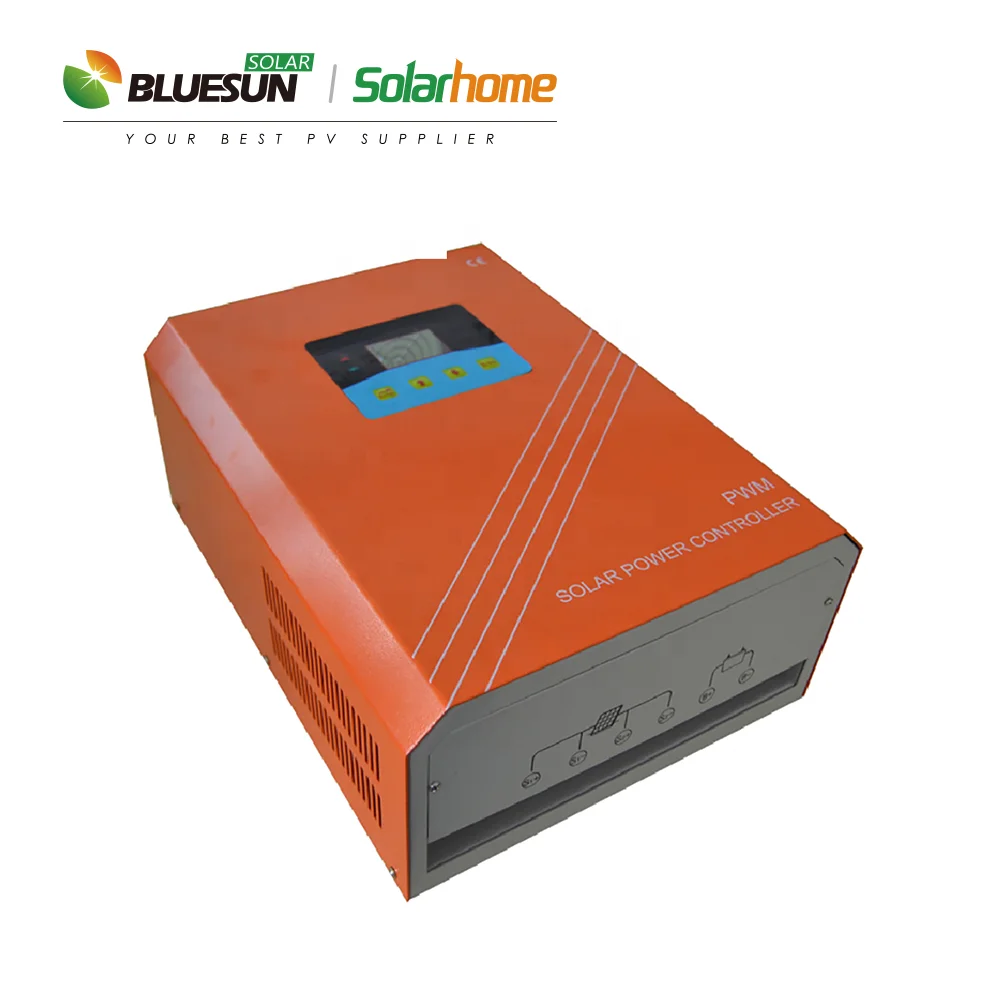

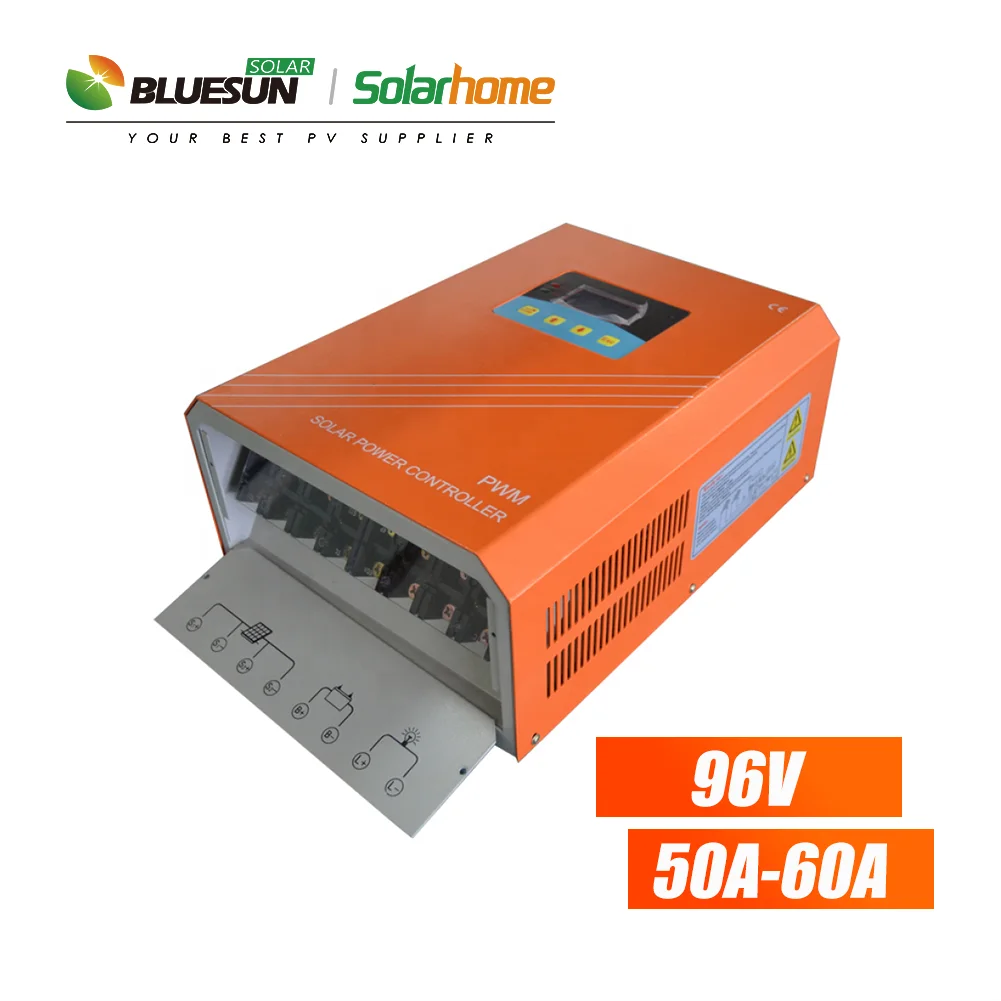

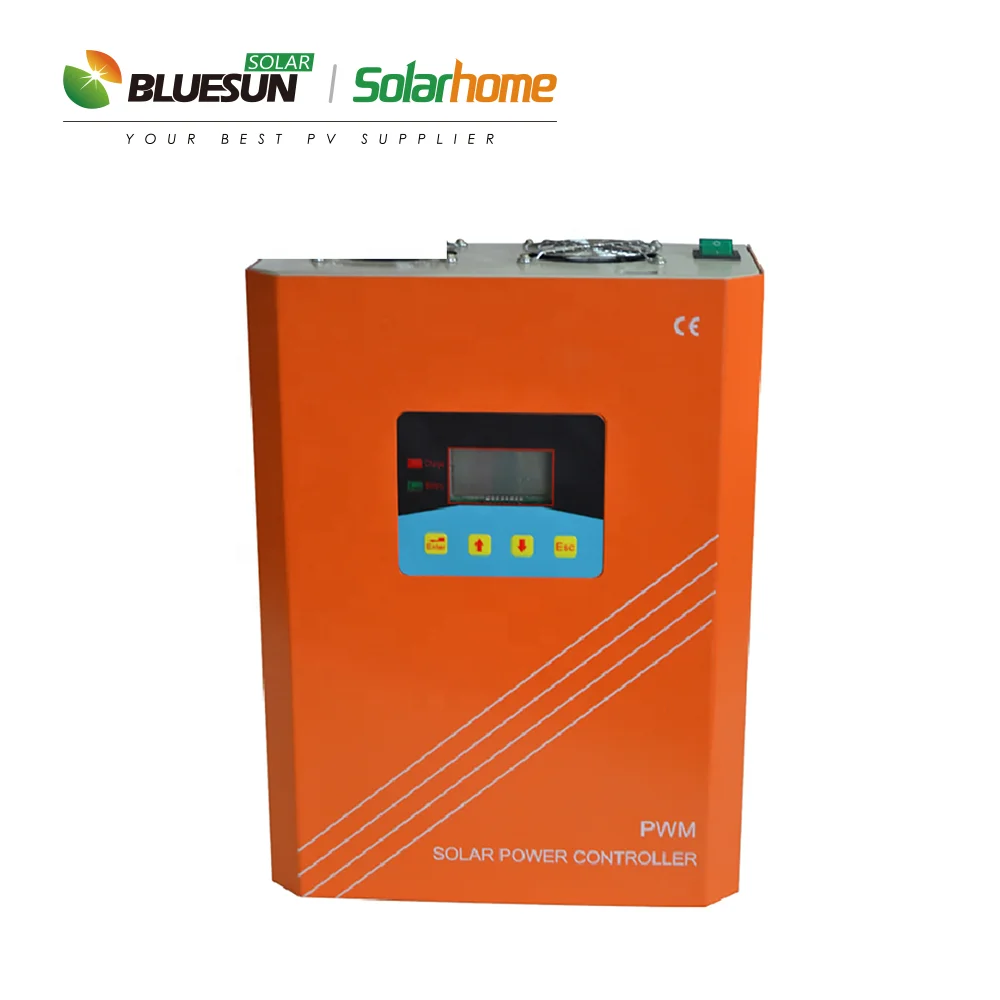

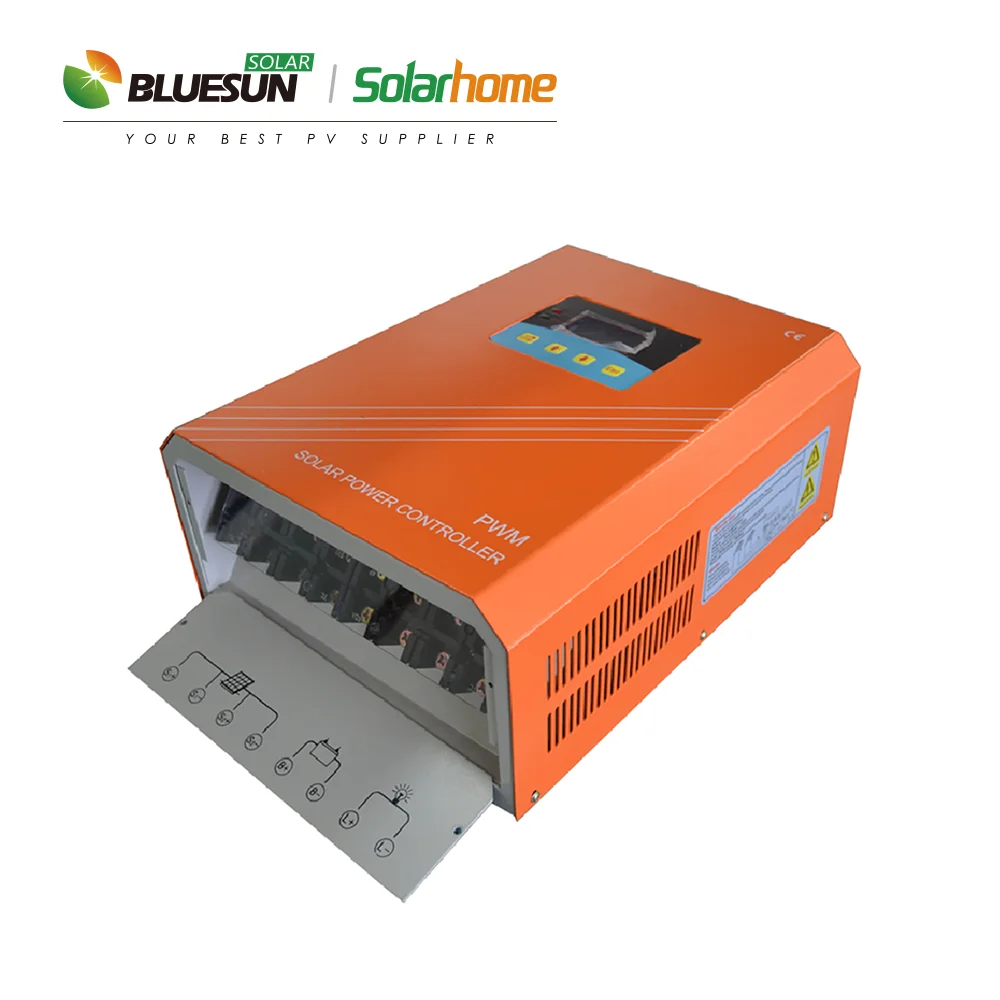

PWM Controller 24/48/96V/192/216/220/220V; 50A 100A Technical Data | ||||||||||||||
Model | BSM-X50A | |||||||||||||
Rated system voltage | 240V | 220V | 216V | 192V | 120V | 110V | 96V | |||||||
Rated charge current | 50A | |||||||||||||
The maximum allowable voltage \t | 320V | 293V | 288V | 256V | 160V | 147V | 128V | |||||||
Max input voltage | 450V | 430V | 430V | 400V | 250V | 230V | 200V | |||||||
Min input voltage\t\t\t | 300V | 275V | 270V | 240V | 150V | 138V | 120V | |||||||
Max input power | 12000W | 11000W | 10800W | 9600W | 6000W | 5500W | 4800W | |||||||
Static loss | <0.2A | |||||||||||||
Charge loop drop | ≤0.5V | |||||||||||||
Discharge circuit of pressure drop | ≤0.3V |
Model | BSM-X100A | ||||||||||||||||
Rated system voltage | 240V | 220V | 216V | 192V | 120V | 110V | 96V | 48V | 24V | ||||||||
Rated charge current | 100A | ||||||||||||||||
The maximum allowable voltage | 320V | 293V | 288V | 256V | 160V | 147V | 128V | 64V | 32V | ||||||||
Max input voltage | 450V | 430V | 430V | 400V | 250V | 230V | 200V | 100V | 50V | ||||||||
Min input voltage | 300V | 275V | 270V | 240V | 150V | 138V | 120V | 60V | 30V | ||||||||
Max input power | 24000W | 22000W | 21600W | 19200W | 12000W | 11000W | 9600 W | 4800 W | 2400W | ||||||||
Static loss | <0.2A | ||||||||||||||||
Charge loop drop | ≤0.5V | ||||||||||||||||
Discharge circuit of pressure drop | ≤0.3V |
Mechanical Parameter | Parameter | |||||
Dimension | 355*273*142(mm) | |||||
Net weight | 7.1kg | |||||
Hole Size | 295mm x 353mm | |||||
Terminal | 24mm2 | |||||
Need more details , please send me email solar16(at)bluesunpv.com or whatsapp: +86 151 5698 1762 |
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL |
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 10 working days after receiving payment for one container |
