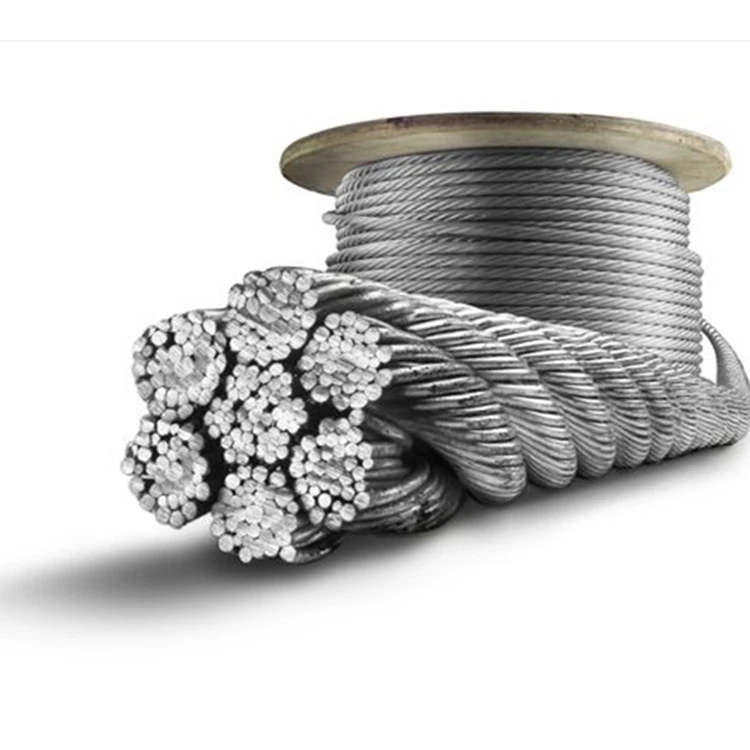

00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable

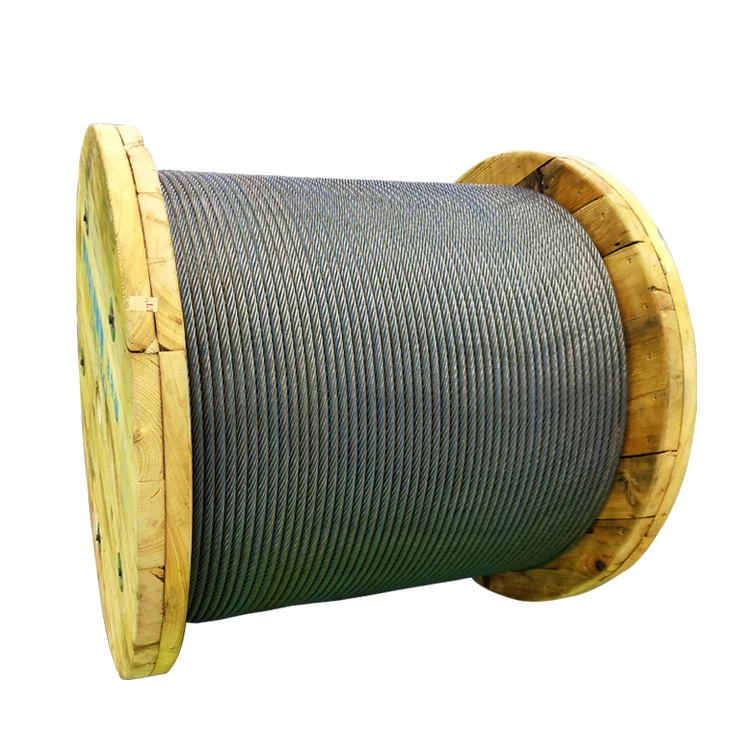

00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable

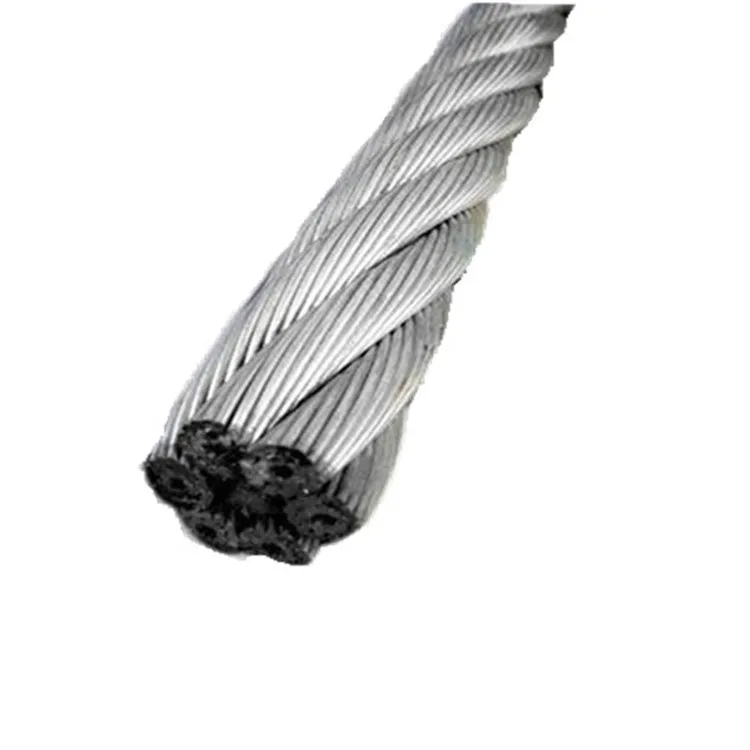

00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable
00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable
00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable

00Elevator Hemp Core Wire Rope for Motor and Speed Governor/elevator steel cable

Share on (60443945244):


Price:

Quantity:


Product Overview

Description



Product Description




Product Name
Elevator steel wire rope
Material
ss304, ss316, galvanized steel ect.
Diameter Range
6-22mm
Types of Cables
Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope
Surface
Bright, coated, galvanized, ect.
Features
Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are
free from Lateral / longitudinal cracks, pits and marks etc


Details Images




Product Paramenters




Rope For Over Speed Governor (6*19+PP)
1. This rope is for low speed, low duty elevators
2. If elevator with high speed, please contact us
3. We can also produce as customer's requirements
4. Above specifications just for your reference. Error may occur in actual situation.


Nominal Rope Diameter
6*19S+PP
Minimum Breaking Load
Dual Tensile,Mpa
Single Tensile,Mpa
1370/1770
1570/1770
1570
1770
mm
Kg/100m
kN
kN
kN
kN
6
12.9
17.8
19.5
18.7
21
8
23
31.7
34.6
33.2
37.4




Rope For Traction Machine (8*19+FC)
Natural fiber core(NFC): Suspension ropes for medium duty elevators
Elevator speed≤20M/Ss, Building height≤60M


Nominal Rope Diameter
Approx Weight
Minimum Breaking Load
Dual Tensile,Mpa
Single Tensile,Mpa
1370/1770
1570/1770
1570
1770
mm
Kg/100m
kN
kN
kN
kN
8
21.8
28.1
30.8
29.4
33.2
9
27.5
35.6
38.9
37.3
42
10
34
44
48.1
46
51.9
11
41.1
53.2
58.1
55.7
62.8
12
49
63.3
69.2
66.2
74.7
13
57.5
74.3
81.2
77.7
87.6
14
66.6
86.1
94.2
90.2
102
15
76.5
98.9
108
104
117
16
87
113
123
118
133
18
110
142
156
149
168
19
123
159
173
166
187
20
136
176
192
184
207
22
165
213
233
223
251




Rope For Traction Machine (8*19+IWRF, 8*19+IWRC)
For IWRC, speed>4.0 m/s, Building height> 100m
For TWRF,20< speed≤40m/ s, Building heigh≤100m


Nominal Rope Diameter
Approx Weight
Minimum Breaking Load
Dual Tensile,Mpa
1370/1770
1570/1770
1620/1770
IWRC
IWRF
IWRC
IWRF
IWRC
IWRF
mm
Kg/100m
kN
kN
8
26
25.9
35.8
35.2
38
37.4
9
33
32.8
45.3
44.5
48.2
47.3
10
40.7
40.5
55.9
55
59.5
58.5
11
49.2
49
67.6
66.5
79.1
70.7
12
58.6
58.3
80.5
79.1
85.6
84.2
13
68.8
68.4
94.5
92.9
100
98.8
14
79.8
79.4
110
108
117
115
15
91.6
91.1
126
124
134
132
16
104
104
143
141
152
150
18
132
131
181
178
193
189
19
147
146
202
198
215
211
20
163
162
224
220
238
234
22
197
196
271
266
283
283


Main Product Catalog


Shaft Components
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
Door System
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
Traction System
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.


Elevator Cabin
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
Electrical Components
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Safety Components
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.


Company Profile




Exhibition




Product Packaging




FAQ


1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.

2. Payment term
Re: T/T or L/C at sight.

3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.

4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
