Product Overview
Description

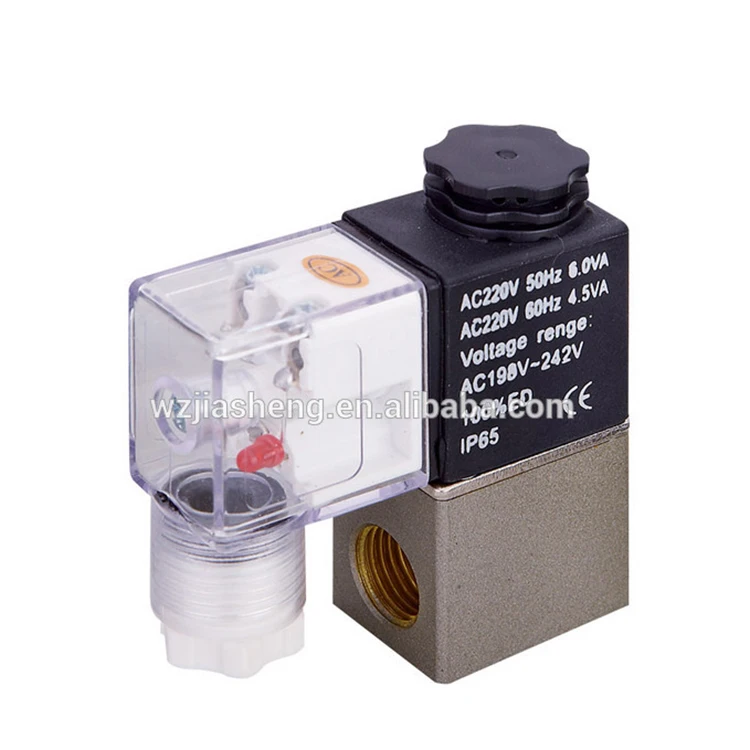

China pneumatic parts.solenoid valve coil,ip65 solenoid valve coil
Product Description
Performance:

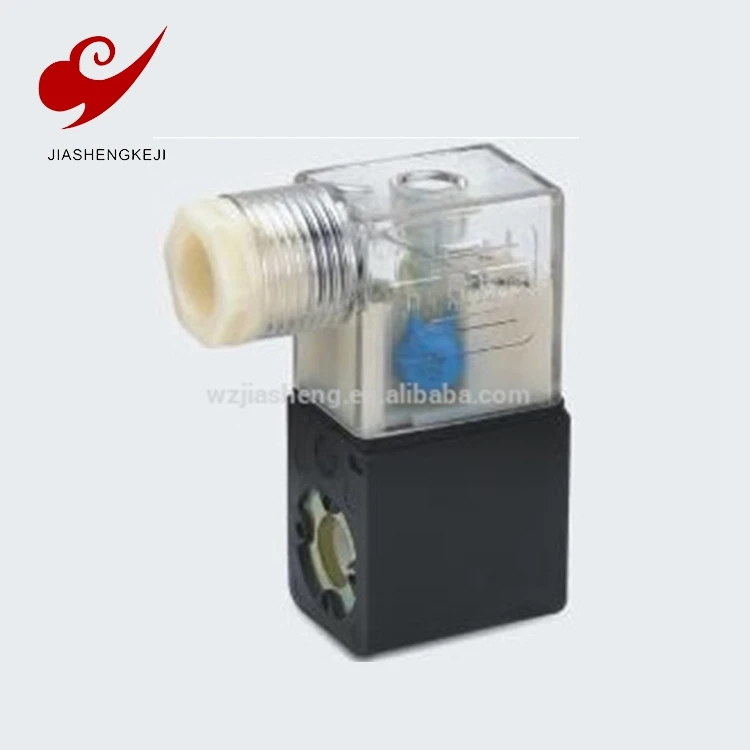

| item | Pneumatic Solenoid Valve Coil |
| product code | JS-014 |
| specification | 4V210/Φ9x29.5 |
| applied of voltage | DC6V~DC110V; AC6V~AC380V |
| resistant breakdown voltage | ≥1800V 1MA/min |
| indicator | with or without, we can do it according to your requirements |
| output type | junction box |
| junction box color | transparent, tawney, black |
| protection function | VDR over-voltage protection |
| voltage range | ±10% |
| insulation class | F grade |
| protection grade | IP65 |
| ED | 100% |
| certifications | ISO9001:2000, ISO9001:2008, CE, SGS |
| temperature resistant range | B. H |
| coated materials | Thermoplastic composite material or flame retardant temperature resistant resin |
| advantages | high temperature resistant, excellent moistureproof property |
| applications | widely used in 4V210, 4V310, 4V410 series pneumatic solenoid valve etc. |
| Insulation temperature class | A | E | B | F | H |
| Maximum allowable temperature/°C | 105 | 120 | 130 | 155 | 180 |
| Permissible temperature rise(K) | 60 | 75 | 80 | 105 | 125 |
| Performance reference temperature/°C | 80 | 95 | 100 | 120 | 145 |
| Thermal margin | 5 | 5 | 10 | 10 | 15 |
| Maximum ambient temperature/°C | 40 | 40 | 40 | 40 | 40 |
Coil Parameter:
| Coil code | Diameter/mm | Voltage | Number of turns | Resistance |
| 210 | 0.04 | AC380V | 22300 | 12-14kΩ |
| 210 | 0.06 | AC220V | 13900 | 4.0-4.2kΩ |
| 210 | 0.07 | DC110V | 12000 | 2.5-2.8kΩ |
| 210 | 0.08 | AC110V | 7600 | 1.1-1.2kΩ |
| 210 | 0.10 | DC48V | 4700 | 460-520Ω |
| 210 | 0.14 | DC24V | 3000 | 150-170Ω |
| 210 | 0.15 | DC24V | 2700 | 125-135Ω |
| 210 | 0.16 | DC24V | 2350 | 95-100Ω |
| 210 | 0.17 | DC24V | 2180 | 85-90Ω |
| 210 | 0.18 | AC24V | 1600 | 48-55Ω |
| 210 | 0.21 | DC12V | 1150 | 20-28Ω |
| 210 | 0.25 | AC12V | 1000 | 17-18Ω |
