Product Overview
Description

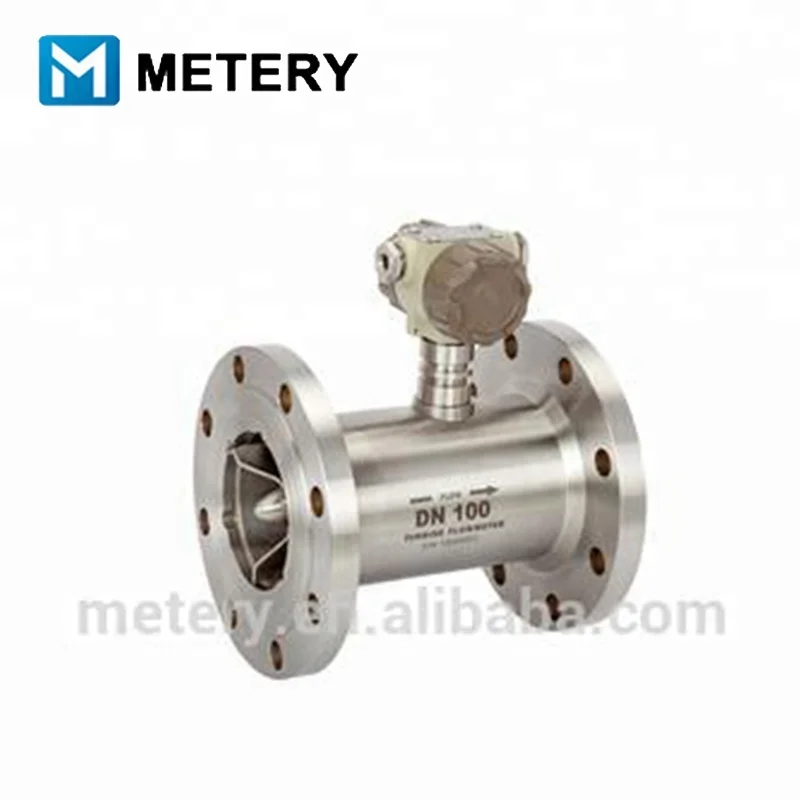

paddle wheel flow meter flowmeter price
Product Description
| Main Application | Non Corrosive Liquid( Water,Ethanol,Diesel etc) |
| Nominal Diameter | DN4-DN200 |
| Span | 0.04~800m³/h |
| Rated Pressure | 1.6MPa~6.3MPa Max Customize to 42MPa |
| Accuracy Level | ±1.0%R 0.5% Selectable |
| Repeatablility | ±0.1% |
| Range Ration | 1:10,1:15,1:20 |
| Material | Body/Rotor Support:SS304(SS316L optional) Impeller:Double Phase Steel Shaft:Stainless Steel Bearing:Stainless Steel Ball Bearing |
| Process Connection | Flange/Thread NPT/Wafer |
| Working Condition | Medium Temperature:-20℃~+120℃ (Max Customize to150℃) Ambient Temperature:-20℃~+60℃ Rated Humidity:5%~90% Ambient Pressure:86KPa~106KPa |
| Power | 24VDC 3V 10AH lithium battery |
| Consumption | 24VDC power:<1W Battery:≤1W,lifetime>3yrs |
| Signal Output | Pulse,4-20mA,Switch Signal. |
| DIgital Communication | RS485,MODBUS,HART,PROFIBUS-DP |
| Signal wire joint | Hausman joint/Inner screw M20*1.5 or customized |
| Explosion Proof Grade | ExdIIBT6/ExiaIICT4 |
| Degree of Protection | IP65 or Higher |
Type selection diesel oil flow meter
| Diameter | DNX | DN4-DN200mm | |||||||

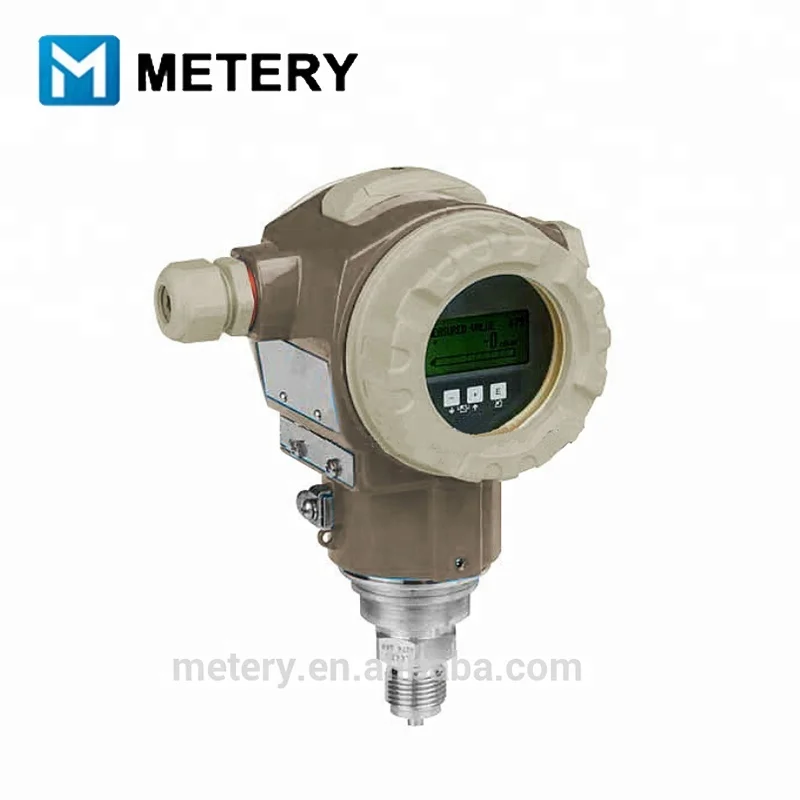

| Converter Type | N1 | 24VDC,Pulse output,No display | |||||||
| N2 | 24VDC,Pulse output,No display,EX | ||||||||
| A | 24VDC,4-20mA output,No display,EX | ||||||||
| E1 | Battery Power supply,No output,Digital display,EX | ||||||||
| E2 | 24VDC,2-wire 4-20mA output,Digital display,EX | ||||||||
| E3 | 24VDC,Pulse output,Digital display,EX | ||||||||
| E4 | 24VDC, 4-20mA output,Digital display,EX | ||||||||
| E5 | 24VDC,3-wire Plus/4-20mA,Digital display,EX | ||||||||
| G | 220VDC,4-20mA output,Digital display,EX | ||||||||
| Notice | 1) Modbus RS485 is optical for E2,E3,E4,E5 and G type | ||||||||
| 2)Dual power(24VDC+Battery) is optical for E2,E3,E4,E5 and G type | |||||||||
| Accuracy | 10 | ±0.1%R | |||||||
| 05 | ±0.5%R | ||||||||
| Flow Range | S | Standard Range | |||||||
| E | Extended Range | ||||||||
| Body Material | S4 | SS304 | |||||||
| S6 | SS316 | ||||||||
| Explosion-Proof | BT | Exd II BT6 | |||||||
| NA | None | ||||||||

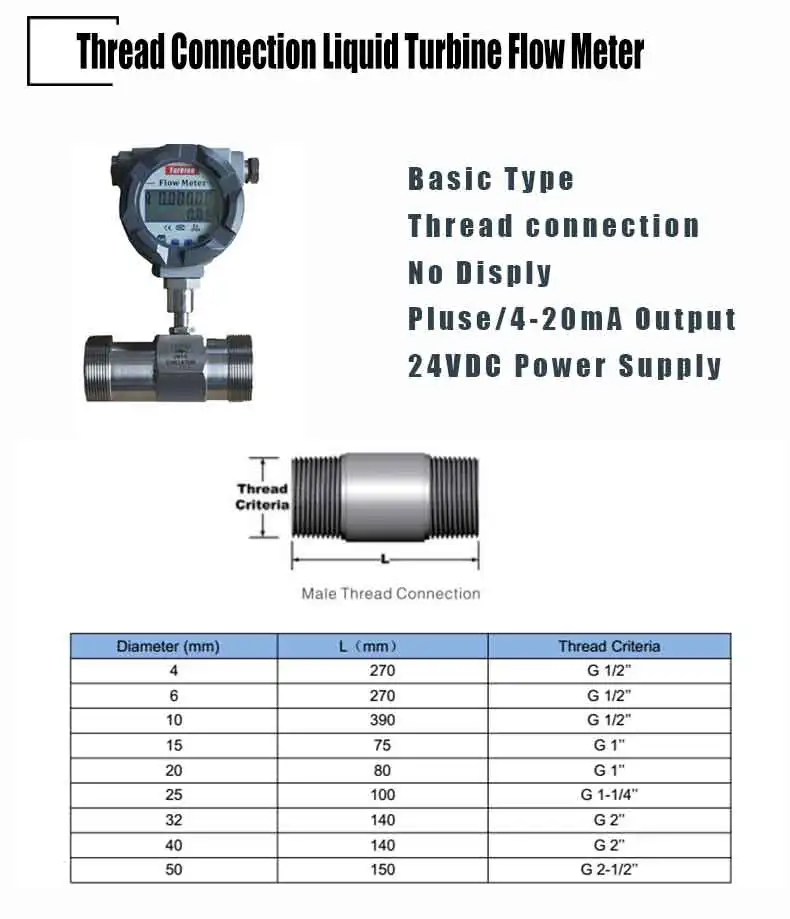

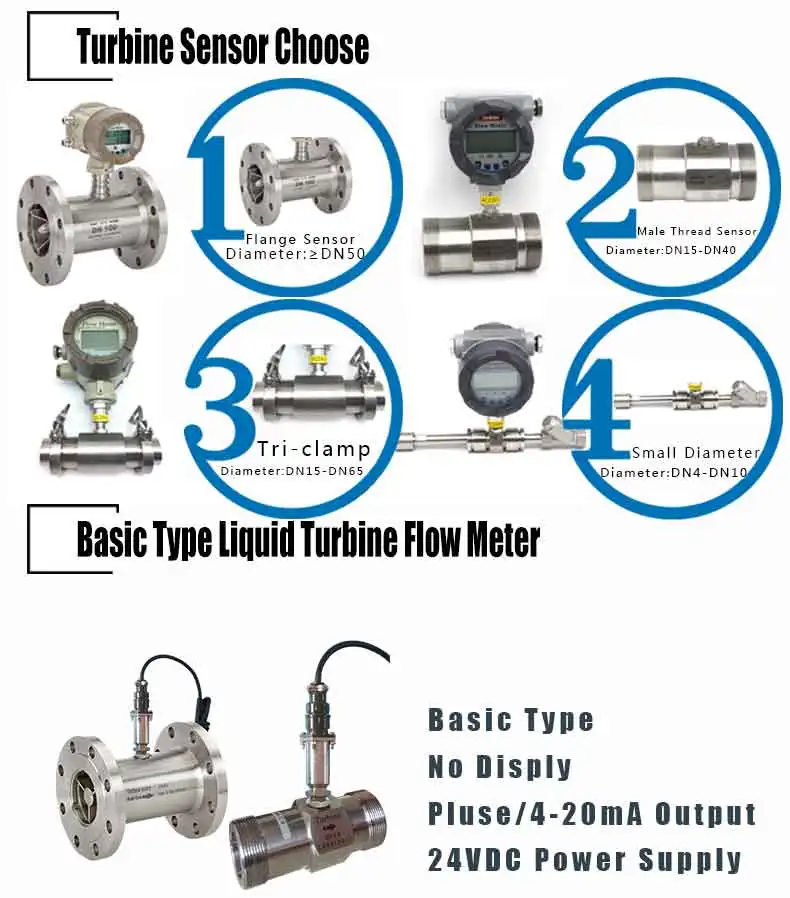

| Connection | THM | External thread,Apply to DN4-50mm | |||||||
| THF | Internal thread ,Apply to DN4-50mm | ||||||||
| WAF | Flange clamp | ||||||||

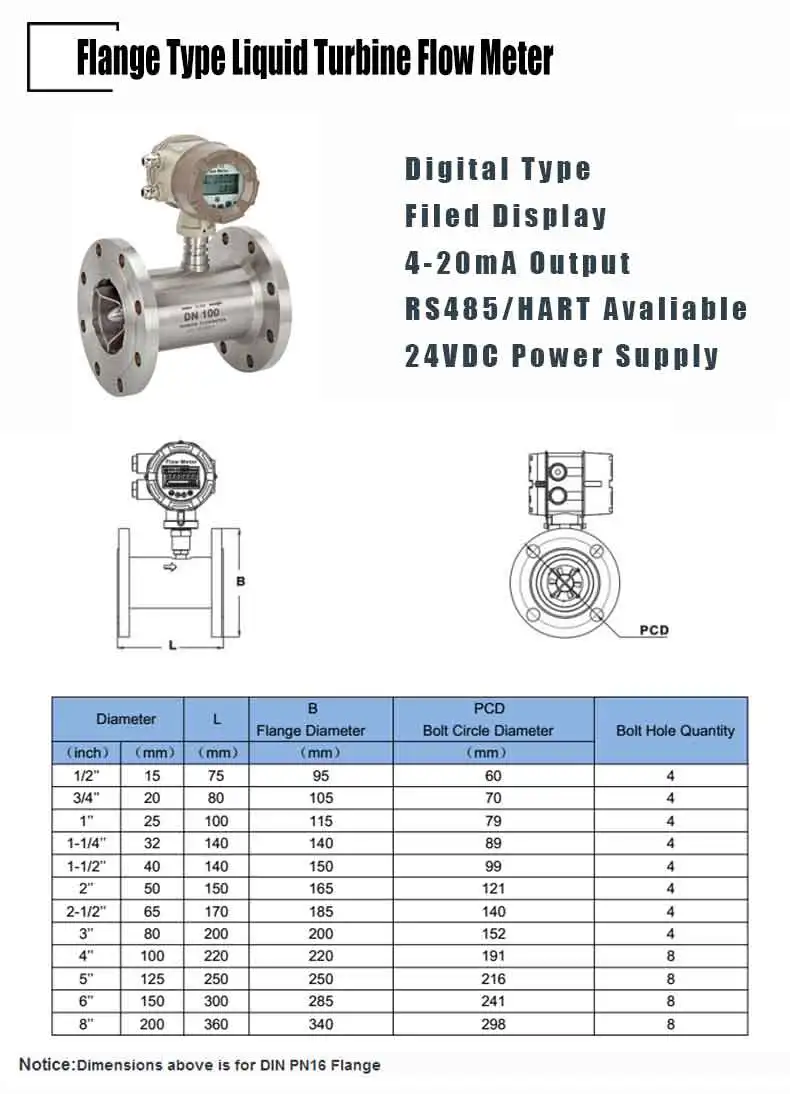

| DXX | D16:DIN PN16 Flange DN25:DIN PN25 Flange | ||||||||
| AXX | A15:ANSI 150#Flange A30:ANSI 300#Flange | ||||||||
| JXX | J10:JIS 10K Flange; J20:JIS 20K Flange | ||||||||
| Temperature | T1 | -20~+120℃ | |||||||
| T2 | -20~+150℃ | ||||||||
Our Services

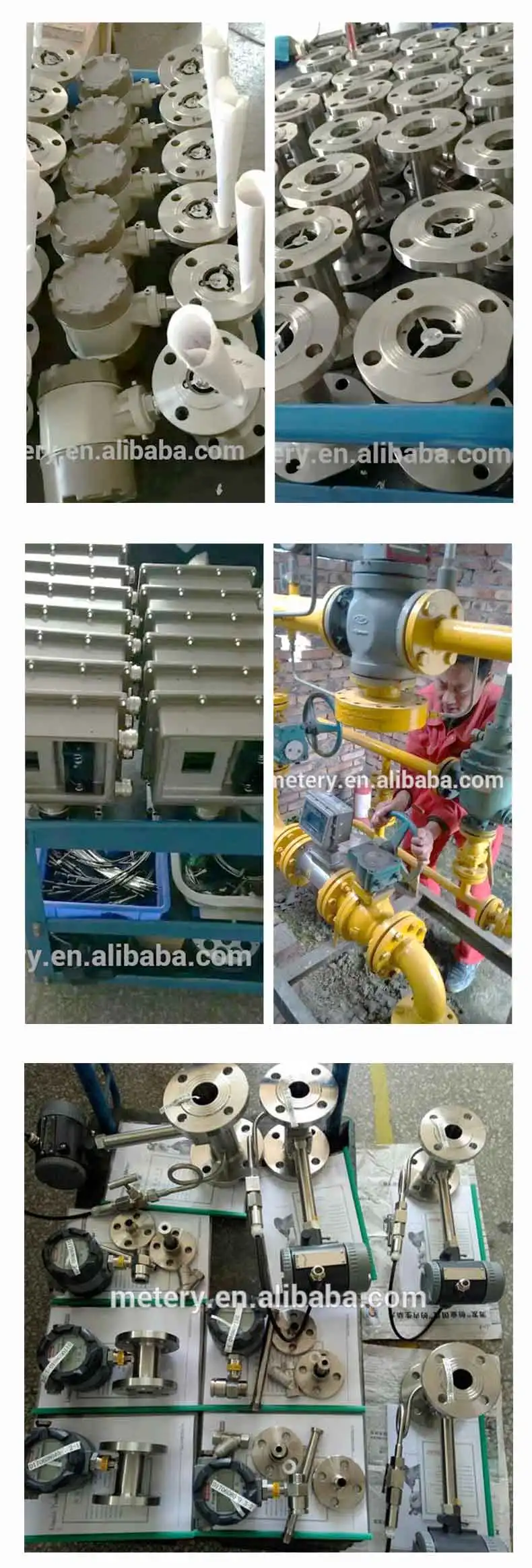

Install Feild
