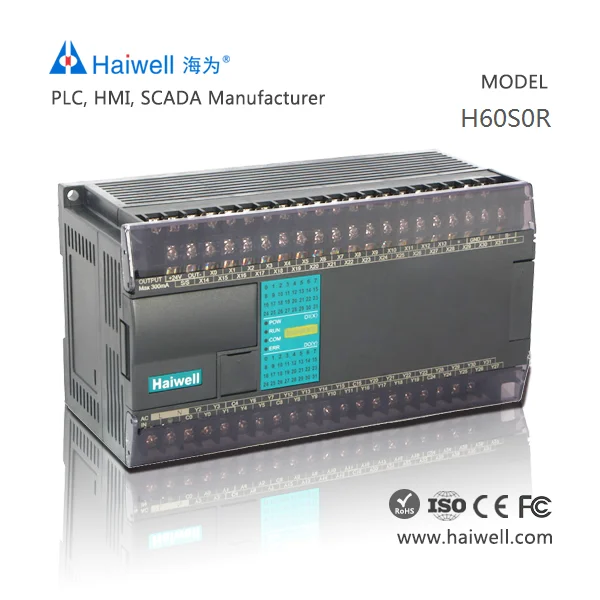

Haiwell PLC H60S0R high speed PLC controller for all HMI models software easy to use remote program
- Category: >>>
- Supplier: Xiamen Haiwell Technology Co. Ltd.
Share on (60444089872):
Product Overview
Description

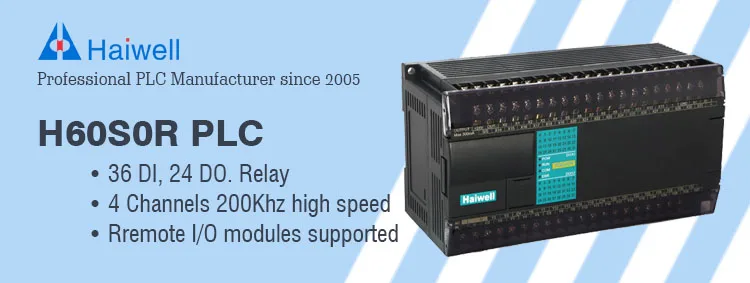

Haiwell PLC H60S0R high speed PLC controller for all HMI models remote program
Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.
Very easy to study and use!

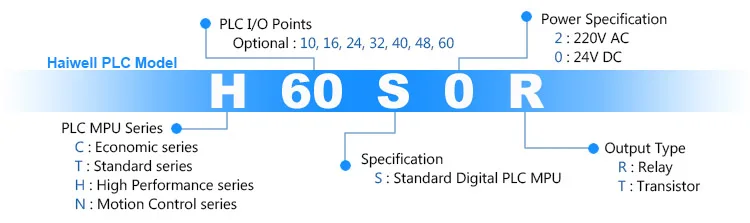

PLC Model Spec.
| PLC Model | Power | DI | DO | Pulse input | Pulse output | Built-in COM Port | Extensible |
| H60S0R | 24V DC | 36 | 24 relay | 4 Channels A/B phase (8 points) 200Khz | / | 1*RS232+1*RS485 | 7 expansions |
Haiwell H60S0R high performance high speed PLC controller Terminal Wiring Diagram
Haiwell H60S0R high performance high speed PLC controller Dimension
Haiwell PLC Technical Specification List
Item | Haiwell PLC Specification | Declare | |
Execution Speed | 0.05us/basic instruction |
| |
Programming Language | LD - Ladder diagram, FBD - Function block diagram, IL - Instruction list | Accord with IEC 61131-3 | |
Program Capacity | 48K |
| |
Storage Way | Flash ROM permanent storage, dispense with backup battery |
| |
X | External Input | X0~X1023 | Support edge catch and signal filtering set |
Y | External Output | Y0~Y1023 | Power-off preserve output can be configured |
M | Auxiliary Relay | M0~ M12287 | Power-off preserve area can be set freedom |
(default power-off preserve) M1536~M2047 | |||
T | Timer (Output Coil) | T0~T1023 | Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s be set freedom, T252~T255 1ms |
(default power-off preserve) T96~T127 | |||
C | Counter (Output Coil) | C0~C255 | Power-off preserve area can be set freedom |
(default power-off preserve) C64~C127 | |||
S | Step State Bits | S0~S2047 | Power-off preserve area can be set Freedom |
(default power-off preserve) S156~S255 | |||
SM | System State Bits | SM0~SM215 |
|
LM | Local Relay | LM~LM31 |
|
AI | Analog Input Register | AI0~AI255 | Support quantities convert, sample times and zero point correct |
AQ | Analog Output Register | AQ0~AQ255 | Support quantities convert, power-off preserve output can be configured |
V | Internal Data Register | V0~V14847 | power-off preserve area can be set freedom |
(default power-off preserve) V1000~V2047 | |||
TV | Timer | TV0~TV1023 | Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s can be set freedom,T252~T255 1ms |
(default power-off preserve) TV96~TV127 | |||
CV | Counter | CV0~CV255 | Power-off preserve area can be set freedom, CV48~CV79 are 32 bits, Other are 16 bits |
(default power-off preserve) CV64~CV127 | |||
SV | System Register | SV0~SV900 |
|
LV | Local Register | Lv0~Lv31 |
|
P | Indexed Addressing Point | P0~P9, use for indirect addressing |
|
I | Interrupt | I1-I52 |
|
LBL | Label | 255, use for program skip |
|
Communication Port | MPU built-in 2 communication ports (RS232+RS485), Max 5 communication ports (RS232/RS485) extension | can be program or networking (master/slave) | |
Communication Protocol | Modbus RTU/ASCII protocol, freedom communication protocol, Haiwellbus speed communication protocol, Baud rate 1200~115200bps |
| |
PLC Network Capacity | PLC communication address can be set external set, Max 254. |
| |
Real Time Clock(RTC) | Display: year/month/day/hour/minute/second/week | built-in battery | |
Float Point Arithmetic Instruction | support within 32 bits float point arithmetic, integer/float point convert arithmetic |
| |
Password Protection | Support 3 levels password protect functions (program file password, program block password, PLC hardware password) and upload prohibited function |
| |
Programming Software
HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users. All neccessary instructions are highly intergrated, Very easy to study and use.
It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.
Runing with Windows 98, Windows 2000, Windows XP and newer versions.
Totally free PLC software with all features.
PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
Warranty & Shipment
Warranty
- All Haiwell PLC products support 24 months warranty.
- Shipment within 5 workdays after payment received.
Shipment
- Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
- By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
- Shipping method is negotiable,customer can designate freight forwarders.
