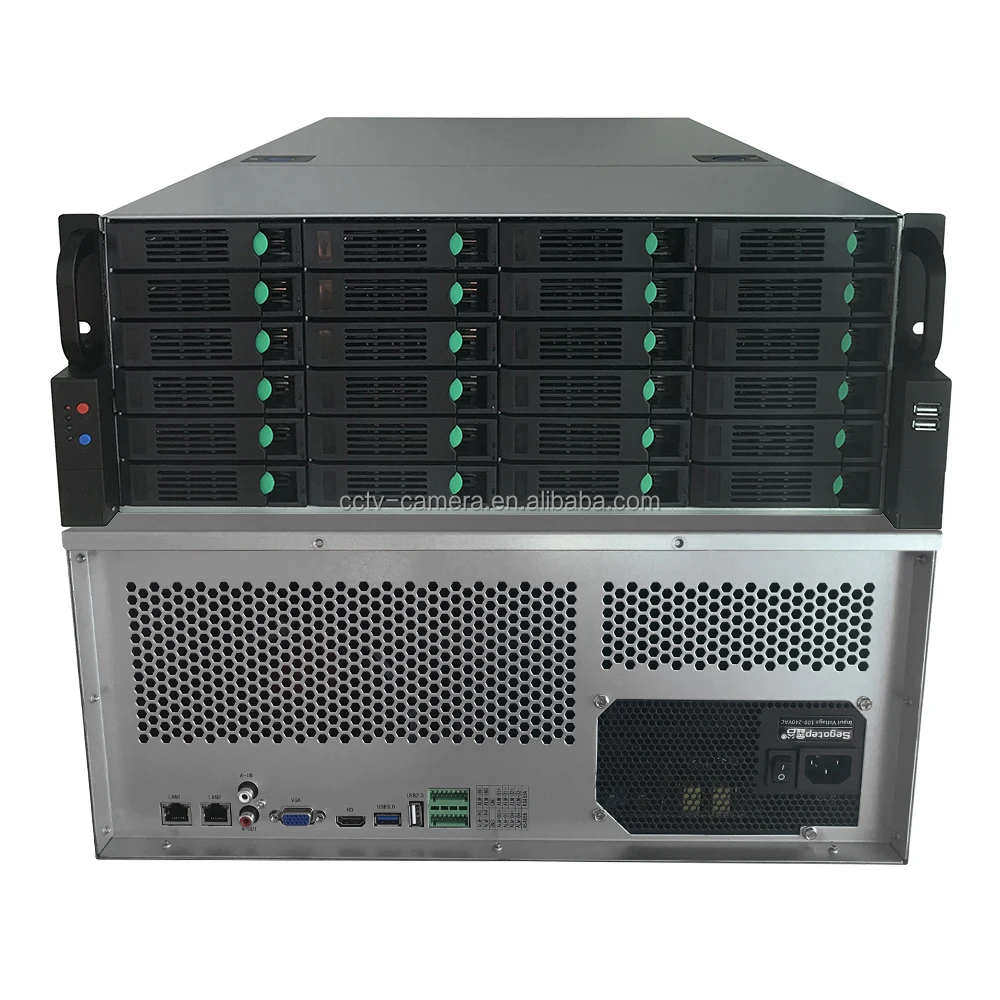

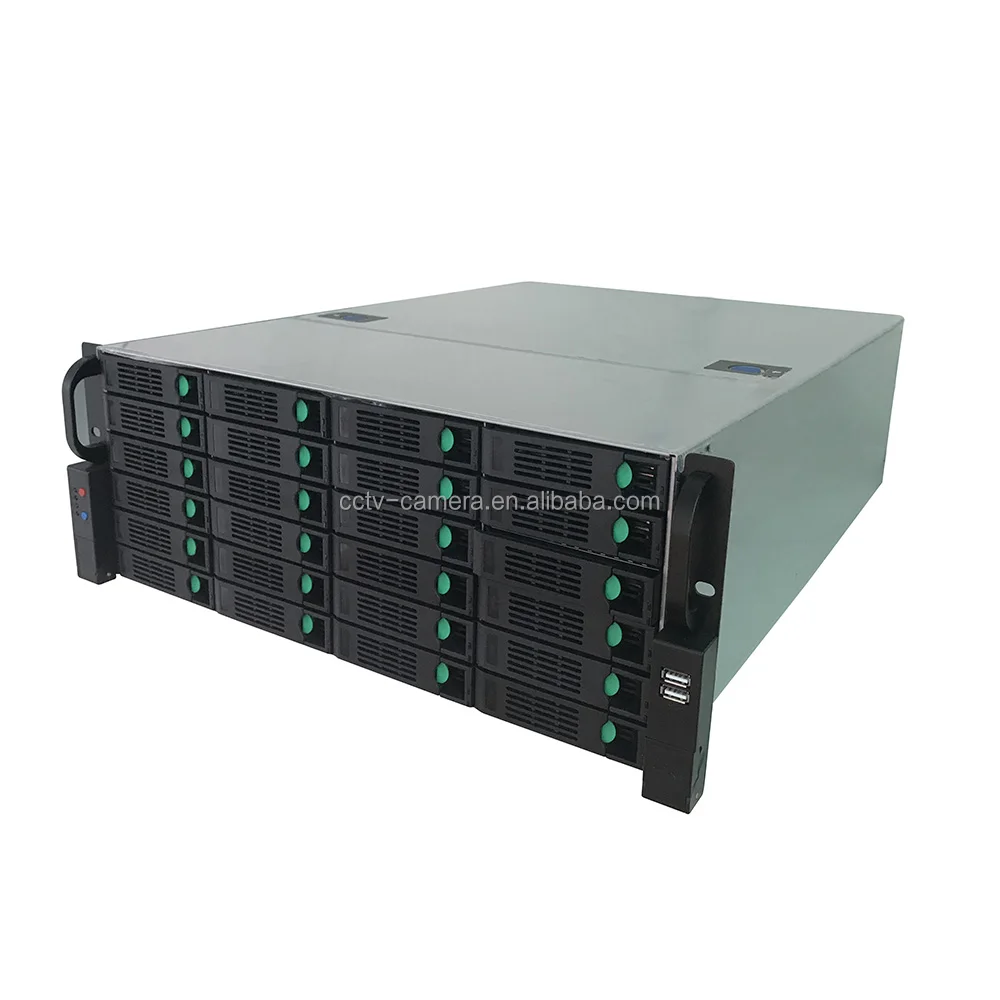

Professional Rack Mounting 16CH Alarm RAID 0 1 5 6 10 H.265 24 SATA HDD Slot 128 Channel IVR Super IP AI 12MP 8MP 4K 128 CH NVR
- Category: >>>
- Supplier: Htw Tech Limited
Share on (60444220922):
Product Overview
Description
Related Products
Product Description
Product Name | H.265 128 CH 4K NVR |
Model | TT-NVR512824 |
Function | Onvif, P2P, RS485, RS232 16CH Alarm, 24 SATA HDD Slot, 2 DHMI, 2 VGA, 2 RJ45, Audio, AI Function, RAID, e-SATA |
128 Channel 4K NVR H.265
with 24 SATA HDD Slot (Max. 8TB*24)
RAID 0/1/5/6/10, Alarm: 16-CH In and 8-CH Out
Power Plug: ATX 100-240V 400W 50-60Hz

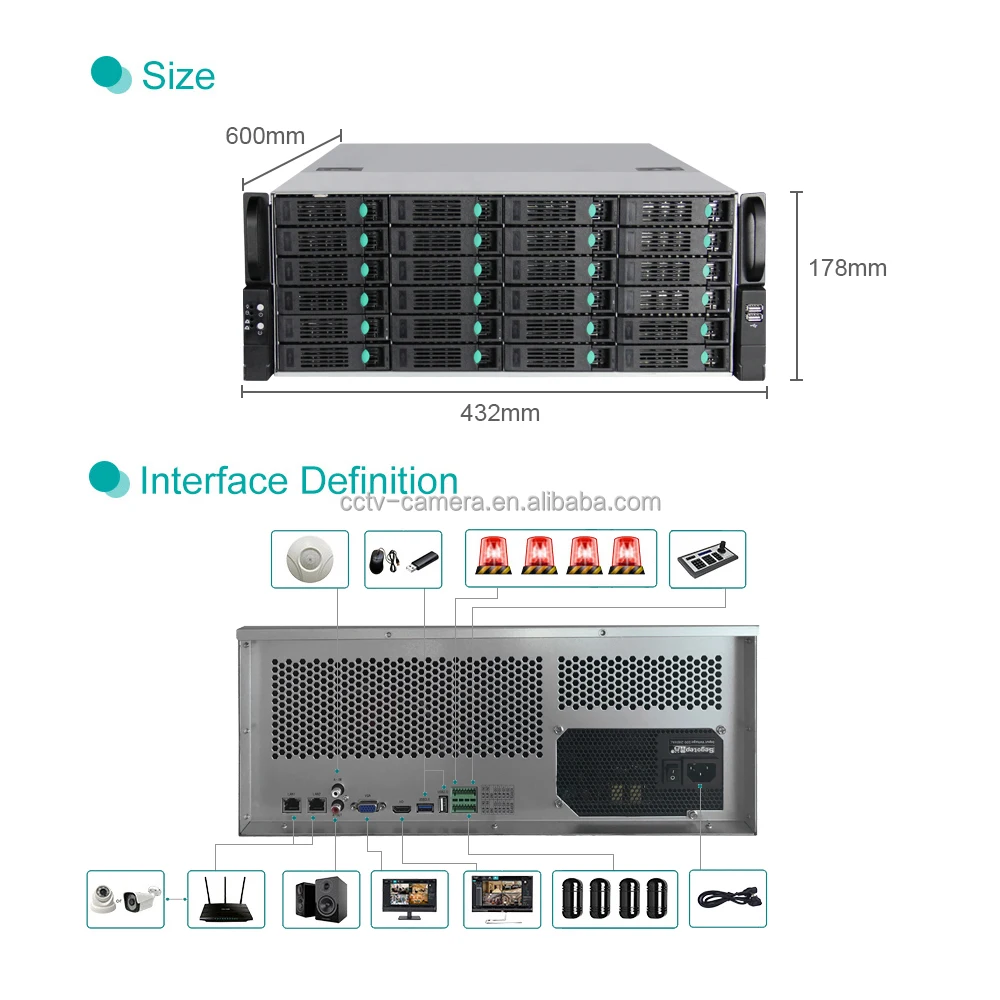

Gross Weight: 23KG; Package Size: 432*600*178mm
Support Onvif , P2P, Third-party IP cameras
Support 15 x digital zoom in preview/ play back
Support IE, Firefox, Chrome, Safari Main Browser
App for Smart Mobile Phone, CMS or VMS
Playback: 4CH 4K or 16ch 1080P Main Stream Simitanously.

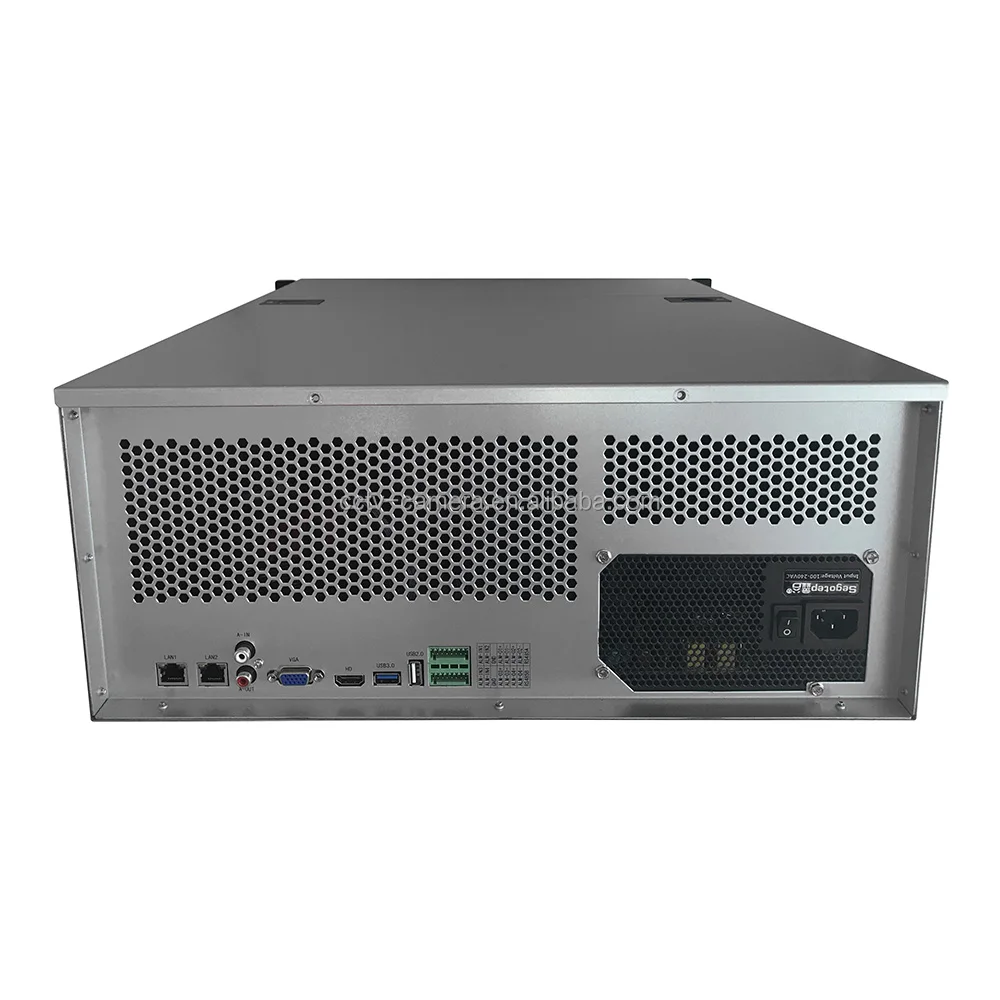

Standard Port: USB 3.0 *1,USB 2.0 *2, RS-485*1, 1Ch Intercom, 1* E-SATA, RJ-45*2, HDMI *2, VGA *2
Total access bandwidth: 640M
Protocols: TCP/IP, IPv4, HTTP/HTTPS, NTP, DNS, ONVIF, SPR, RTSP, RTMP

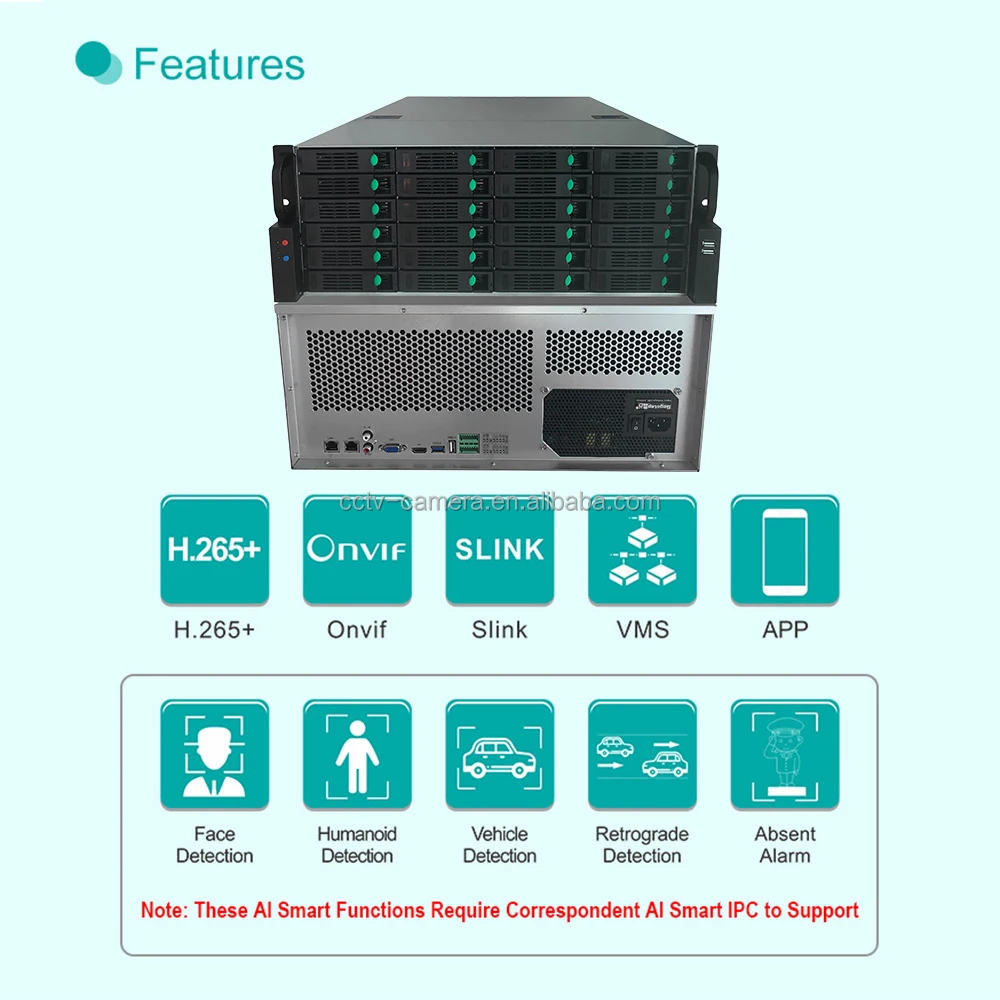

Smart Function with Onvif Protocol: Target counting, electronic fence, humanoid detection, retrograde detection, off-post detection, electric vehicle detection, etc.
Support 15 x digital zoom in preview/ play back
Support IE, Firefox, Chrome, Safari Main Browser
App for Smart Mobile Phone, CMS or VMS
Playback: 4CH 4K or 16ch 1080P Main Stream Simitanously.
Standard Port: USB 3.0 *1,USB 2.0 *2, RS-485*1, 1Ch Intercom, 1* E-SATA, RJ-45*2, HDMI *2, VGA *2
Total access bandwidth: 640M
Protocols: TCP/IP, IPv4, HTTP/HTTPS, NTP, DNS, ONVIF, SPR, RTSP, RTMP
Smart Function with Onvif Protocol: Target counting, electronic fence, humanoid detection, retrograde detection, off-post detection, electric vehicle detection, etc.
Product Specifications
Model No. | TT-NVR512824 | ||
Operation System | Embedded LINUX system | ||
Image Code Control | Image code quality adjustable, variable bit stream and limited bit stream optional | ||
Dual Stream | Each channel can set main stream and sub stream | ||
Video Standard | H.264/H.265 self-adaption | ||
Monitoring Image Quality | 4K/5MP/3MP/1080P/960P/720P | ||
Image Motion Image | Each screen can set multiple detection areas and set 6-level sensitivity (IPC Support) | ||
Recording Playback Quality | Any 1CH/4CH/9CH/16CH playback simultaneously | ||
Region Cover | Every channel can set 4 cover regions (IPC Support) | ||
Recording Mode | Support manual, auto, motion detection, alarm trigger record mode | ||
Backup Way | Support HDD, U-disk, USB mobile HDD, USB DVD-RW, network storage and backup (IPC Support Partial) | ||
Operation Way | Mouse, keyboard | ||
Local Login | User name and password | ||
Recording Storage | Local HDD, network | ||
External Ports | Video Input (mode) | 128CH input, support 4K/5MP/3MP/2MP 64CH preview mode without smart analyzing function 36CH preview mode support 8CH smart analyzing function | |
Audio Input | According to network video channel number do 1:1 network audio input | ||
Video Output | 2×VGA+2×HDMI | ||
Audio Port | 1CH RCA input,1CH RCA output | ||
Network Port | 2×10M/100M/1000M | ||
RS485 Port | Full duplex standard 485 ports | ||
USB Port | 1×USB3.0,2×USB 2.0 | ||
Alarm Input | 16CH | ||
Alarm Output | 16CH | ||
HDD | HDD Port | 24×SATA+2×E-SATA HDD port | |
Max Capacity | Each port supports MAX 6TB HDD (Total: 16*6TB = 96TB) | ||
Mobile Surveillance | Support P2P smart phone | ||
Power Supply | ATX110-220V 300W 50-60Hz | ||
Power consumption | ≤50W(without HDD) | ||
Working Temperature | -10℃~+55℃ | ||
Working Humidity | 10%-90% | ||
Size | 437mm×483mm×143mm | ||
Weight (without HDD) | about 18.5kg | ||
Package | 1pc/Carton | ||
Installation Way | Desktop installation, standard cabinets installation | ||
