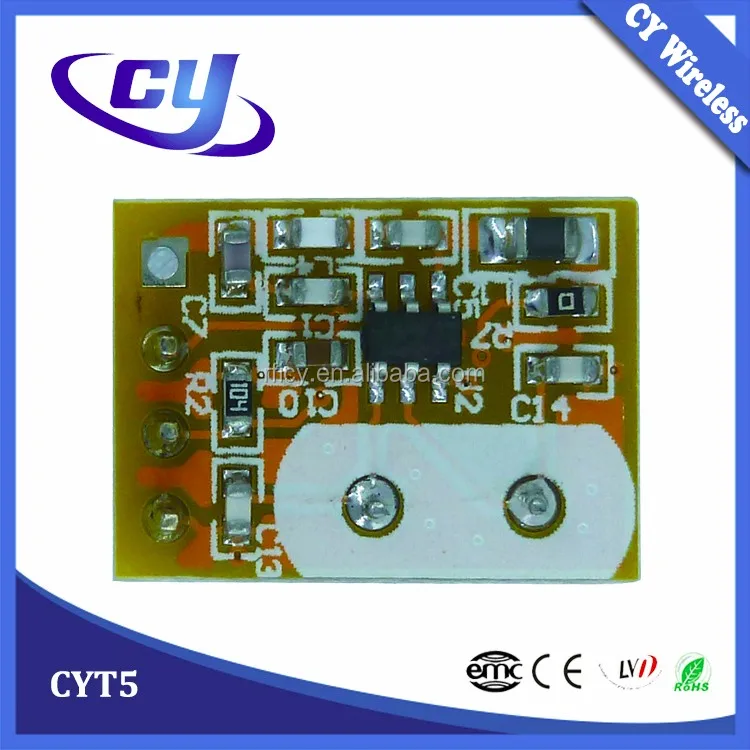

CYT5 315/433MHz 868.35/915 Wireless RF Transmitter Module

Product Overview

Description



DESCRIPTION:
CYT5 is a ASK radio transmitter module. This module is a superior performance transmitter module for ISM band. With the adoption of European brand RF wireless data transferring/ receiver chipsets, it has advantage at strong transmission power, low voltage power supplying, easily through the Fcc/CE authentication. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.





FEATURES:
High output power: >8mW;
Low operation voltage: VCC= 1.8 to 3.6 V;
Frequency: 315MHz/433.92MHz/868.325/915MHz(custom frequency is available);
Frequency tolerance: ±50 KHz;
The range can be up to 300m in open space when matching with CY11.
Operating temperature: -20℃~+70℃( It can custom to -40~85℃ upon requests)
The Static power consumption is low. Emission current consumption: 8mA (315Mhz/433.92Mhz), 13mA (868.35Mhz/915Mhz). There is no current consumption is there is no data launch.
Frequency tolerance: ±30 KHz
Bit rate: 2.4KB/S;
Circuit Shape: PLL(+-50KHz);
Dimension: 11.5*16*5.5mm



APPLICATION:
Remote gate controls. Barriers
Remote keyless entry (RKE)
Car alarm systems
Wireless security systems
Automation systems
Remote control systems
Remote Curtain Motor



PIN DEFINITION:

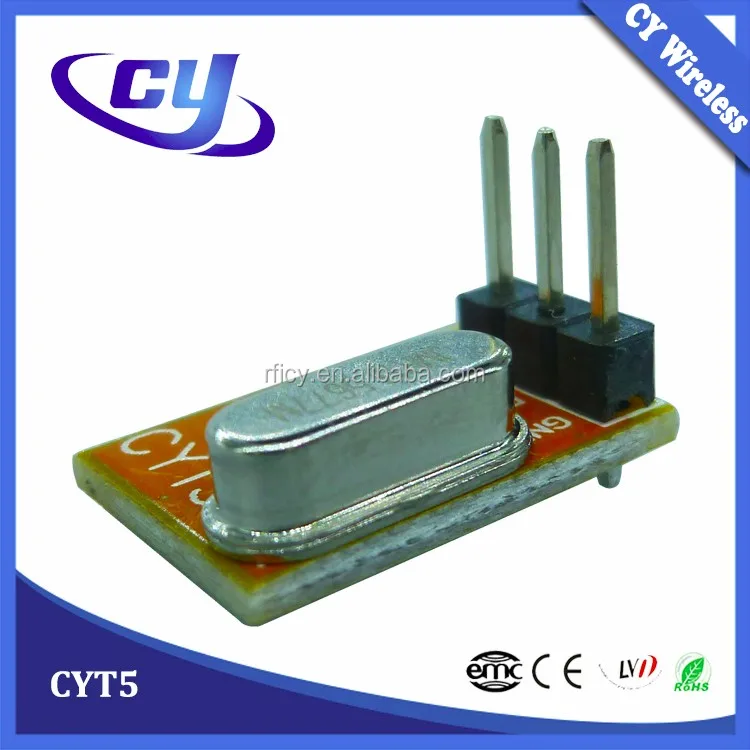

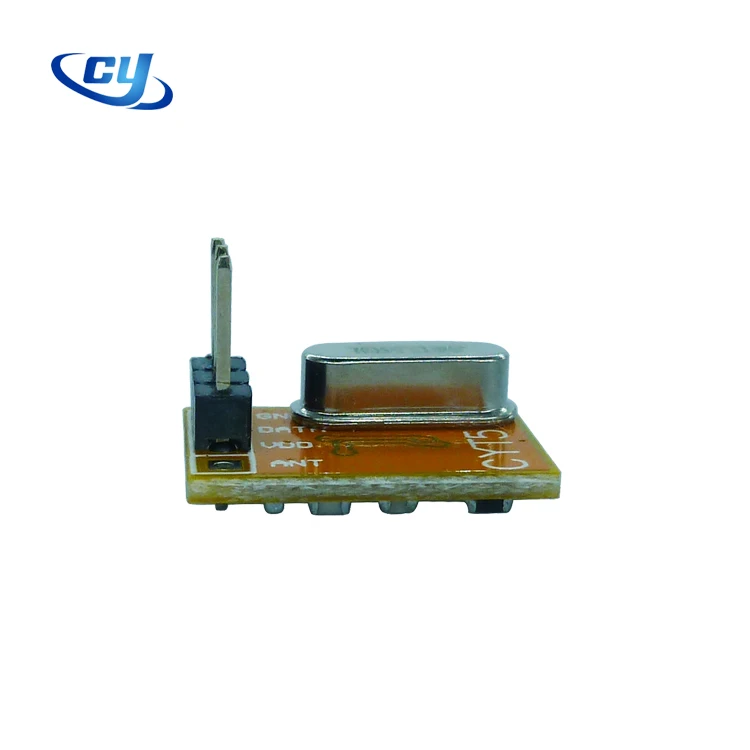

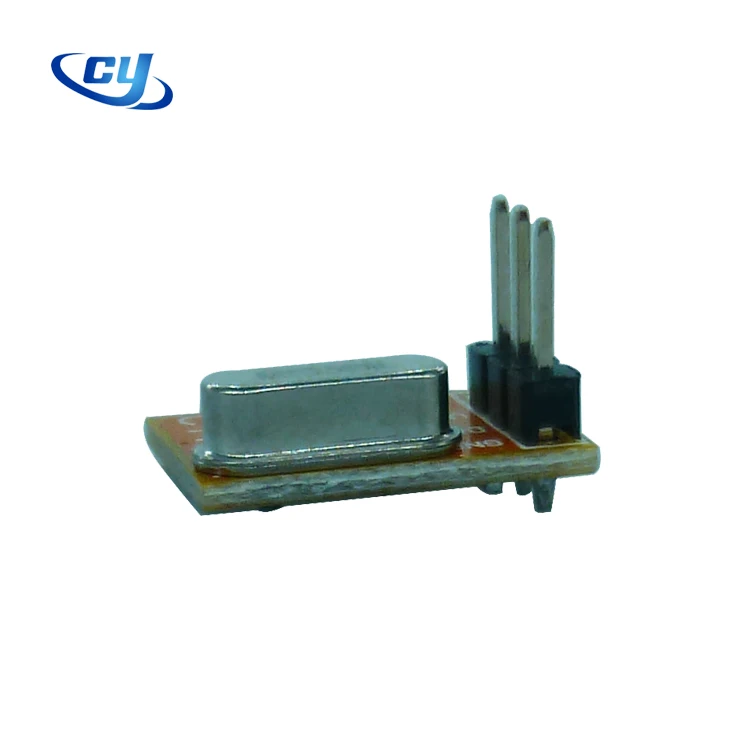

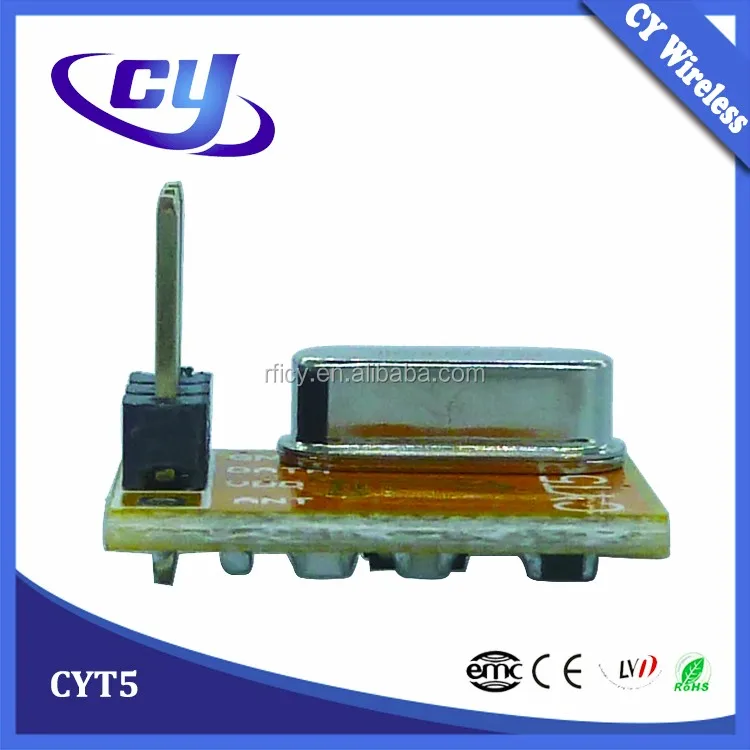

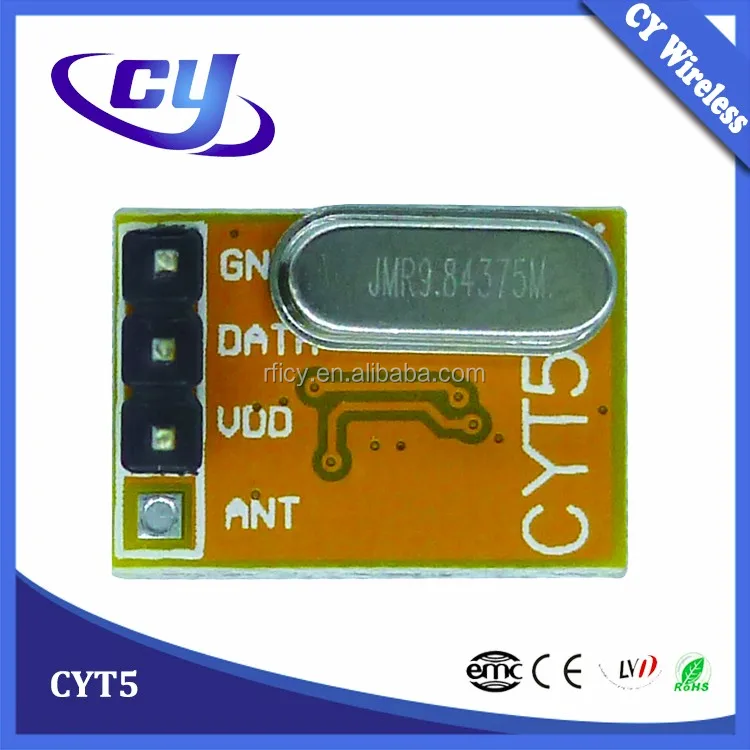

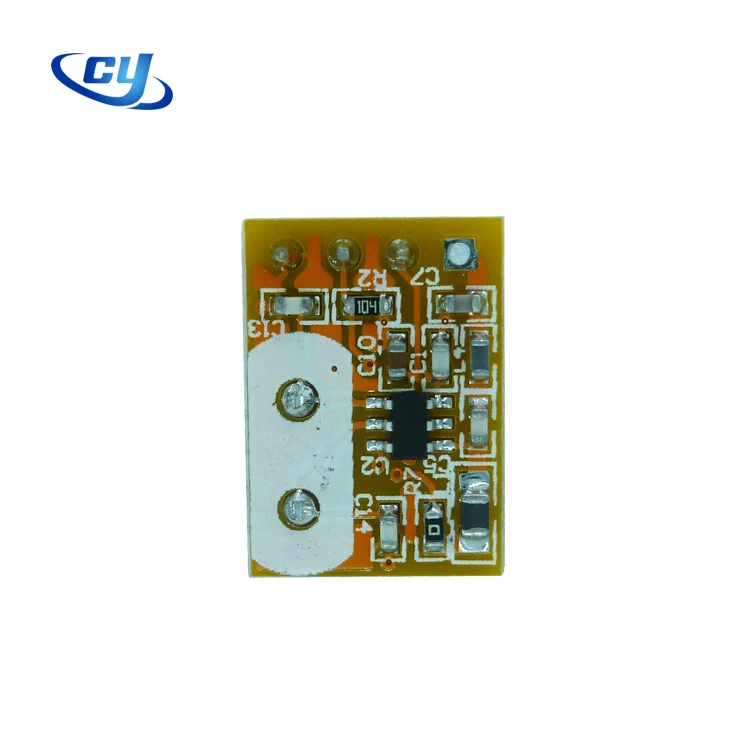

Please note: CYT5 is come with standard three Vertical PINs as the picture showed in the right hand side (without the ANT pin).  Please notify us if you would like 4 PINs or horizontal pin type.

Pin	Name	Function
1	GND	Ground
2	DATA	Data connected to MCU
3	VDD	Positive Power Supply
4	ANT	Antenna In

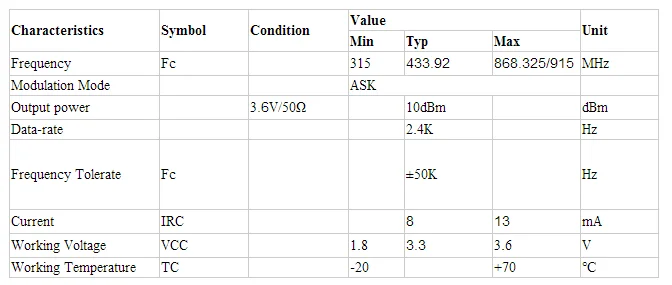

ELECTRICAL CHARACTERISTICS:
VDD-GDN 1.8V-3.6V TA-25°C





MECHANICAL SIZE: (unit: mm)



Figure1 CYT5 Dimension
PCB Dimension Size Tolerance: +-3%
