3mm 4mm 5mm Dot Peen Stylus,Marking Pin for Pneumatic Marking Machine
- Category: >>>
- Supplier: Guangzhou Bm Marking Machine Manufacturing Co. Ltd.
Share on (60444359478):
Product Overview
Description

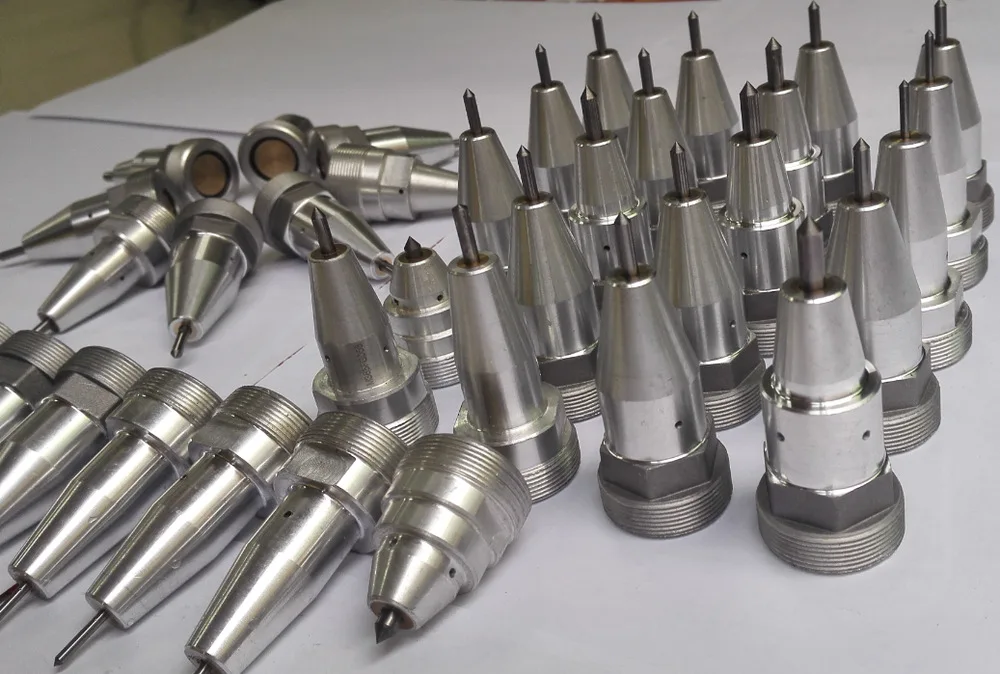

Marking pin details
The needle size as following :
| Model NO. | BM60-2 | BM60-3 | BM60-4 | BM100-3 | BM120-4 | |
Connection size | 26mm | 26mm | 26mm | 26mm | 26mm | |
PIN size | 2.5mm | 3mm | 4mm | 3mm | 4mm | |
Angle | 60° | 60° | 70° | 60° | 70° | |
Total length | 60mm | 60mm | 60mm | 100mm | 120mm | |
marking depth | 0.01-0.2 | 0.01-0.3 | 0.01-0.6 | 0.01-0.3 | 0.01-0.6 | |
Vibration frequency | >200 | >200 | >200 | >150 | >150 | |
Vibration amplitude With air
| 0.3Mpa | 6mm | 5mm | 5mm | 5mm | 5mm |
0.4 Mpa | 10mm | 10mm | 10mm | 10mm | 10mm | |
0.6 Mpa | 15mm | 15mm | 14mm | 15mm | 14mm | |
0.7Mpz | 18mm | 18mm | 15mm | 18mm | 15mm | |
Super wear-resistant,Amplitude stability good.The high oscillation frequency
Stand Pneumatic marking pin ( Total length:60mm)
Application for :
Dot pin marking machine ,marking pin ,metal engraving machine head ,marking head pneumatic marking pin ,pneumatic marking machine head ,metal marking machine head ,engaving head ,marking needle from india ,india marking needle .
