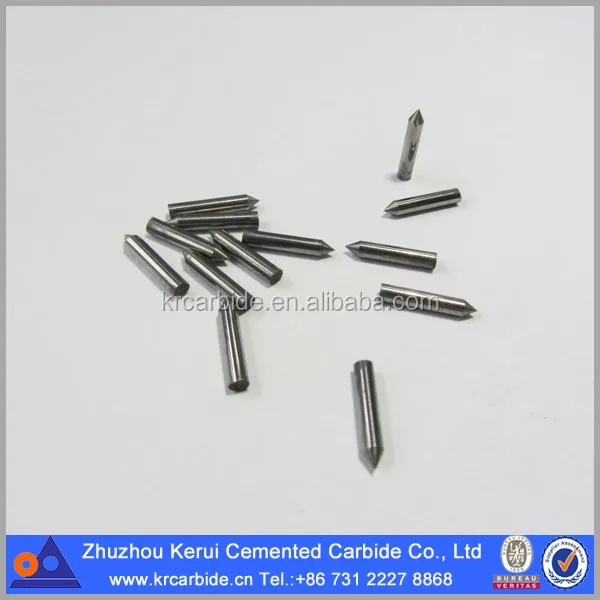

Replaceable of tungsten carbide scriber, Carbide tip in Grade K10

Product Overview

Description

Replaceable of tungsten carbide scriber, Carbide tip in Grade K10



Please Advice what's size you want to buy??

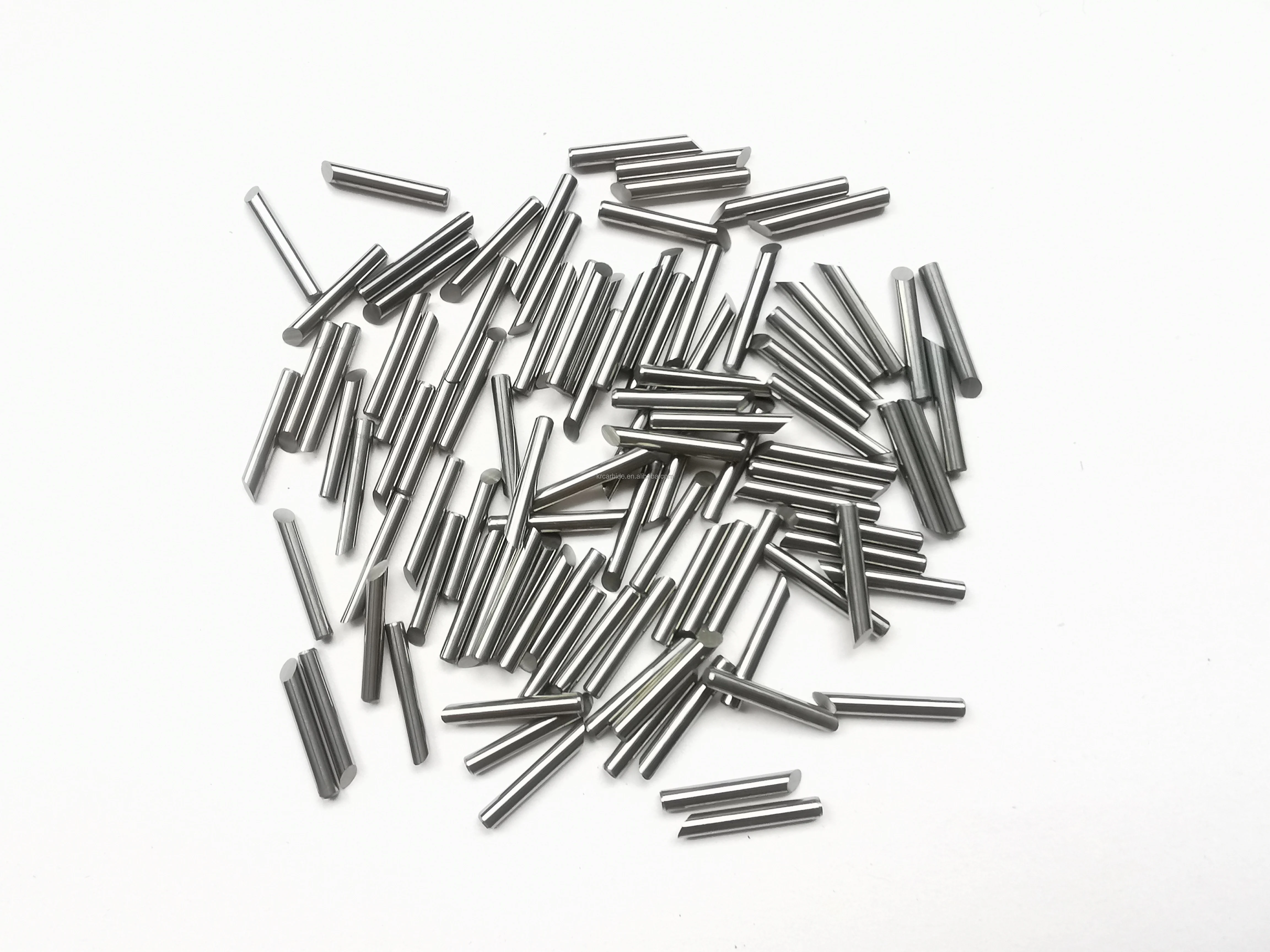

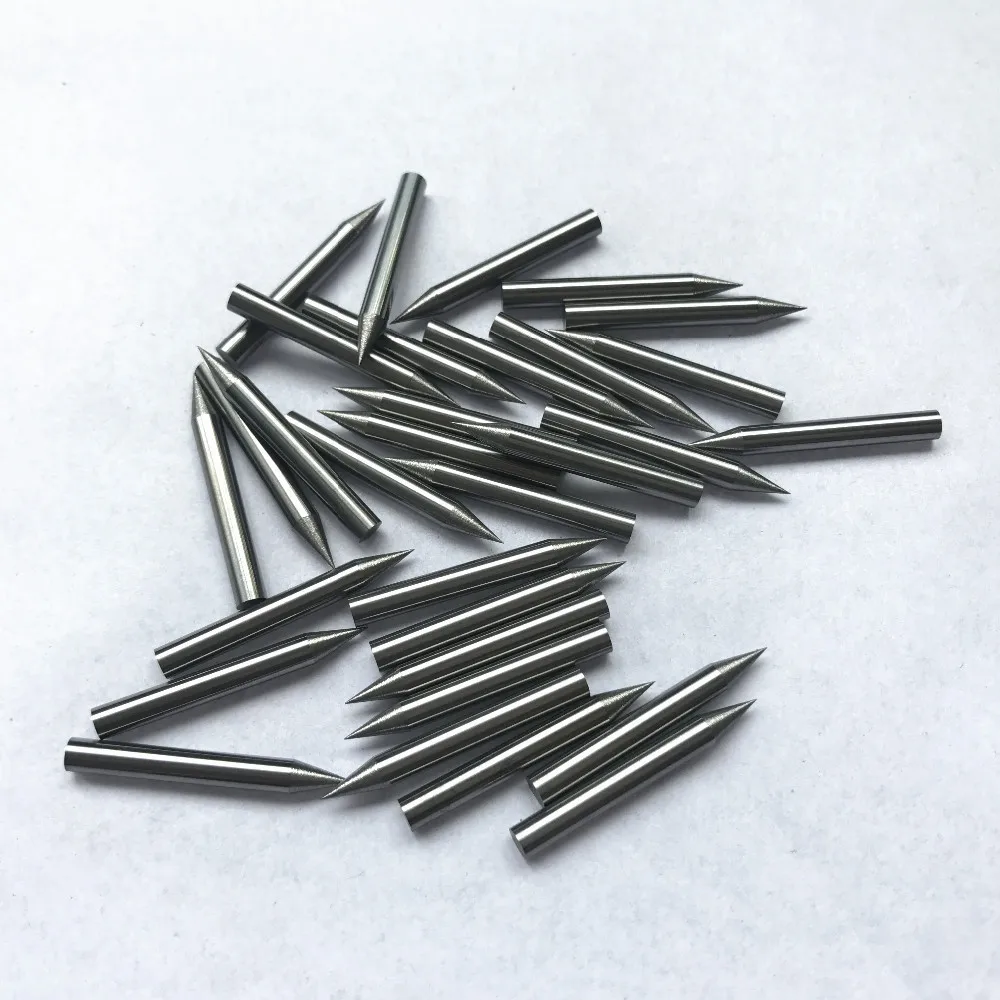

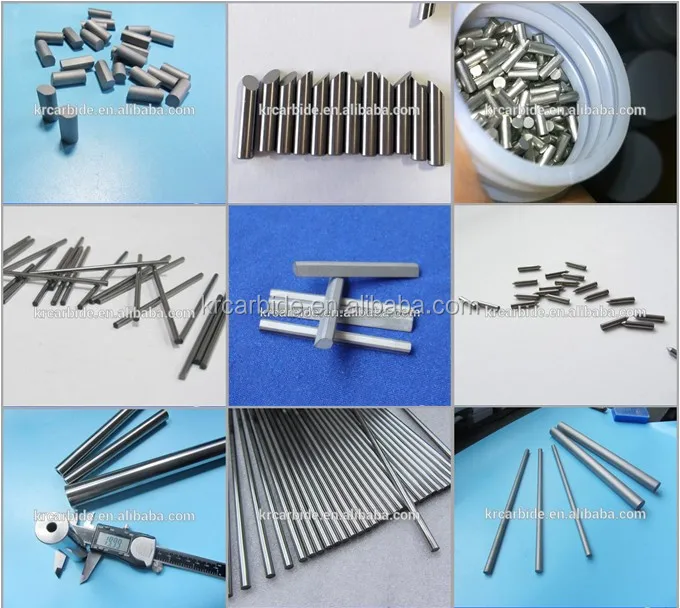

1.Details of our Replaceable of tungsten carbide tips, pins,needles,rods:



Grade: K10,K20,K30,YT10,YG12 upon your application.



Tungsten Carbide Physical Properties,

Hardness(HRA):92.5 Ra

Density:14.82 g/cc

Transverse Rupture(TRS):400KSI/400000PSI





American standard Type like: dia.1.5*7 ,2x10(Unit:mm)



Application:

Our carbide needles,pins are mainly used for Scriber,to carvin pins/engraving and sculpture for the machines.





2.Grade recommendation:

Grade	Grade	WC	Co	Others	Grain Size	Density	T.R.S	Hardness	Impact Strength  (Kgf-m/cm2)
Series		(+0.5%	(+0.5%)		(μm)	g/cm3	Mpa	HRA
Mining tool parts	YG4C	96	4		2.0~2.4	15.1	1800	90	0.35
	YG6	94	6		1.6~1.8	14.9	2100	90	0.4
	YG8	92	8		1.6~1.8	14.7	2400	89.5	0.42
	YG8C	91.7	8.3		2.0~2.4	14.7	2450	88.5	0.65
	YG9C	91.5	8.5		2.0~2.4	14.6	2450	87.8	0.66
	YG10C	89.5	10.5		2.0~2.4	14.4	2550	87	0.68
	YK25	88	12		2.0~2.4	14.5	2600	87.5	0.7
	YG11C	88.5	11.5		2.0~2.4	14.4	2600	87	0.71
	YG13C	87	13		2.0~2.4	14.2	2650	86.5	0.72
	YG15C	85	15		2.0~2.4	14	2700	86.5	0.75
	YG15	85	15		1.6~1.8	14	2500	87.5	0.58
General Grade	YG3	97	3		1.6~1.8	15.1	1400	90.5	0.2
	YG3X	96.7	3.3		1.0~1.2	15.2	1300	91.5	0.2
	-	93	7		1.2~1.6	14.7	1720	89.5	0.35
	YG11	89	11		1.6~1.8	14.4	2000	87.5	0.42
Saw Tips	K10	93.5	6.5		1.0~1.2	14.7	1900	92.5	0.33
	K30~K40	91	9		1.0~1.2	14.5	2200	91	0.35
	YG8X	91.5	8.5		1.0~1.2	14.4	2420	92	0.34
	K20	88	12		0.8	14.7	2000	91.2	0.34
	K20	89.5	10.5		1.0~1.2	14.8	2200	91	0.35
	K10	89.5	10.5		1.0~1.2	14.9	1890	91.5	0.35
	K10	94	6		1.2~1.6	14.9	2100	90	0.42
	K20	92	8		1.2~1.6	14.7	2400	89.5	0.45
	K20	91.7	8.3		2.0~2.4	14.7	2450	88.5	0.65
	K30~K40	91.5	8.5		2.0~2.4	14.6	2600	87	0.66
	-	88.5	11.5		2.0~2.4	14.4	2200	86.5	0.72
	K40	85	15		2.0~2.4	14	2700	86	0.75
Metal Forming Tools	YG6A	92	6	2	1.0~1.2	14.9	1850	92	0.35
	YG8	92	8		1.2~1.6	14.7	2400	89.5	0.42
	YG15	85	15		1.6~1.8	14.5	2500	87.5	0.58
	YG20	80	20		1.2~1.6	13.5	2800	85.5	0.62
	YS2T	88	12		0.8	14.5	2350	92	0.35
Disc Cutters	YG6A	91.5	8.5		1.0~1.2	14.9	1850	92	0.34
	-	92	8		1.0~1.2	14.8	2450	90.5	0.36
	YG8	92	8		1.2~1.6	14.8	2200	89.5	0.4
	YG8	91.7	8.3		1.6~1.8	14.7	2320	89.5	0.45
	YG10X	89.5	10.5		1.6~1.8	14.5	2200	91	0.48
	YS2T	87.4	10.2	2.4	1.0~1.2	14.5	2480	92	0.34
	-	87.4	10.2	2.4	0.8	14.3	2420	90	0.33
Impact Resistant Forging Tools	-	79	20.5	0.5	2.8~3.2	13.5	3000	83.5	0.9
	YG11	89	11		1.6~1.8	14.4	2420	88.5	0.42
	YG15	85	15		1.6~1.8	14	2500	87.5	0.58
	YG20	80	20		1.2~1.5	13.5	2800	85.5	0.62
	YG16C	84	16		2.0~2.4	13.9	2750	85.5	0.65
	YG18C	82.5	17.5		2.8~3.2	13.7	2800	84.5	0.75
	YG20C	79.5	20.5		2.8~3.2	13.5	2850	83.5	0.82
	YG22C	77.5	22.5		2.8~3.2	13.3	2900	83	0.85
	YG25C	75	25		2.8~3.2	13.1	2950	82.5	0.85
	YG26	73	26.5	0.5	2.8~3.2	13.3	3200	82	0.9
Inserts	YT5	75	9.3	15.7	1.6~1.8	12.9	1560	89.5	0.3
	YT14	56.5	8.2	35.3	1.6~1.8	11.4	1400	90.5	0.3
	YT15	54.2	6.1	39.7	1.0~1.2	11.2	1300	91	0.2
	YW1	77.5	6.2	16.3	1.0~1.2	13.2	1290	91.5	0.2
	YW2	75.5	8.2	16.3	1.0~1.2	13.1	1460	90.5	0.2
	YS25	45.2	8.6	46.2	1.0~1.2	13	1780	90.5	0.25
	YC45	70.8	12	17.2	1.0~1.2	13	1650	90	0.25







3.Advantages of our Replaceable of tungsten carbide scriber, Carbide tip in Grade K10:



1. produced with advanced equipments and process;
2. all products go through in-process and final inspection;
3. free online technical service available;
4. stable and continuous production ability.

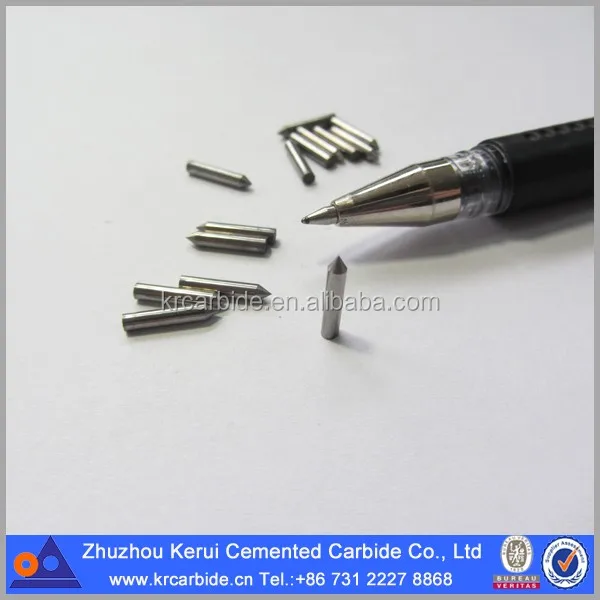

5.Here with American standard type dia.1.5*7mm that with good performance in the Grade YG12.



4.Our Main Market:

North America: USA, Canada, Mexico

South America: Brazil, Peru, Chile

Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany

Mid East: Egypt, Turkey, Lebanon

Africa: Kenya, South Africa

5.Packing & Transportation:







6.Quality control equipment:



1. All raw materials are tested in terms of density, hardness and T.R.S before use.

2. Every piece of product goes through in-process and final inspection.

3. Every batch of product can be traced.



We are Guarantee: Full payment refund if any quality problem.





7.About Us:

Zhuzhou kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer located in Zhuzhou City, the world-renowned research and production base of tungsten carbide.  Having been involved in this field for over 10 years.

We have rich experience in both production and research of carbide products.

We always want develop long relationship with customers, you can find the best quality and price here, also the best service here, it will be very simple and easy for you do business with us, that's why we can be the supplier which you can trust.





TUV & BV Certificate:



8.FAQ:

1. How to make an inquiry?

Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.

Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.



2. What’s your MOQ?

Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below

50kg or 2000USD.



3. What’s your delivery time?

For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to

push the production and shorten the delivery time.
