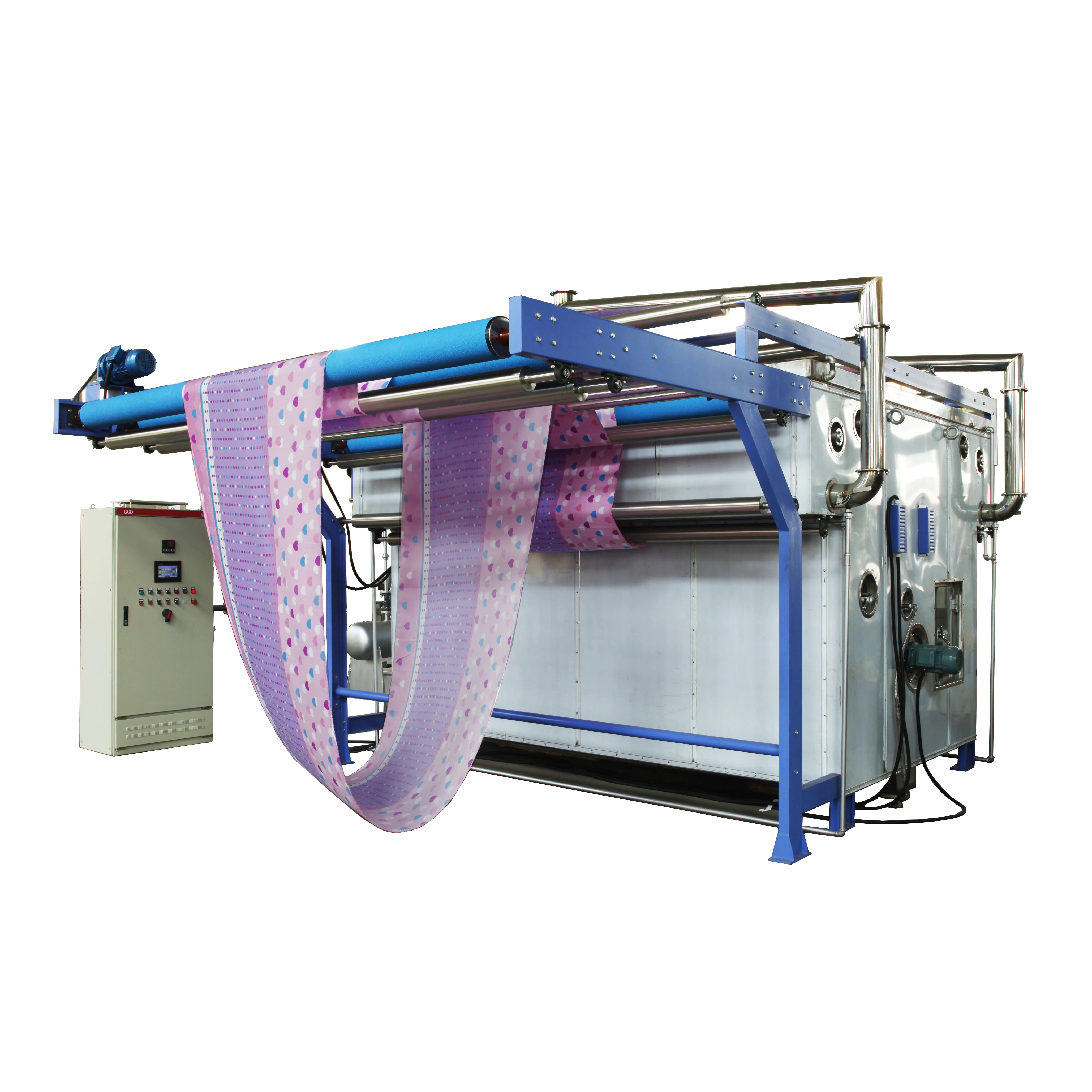

Textile post treatment loop steamer machine for digital cotton, silk prints

This machine is special designed to cure color on fabric for small batch digital textile direct printing machine.  Especially best match to silk or cotton inkjet textile direct printer. Though this machine is small comparing to conventional color curing steaming machine, it got absolute same function. The whole steaming box body is built by SUS304 stainless steel. Automatic humidification system and in-box circulation system make the humidity and temperature stable which is the key point to make color shade the same in color curing process.

Textile post treatment loop steamer machine specification
Fabric capacity	40 meters
Fabric width	1600mm
Mechanical speed	0.1-4m/min
Loop length	1300mm
Steaming temperature	100-105℃
Heating power rate	36 KW
Motor power rate	15.8 KW
Power supply requirement	3 phase, 380V,50Hz
Minimum steam supply	0.6MPa

Main Features

1) Good match to small batch digital printing machine for textiles and fabrics.

2) Adopting advanced world famous brand components in electric parts and operation parts like Simens, Schneider.

3) Whole SUS304 stainless steel made to meet high-end digital printing market.

4) Automatic humidification system to make sure the humidity requirement in the color curing process.

5) In-box Circulation system make sure the stable temperature in every corner of the machine in curing procedure.

Certifications

Detailed Images

Machine Parts

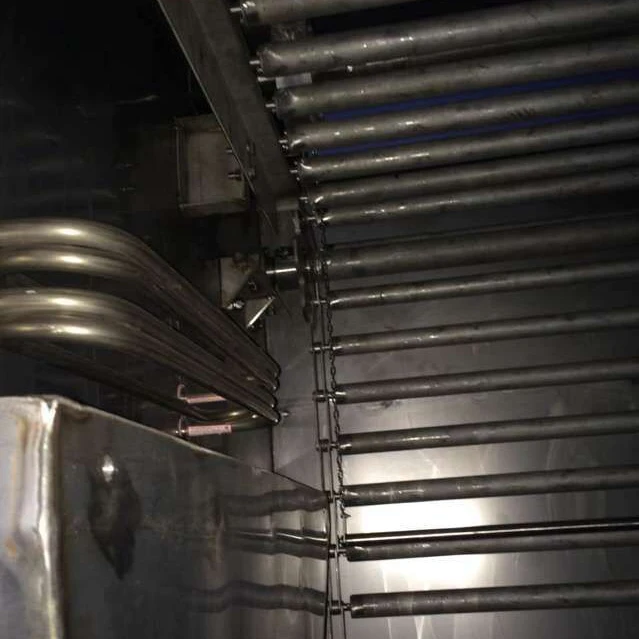

Heating units and circulation system ensuring the humidity and temperature stable in steaming box which are key important issues to remain the same color shade in fabric color fixation process.

Main Features

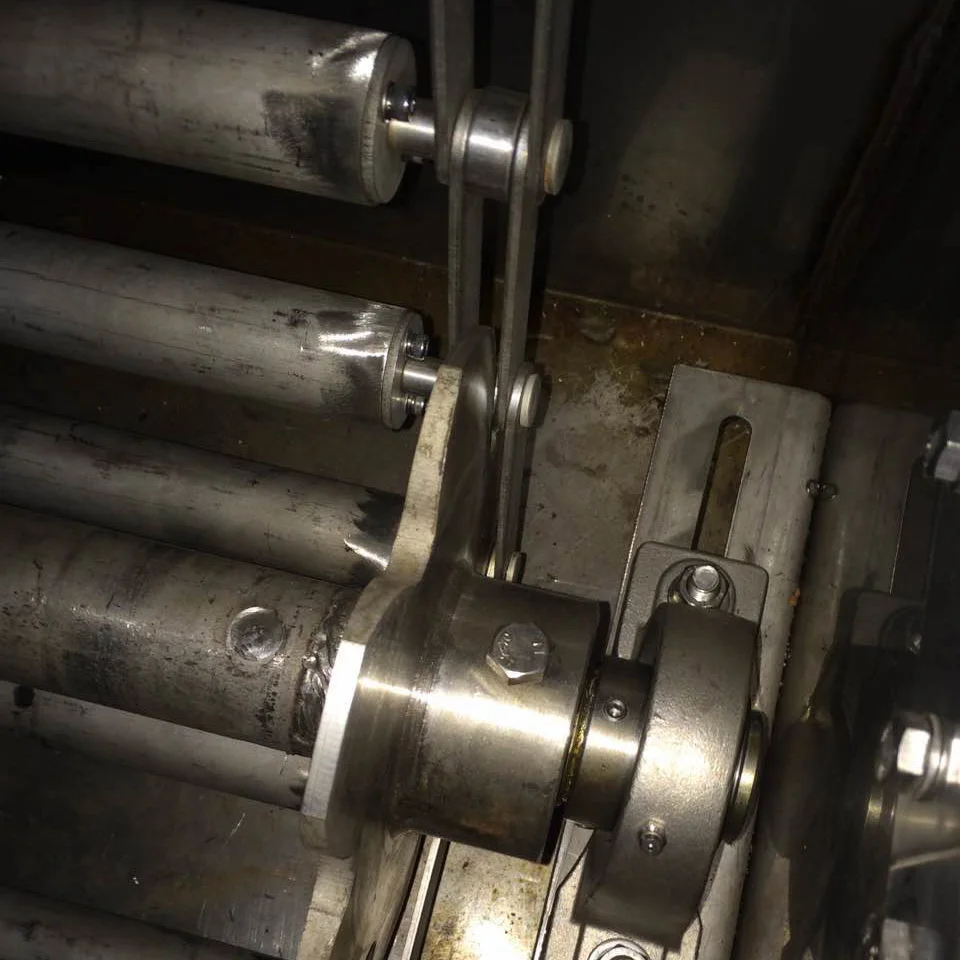

Whole Sus304 stainless steel made parts to ensure the digital prints clean without iron stain. Even the screw and bearings are all made by sus304 stainless steel.

Machine Parts

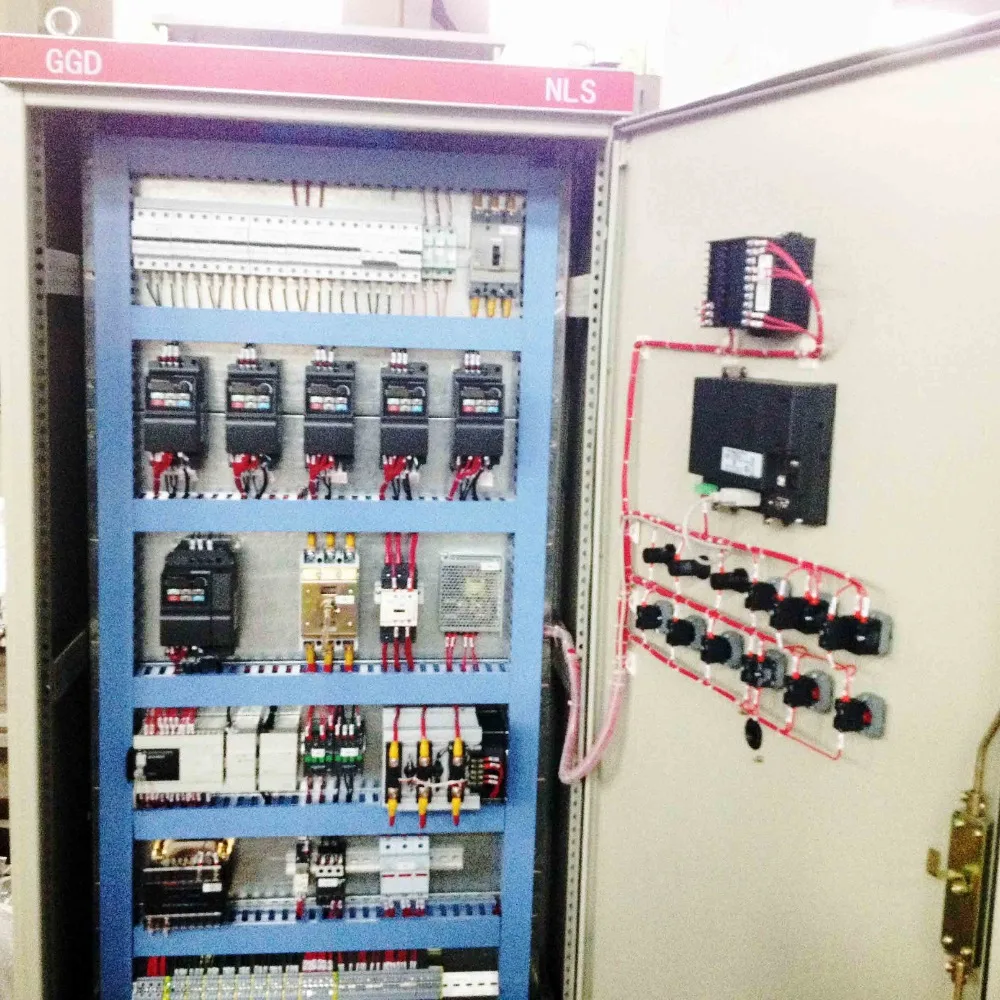

Orderly arranged distribution box. All Electrical parts are using the Schneider Electric parts. It is safe, long life span and easily get everywhere in the world.

Main Features

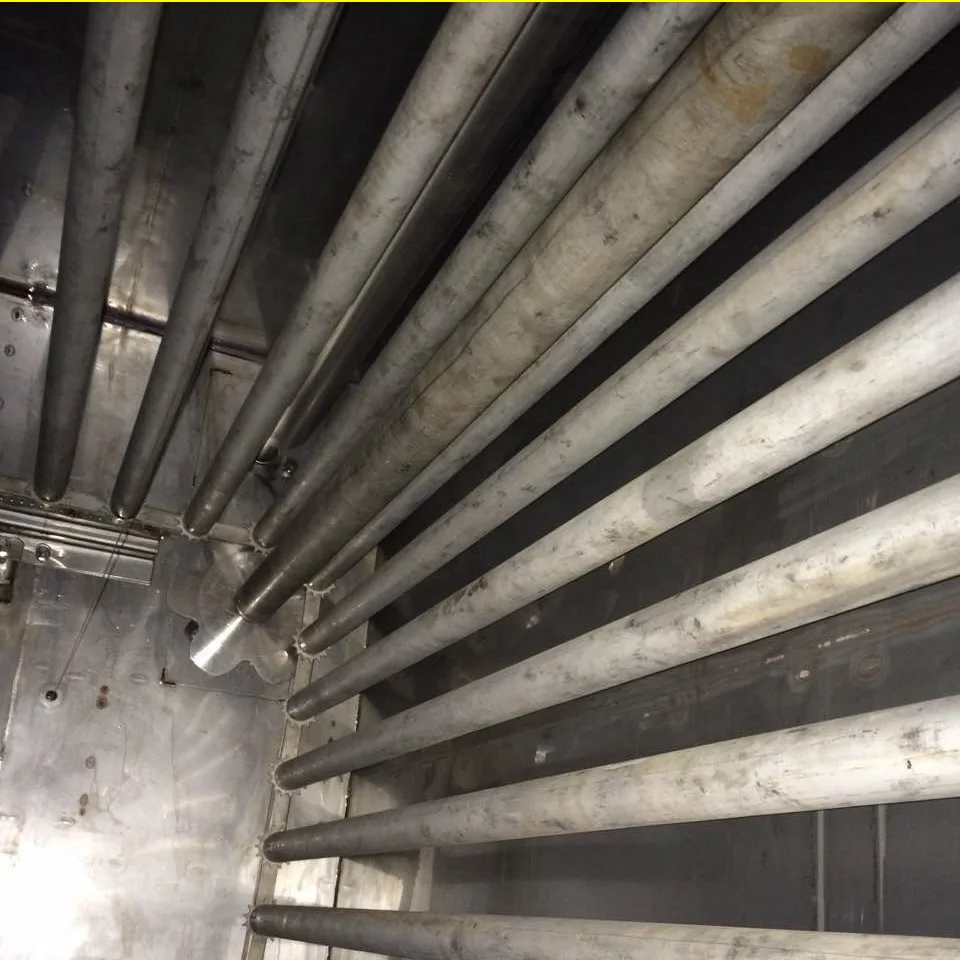

Anti-slip SUS304 stainless steel fabric hanging rod to replace the old silicon wrapped fabric hanging rod. Tremendously increased the product life-span. The hanging rod with silicon layer got easily aging problem in the wet and high temperature environment.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* End-user Factory visiting.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	3300 (L) * 2900 (W) * 3150 (D)
Weight	5.1MT
Packaging Details	The normal package Textile post treatment loop steamer machine is wooden box(Size: L3300*W2900*H3150).
