 CNG dispenser Coriolis mass flow meter

Introduction of CNG mass flow meter

Mass flowmeter consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flowmeter does not have such problem.



Operating principle of CNG mass flow meter

Mass flowmeter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.



Sealand CNG-015 mass flow meter

Sealand CNG-015 Compressed Natural Gas meters are specifically designed for the CNG fuel

dispensing industry to meet the challenges of measuring compressed natural gas for custody

transfer. With worldwide installations, the CNG-015 is the preferred meter of the leading CNG

dispensing equipment manufacturers.



Feartures:

*Reduced fill time with higher flow rate capacity

*Compact design with no moving parts, no special mounting and no flow conditioning required

*Fast delivery and global support

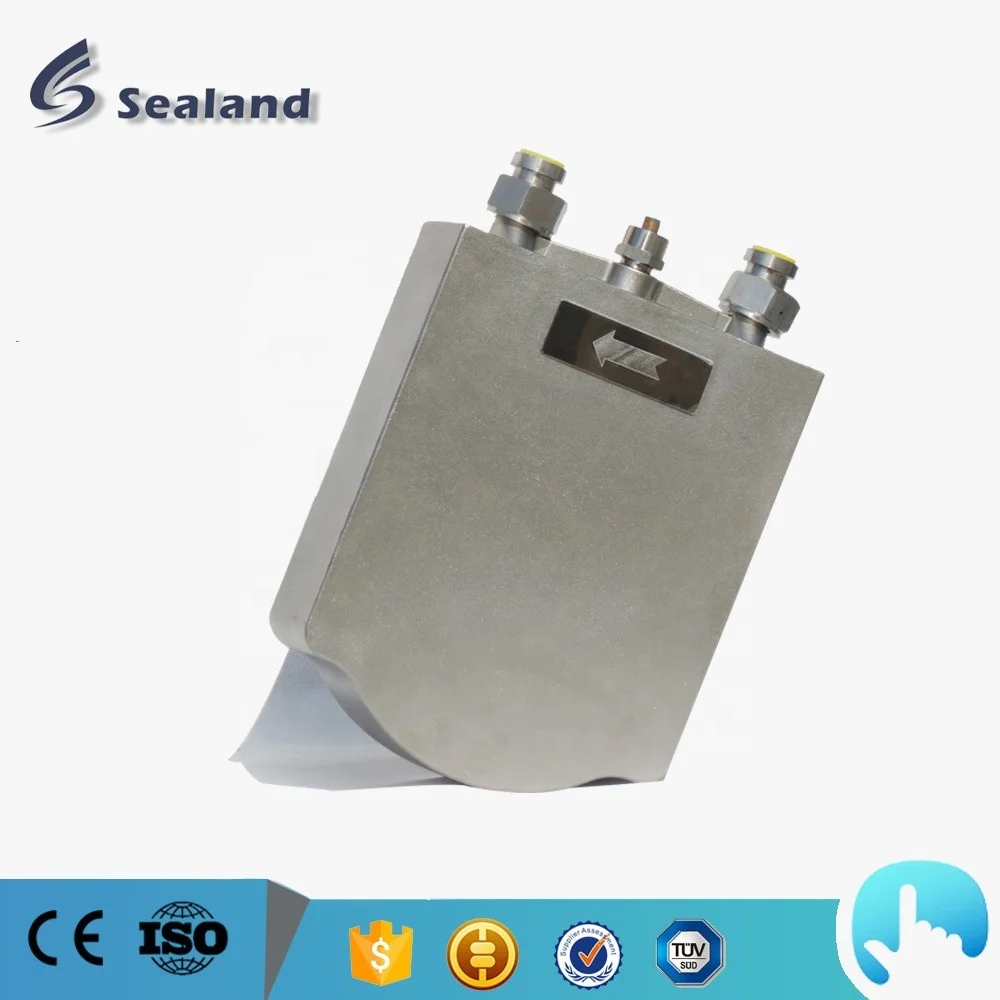

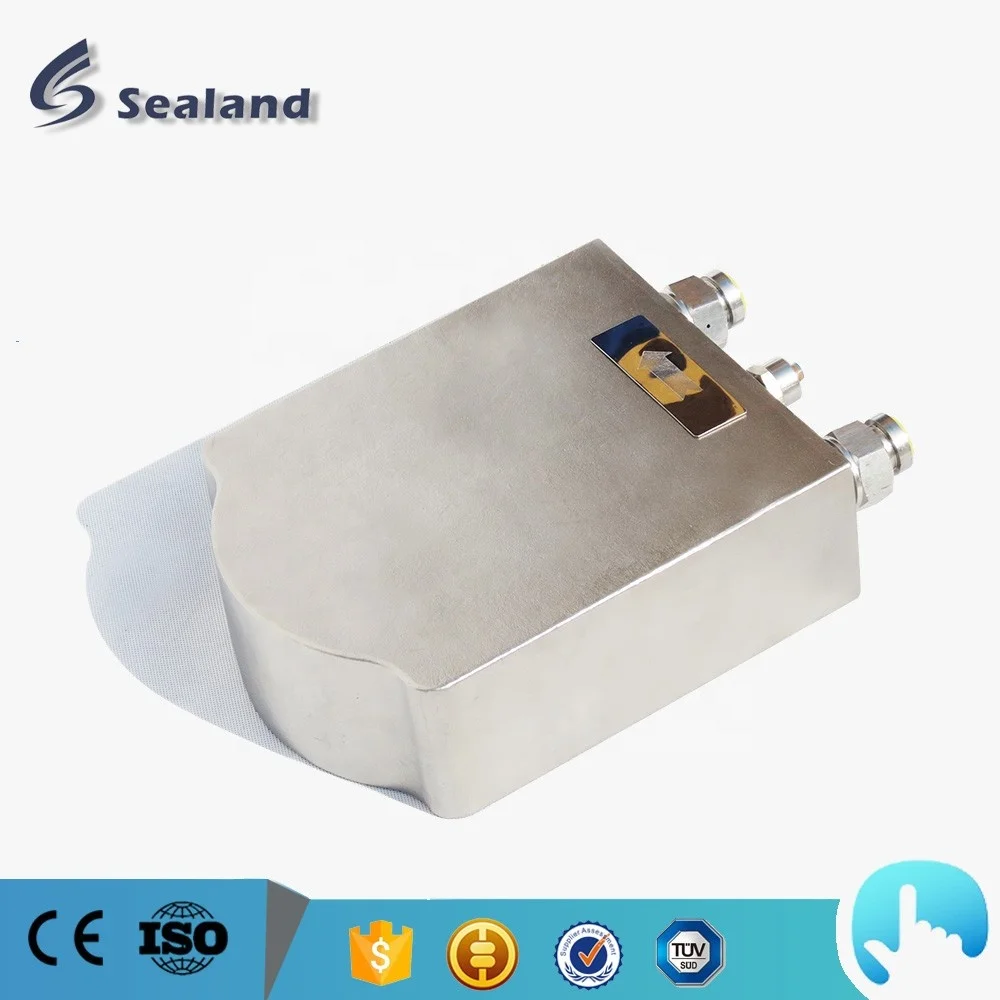

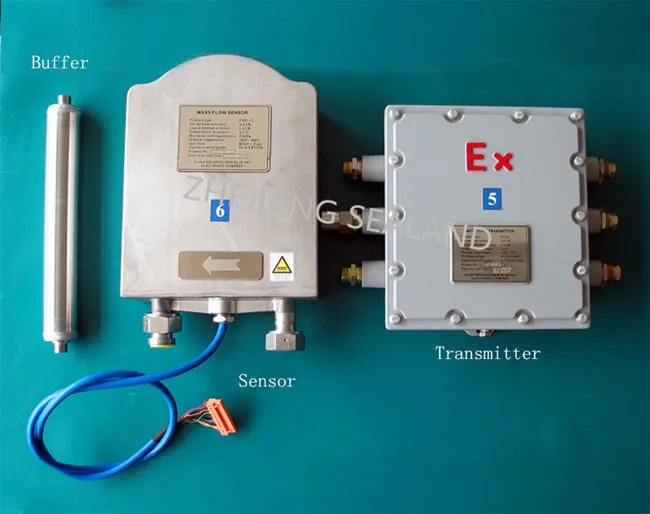

Pictures of CNG mass flow meter

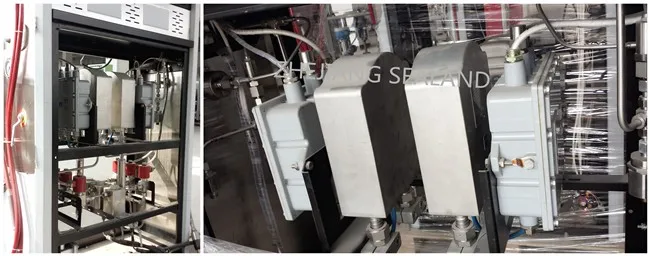

Application of CNG mass flow meter(CNG dispenser)



Specifications of CNG mass flow sensor

Specifications of mass flow sensor
Gas accuracy	±0.5%
Liquid accuracy	±0.2%
Temp. accuracy	±1°C
Loss of pressure	≤0.2MPa
MWP	25MPa
Temp. rating	-50°C~+200°C
Connector	Nut M32 x 1.5
Ex-proof grade	Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb



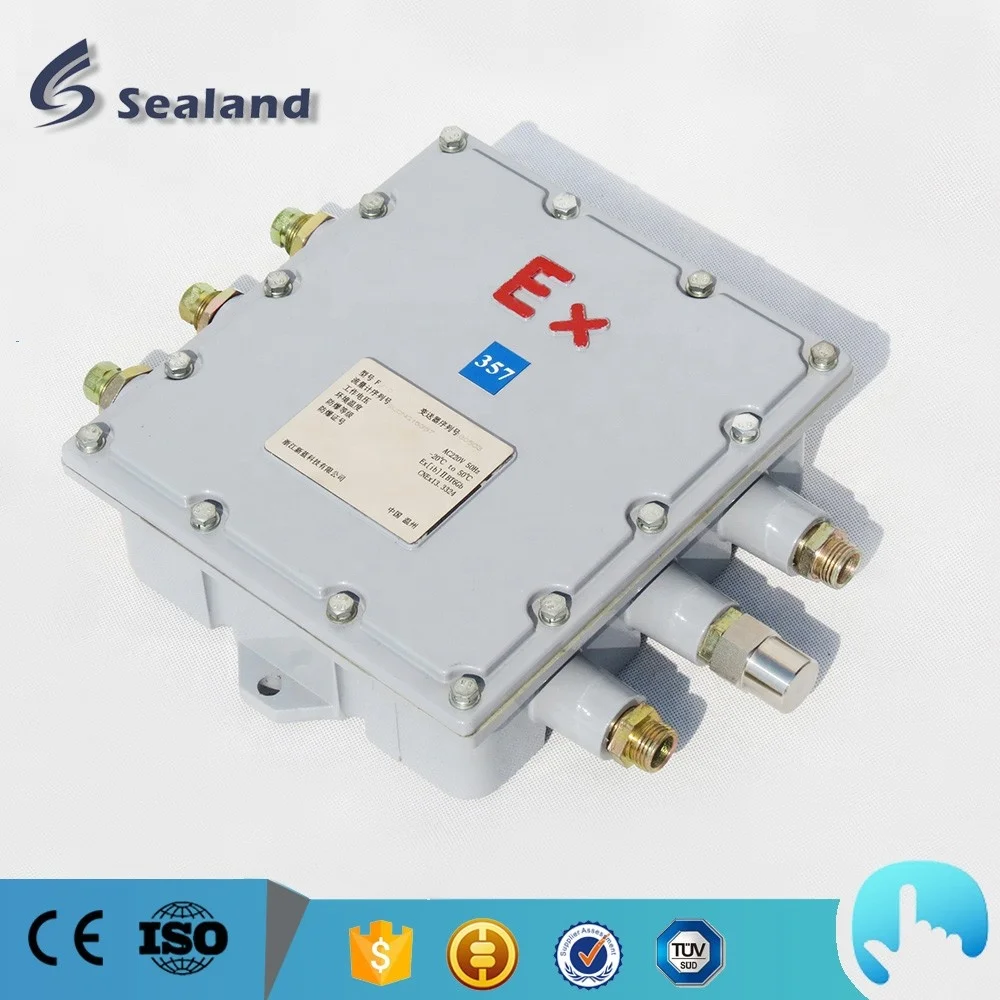

Specifications of CNG mass flow transmitter

Specifications of mass flow transmitter
Temp. rating	-30°C~+60°C
RH	≤95%, not condensed
Atmospheric Pressure	86~106 kPa
Operating voltage	AC220V/50Hz, DC24/50Hz
Communication port	RS485 Modbus RTU
Ex-proof grade	Exd[ib]IIBT4Gb



Specifications of CNG mass flow meter

Specifications of mass flow meter
Model no.	CNG-15
Mass accuracy grade	0.2
Temperature accuracy	±1°C
Zero stability	0.009kg/min
Repeatability	0.25%
Max. flowrate	20kg/min
Nominal diameter	15mm( 1/2 inch)
Fluid temperature	-200~200°C
Material of tube	Stainless steel 316L
Packing	1set/carton or wooden case
Warranty	2 years
Package size	630*630*580mm
G.W.	19.66kgs

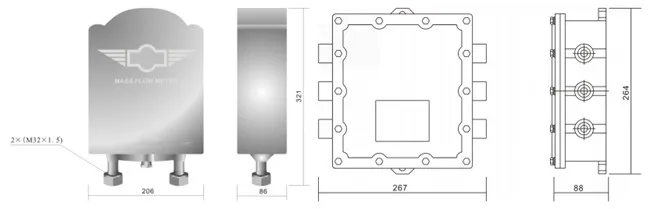

Dimension of mass CNG flow meter & transmitter





Advantages of CNG mass flow meter



1. High reliability



2. It requires low maintenance, because of no movable parts.



3. High accuracy: Generally, it is from 0.15%-0.3%.



4. It is not affected by the fluid, saving the design & installation cost.



5. It shows many parameter simultaneously, such as mass flow, temperature, density, etc.



6. Convenient installation: Generally, there is no specific requirement of choosing upstream or downstream pipe.



7. Wide application: Besides the common fluid, the mass flowmeter can measure other industrial media, such

     as non-Newtonian fluid, all kinds of slurry, suspensions, etc.

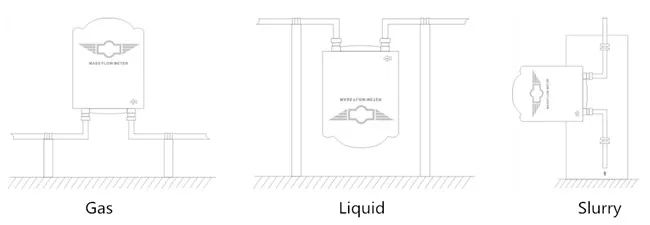

Installation of CNG mass flow meter

It is highly recommended to install as follows, for different fluid.

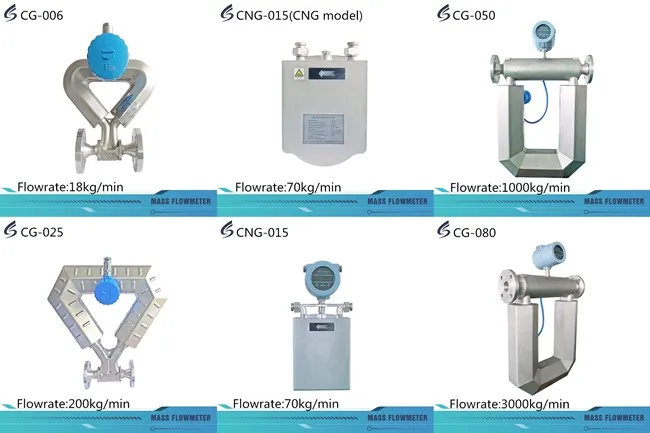

Related products: Mass flow meter CG-006, CG-025, CG-050, CG-080, read more!



Production process of CNG mass flow meter

1. Bend vibrating tubes with bending machine

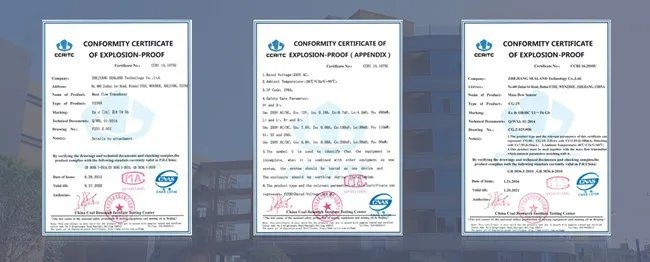

Certificate of CNG mass flow meter







Sealand profile

We are professional manufacturer of CNG mass flowmeter, mass flow meter, Coriolis mass flowmeter,

Coriolis mass flow meter, Coriolis  flowmeter, Coriolis flow meter. Read more!





Why Sealand?



As a professional and experienced manufacturer, Sealand has the following advantages.

1. Research & Development

• Sealand has a professional R & D team, composed of famous senior technical engineers, as counselor, and many other young staff.
• After years of development and design, Sealand mass flowmeter has made progress in both appearance and technology, meeting the market requirement now and in future.
• Sealand has been always dedicated itself to field study of mass flowmeter, to make sure the meter works fine under different conditions, and different industries.

2. Production

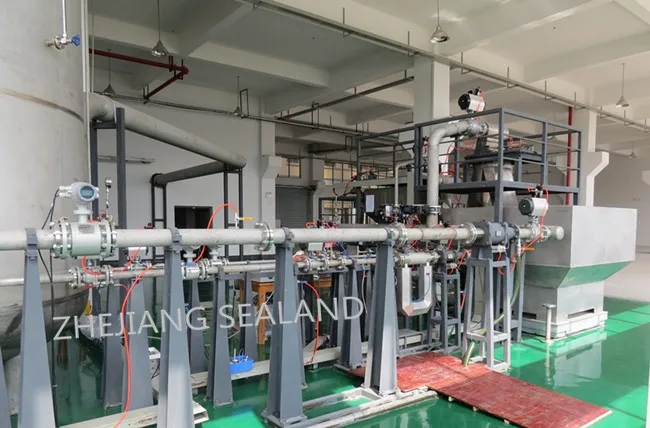

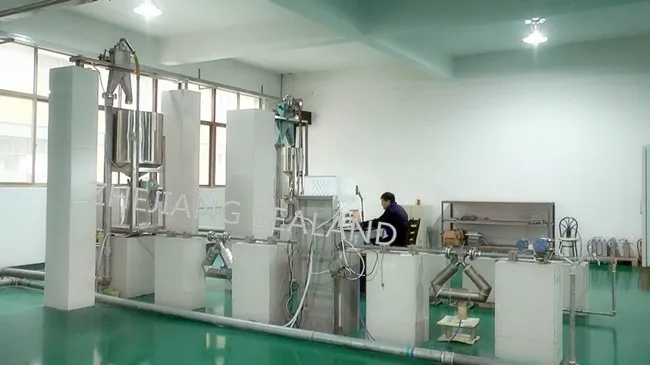

• The workshop is equipped with advanced production and test facilities, clean and tidy. All members should wear shoe covers before entrance.
• Having worked in Sealand for years, the production-line workers are of rich experience. Also Sealand provides them with professional training before work, to guarantee the product is well processed.
• With the help of production manager, the workers are efficient. Generally, the lead time is 15 days.

3. Quality control

• Raw material will be tested before usage. Only qualified one can be sent to the warehouse.
• The semi-finished product will be tested by professional staff with advance equipment, after each process.
• The finished product will be tested thoroughly once again before packing.
• After packing, the package will be tested again.
• Regular maintenance will be conducted for production equipment periodically.

 4. Certification

• Sealand has obtained Certificate of Quality System ISO9001, and all products are Certificate of Explosion-proof and Certificate of Metrology approved.

5. Delivery

We cooperate with primary forwarder company.

• The company is one of the most experienced in China. They’ve been in this business for decades.
• They directly sign the contract with CSCL, MSK, OOCL, CMA, EMC, PIL and other shipping companies, so it is much easily and convenient for us to ship the goods.
• They can send the good by sea, air or land; no matter what the quantity is, they can always find the best way to send the goods.
• The freight is more reasonable, since they get the quotation from the shipping company directly.

6. Sales

    All our salesmen are college graduates, from International Trade Major.

• They know the mass flowmeter very well. All salesmen studied in the workshop for at least 6 months before service.
• They are experienced in international trade, including rules, documents, etc. With theoretical knowledge learned in college, they have worked for years in Sealand, and handled many cases.
• They are skilled at office software, such word, excel, ppt. All documents offered to customer are professional and standard.
• They are good at English, both oral and writing. There is no problem about understanding. They will release your order to the production dept.exactly as you required.

7. After-sales service

• Common problems will be processed within 12 hours.
• Professional advice and technical support is available.
• The warranty is 2 years after the shipping date. During this period of time, we will offer you free parts for maintenance, or sent technician directly to your site if necessary.
